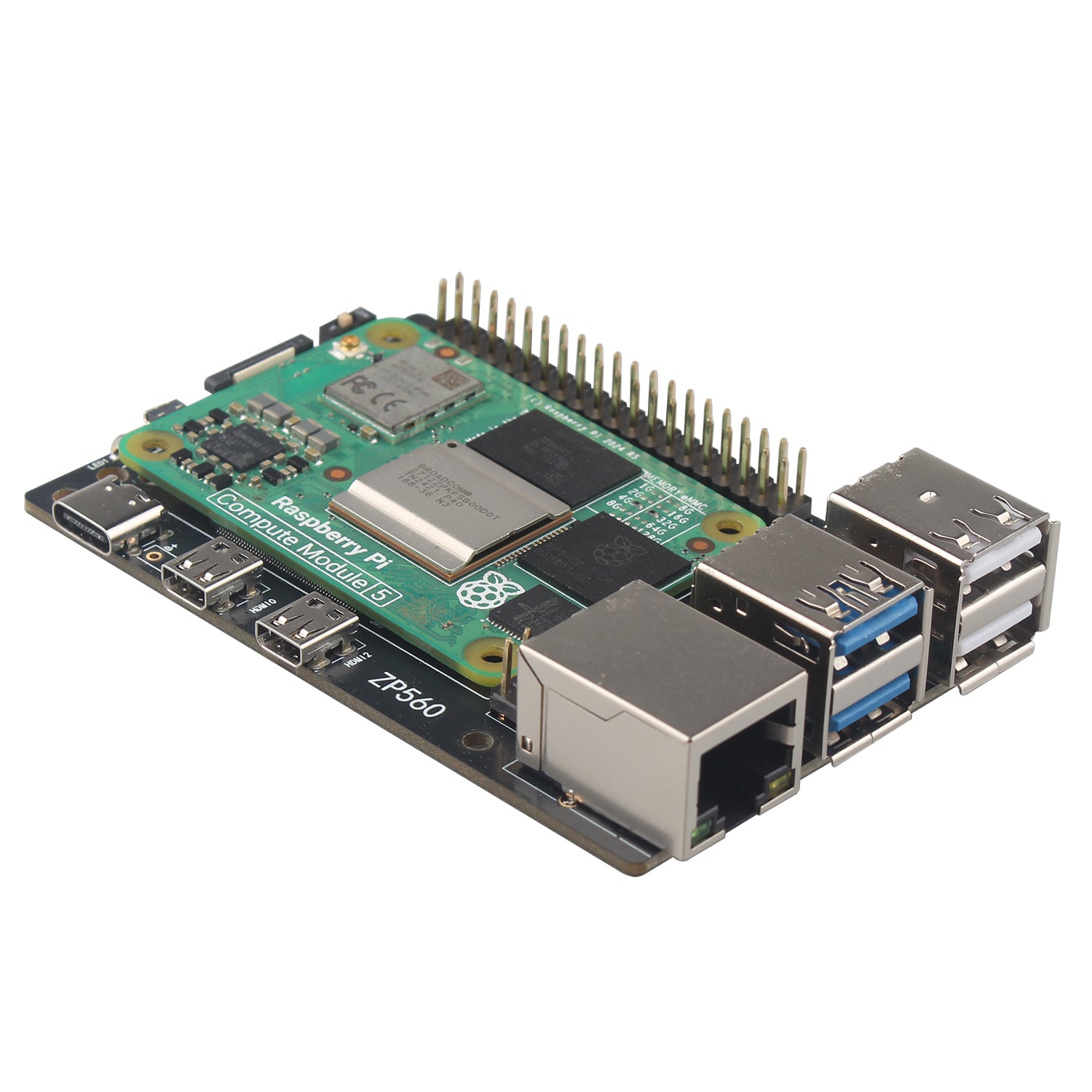

ZDE ZP560 Compute Module 5 IO Carrier Board for Raspberry Pi Compute Module 5, Development Board Support Pi 5 Case, M.2 HAT, PCIe HAT, NVMe HAT, PoE+/PoE HAT, WiFi HAT, Ethernet HAT, AI HAT, etc
ZDE ZP560 Compute Module 5 IO Carrier Board for Raspberry Pi Compute Module 5, Development Board Support Pi 5 Case, M.2 HAT, PCIe HAT, NVMe HAT, PoE+/PoE HAT, WiFi HAT, Ethernet HAT, AI HAT, etc
No reviews
Regular price
$100.00
Regular price
Sale price
$100.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features:

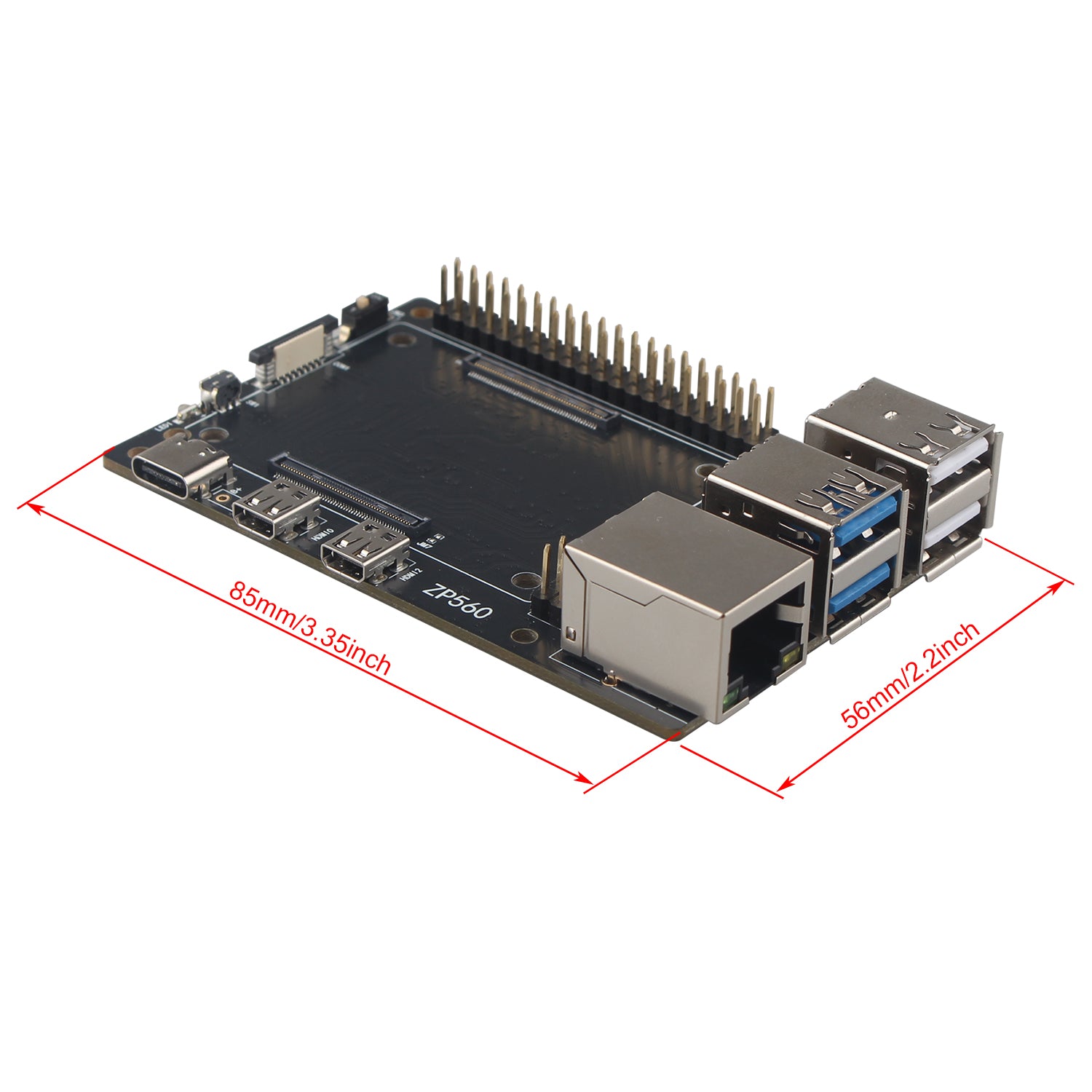

The ZP560 IO board is compatible with the size and functions of Raspberry Pi 5. There are many Raspberry Pi 5 peripheral accessories, but CM5 peripheral accessories are less. For some customers who like CM5, after using the ZP560 IO board to install CM5, you can use Raspberry Pi 5 peripheral accessories, such as M.2 HAT, PCIe HAT, NVMe HAT, PoE+/PoE HAT, WiFi HAT, Ethernet HAT, AI HAT, etc. It’s also perfectly compatible with Raspberry Pi 5 case, which brings great convenience to CM5 customers.

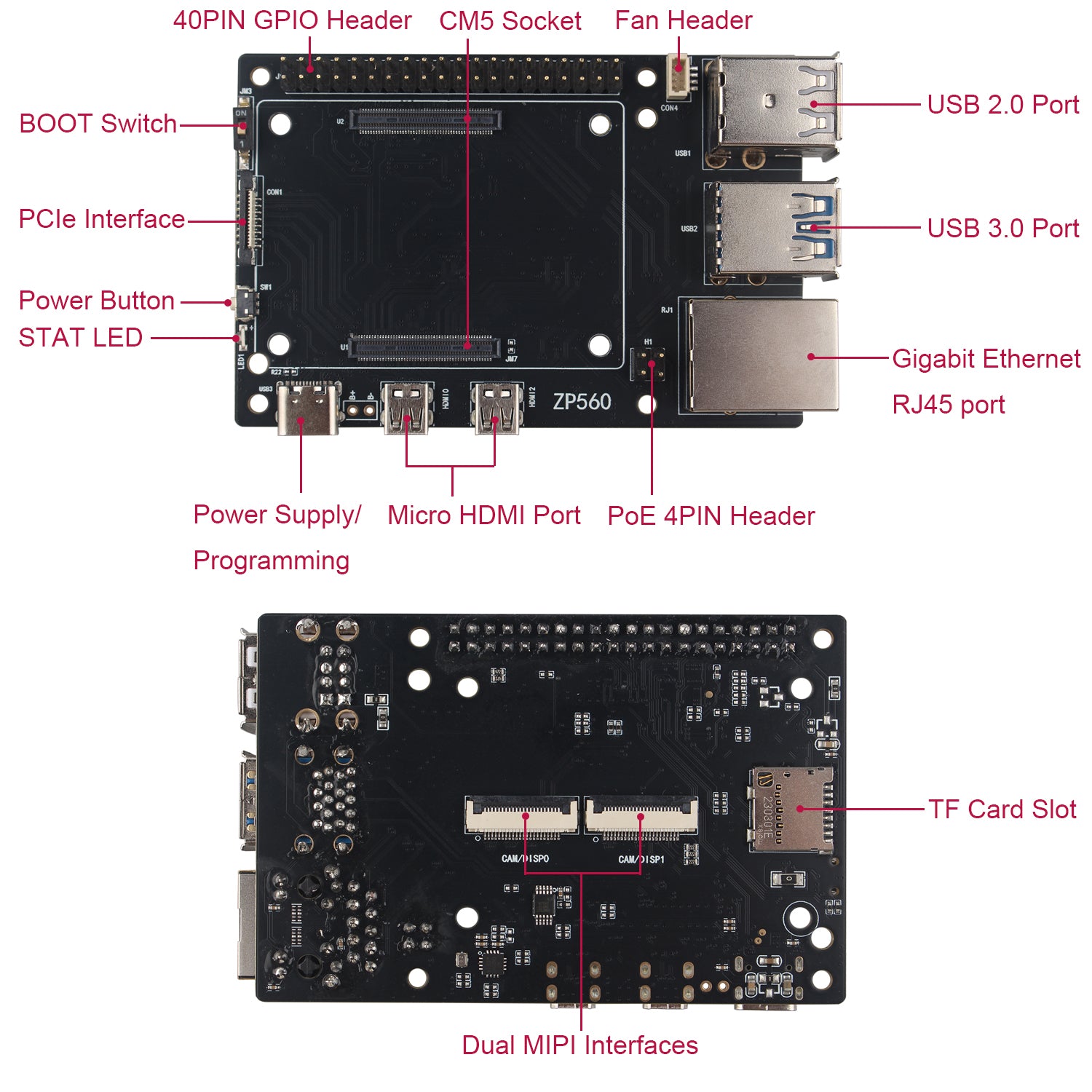

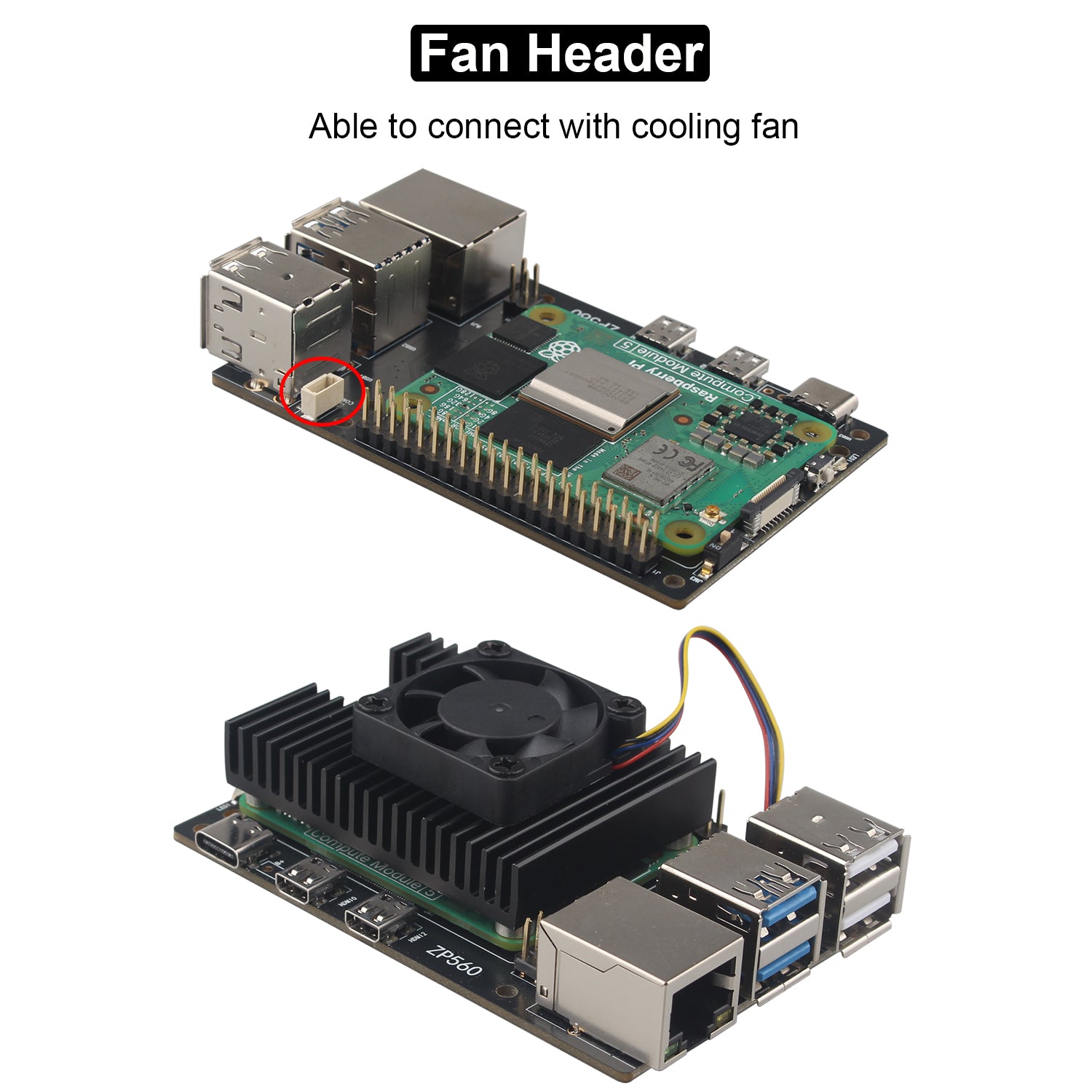

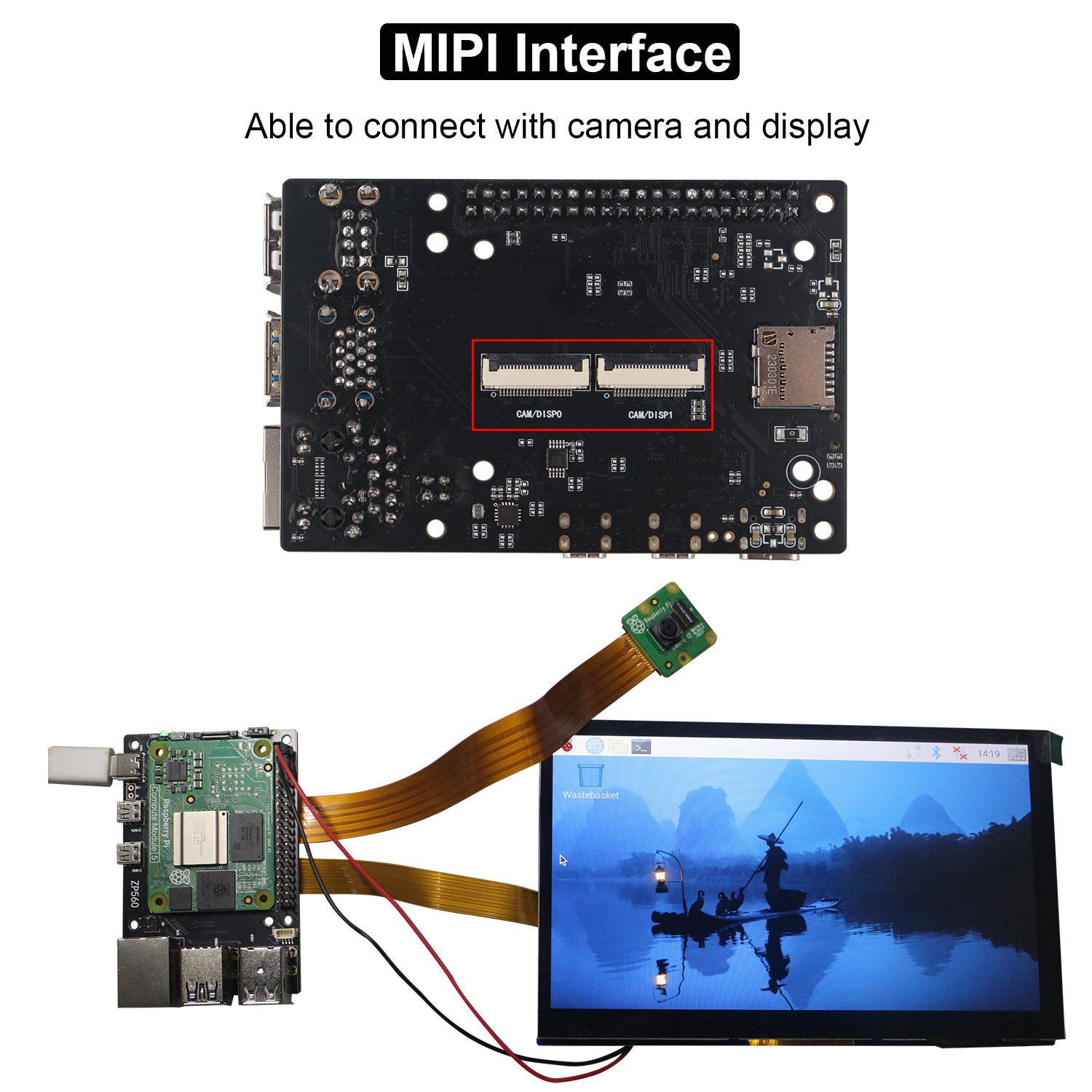

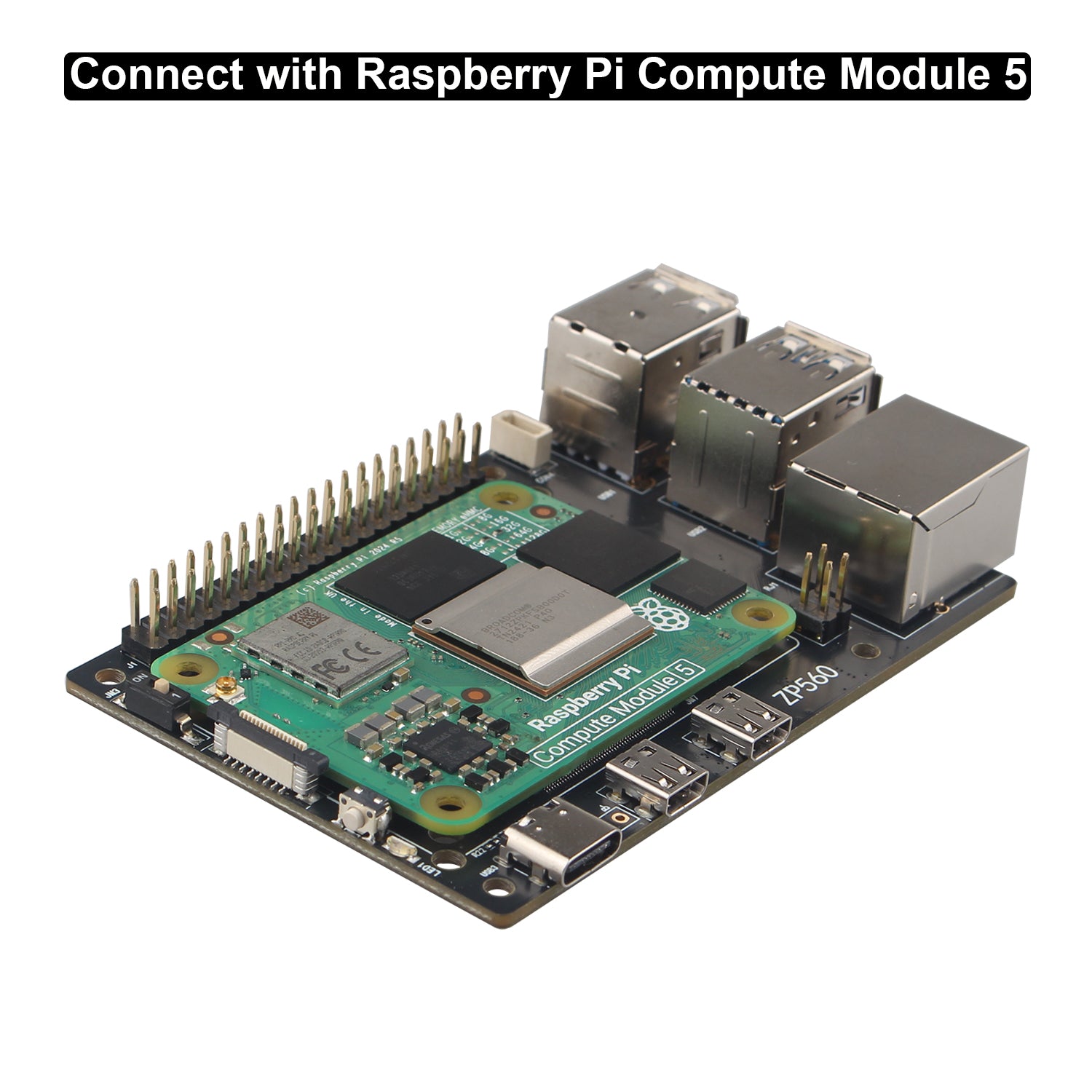

IO Carrier board for Raspberry Pi Compute Module 5 Lite/eMMC series module, with onboard CM5 socket, Gigabit Ethernet RJ45 port, 16PIN PCIe, 40PIN GPIO header, USB 3.2 Gen1 × 2, USB 2.0 × 2, 4-lane MIPI interface × 2, Micro HDMI port × 2, PoE 4PIN header, TF card slot, Fan Header, etc.

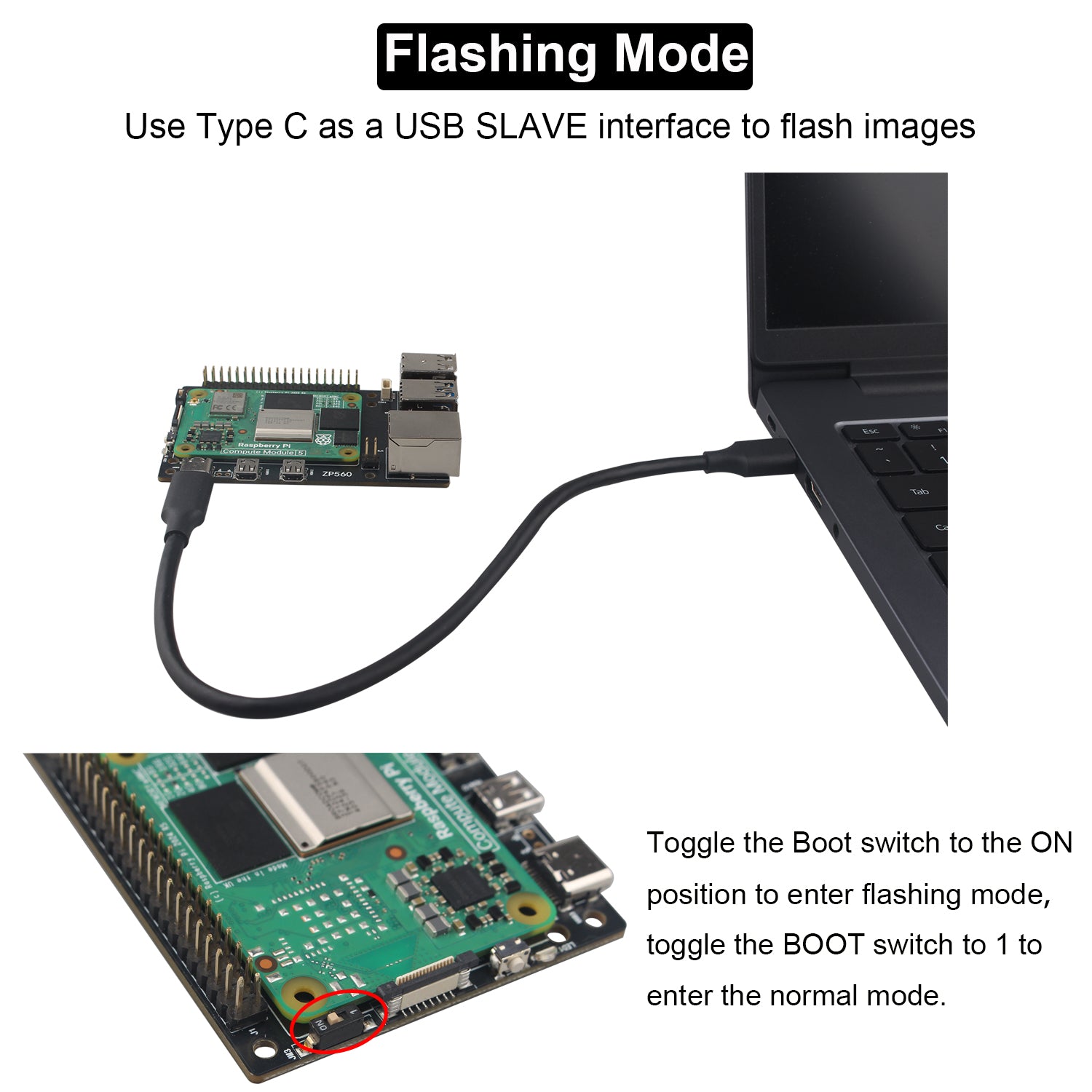

We can use Type C as a USB SLAVE interface to flash images. Note not to connect other devices when using Type C for flashing. Please use high quality power supply, power supply with a lower output voltage for flashing will cause the device to be unrecognized.
Onboard BOOT switch, toggle the BOOT switch to ON and connect to the computer through Type C to let the device enter the flashing mode; toggle the BOOT switch to 1 to enter the normal mode.
Compatibility:
The ZP560 IO board is compatible with our Aluminum Case, NVMe HAT, PoE+ HAT, WiFi HAT, Ethernet HAT, Active Cooler and Heatsink.
Aluminum Case: ZC501 (ASIN: B0DSZYLMSS), ZC502 (ASIN: B0F2995JCY), ZC506 (ASIN: B0F93SQ67G).
NVMe HAT: ZP511 (ASIN: B0CZ6NWXYL), ZP515 (ASIN: B0CYWFGKDB), ZP517A (ASIN: B0D1QYDJJJ), ZP518 (ASIN: B0F2974W33), ZP519 (ASIN: B0F299Y72Y).
PoE+ HAT: ZP580 (ASIN: B0D7VTH1HX), ZP581 (ASIN: B0DNJDMW7V), ZP583 (ASIN: B0DYDR89GC).
WiFi HAT: ZP590A (ASIN: B0D78TWCB9), ZP590B (ASIN: B0D78V96R4).
Ethernet HAT: ZP591 (ASIN: B0FDGMQS95), ZP593 (ASIN: B0DQ8C1PBD), ZP595 (ASIN: B0DQ8BLD6L), ZP596 (ASIN: B0FHW9FXT2), ZP597 (ASIN: B0FHWCBF7F), ZP598 (ASIN: B0FQ1F1YSQ).
Heatsink: ZC503 (ASIN: B0DSZRWCCK), ZC505 (ASIN: B0DT12D9F3).
Packing List:
1 x ZP560 IO Board
