ZDE ZP581 PoE+ HAT PCIe to M.2 Key M NVMe SSD Adapter Board with Aluminum Case ZC501 for Raspberry Pi 5 Support 802.3af/at Network Standard M.2 NVMe SSD 2230 2242 2280

Features:

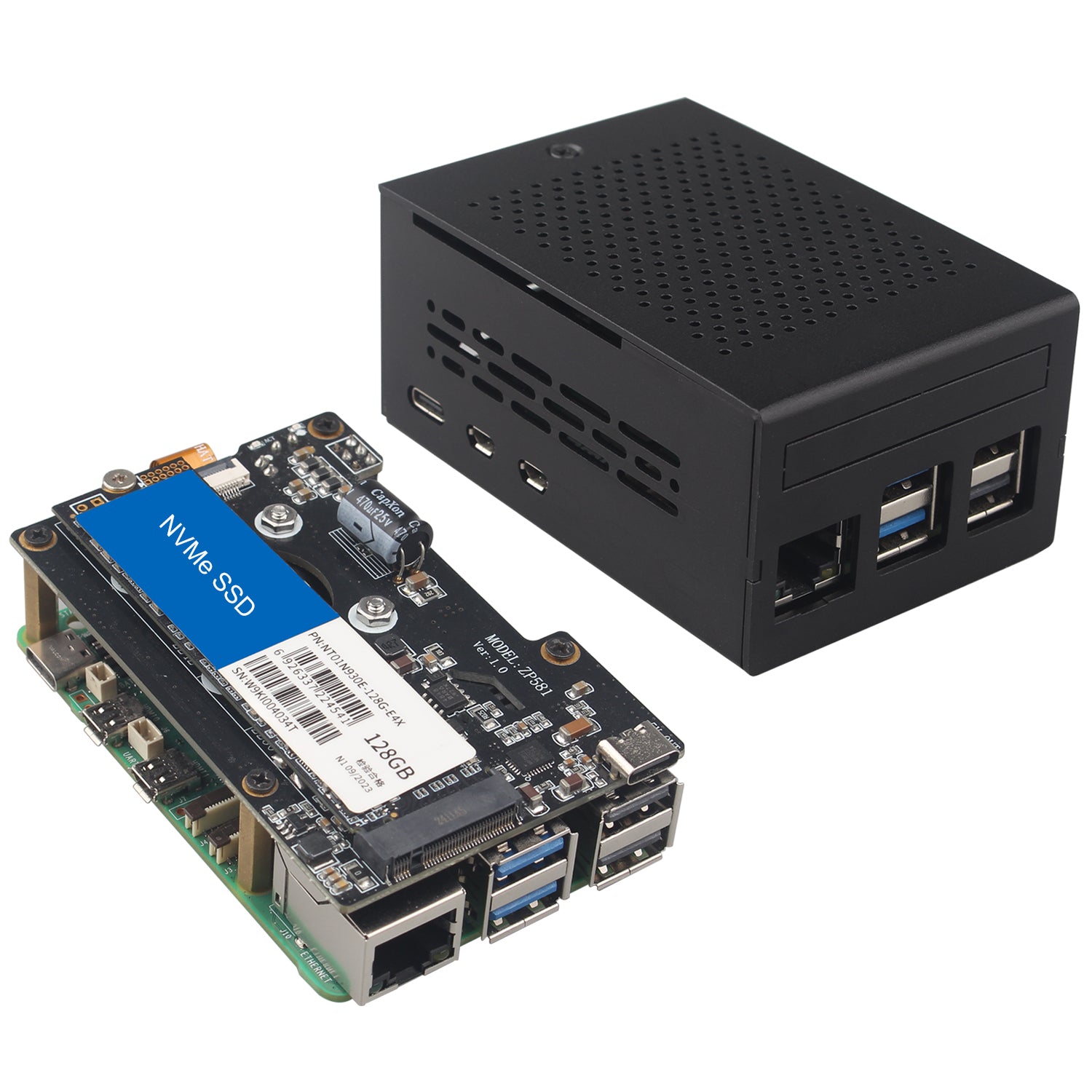

This kit includes a ZP581 PoE+ HAT and a ZC501 Aluminum Case. It is compatible with the Raspberry Pi 5 2GB/4GB/8GB/16GB board.

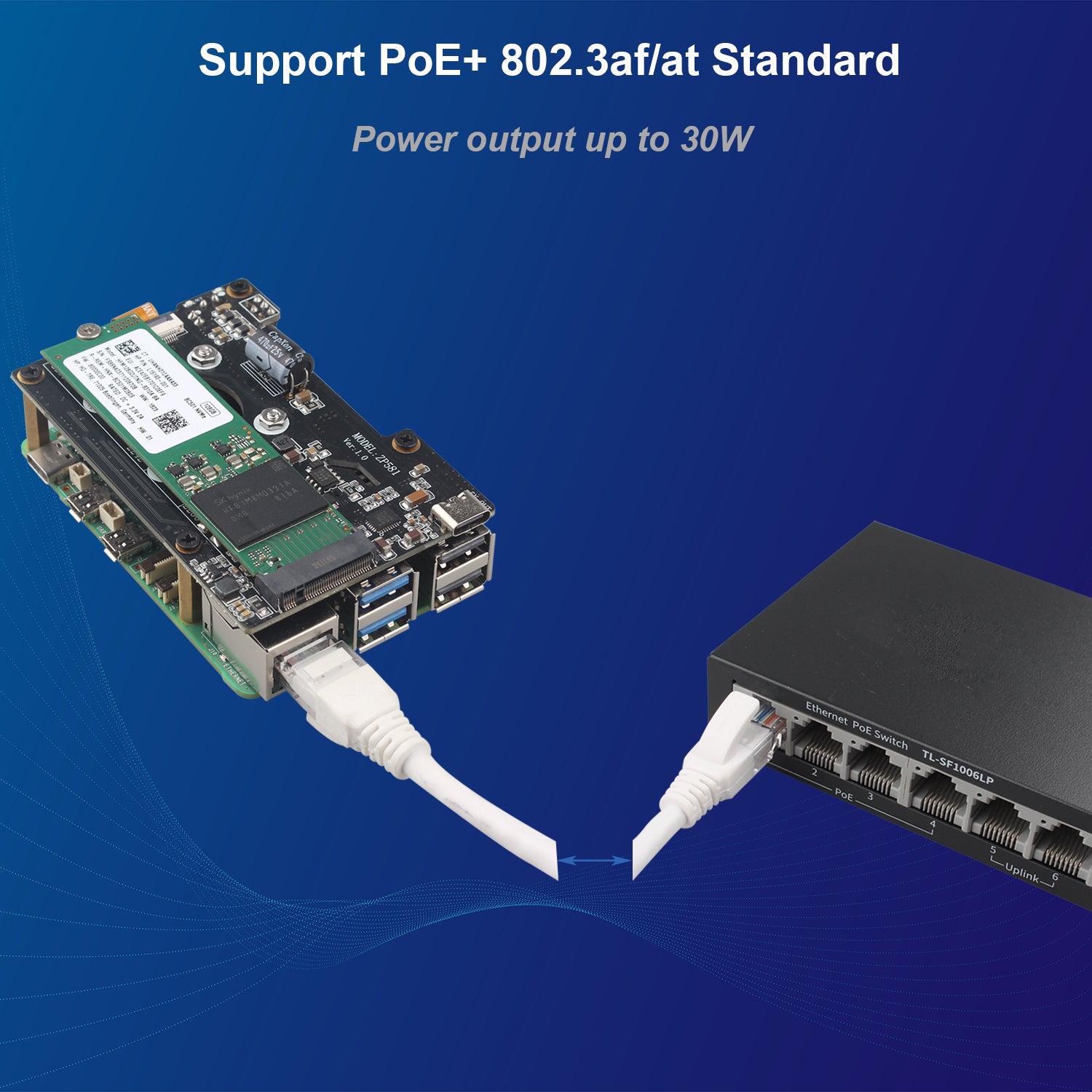

The expansion board is an 802.3af/at-compliant Power Over Ethernet (PoE+) accessory for the Raspberry Pi 5. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

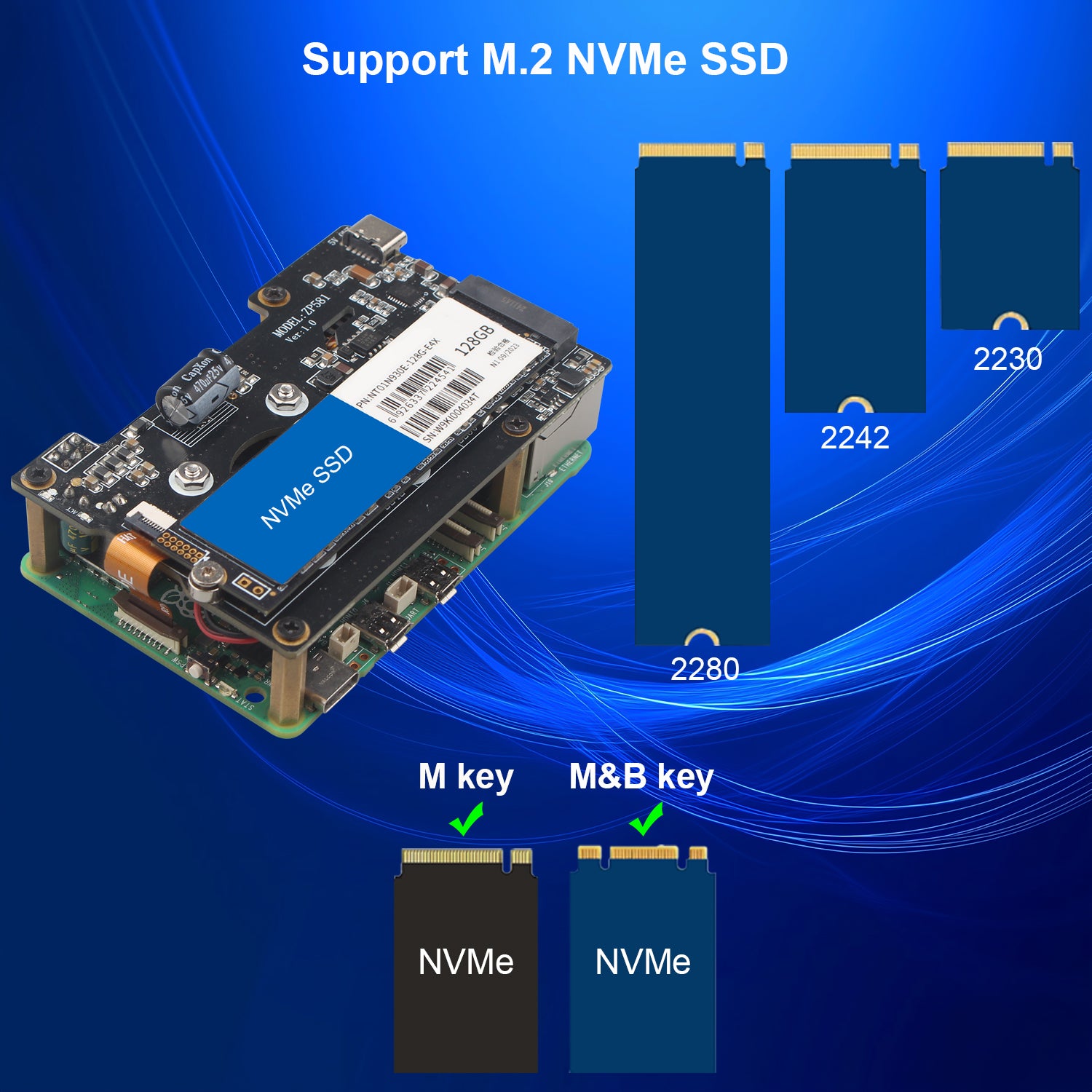

Suitable for use with a PoE router, switch or splitter that supports the IEEE 802.3af/at network standard. Support M.2 NVMe SSDs for fast data access and storage, compatible with M.2 KEY-M NVMe SSD in 2230/2242/2280 length.

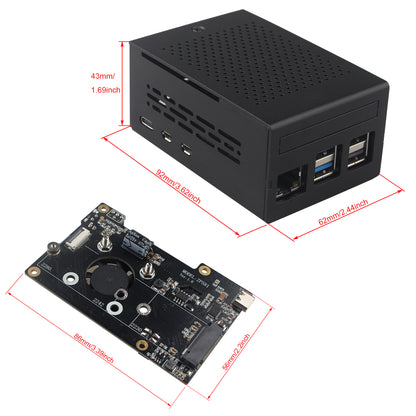

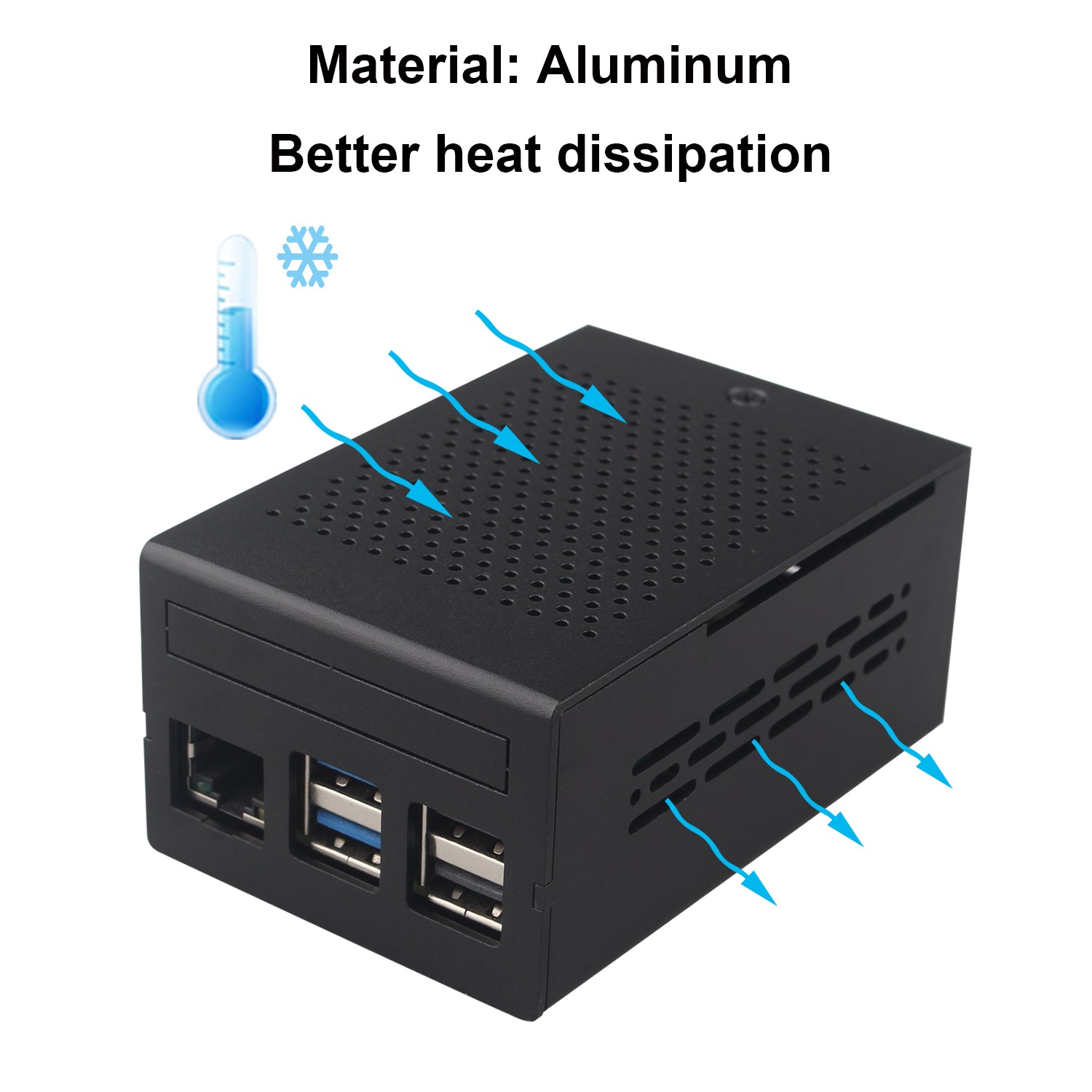

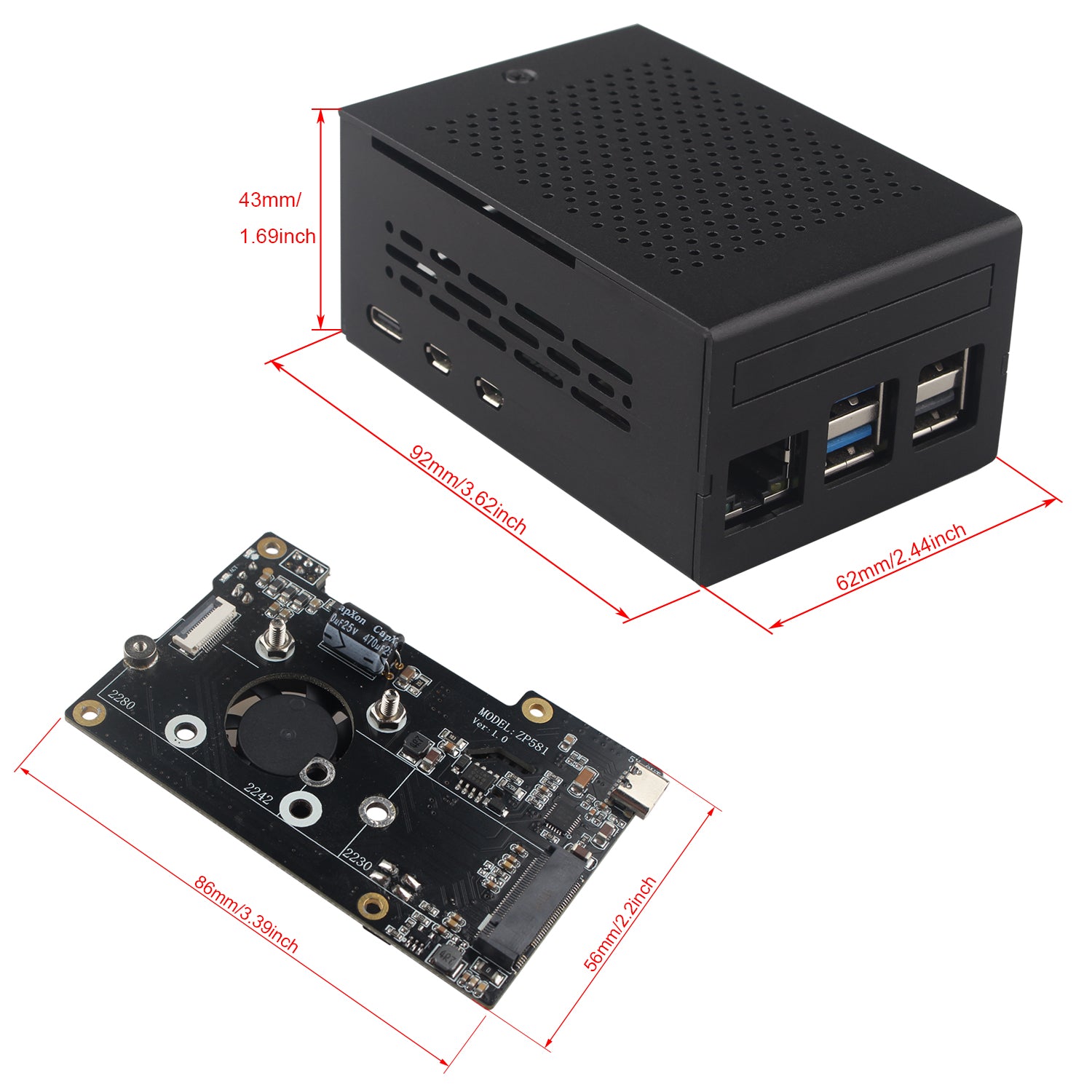

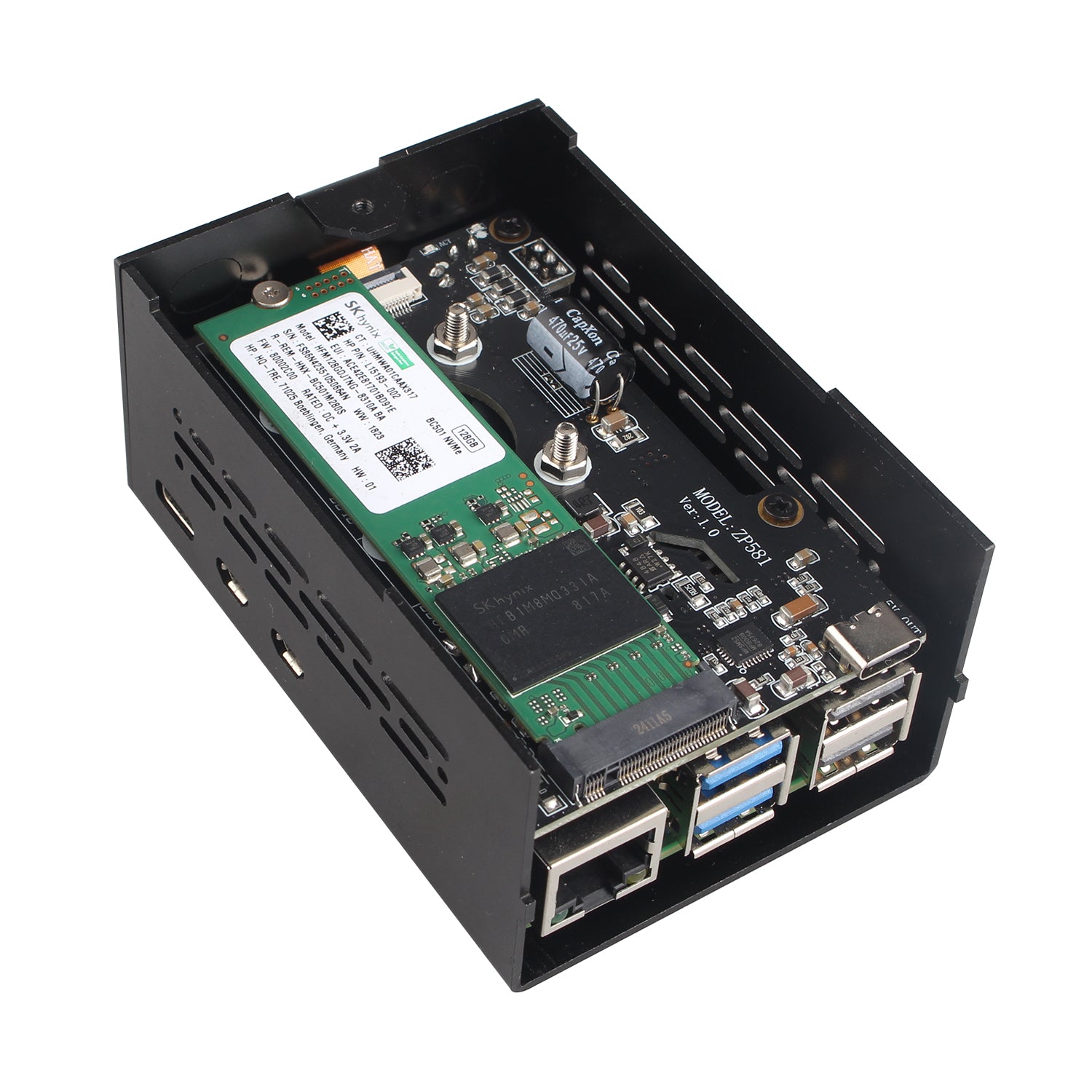

The enclosure is made of lightweight and durable aluminum material, offering excellent protection and heat dissipation for the Raspberry Pi 5 and expansion board. It can access all ports of Pi 5.

Equipped with an onboard high-speed active cooler for better heat dissipation effect and more stable operation performance. If you don’t need to use the cooling fan, you can also disassemble it.

Packing List:

1 x ZP581 PoE+ HAT

1 x ZC501 Aluminum Case

4 x M2.5x17mm Spacers

4 x M2.5x5+5mm Spacers

9 x M2.5x4mm Screws

2 x M2x2.5mm Screws (to fix SSD)

1 x 4mm Pillar (to fix SSD)

1 x 4pcs Rubber Pads

1 x PCIe FPC cable

1 x Screwdriver
