ZDE ZP517A PCIe to M.2 Key M NVMe SSD HAT with Aluminum Case ZC502 and Active Cooler ZP536 for Raspberry Pi 5 Support M.2 NVMe SSDs 2230 2242 2260 2280

Features:

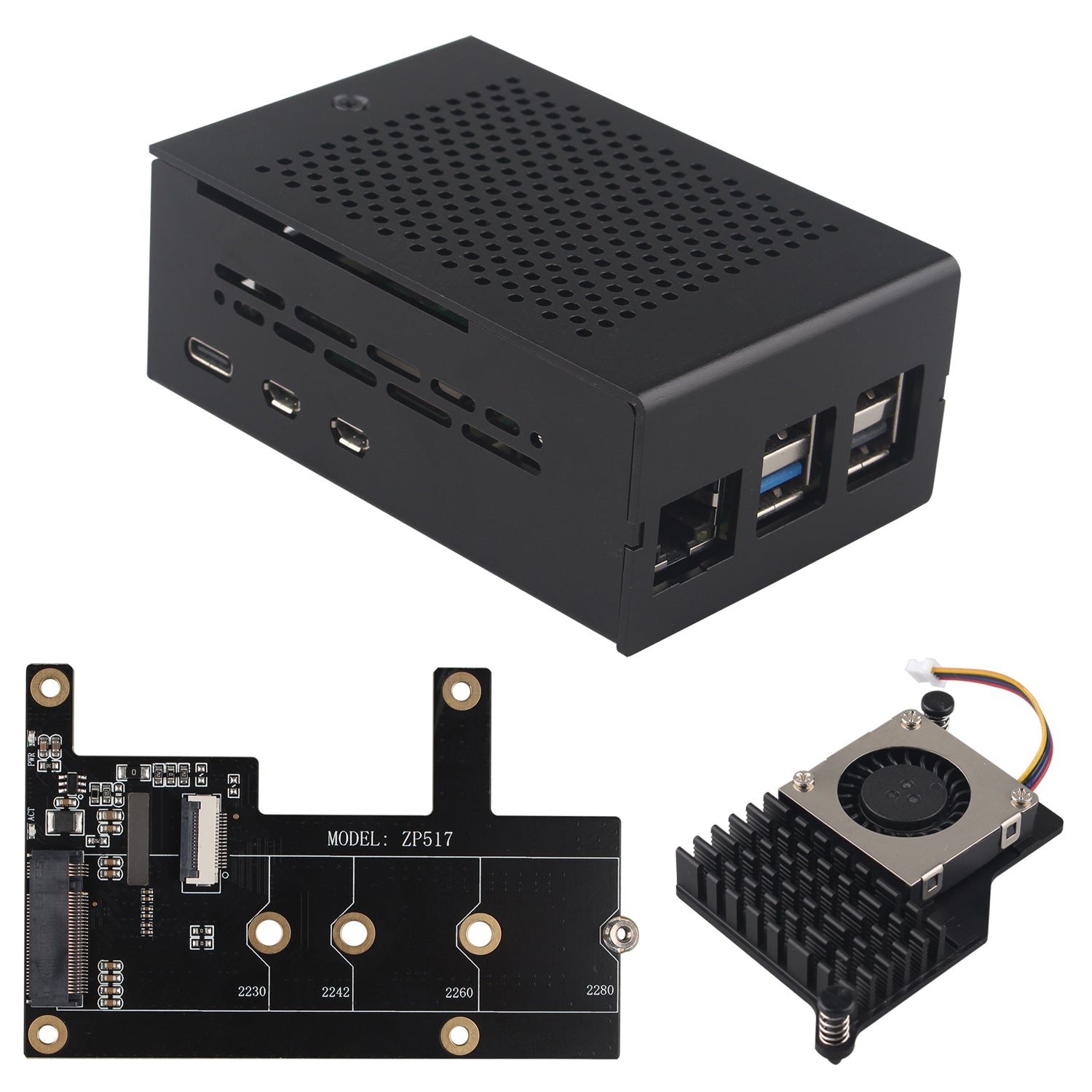

This kit includes a ZP517A PCIe to M.2 Key M NVMe SSD HAT, a ZC502 Aluminum Case and a ZP536 Active Cooler. It is compatible with the Raspberry Pi 5 2GB/4GB/8GB/16GB board.

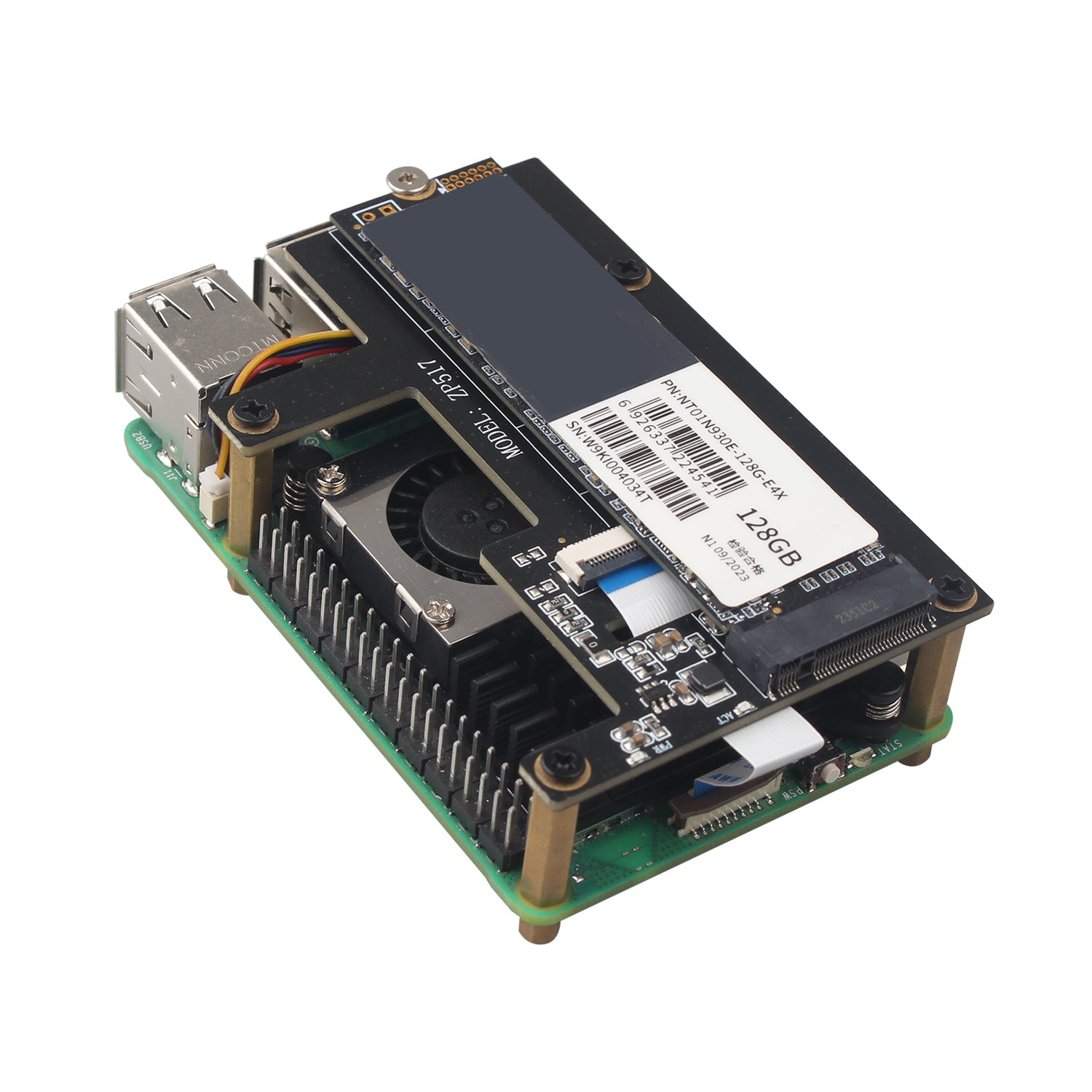

The ZP517A HAT is an M.2 Key-M NVMe SSD Expansion Board for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilize the M.2 NVME SSDs for ultra-fast booting and fast data transmission. Supports Gen2 and Gen3 modes.

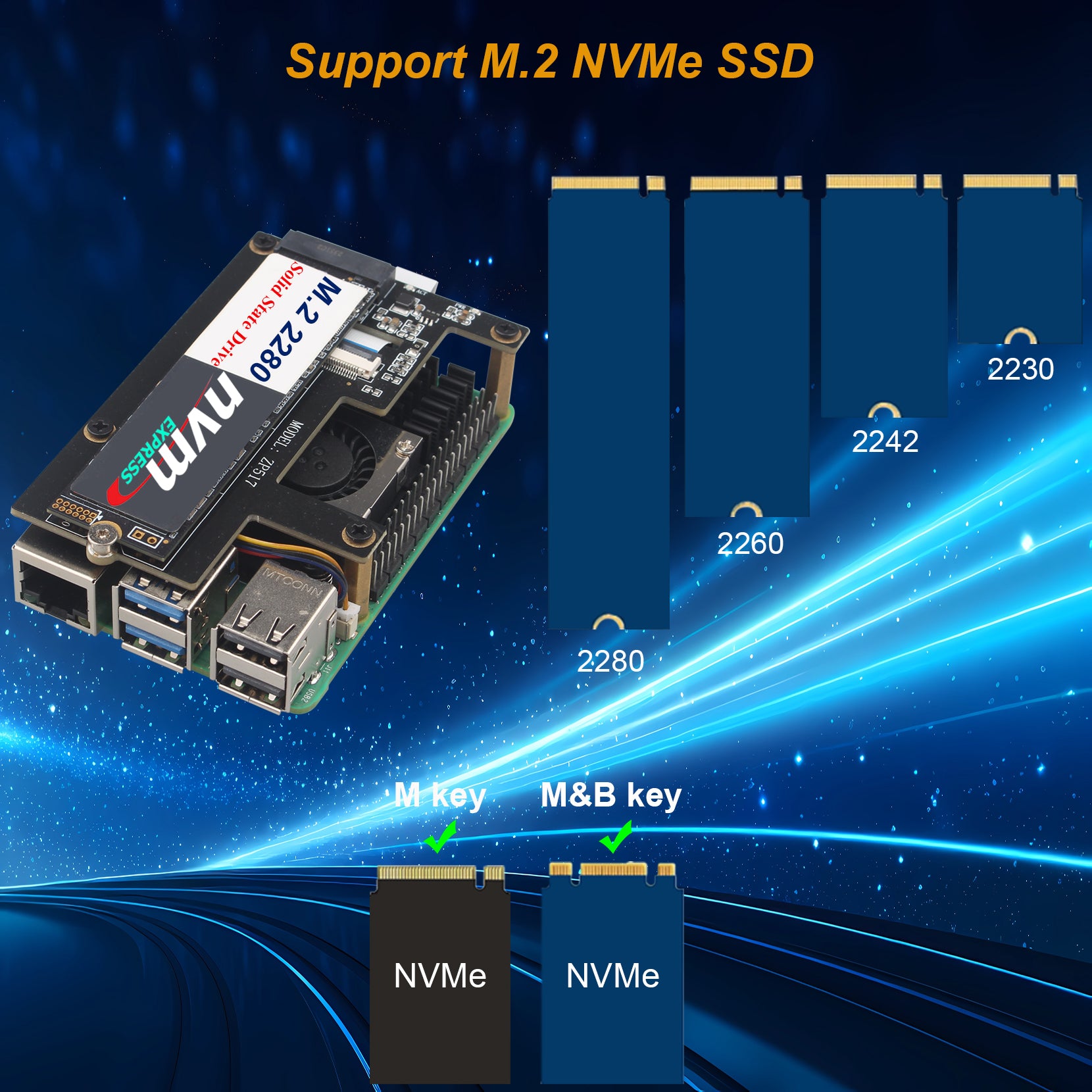

ZP517A M.2 NVMe to PCIe Adapter Board supports the installation of M.2 Key-M NVMe SSD in 2230/2242/2260/2280 length (Solid State Drive is not included). Comes with extra screw accessories for 2230/2242/2260 SSD installation, no soldering required.

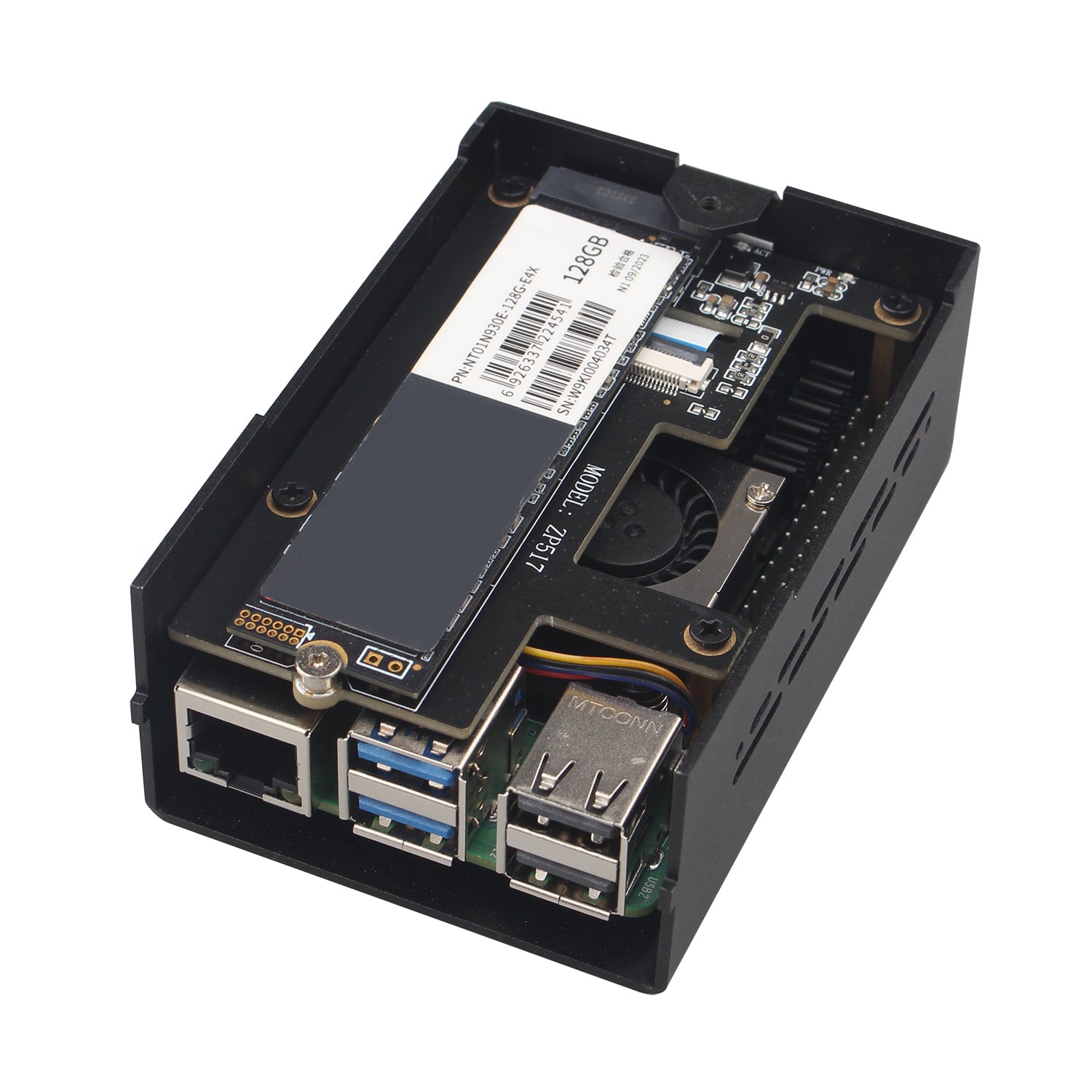

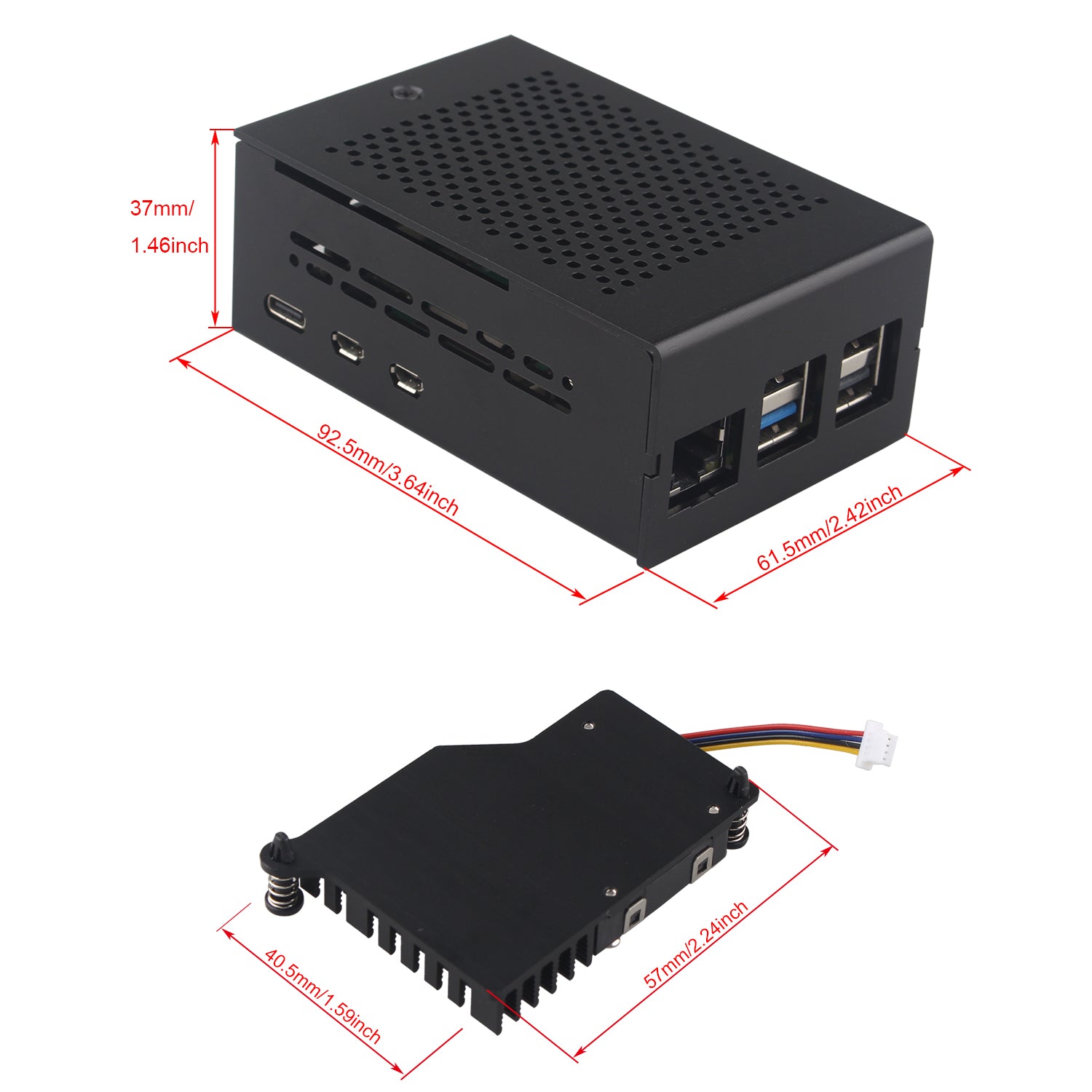

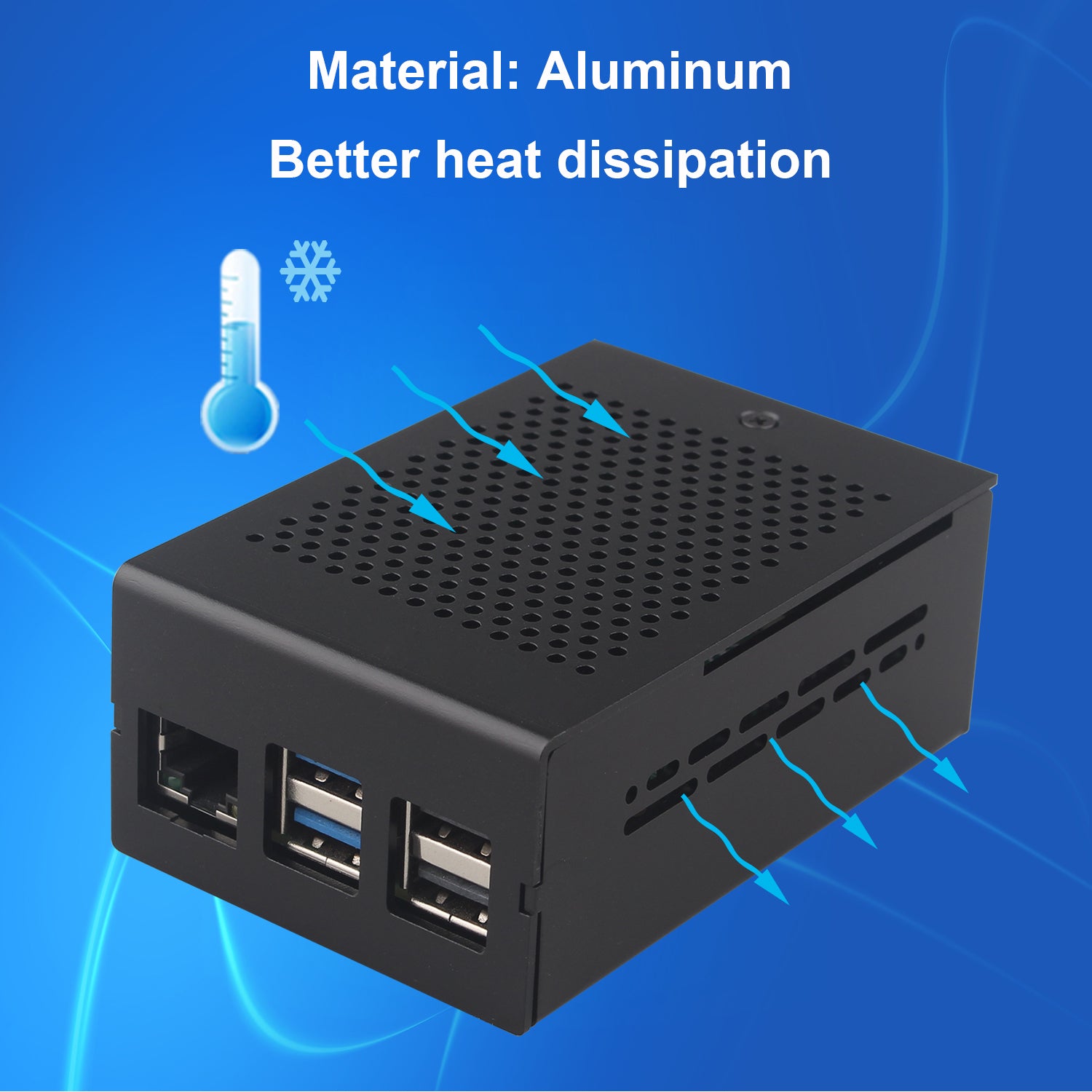

Made of lightweight and durable aluminum material, this ZC502 enclosure can offer excellent protection and heat dissipation, protect the Raspberry Pi 5 and PCIe Peripheral Board from damage, dust and scratches.

Equipped with 3007 ultra-quiet cooling fan and thermal pads, it can keep your Raspberry Pi 5 at a comfortable operating temperature even under heavy loads, providing effectively excellent heat dissipation. Supports PWM speed regulation.

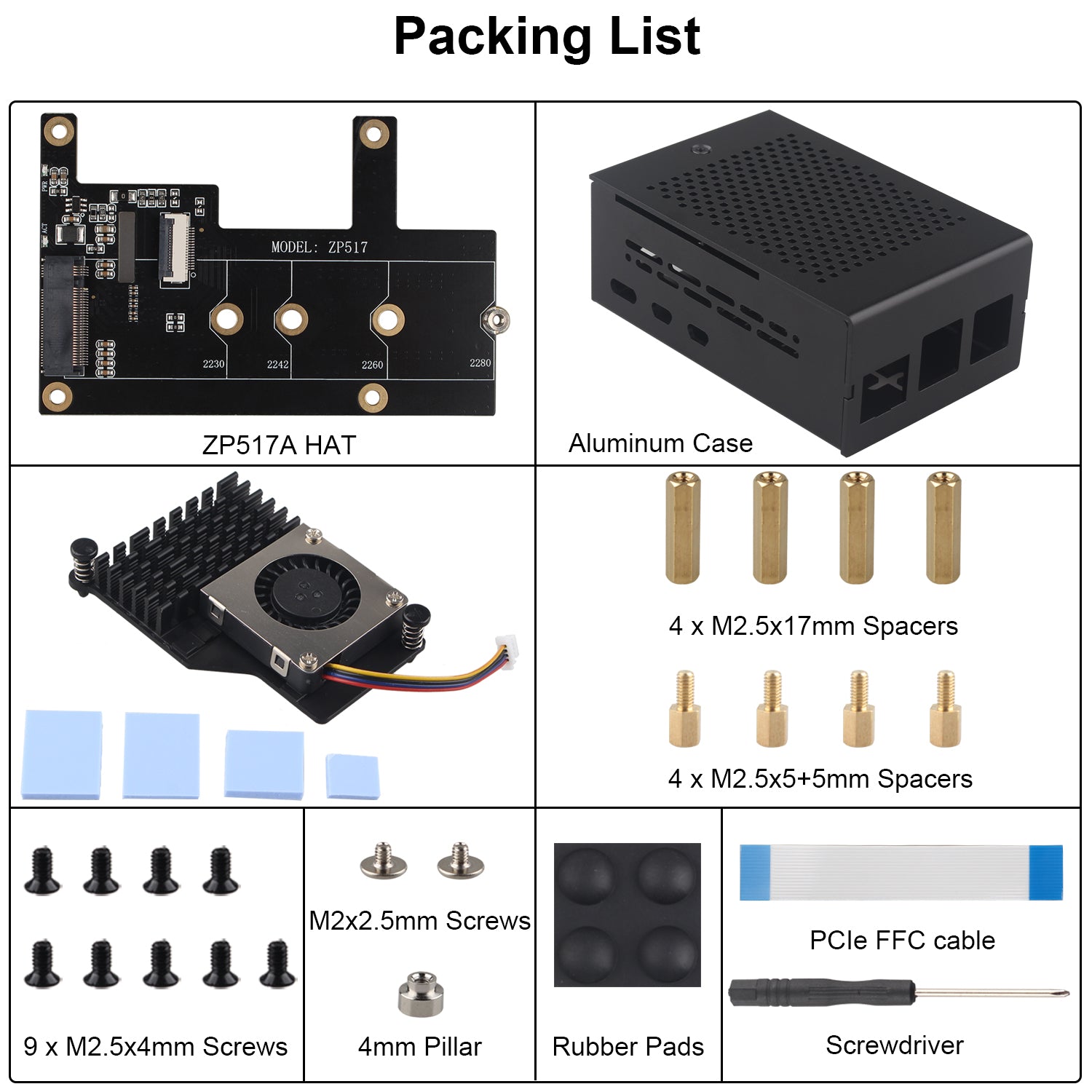

Packing List:

1 x ZP517A HAT

1 x ZC502 Aluminum Case

1 x ZP536 Active Cooler

4 x M2.5x17mm Spacers

4 x M2.5x5+5mm Spacers

9 x M2.5x4mm Screws

2 x M2x2.5mm Screws (to fix SSD)

1 x 4mm Pillar (to fix SSD)

4 x Thermal Pads

1 x 4pcs Rubber Pads

1 x PCIe FFC cable

1 x Screwdriver
