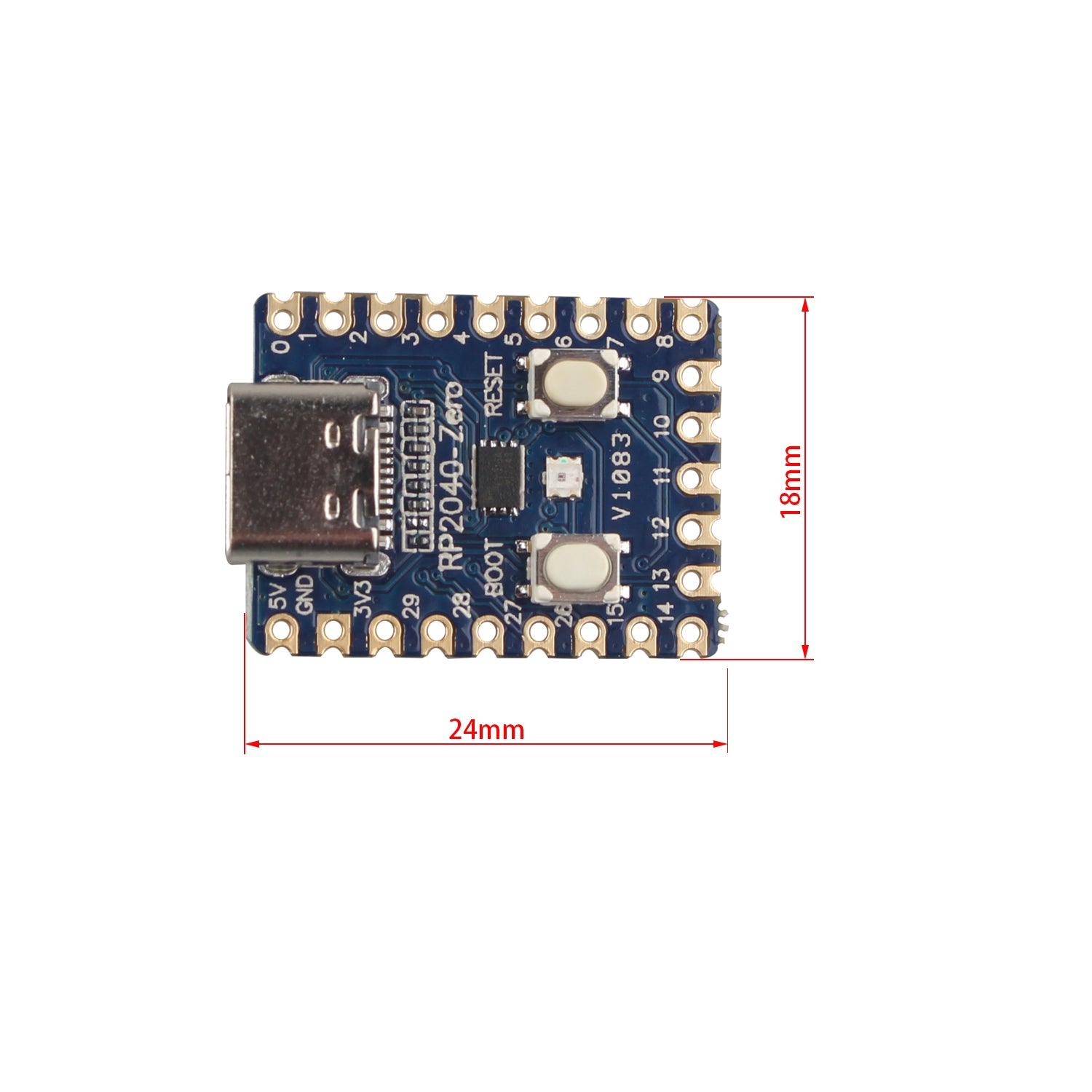

ZDE RP2040-Zero Mini PICO Development Board Based on Raspberry Pi Microcontroller RP2040 Pico-Like MCU Board Dual-Core Arm Cortex M0+ Processor Castellated Module for SMD Applications

Features:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.

264KB of SRAM, and 2MB of on-board Flash memory.

USB-C connector, keeps it up to date, easier to use.

Castellated module allows soldering direct to carrier boards.

USB 1.1 with device and host support.

Low-power sleep and dormant modes.

Drag-and-drop programming using mass storage over USB.

29 × multi-function GPIO pins (20× via edge pinout, others via solder points).

2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.

Accurate clock and timer on-chip.

Temperature sensor.

Accelerated floating-point libraries on-chip.

8 × Programmable I/O (PIO) state machines for custom peripheral support.

Support C/C++，MicroPython.

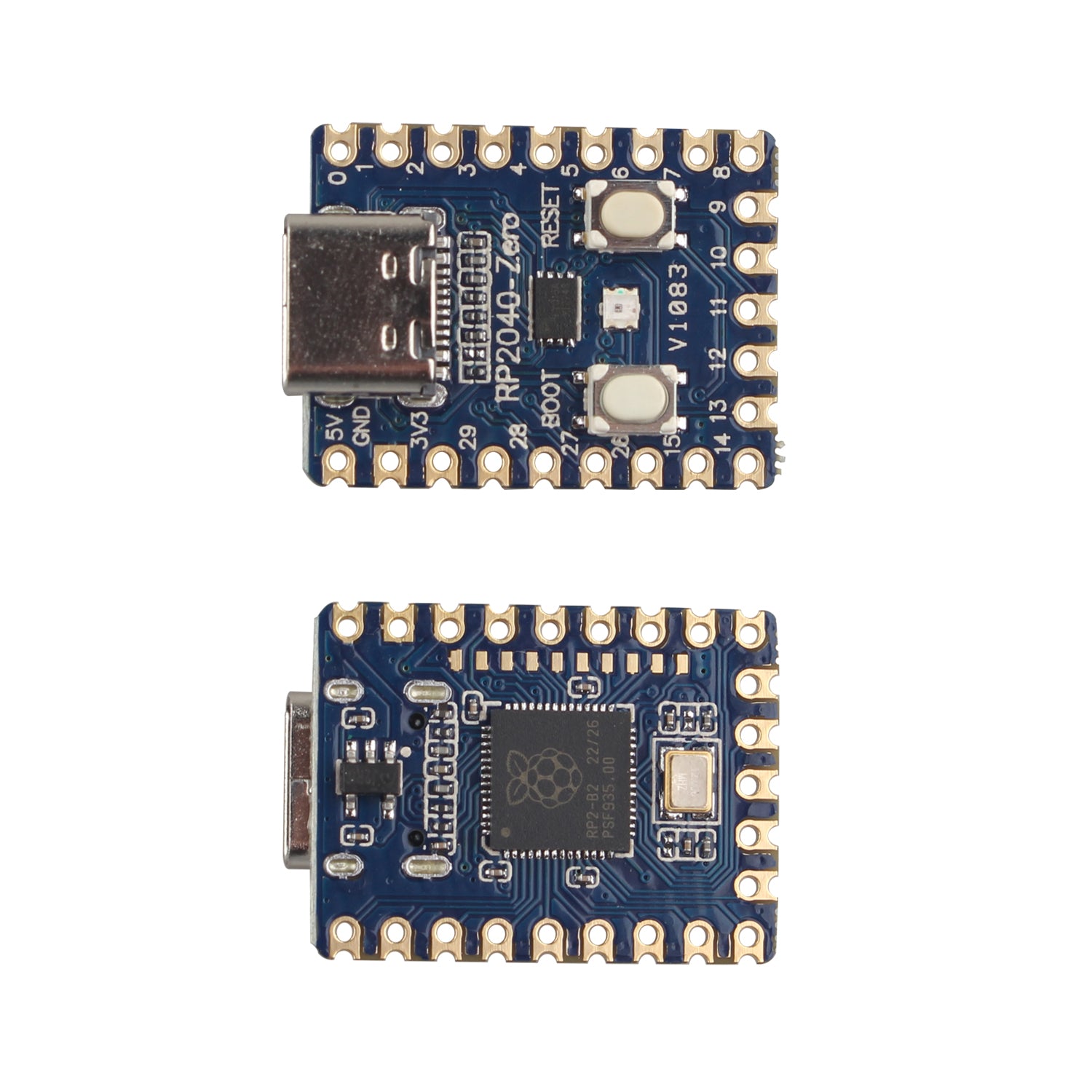

What's on board:

USB Type-C connector

W25Q16JVUXIQ: 2MB NOR-Flash

BOOT button: press it when resetting to enter download mode

RESET button

WS2812: cool RGB LED

ME621: low dropout LDO, max current 800MA

RP2040: dual-core processor, up to 133MHz operating frequency

RP2040 pins: 10 x solder points, 9 of which are for GPIO

Packing List:

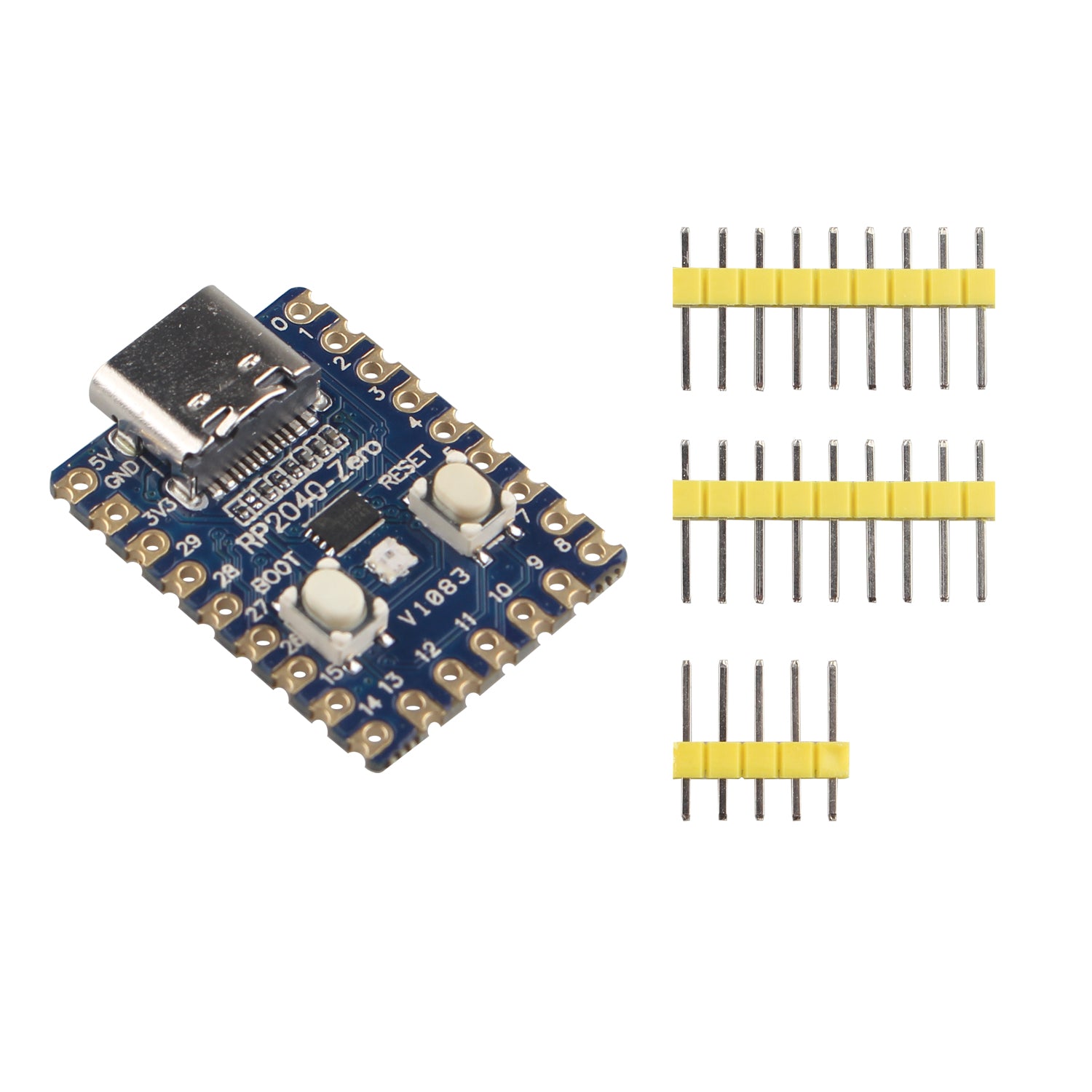

1 × RP2040-Zero Mini PICO Development Board (with Unsoldered Pins)
