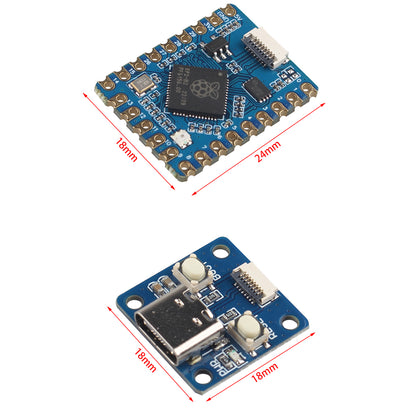

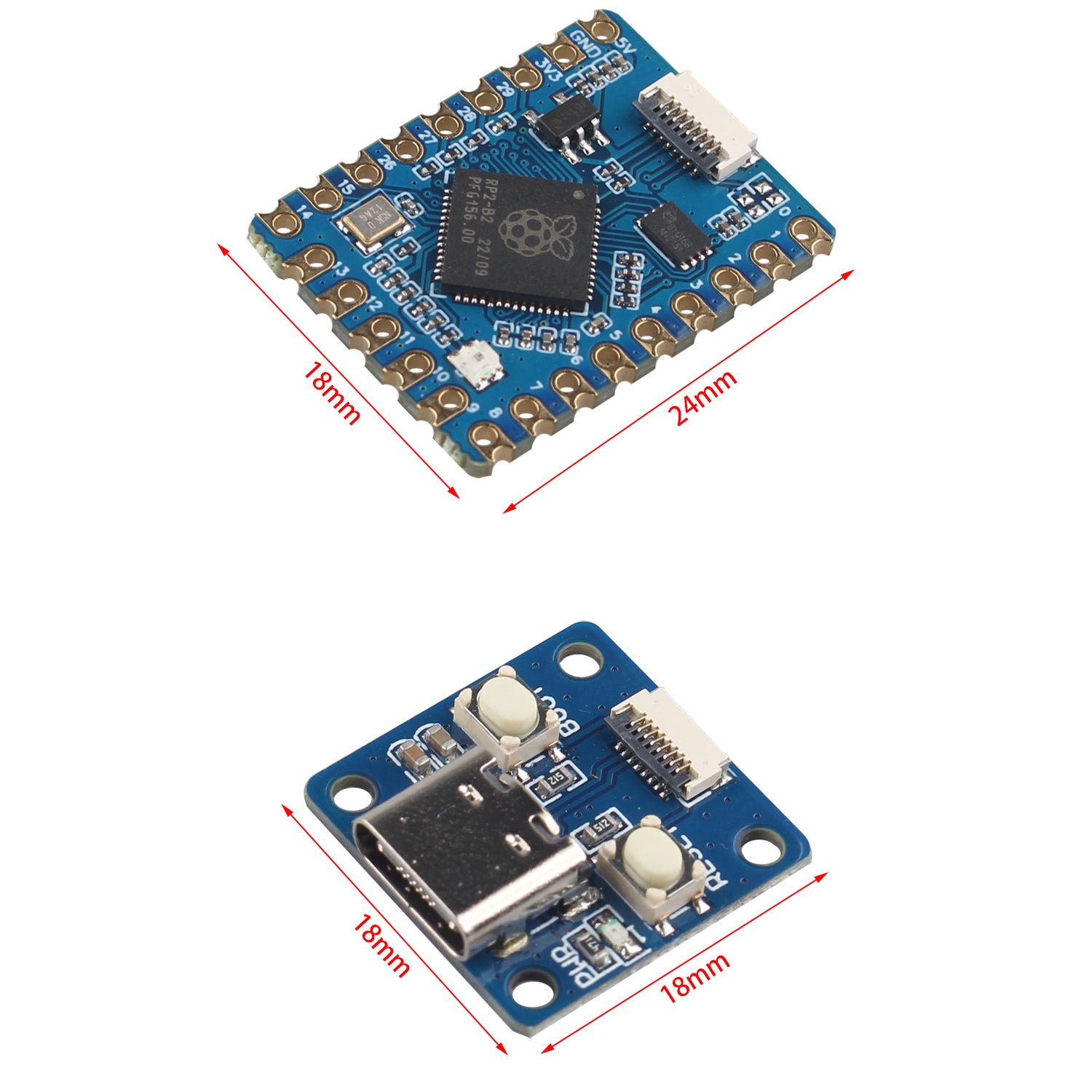

ZDE RP2040-Tiny Mini Development Board Based on Raspberry Pi Microcontroller RP2040 Dual Core Arm Cortex M0+ Processor with USB Port Adapter Board and FPC Cable Support C/C++ MicroPython Arduino

Features:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.

264KB of SRAM, and 2MB of onboard Flash memory.

Onboard FPC 8PIN connector, adapting USB Type-C port via an adapter board.

Castellated module allows soldering directly to carrier boards.

USB 1.1 with device and host support.

Low-power sleep and dormant modes.

Drag-and-drop programming using mass storage over USB

20 × multi-function GPIO pins.

2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.

Accurate clock and timer on-chip.

Temperature sensor.

Accelerated floating-point libraries on-chip.

8 × Programmable I/O (PIO) state machines for custom peripheral support.

Support C/C++, MicroPython, Arduino.

Packing List:

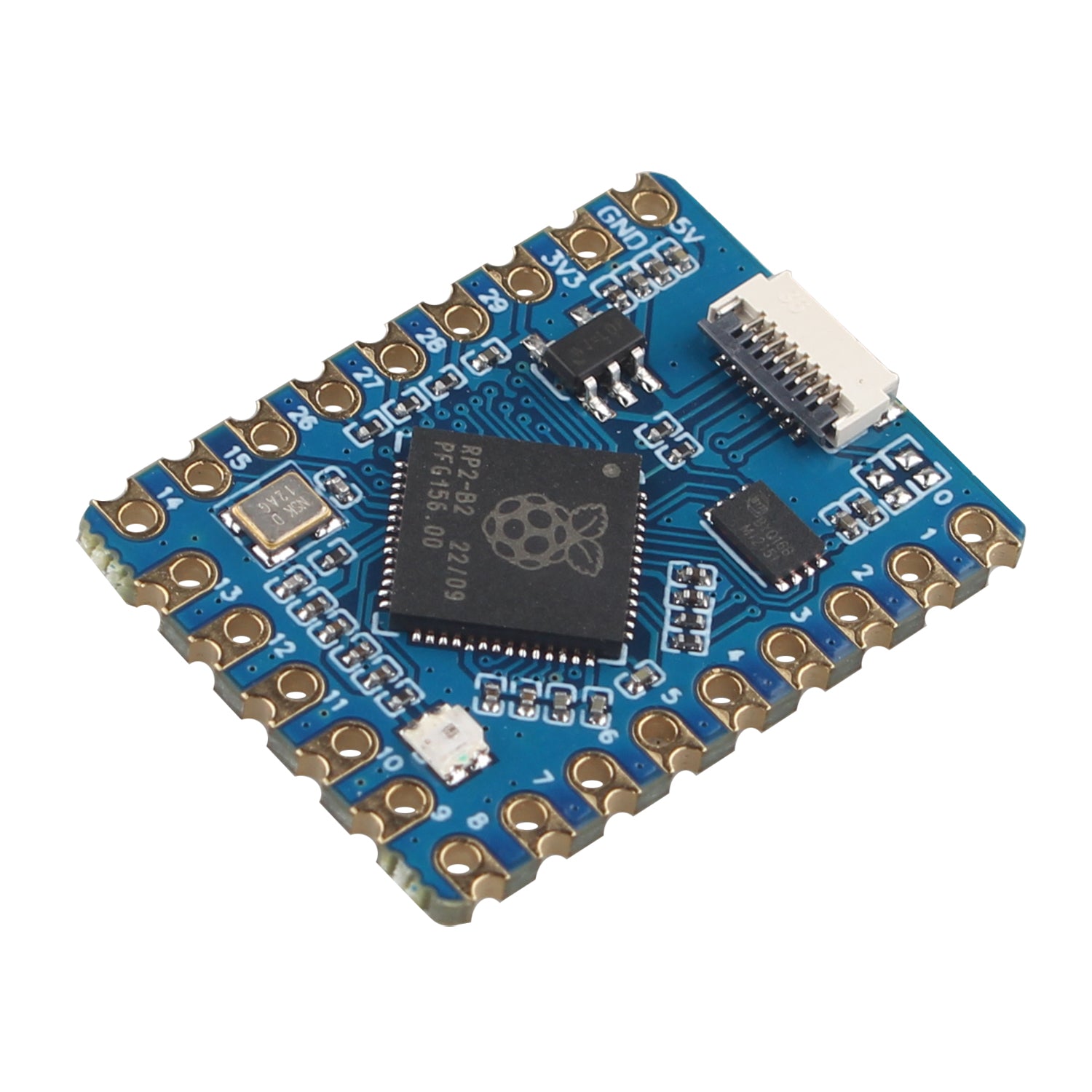

1 × RP2040-Tiny

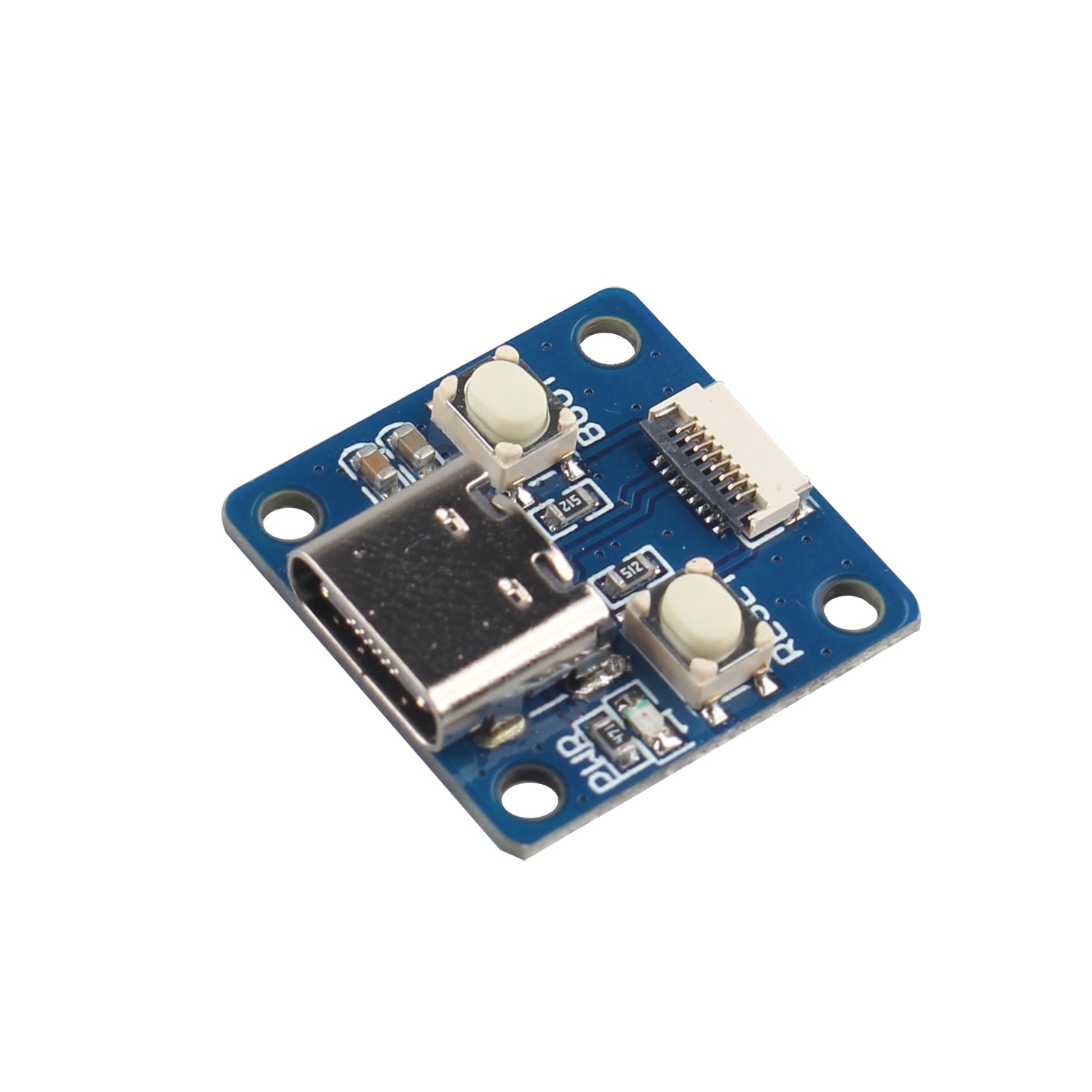

1 × RP2040-Tiny-Adapter

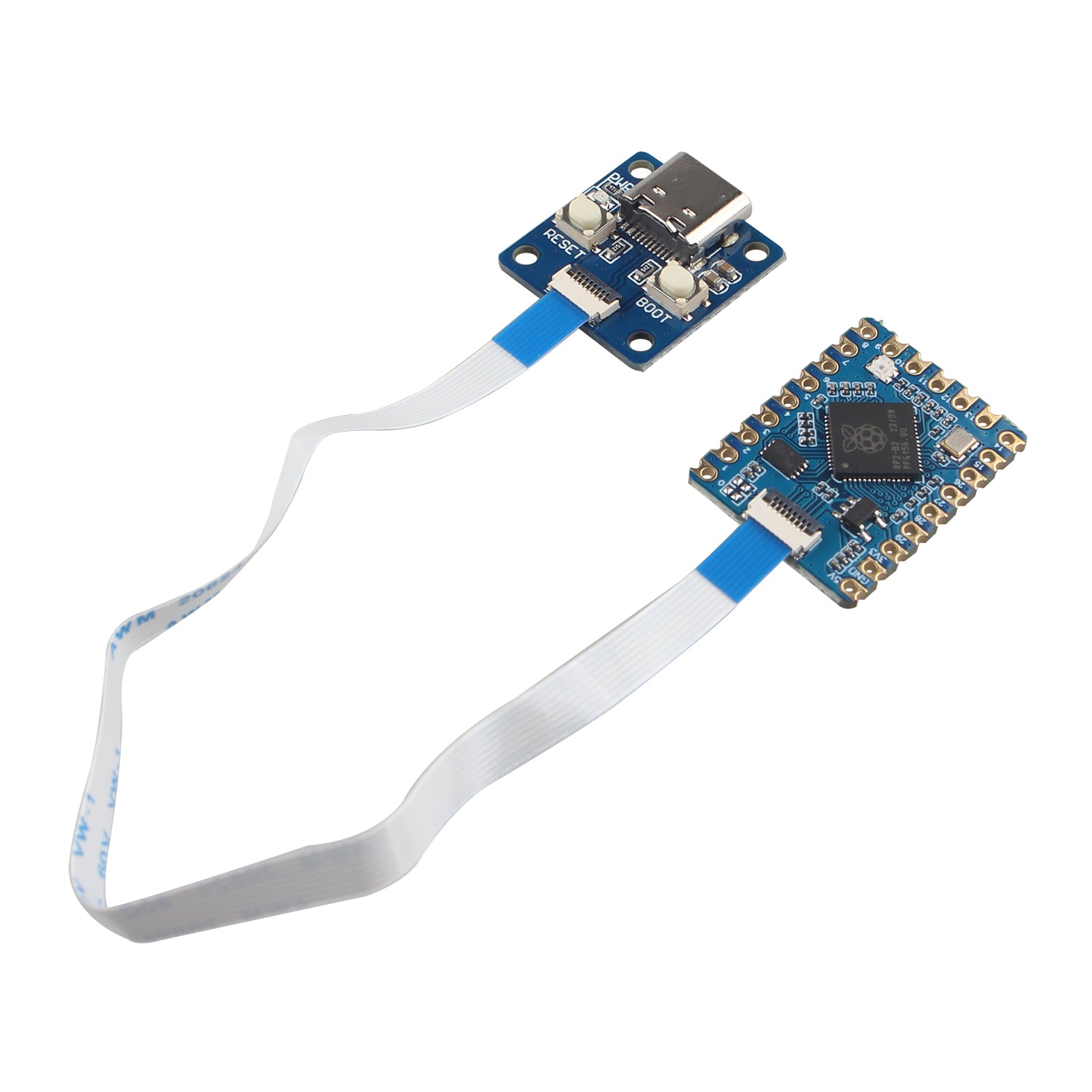

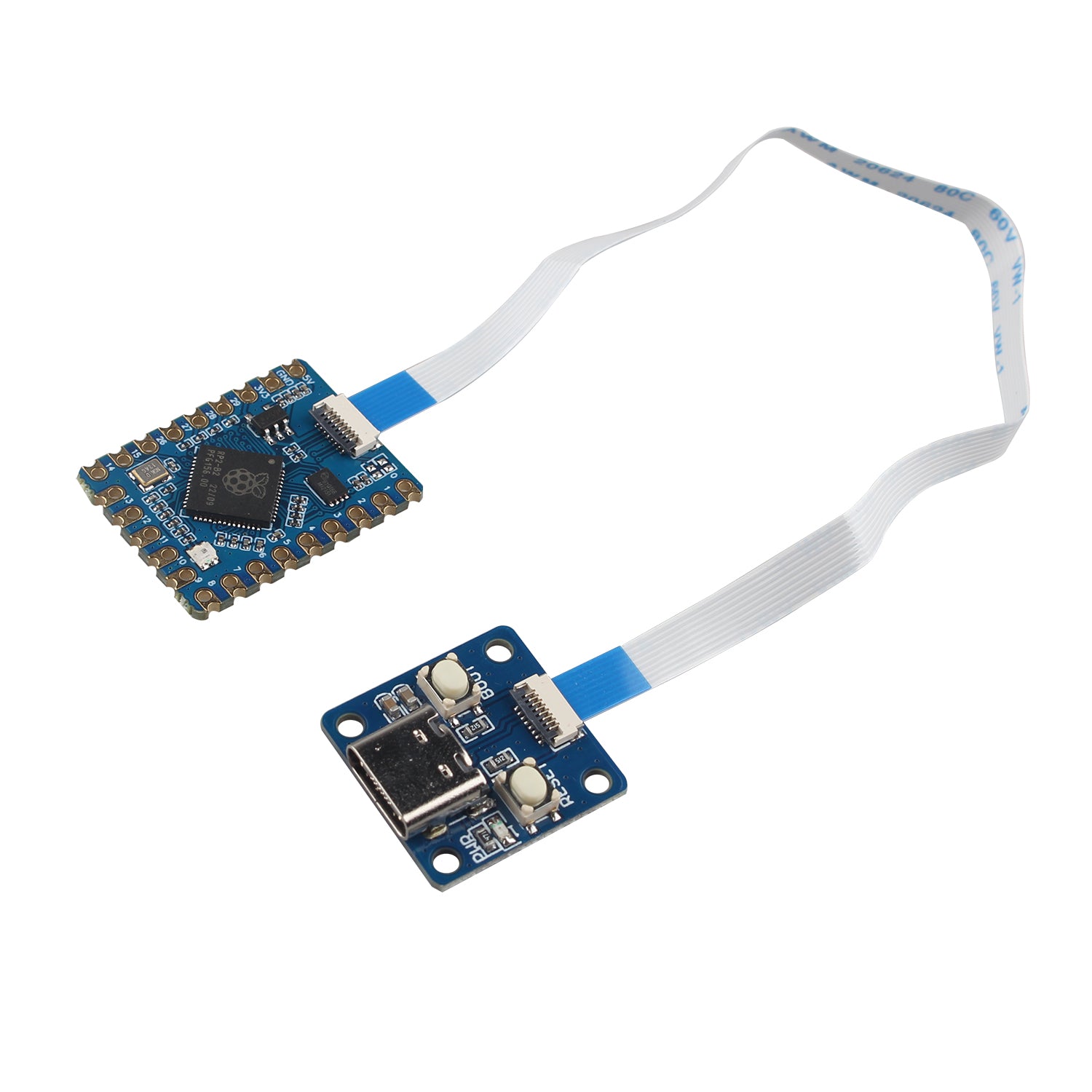

1 × 8PIN FPC cable(about 15cm)
