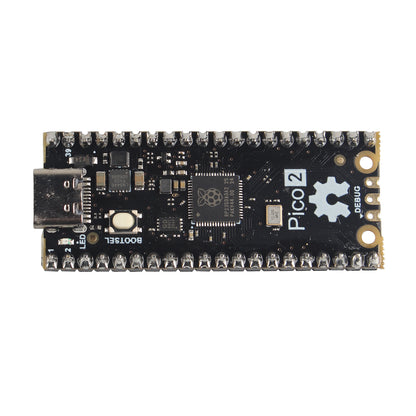

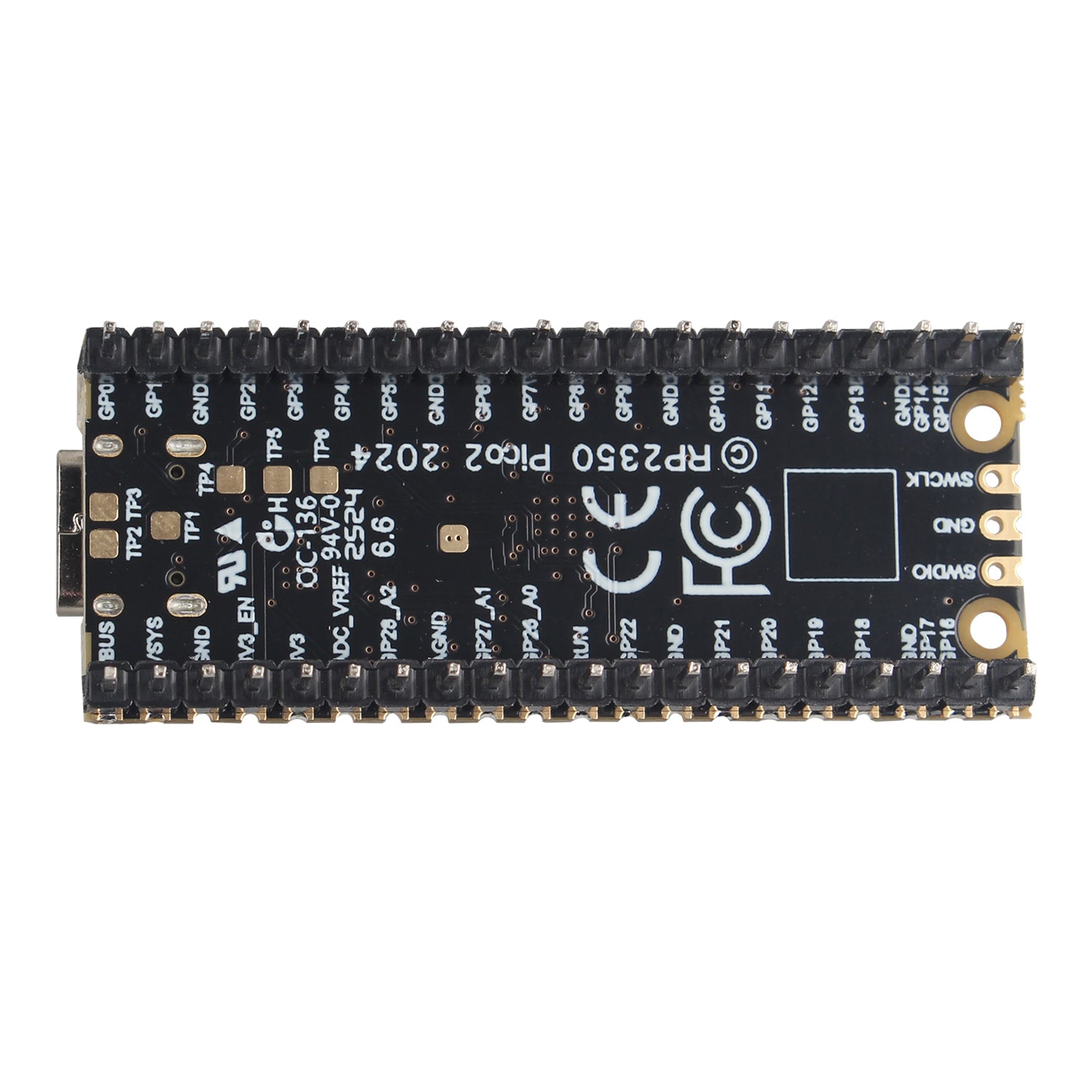

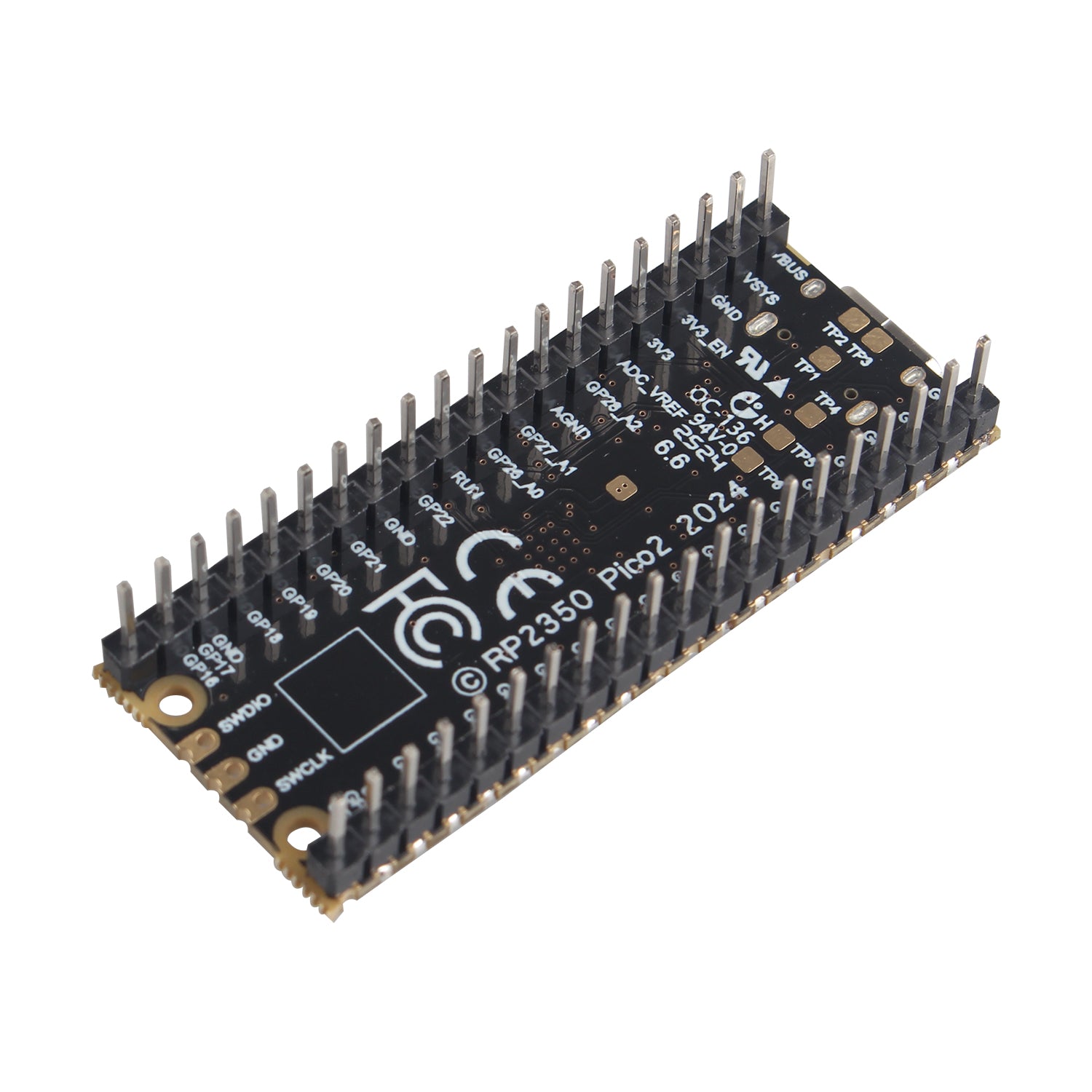

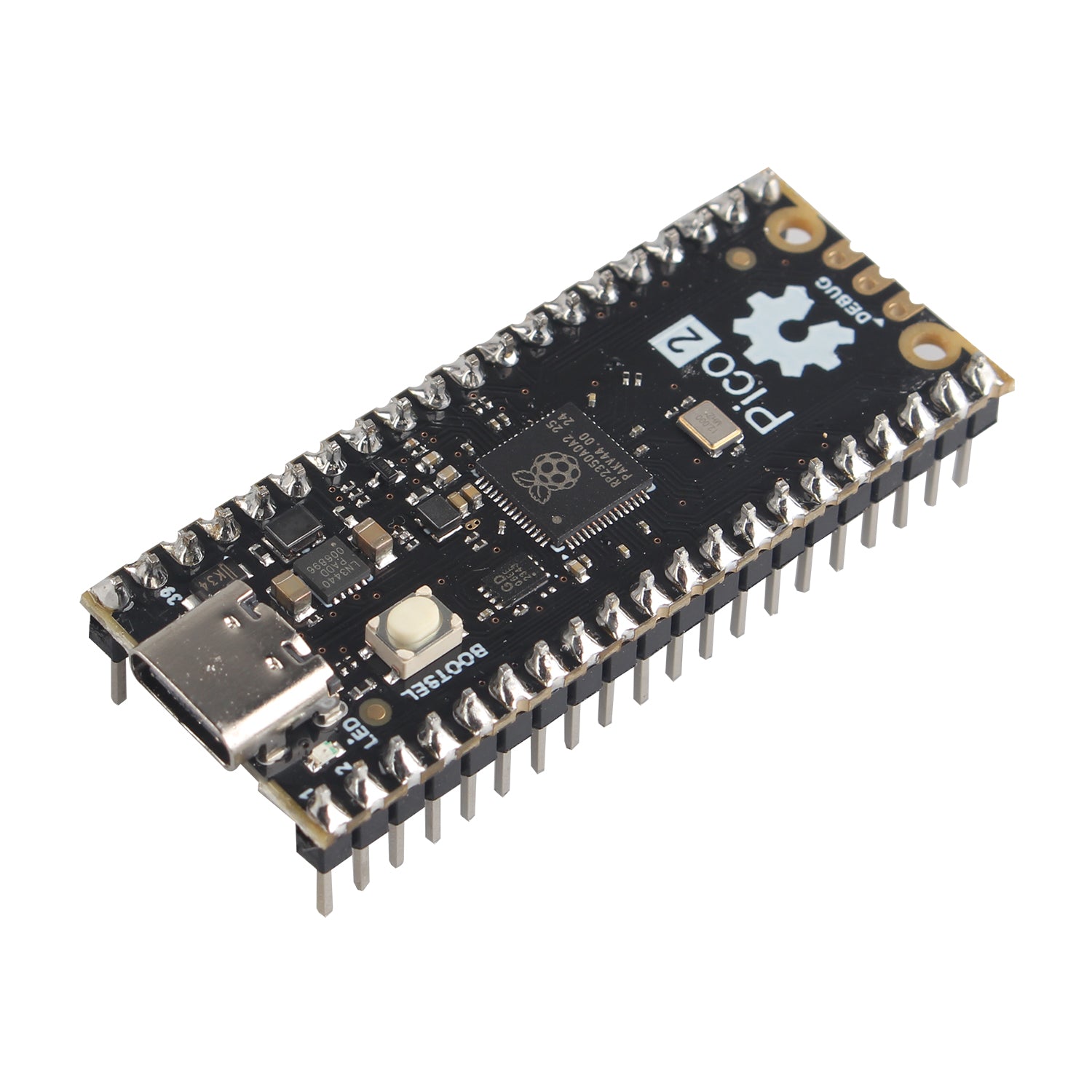

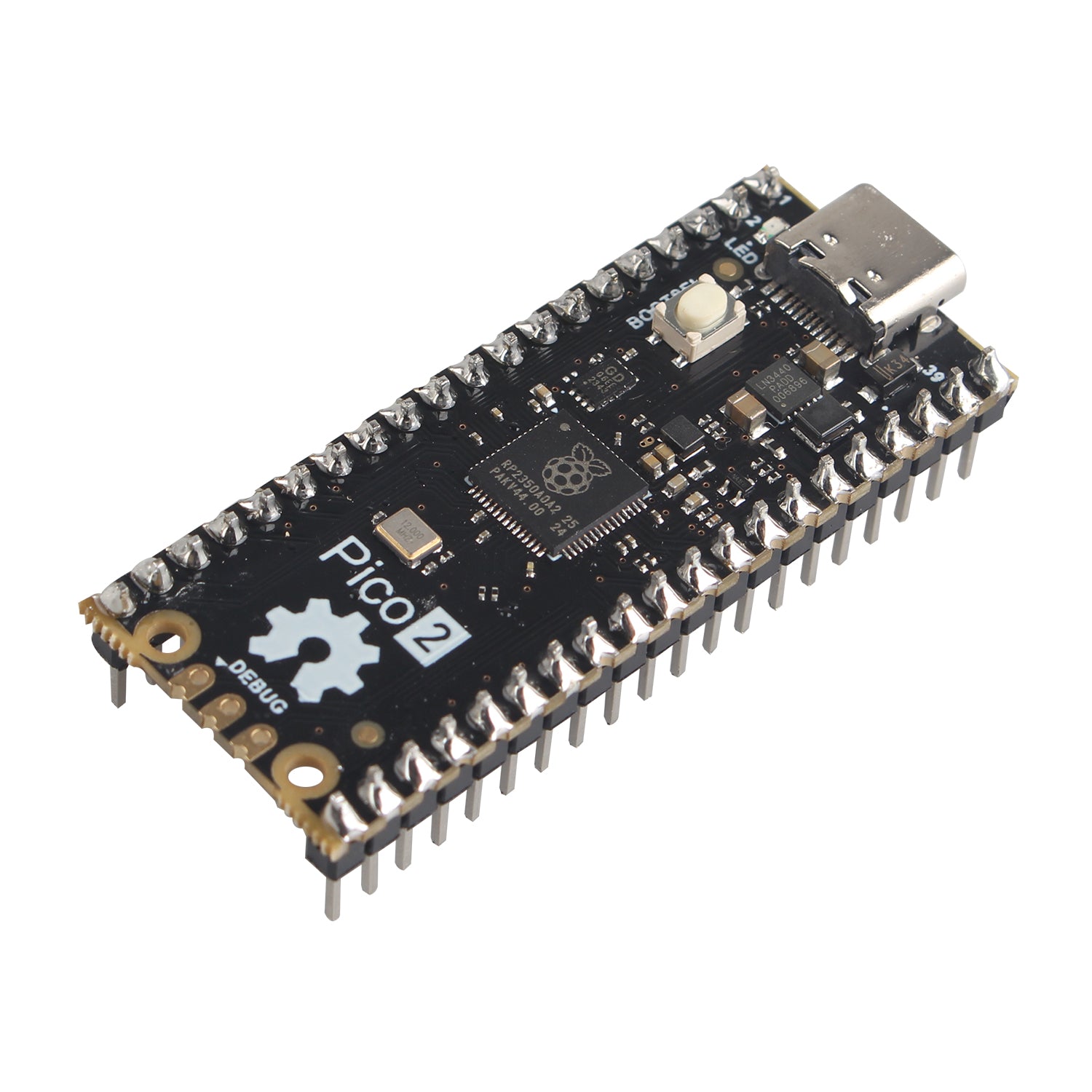

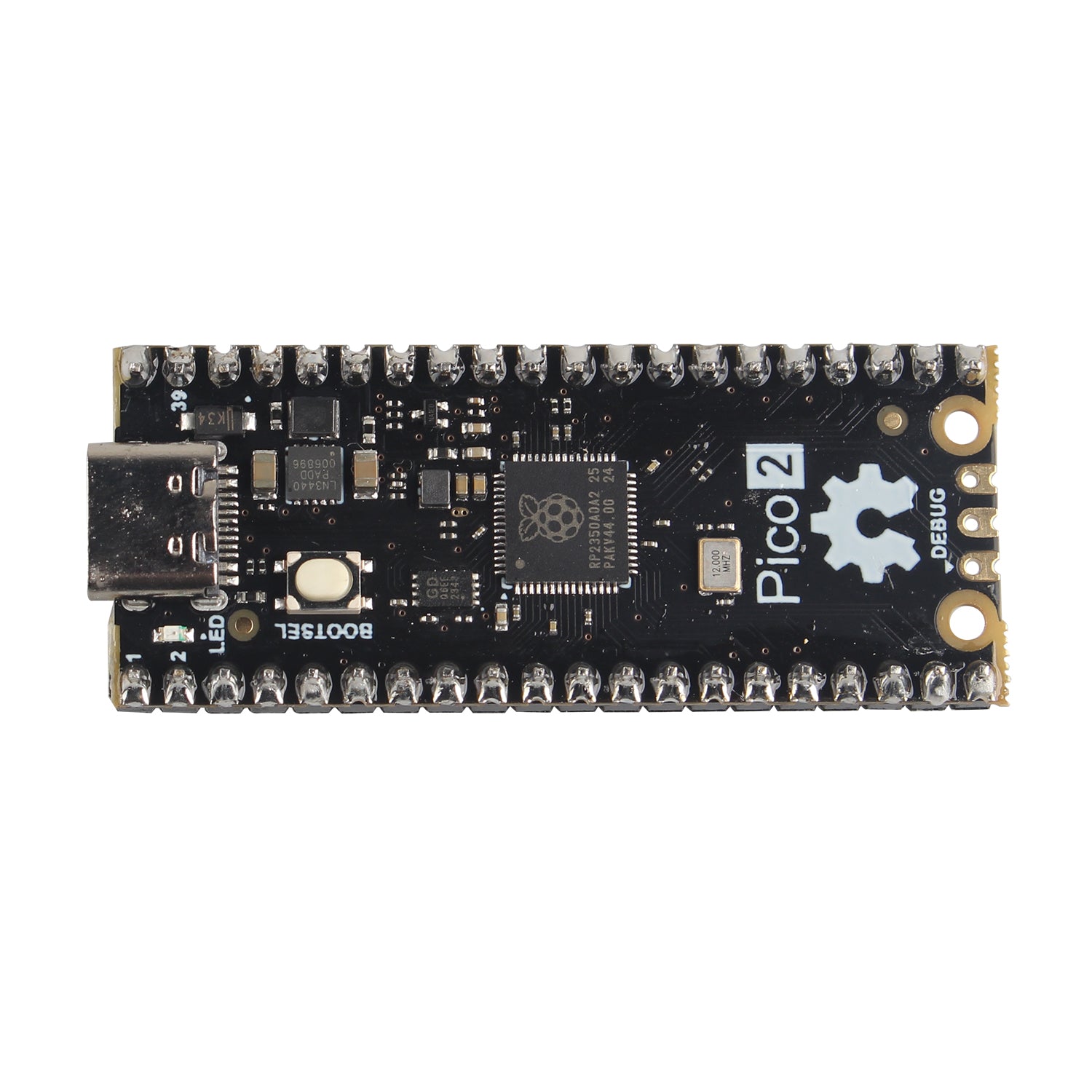

ZDE Microcontroller Board Dual-Core Dual-Architecture Design 150MHz Based on RP2350 Chip, 520KB SRAM, 4MB Flash Memory, 26 GPIO, Support C/C++ MicroPython

Overview:

The microcontroller board is based on the RP2350 microcontroller chip. It is designed as a low-cost, high-performance microcontroller board with flexible digital interface.

Features:

Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz.

520KB of SRAM, and 4MB of on-board flash memory.

Castellated module allows soldering direct to carrier boards.

USB 1.1 with device and host support.

Low-power sleep and dormant modes.

Drag-and-drop programming using mass storage over USB. <br>26 × multi-function GPIO pins.

2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels.

Temperature sensor.

12 × Programmable I/O (PIO) state machines for custom peripheral support.

Support C/C++, MicroPython, CircuitPython.

Specifications:

Security: ARM TrustZone, 8KB OTP, Secure Boot

GPIO Logic Level: 3.3V

Power: 1.8V to 5.5V via Micro USB or VSYS

MCU Sleep Mode: <10µA

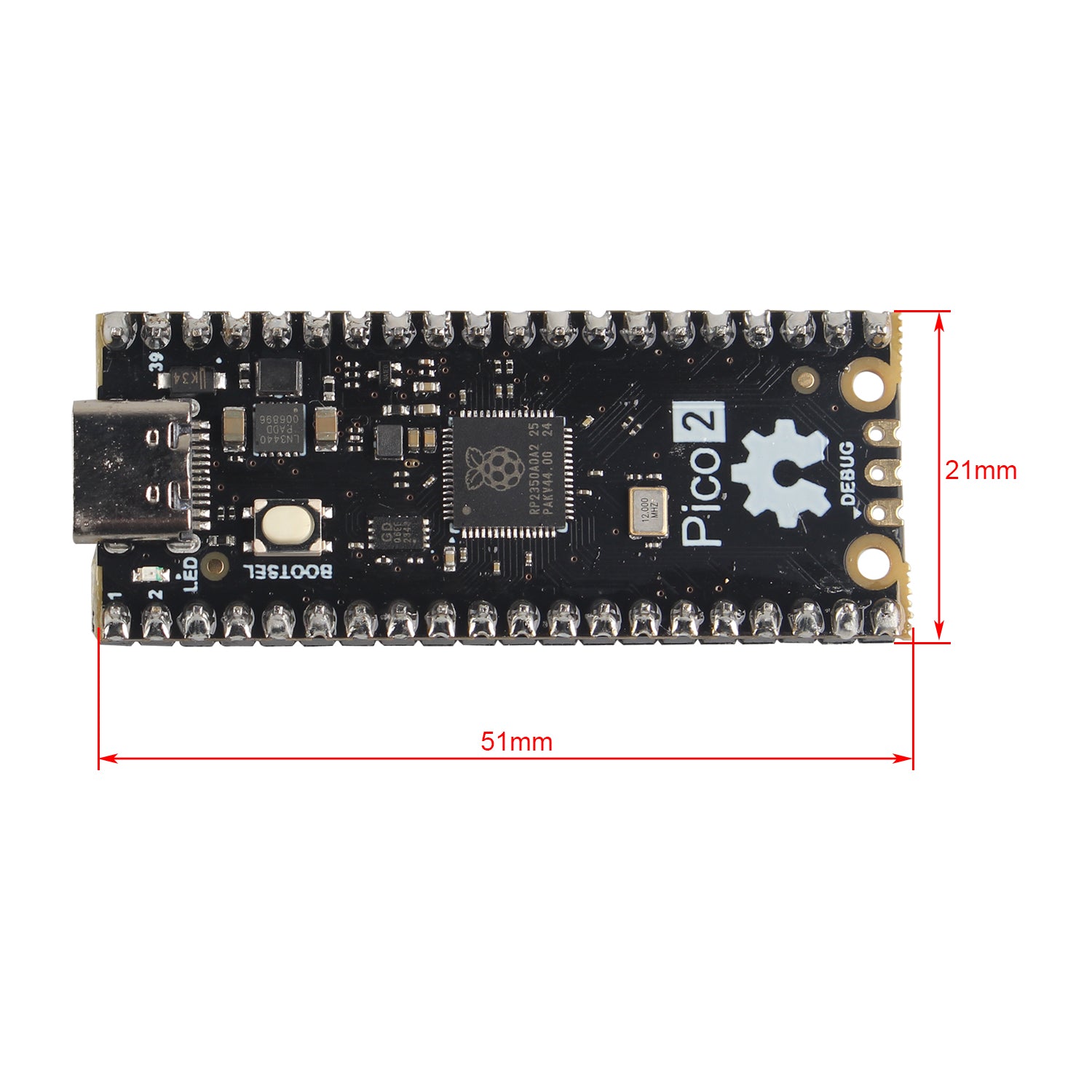

Dimensions: 21 x 51 mm

Weight: 6.2g

Packing List:

1 x Microcontroller Board
