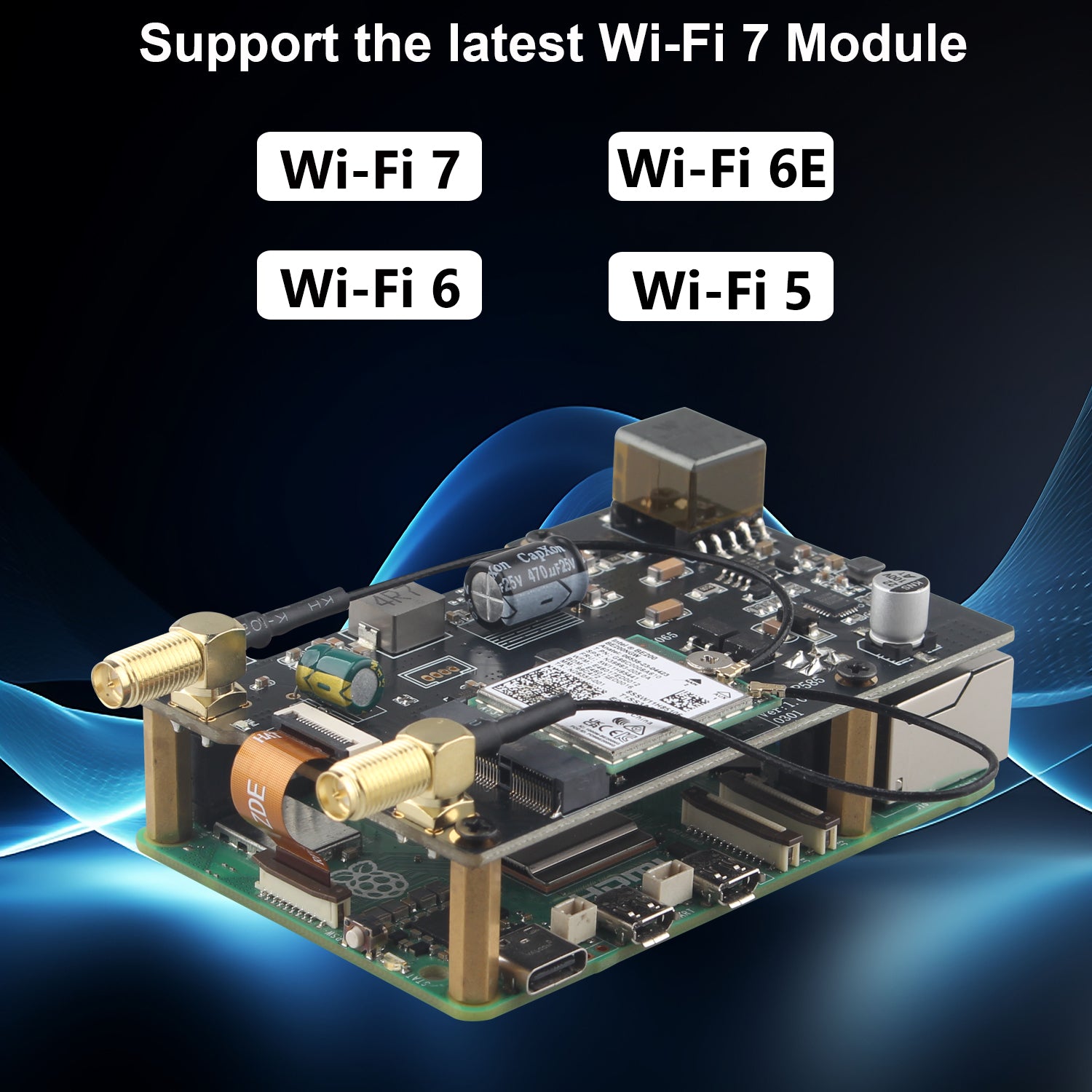

The PoE+ HAT is an adapter board with PCIe interface for WIFI7, allowing Raspberry Pi 5 motherboard to use the latest WIFI7 module. The WIFI7 module can be inserted into the ZP585 HAT via the M.2 E-KEY interface, which provides an opportunity for a wide range of Raspberry Pi 5 users to be able to use the latest WIFI7.

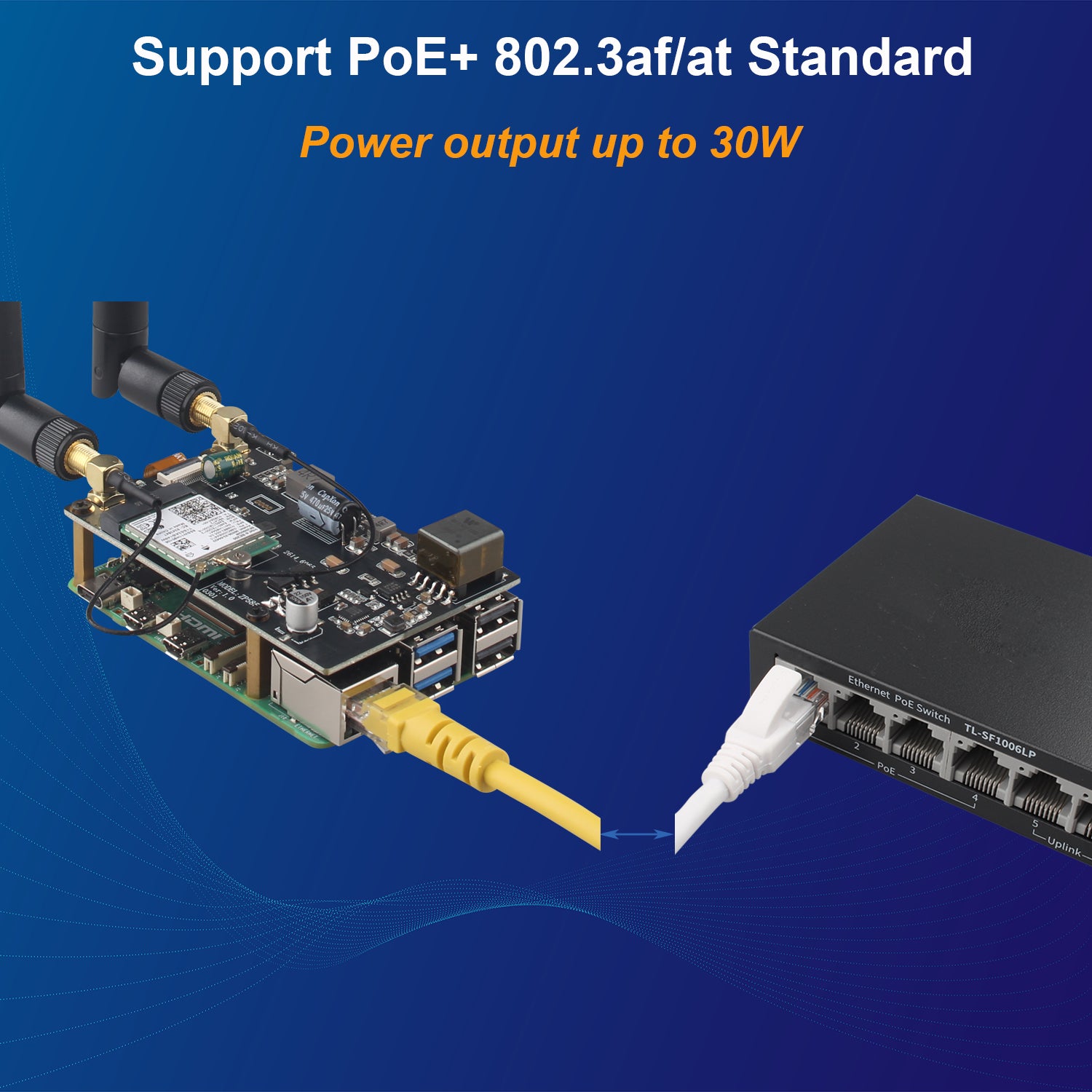

Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

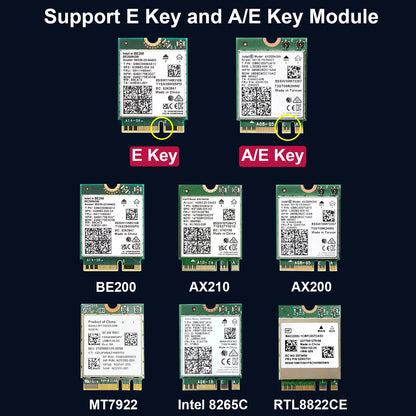

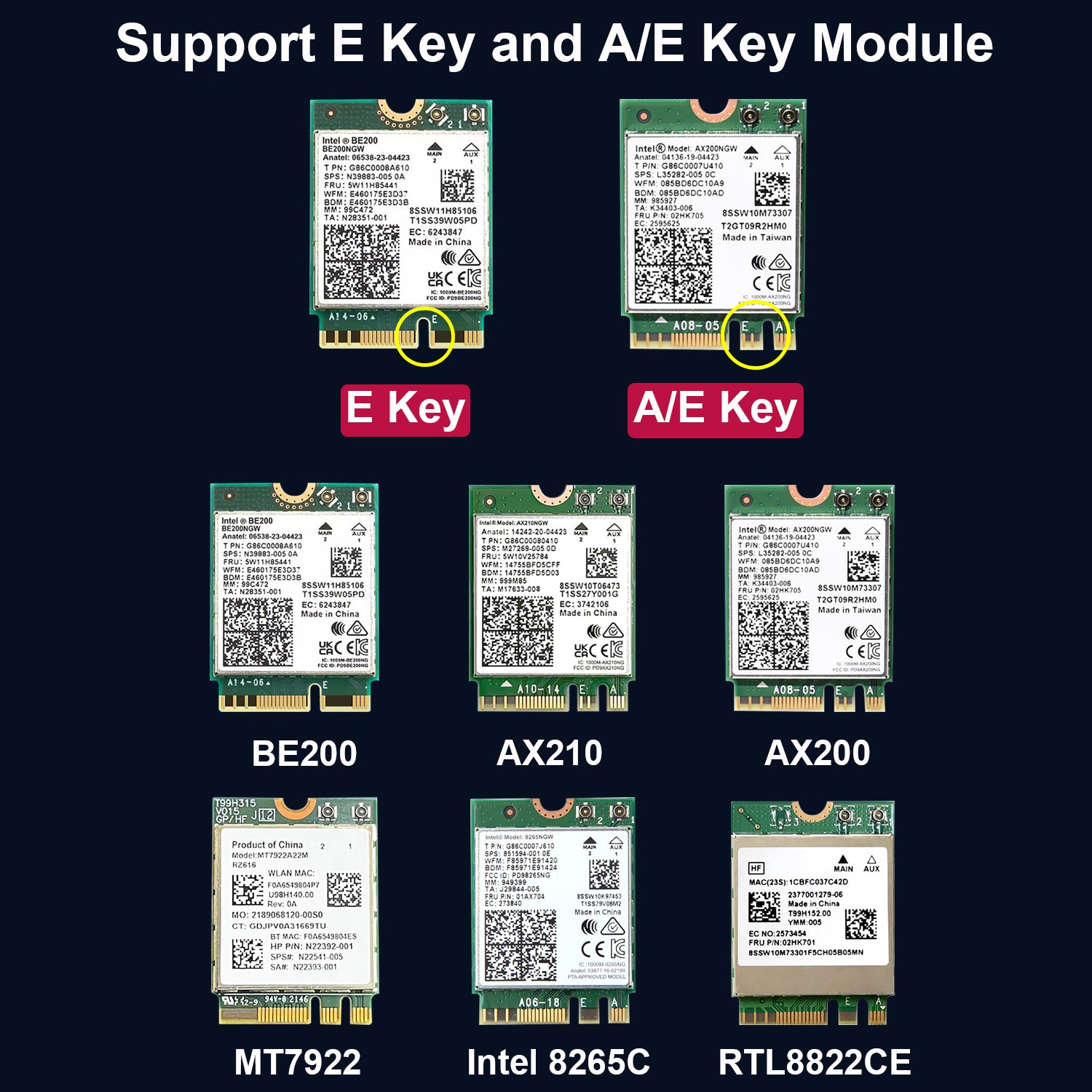

At present, Ubuntu supports wireless network cards of WIFI7 WIFI6(E) WIFI5, which can be used without installing drivers. The currently supported network cards include BE200, 8265C, AX200, AX210, MT7922.
To use the WiFi7/6/6E/5 wireless network cards, the Raspberry Pi OS needs to install a driver, it depends on how familiar you are with the wifi driver and Raspberry Pi OS. We have instructions about driver BE200, AX200, AX210.
This expansion board is suitable for use with aluminum alloy case. For aluminum alloy enclosure, please refer to ZC501 (ASIN: B0DSZYLMSS); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5).

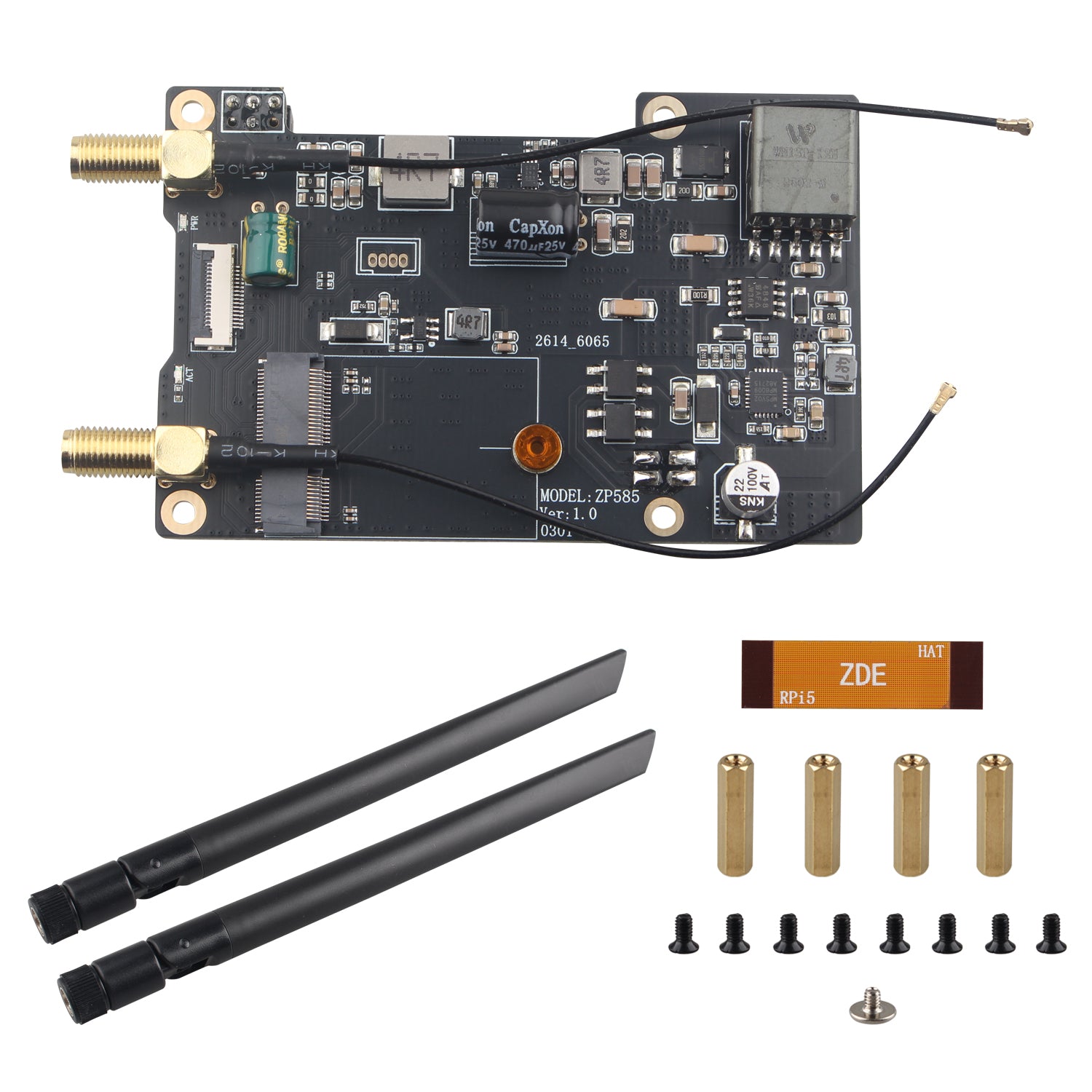

Packing List:
1 x ZP585 HAT
2 x WIFI Antenna
1 x PCIe FPC cable
1 x Screws Pack
Note: The Raspberry Pi 5 and WIFI module are not included.
