The PoE+ HAT expansion board is an 802.3af/at-compliant Power Over Ethernet (PoE+) accessory for the Raspberry Pi 5. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

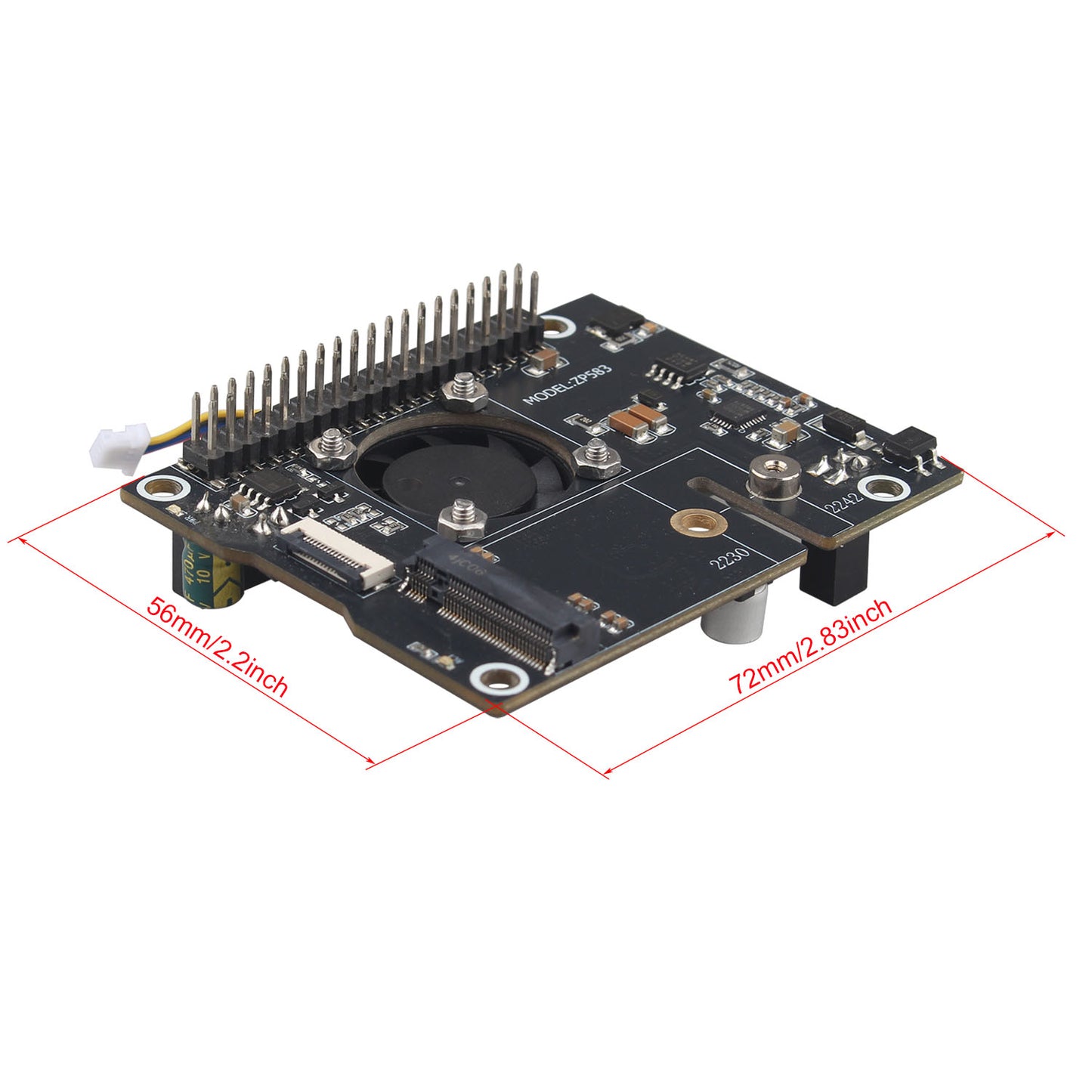

Based on feedback from customers of ZP583 PoE+ HAT, we have improved the product. The ZP583C PoE+ HAT adopts the onboard PWM cooling fan, which supports speed adjustment according to temperature. It’s also equipped with an aluminum alloy heatsink, providing better heat dissipation effect and more stable operation performance.
Support 802.3af/at Network Standard. Suitable for use with a PoE router, switch or splitter that supports the IEEE 802.3af/at networking standard.
Use the PCIe interface of the Raspberry Pi 5 to utilize the M.2 NVMe SSDs for ultra-fast booting and fast data transmission. Support M.2 NVMe SSD in 2230/2242 length.
Standard Raspberry Pi 40PIN GPIO header, easy access to other Raspberry Pi expansion boards or modules. Suitable for use with aluminum alloy case kit. For aluminum alloy enclosure, please refer to model ZC501(ASIN: B0DSZYLMSS).
Packing List:
1 x ZP583C Adapter Board
1 x PWM Cooling Fan
1 x Aluminum Alloy Heatsink
4 x Silicone Thermal Pads
4 x M2.5x16mm Spacers
8 x M2.5x4mm Screws
2 x M2x2.5mm Screws (to fix SSD)
1 x 4mm Pillar (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSD are not included in the package.
