ZDE ZP597 PCIe to 4 Ports 1G Gigabit 1000M Ethernet Network HAT Adapter Expansion Board 1GB 1GBE with Metal Case for Raspberry Pi 5

Features:

This kit includes a ZP597 PCIe Peripheral Board and a metal case. It is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board.

The ZP597 is a 4 ports gigabit Ethernet network expansion board specially designed for Raspberry Pi 5, adding 4 1GBE network ports for Raspberry Pi 5.

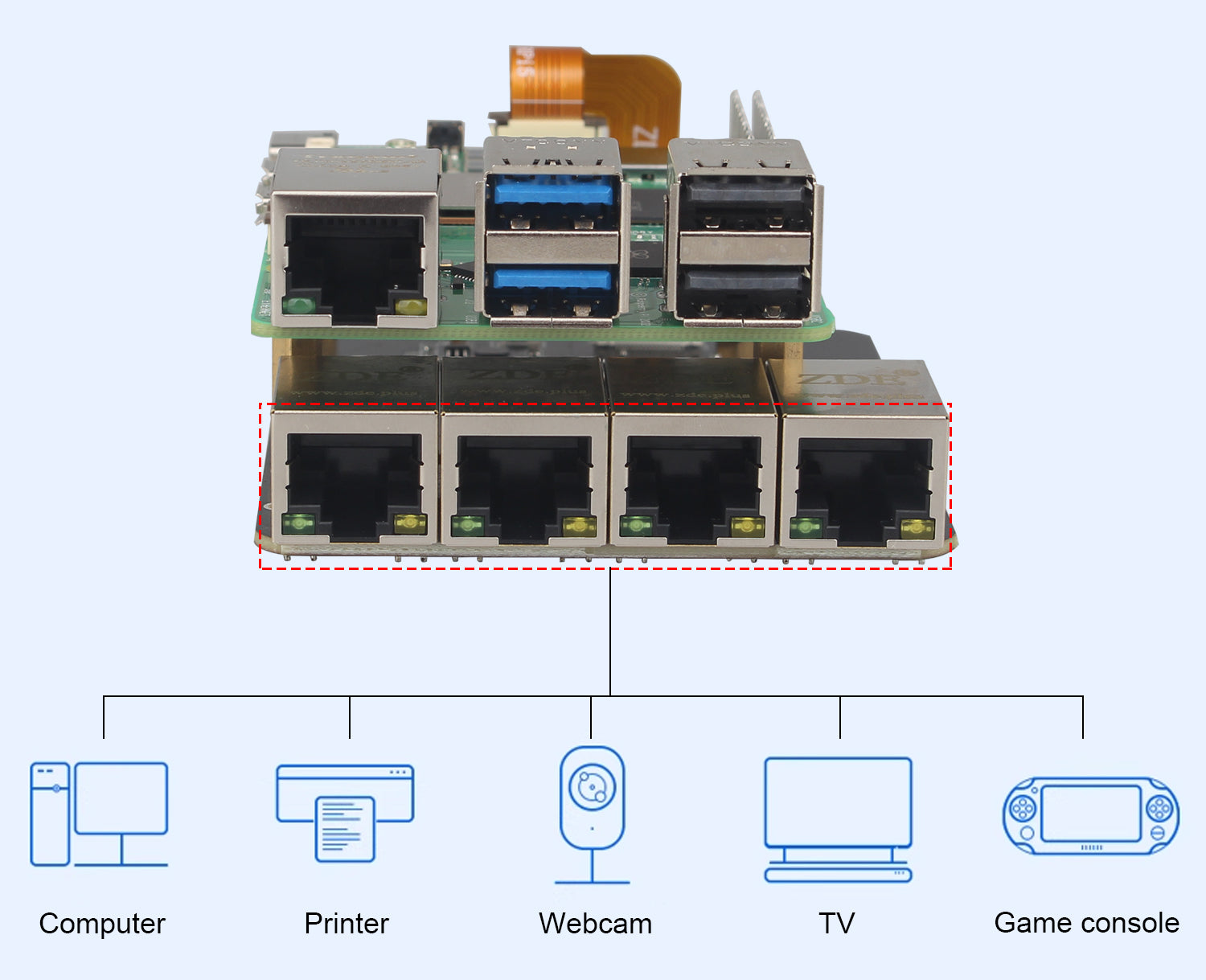

Use these 4 ports as LAN port and the network port that comes with the Raspberry Pi 5 as a WAN port, so that you can build your own router or switch with the Raspberry Pi 5. The adapter board can also be used to other multi-network port applications, such as Robot, Smart Home, VOIP, Industrial Equipment and more.

PCIe to 4 Ports Gigabit Ethernet Network HAT expansion board, provides reliable data transfer, able to achieve high-speed reading/writing. Drive-free under Raspberry Pi official OS and OpenWrt system. When use Ubuntu system, it needs to install driver.

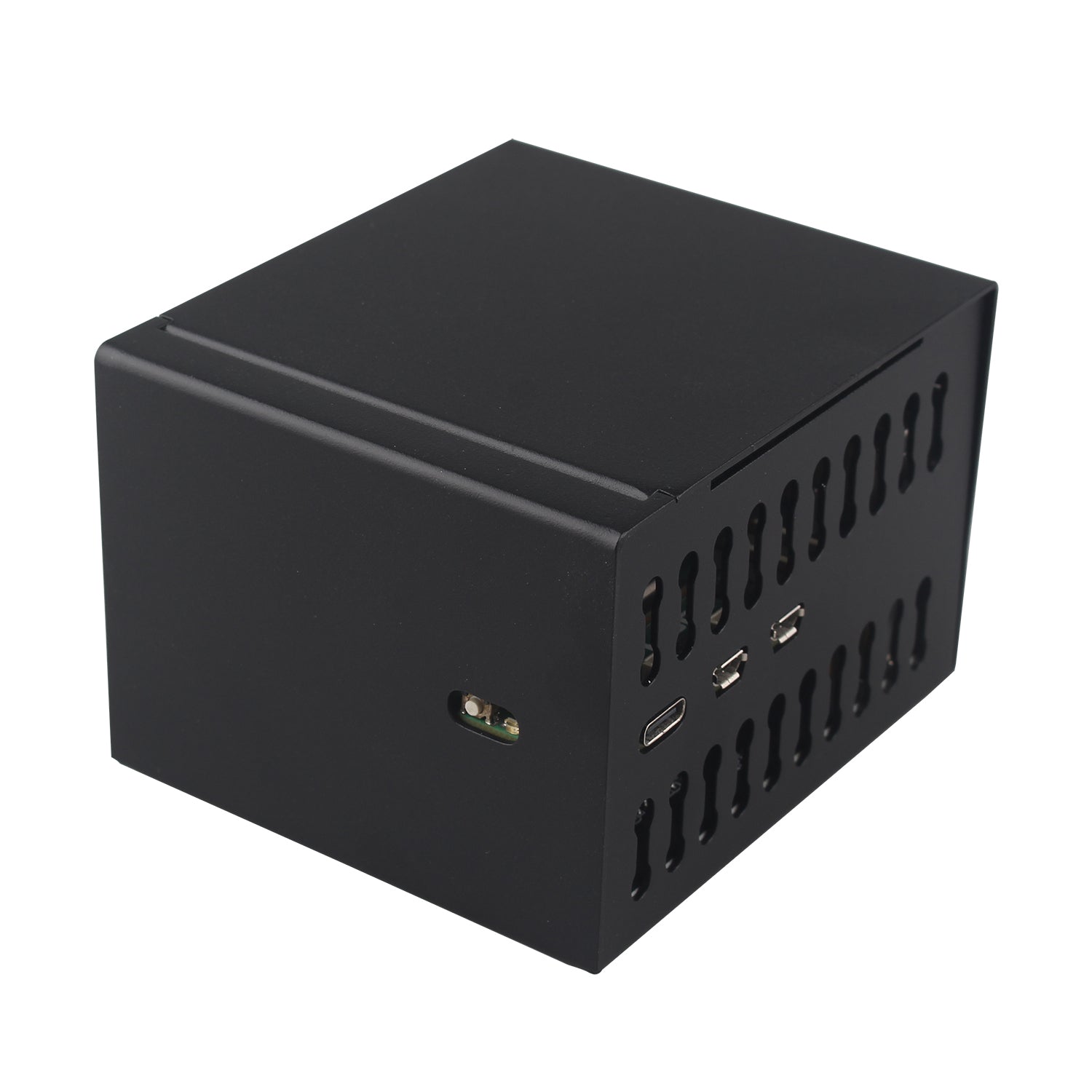

The enclosure is specifically designed for ZP597 shield with 4 Ethernet Ports. It is made of lightweight and durable metal material, which can offer excellent protection and heat dissipation for the Raspberry Pi 5 board and expansion board.

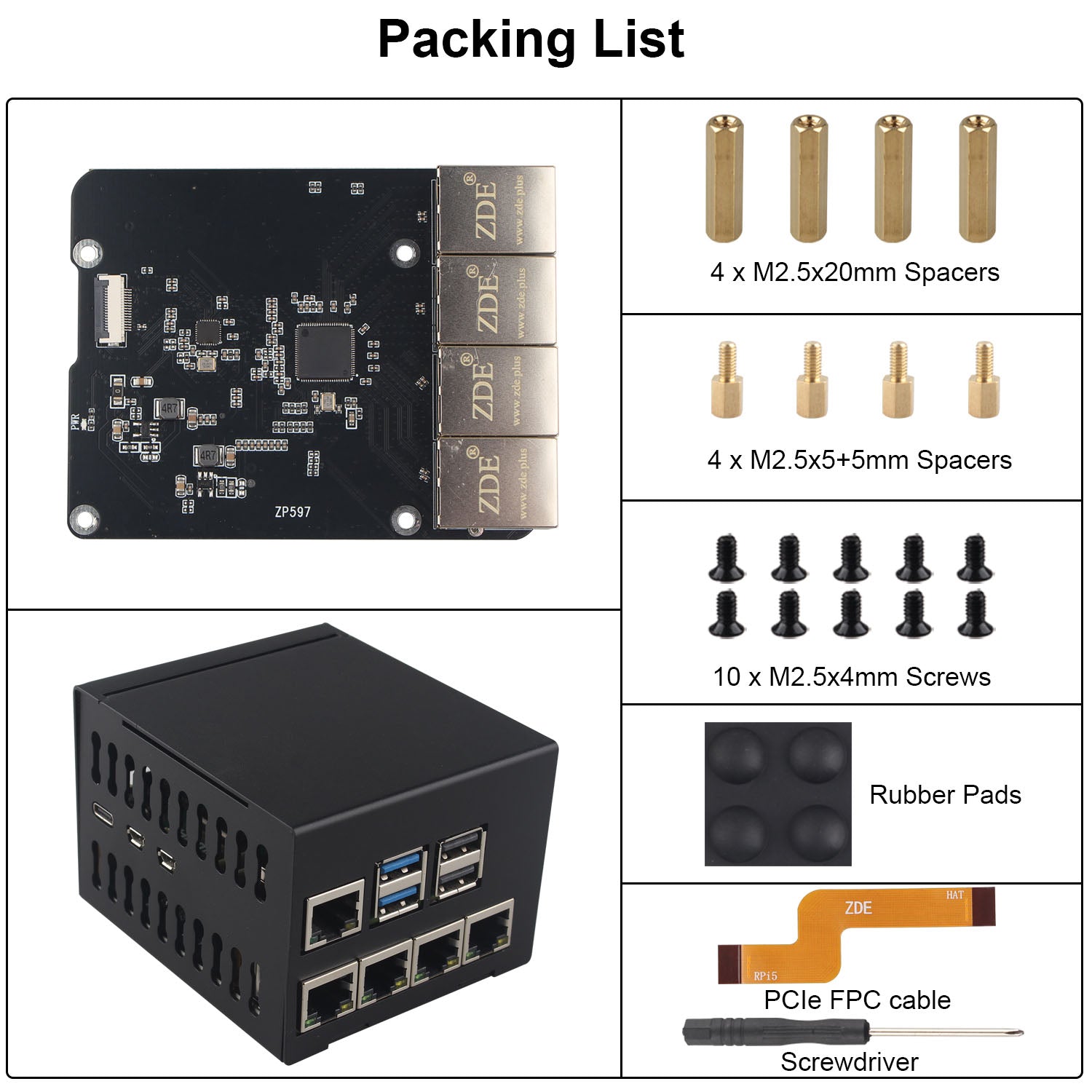

Packing List:

1 x ZP597 Expansion Board

1 x Metal Case

4 x M2.5x20mm Spacers

4 x M2.5x5+5mm Spacers

10 x M2.5x4mm Screws

1 x 4pcs Rubber Pads

1 x PCIe FPC cable

1 x Screwdriver
