This kit includes a ZP596 PCIe Peripheral Board (ASIN: B0FHW9FXT2) and a ZC506 aluminum case (ASIN: B0F93SQ67G). It is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board.
This expansion board adds one M.2 E-KEY interface and one 2.5GBE network port for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a Router, Gateway, Firewall, Robot, Smart Home, NAS, VOIP, Industrial Equipment, Telecommunications Equipment and other network devices that need more than one network port.
Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces, one to achieve the expansion of M.2 E-KEY and the other to achieve the expansion of 2.5Gbps Ethernet through the RTL8125 chip.

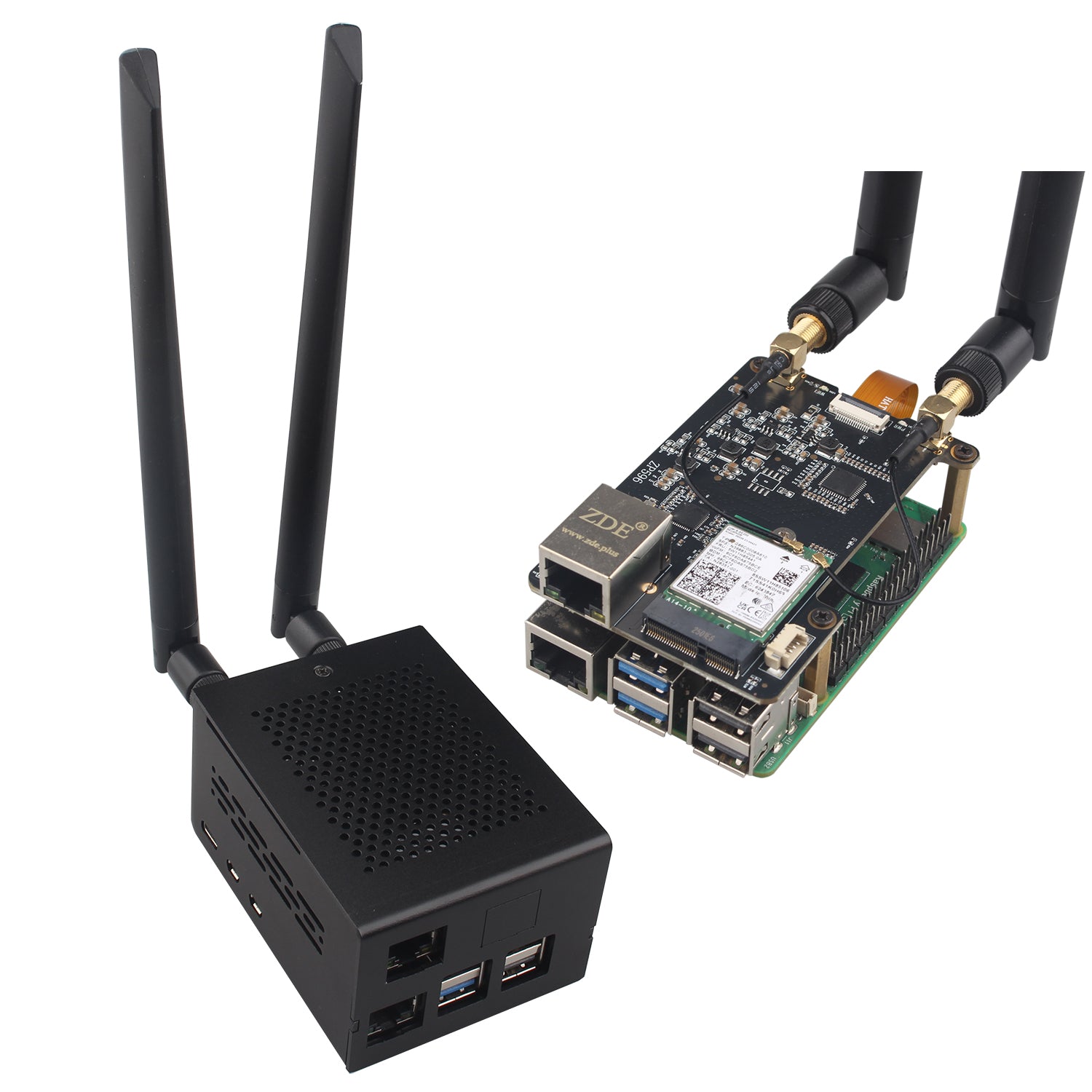

The ZP596 is an adapter board with PCIe interface for WiFi7/6/6E/5, allowing Raspberry Pi 5 motherboard to use the latest WIFI7 module. The WIFI7 module can be inserted into the ZP596 adapter board via the M.2 E-KEY interface, which provides an opportunity for a wide range of Raspberry Pi 5 users to be able to use the latest WIFI7.

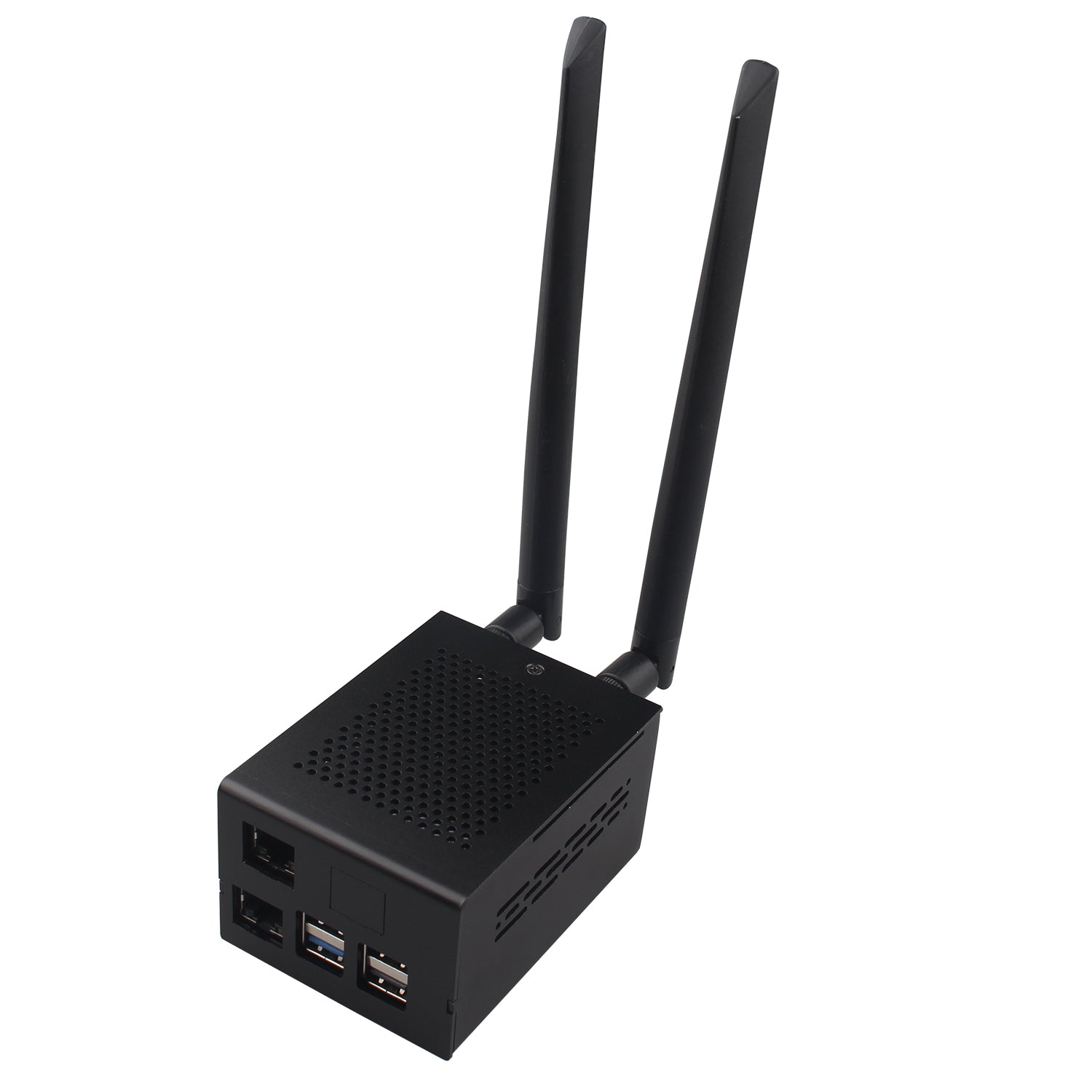

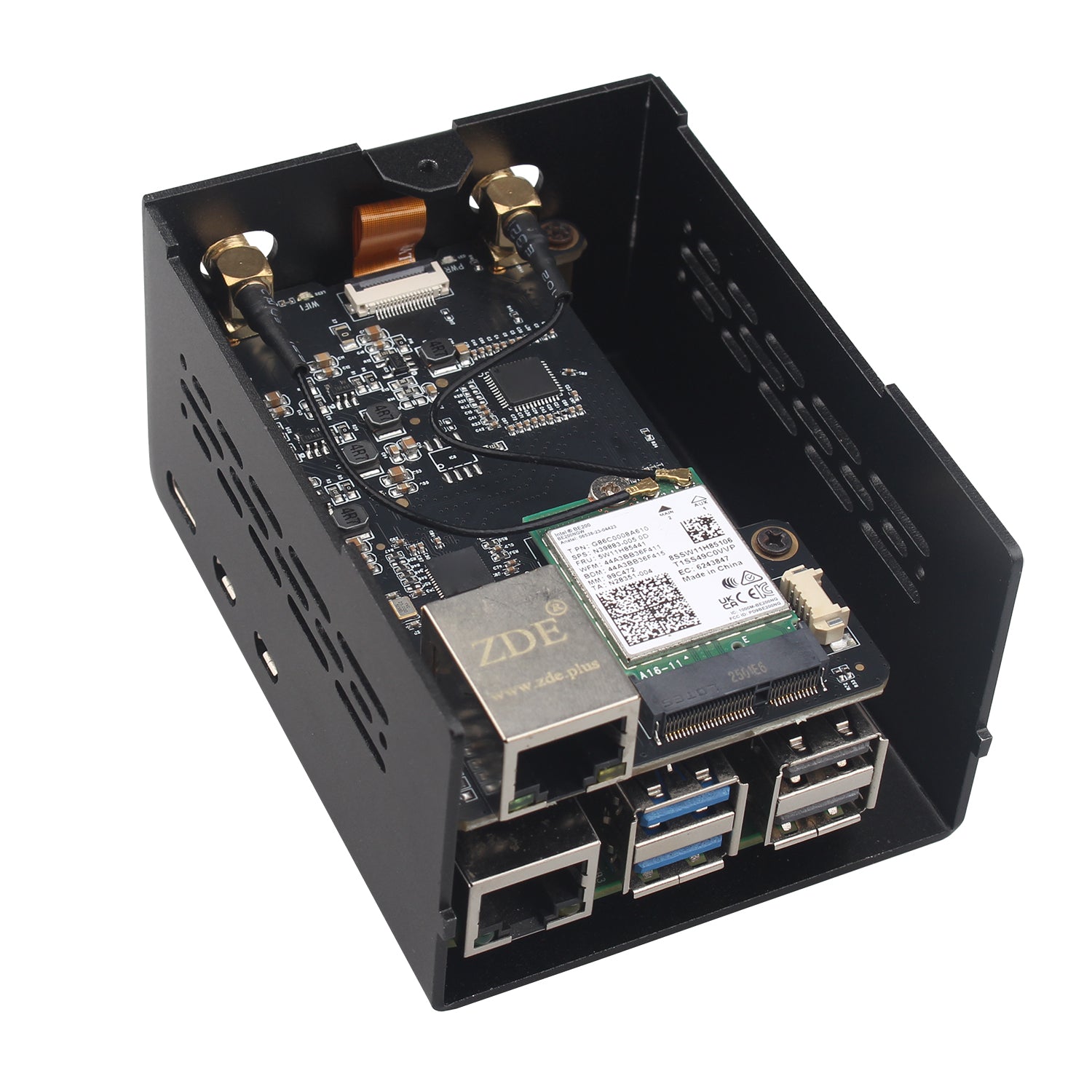

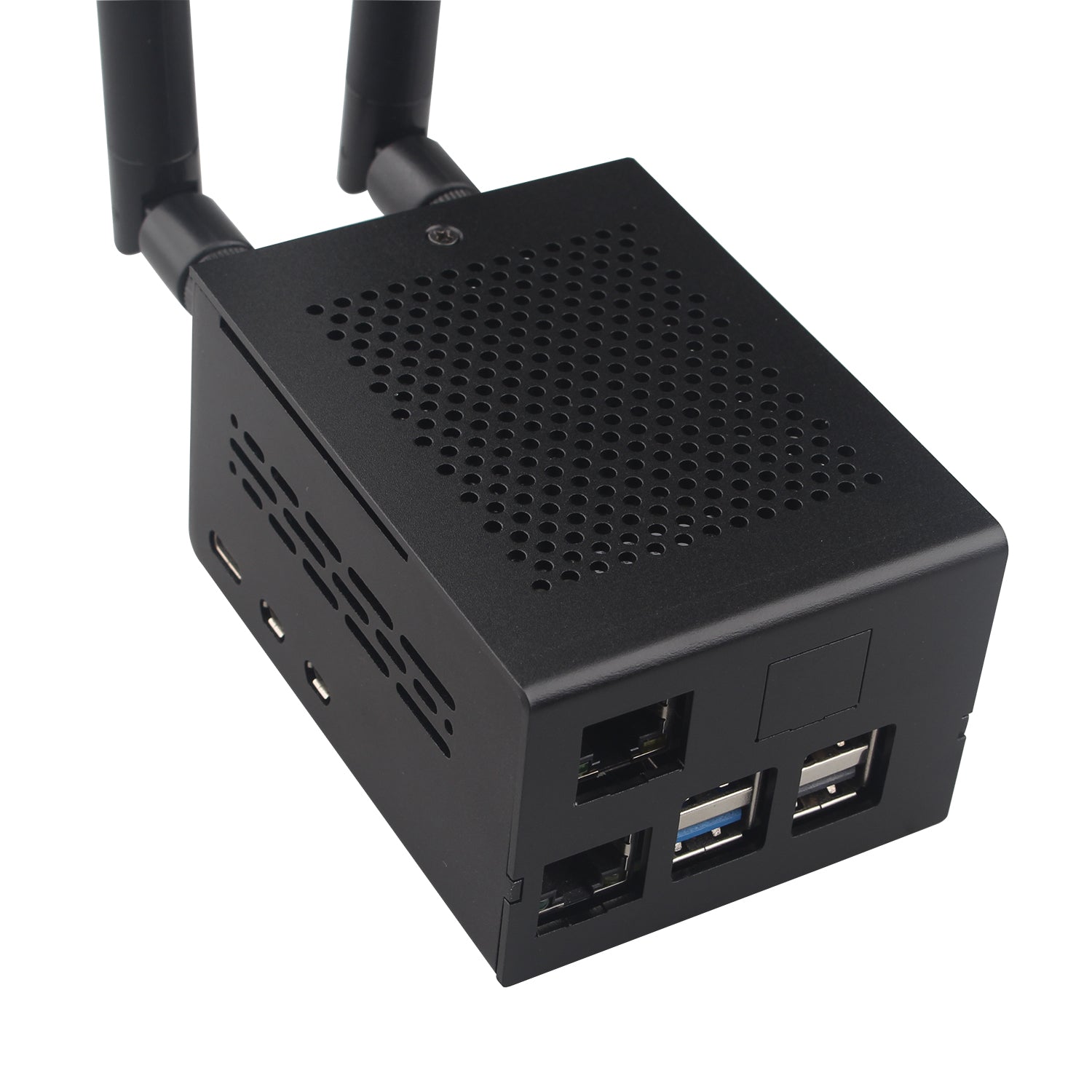

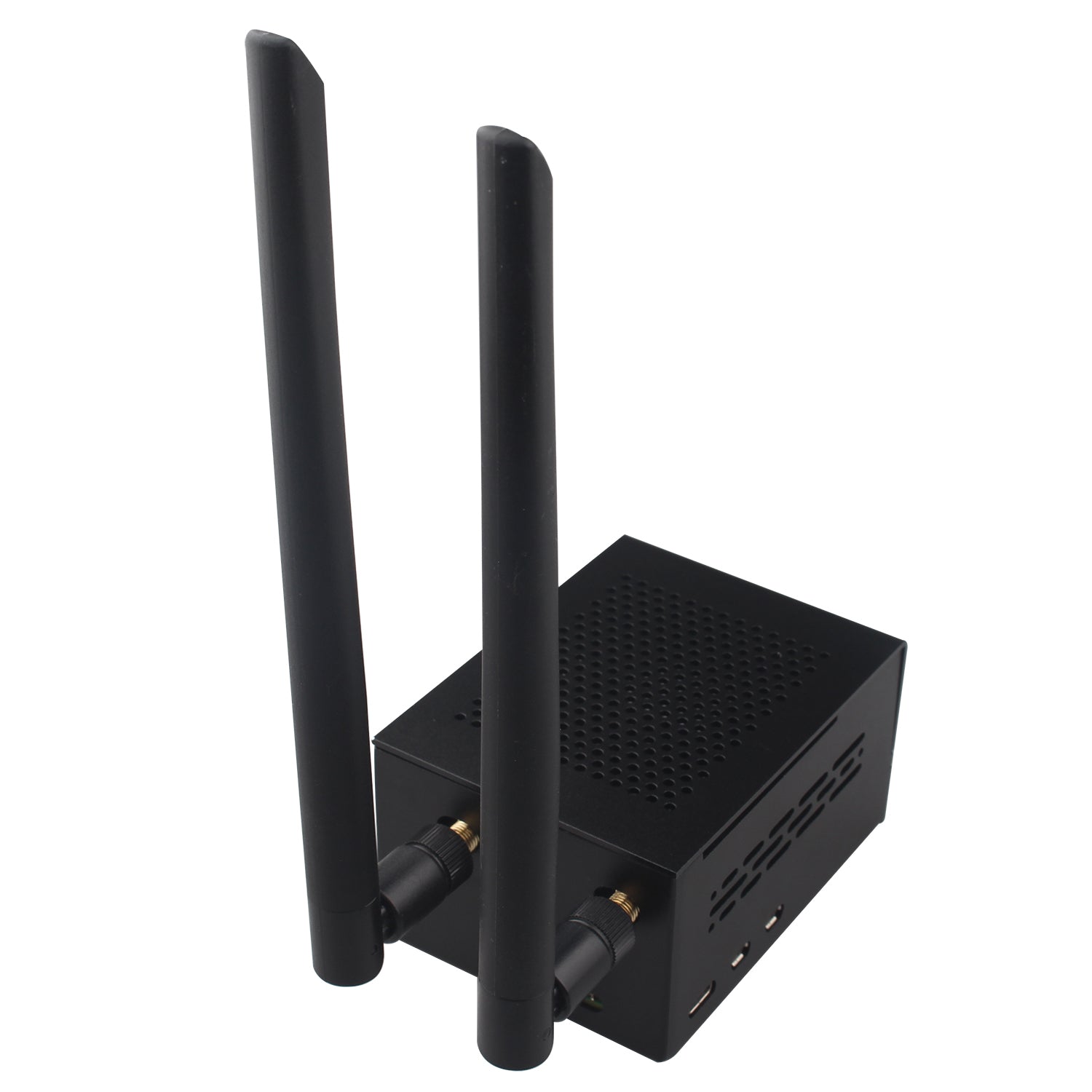

The case is specifically designed for HAT expansion boards with 2.5G Ethernet Port. It is made of lightweight and durable aluminum material, which can offer excellent protection and heat dissipation for the Raspberry Pi 5 board and expansion board.

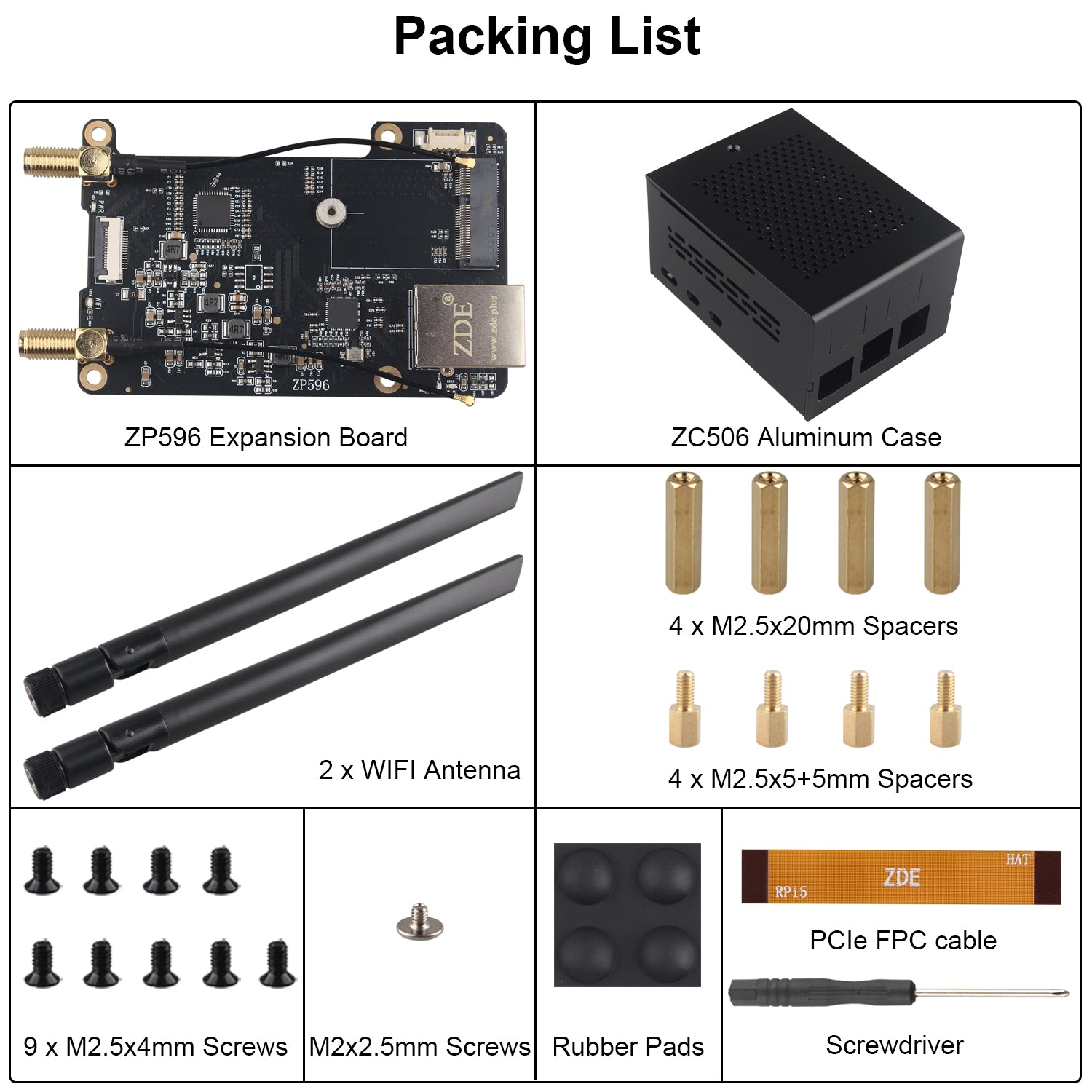

Packing List:
1 x ZP596 Expansion Board
1 x Aluminum Case
2 x WIFI Antenna
4 x M2.5x20mm Spacers
4 x M2.5x5+5mm Spacers
9 x M2.5x4mm Screws
1 x M2x2.5mm Screws
1 x 4pcs Rubber Pads
1 x PCIe FPC cable
1 x Screwdriver
Note: The Raspberry Pi 5 and WIFI module are not included.
