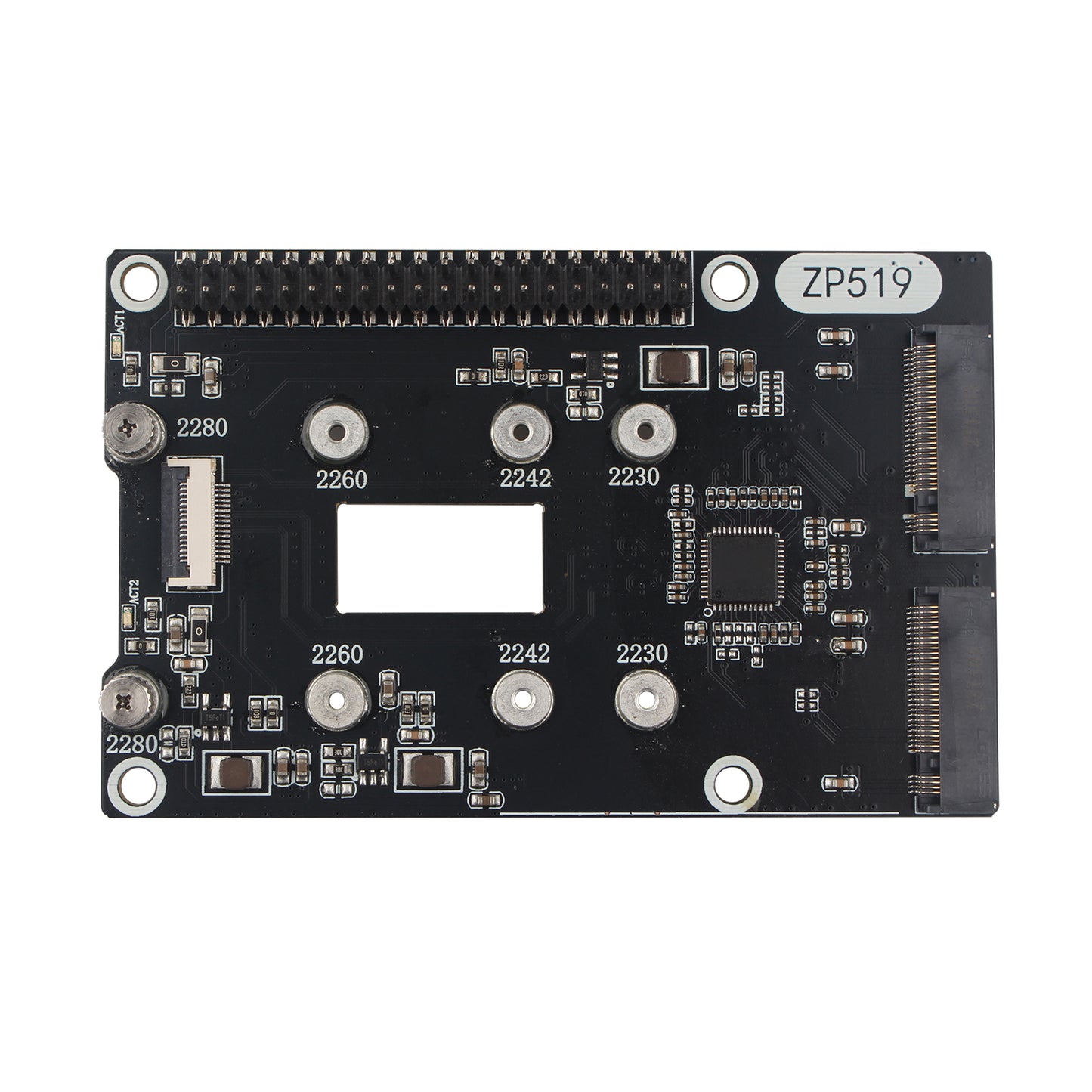

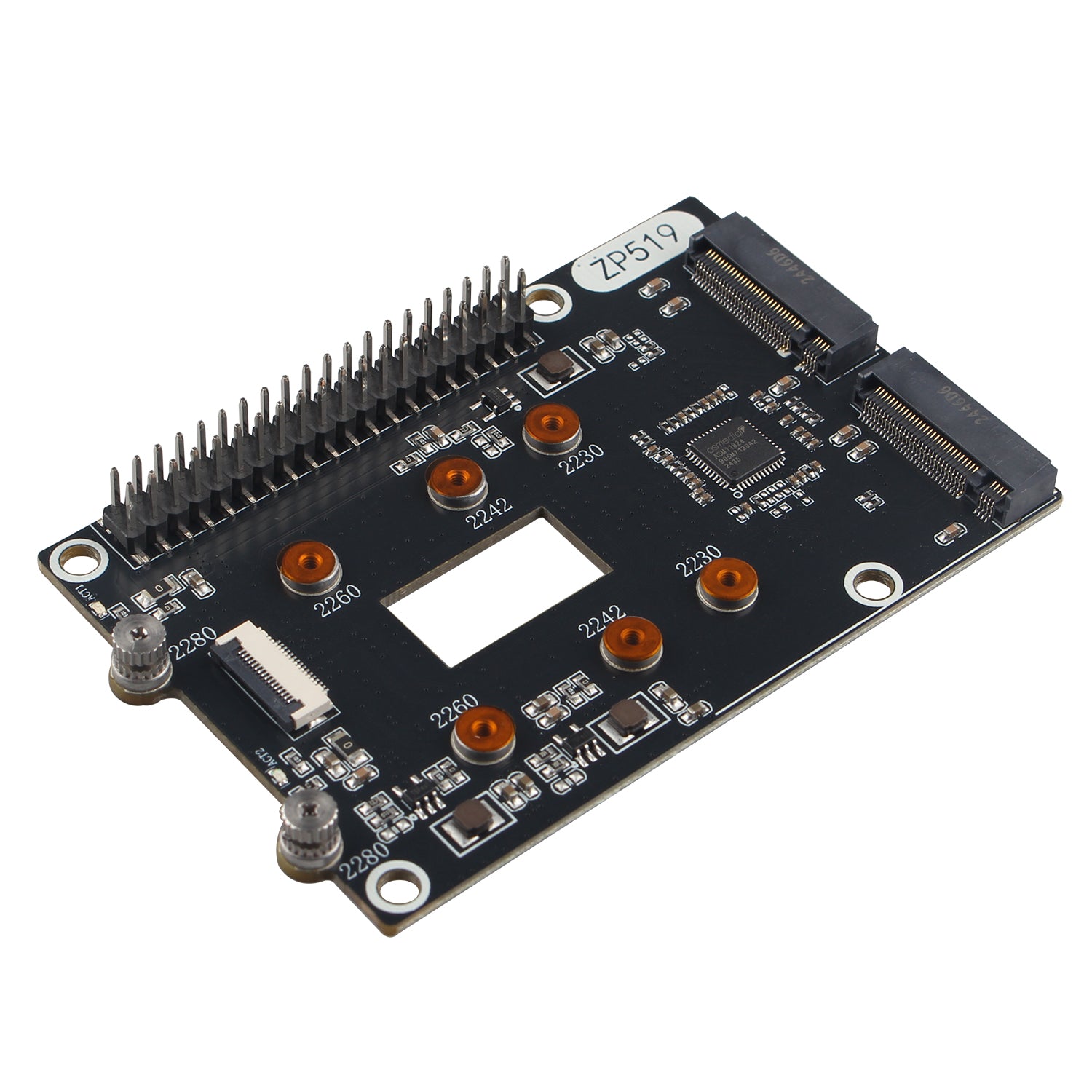

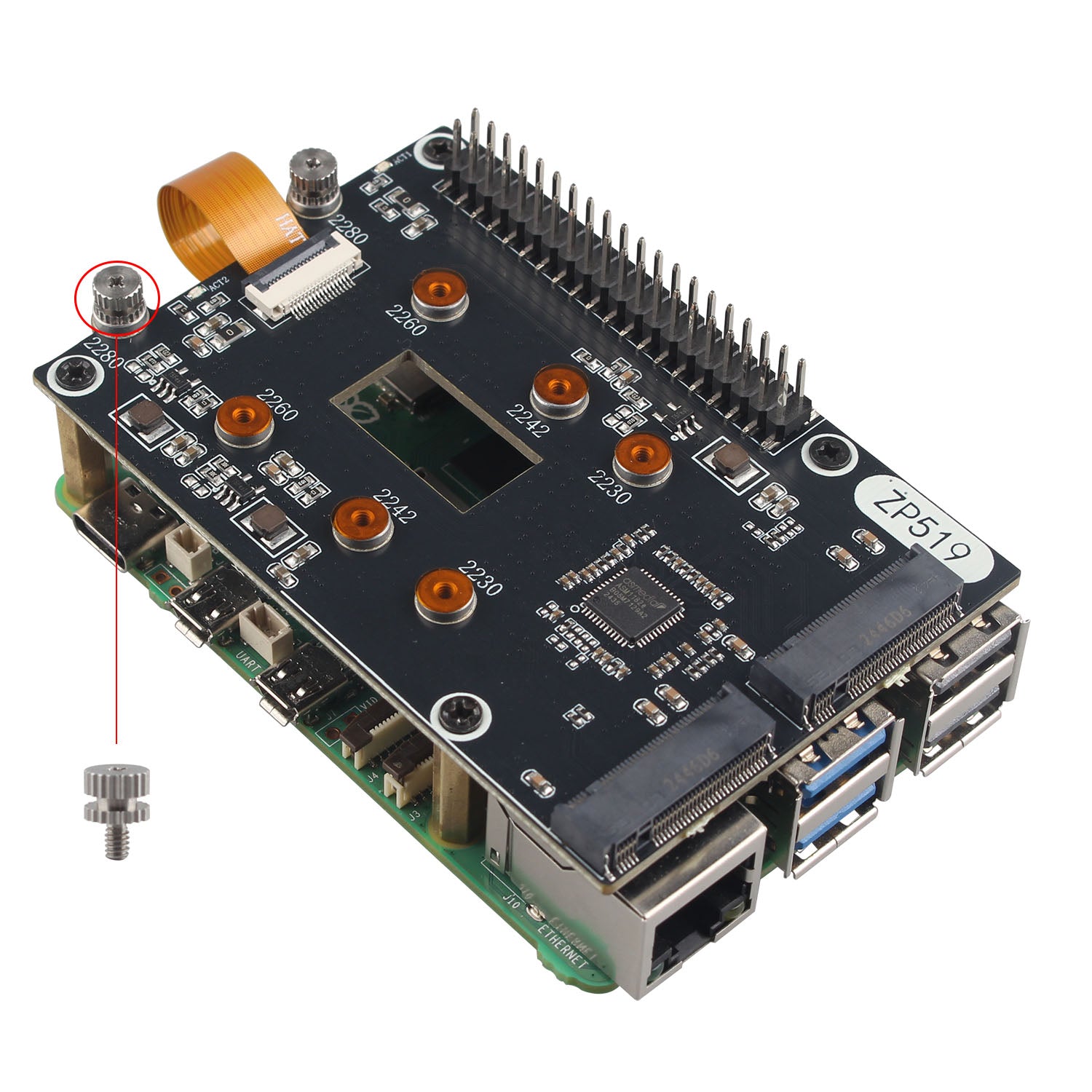

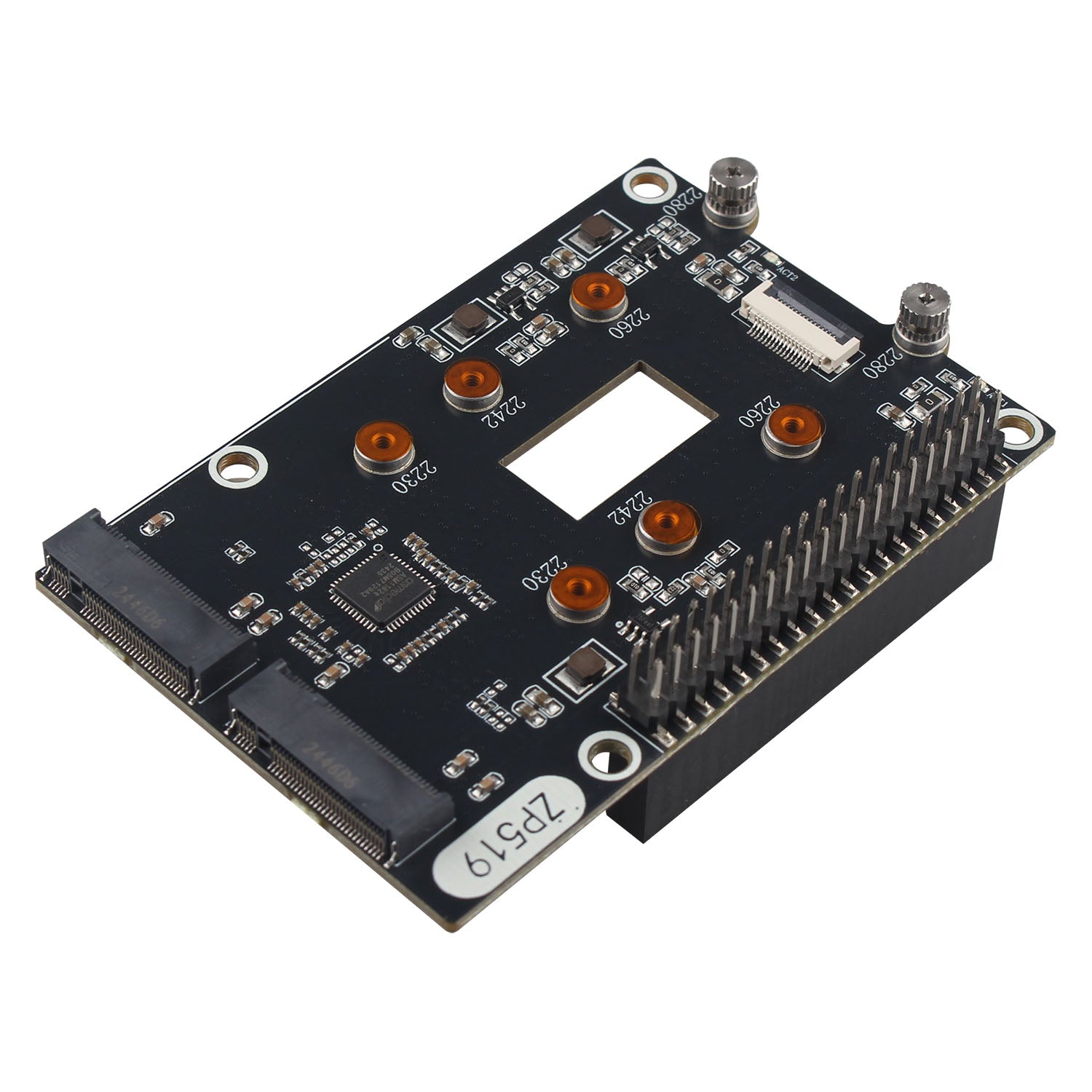

ZDE ZP519 PCIe to Dual M.2 HAT Key-M NVMe SSD PCIe Peripheral Board Solid State Drive Adapter Board for Raspberry Pi 5 Support M.2 NVMe SSD 2230 2242 2260 2280

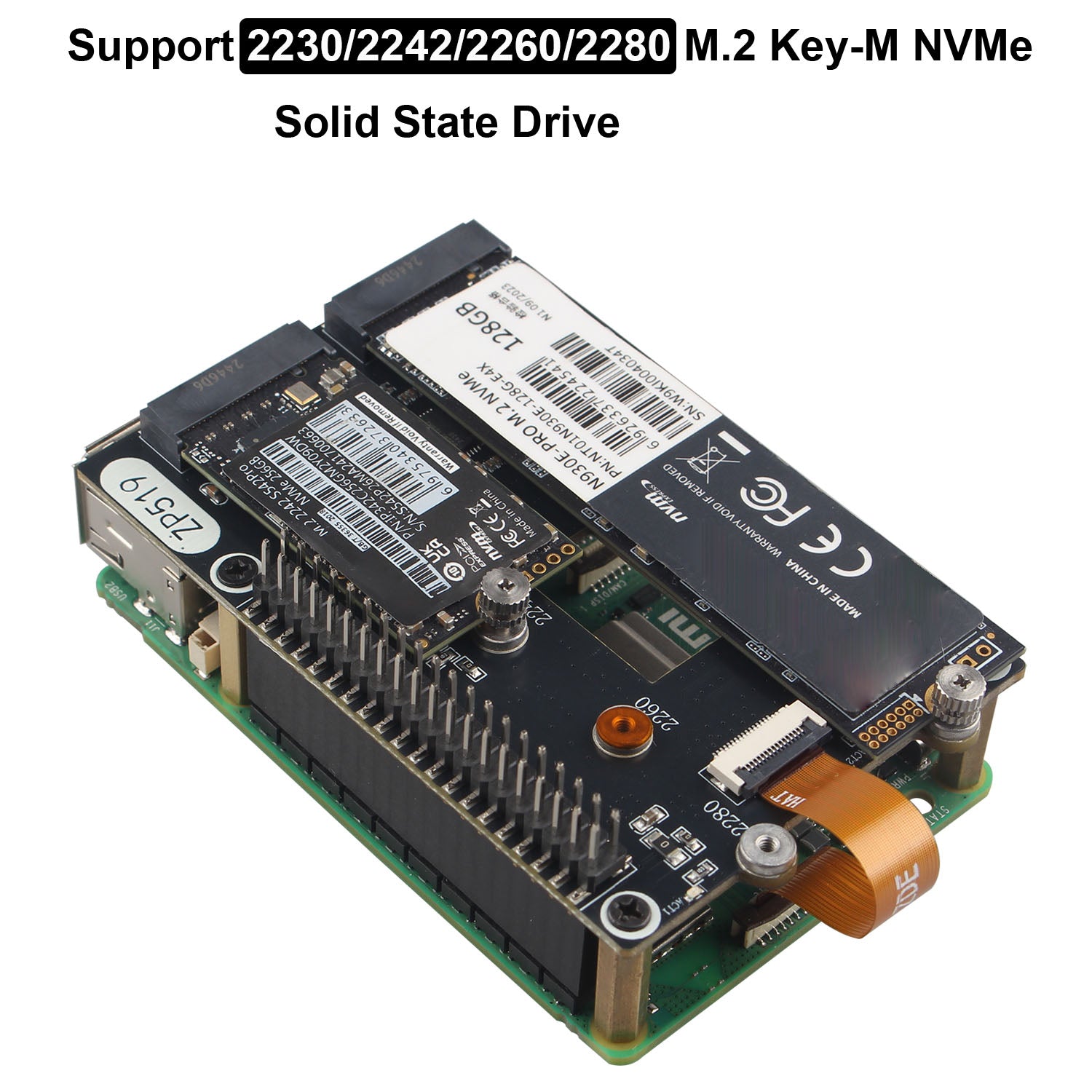

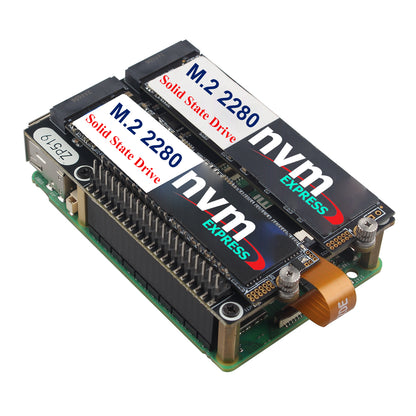

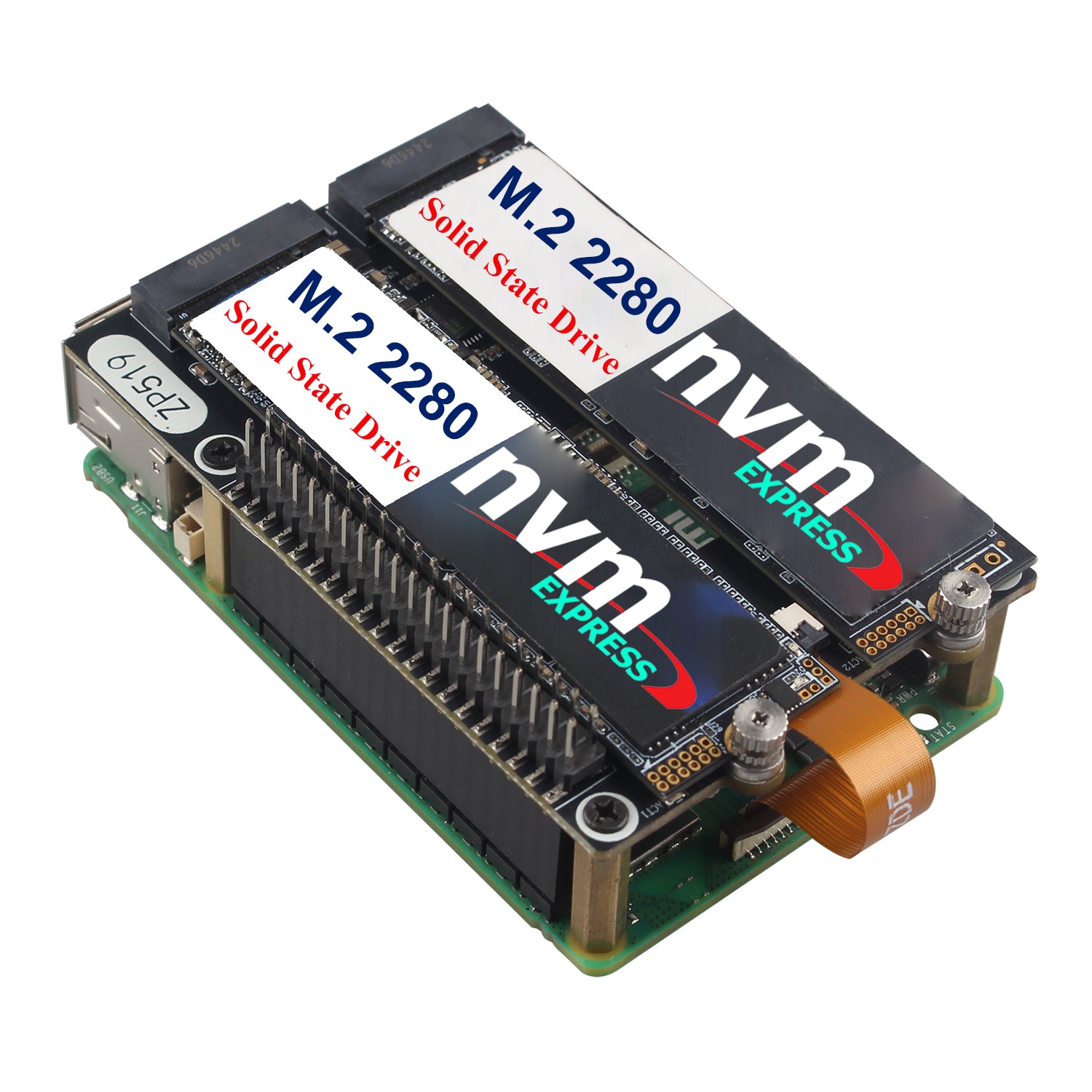

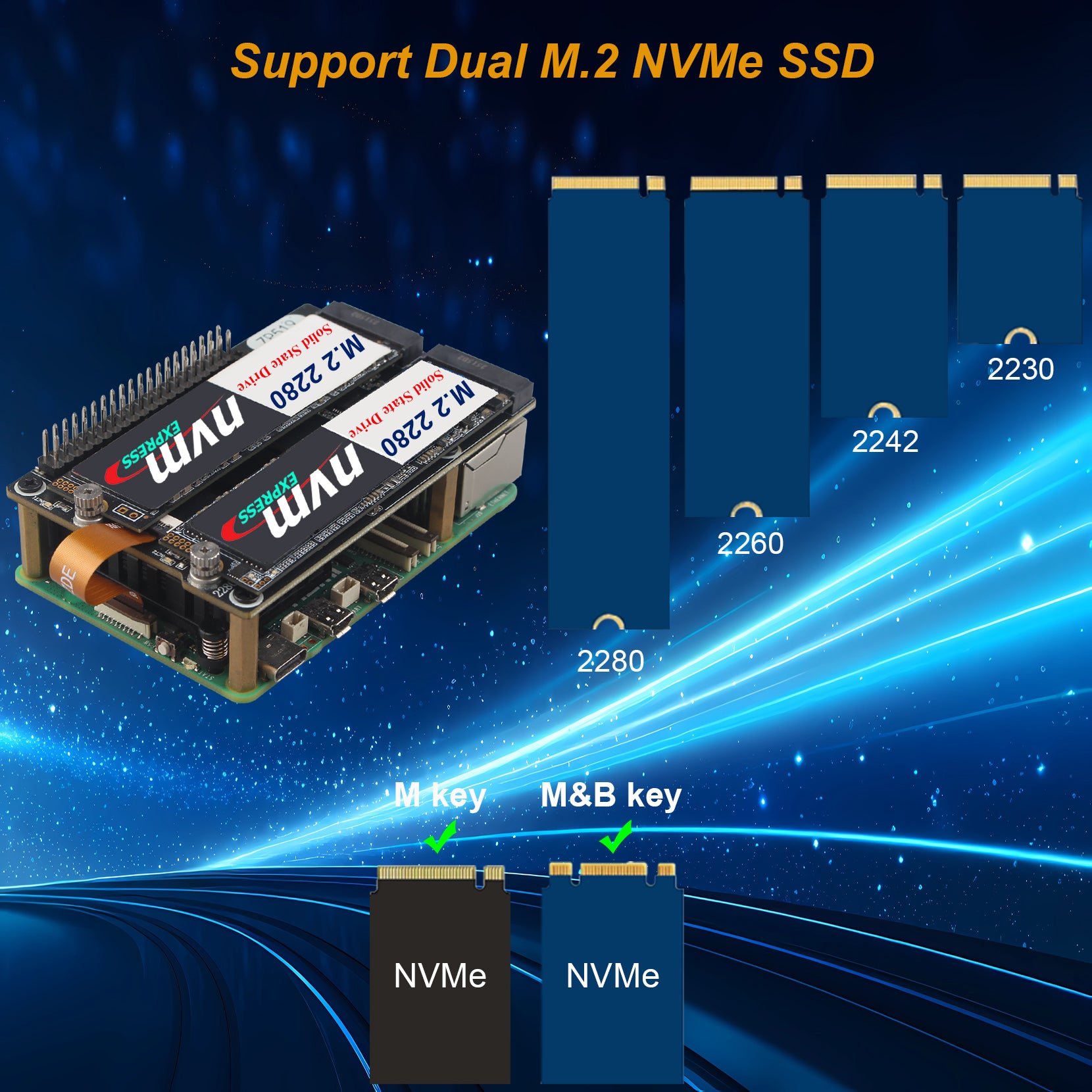

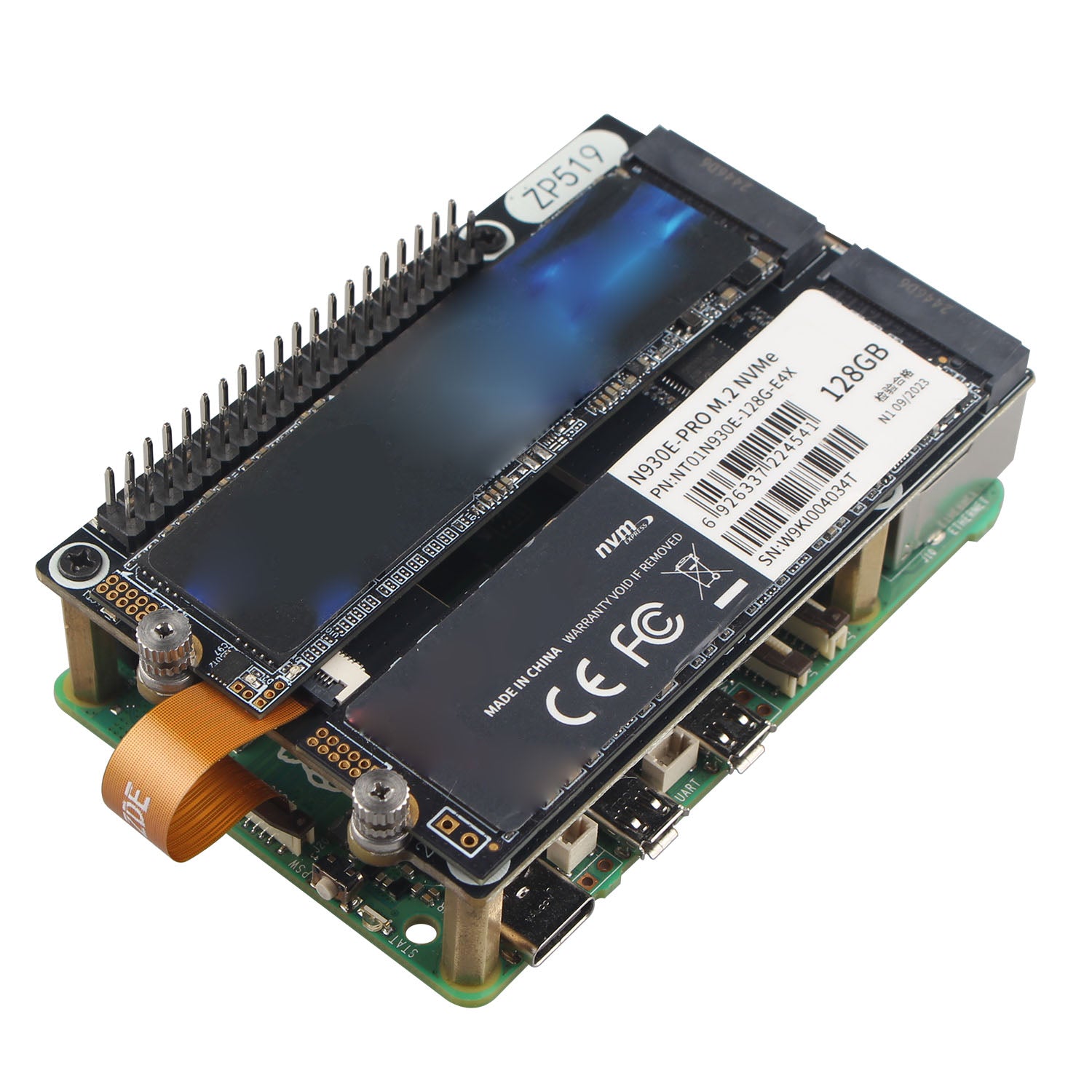

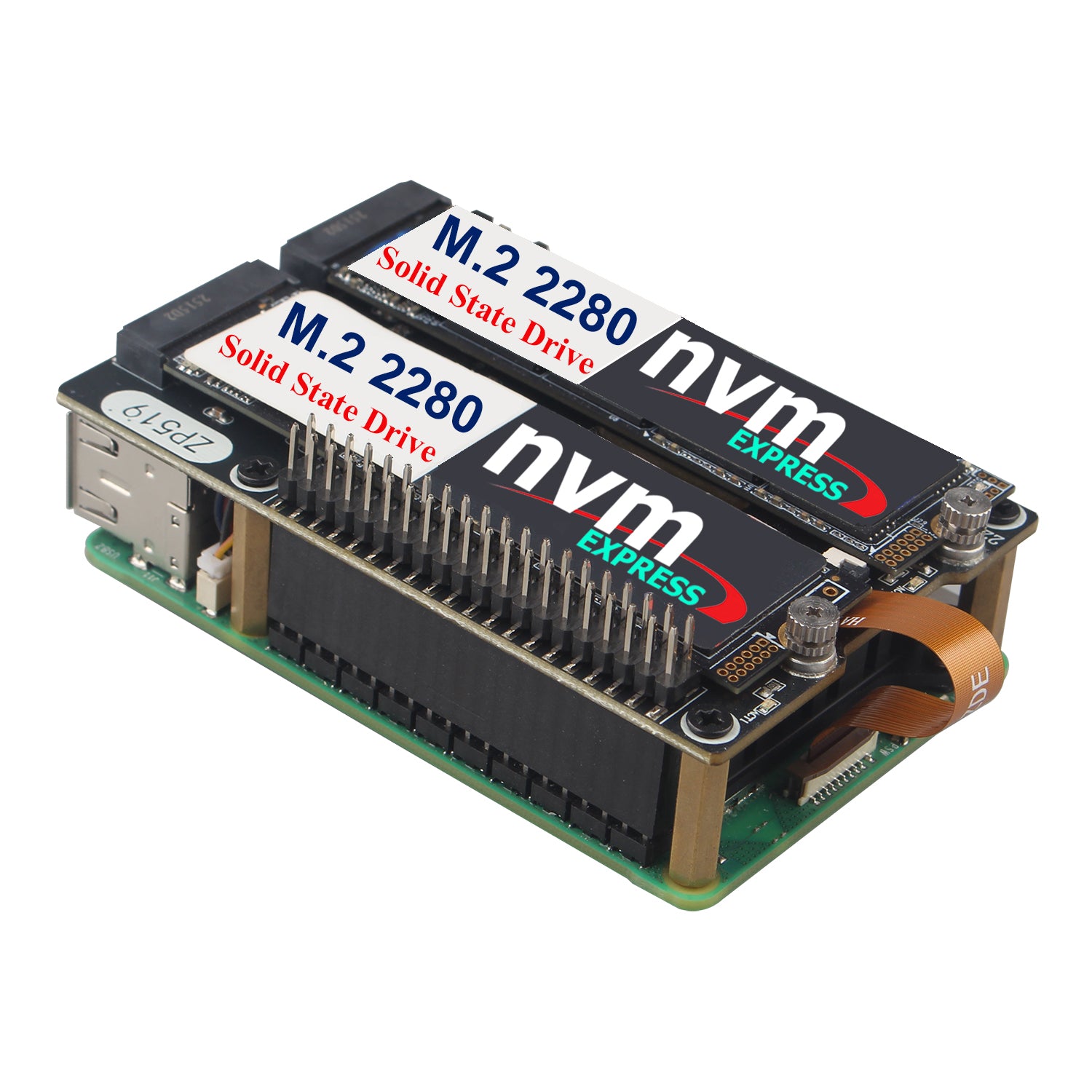

ZP519 PCIe to Dual M.2 HAT Key-M NVMe SSD expansion board supports the installation of two M.2 Key-M NVMe SSDs in 2230/2242/2260/2280 length, high-speed reading/writing; supports booting pi5 from nvme solid state drive.
Supports installation of official active coolers for heat dissipation. Reserved airflow vent for the cooling fan, better cooling effect for Raspberry Pi 5 and SSD.
ZP519 PCIe Peripheral Board is compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB pc computer (NOT include Raspberry Pi 5). Support Hailo AI accelerator.
How to Power: Power the adapter directly from the PCIe FPC ribbon cable. Also, with 40pin GPIO header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
The ZP519 hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS.

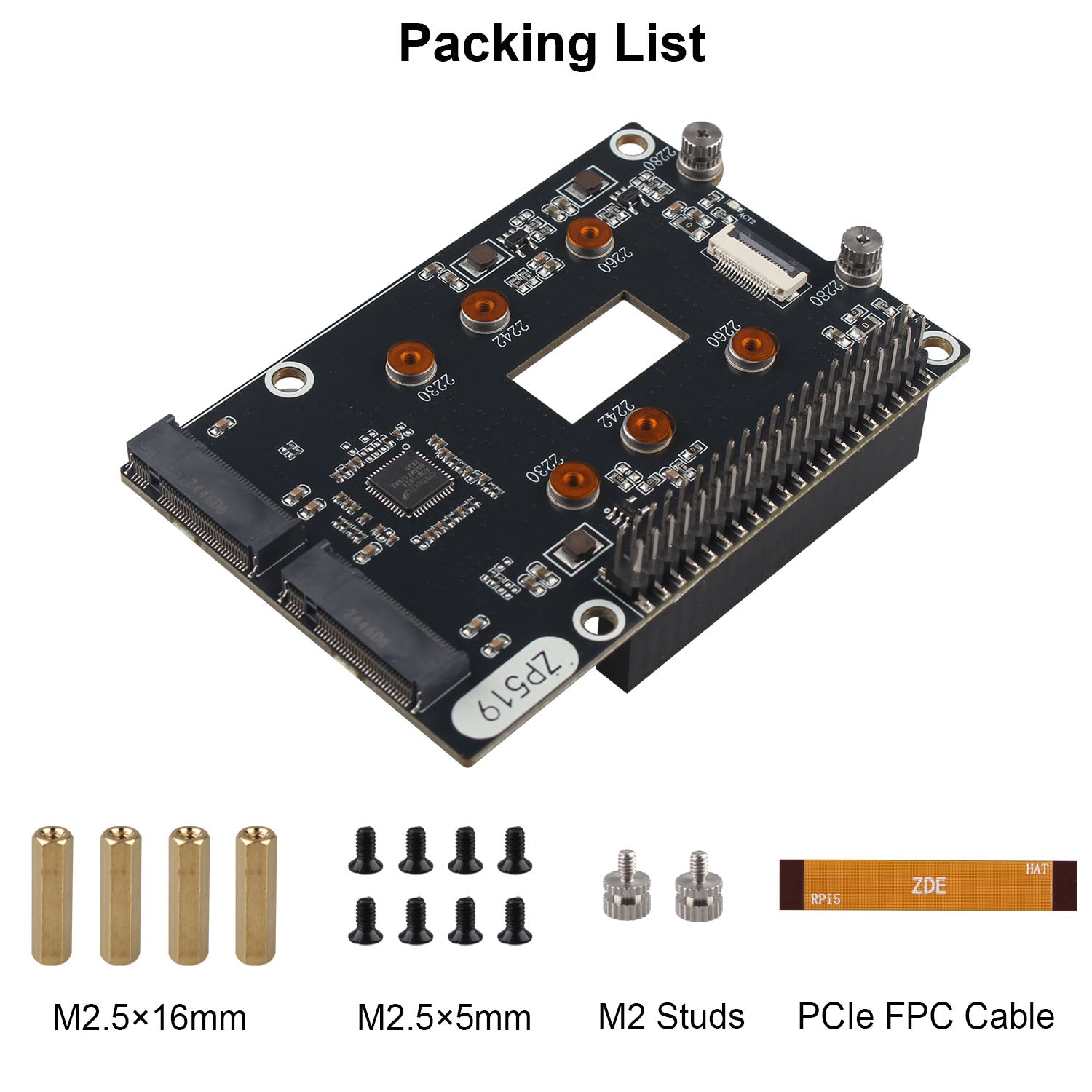

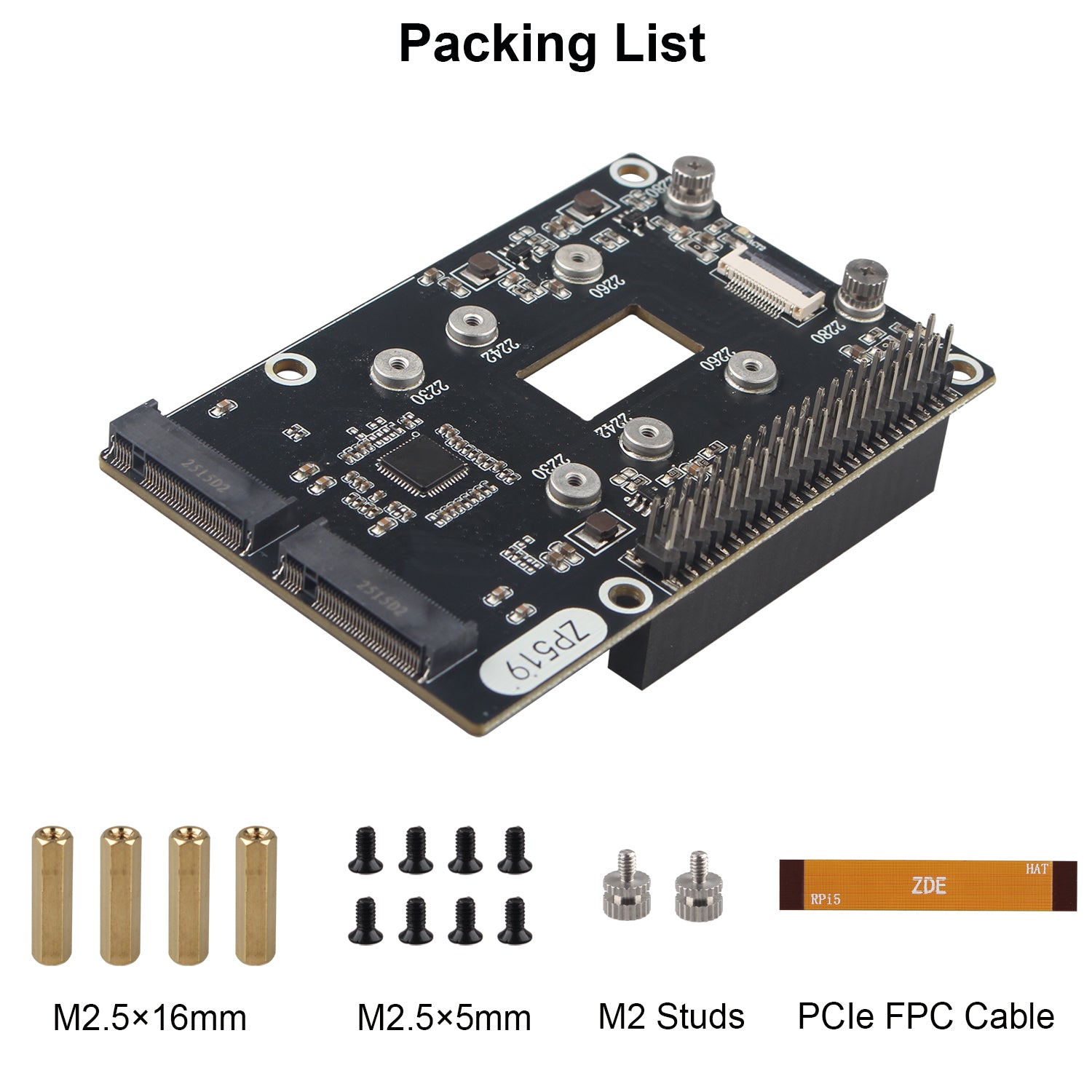

Packing List:
1 x ZP519 PCIe Peripheral Board
4 x M2.5x16mm Spacers
8 x M2.5x5mm Screws
2 x M2 Studs (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSDs are not included in the packing list.
