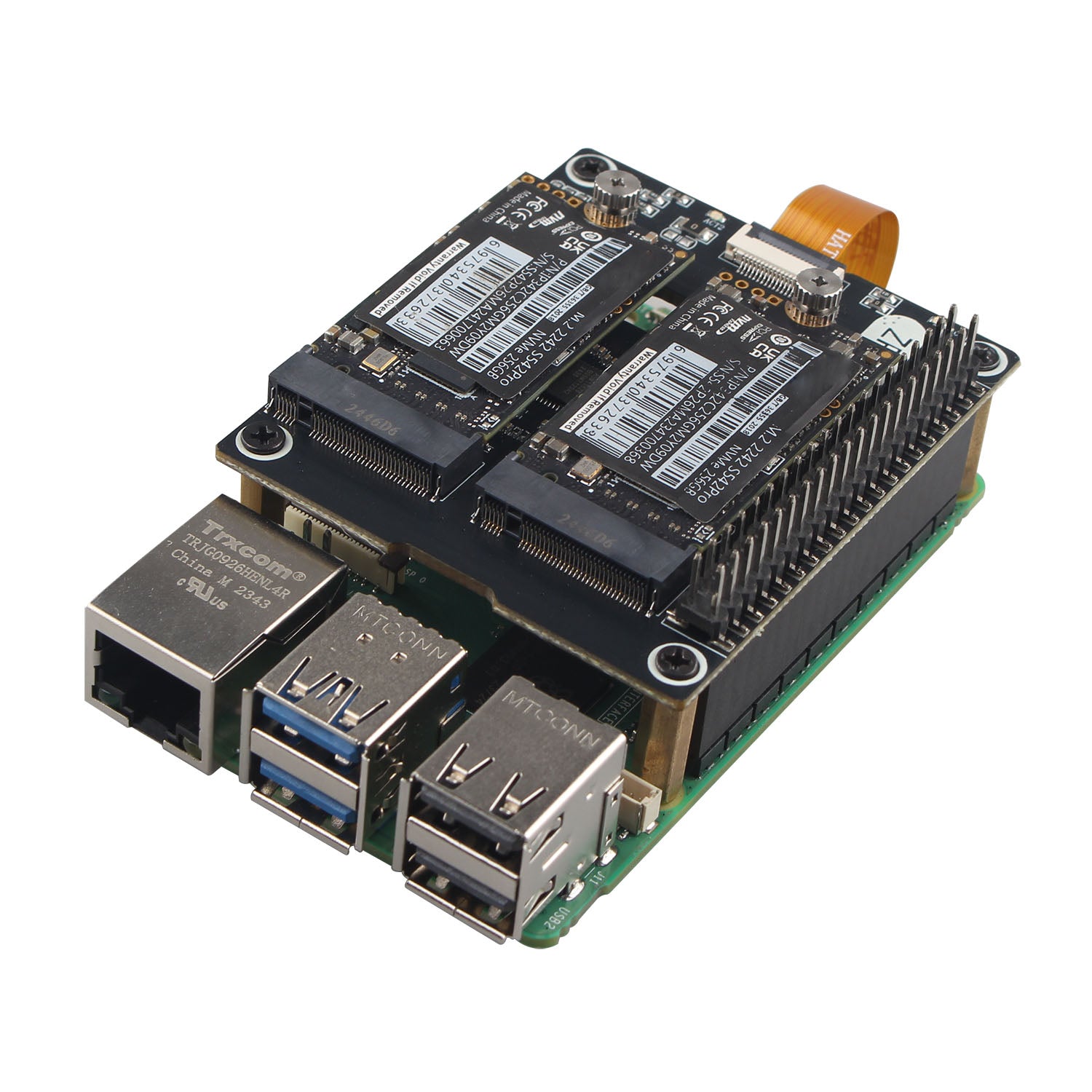

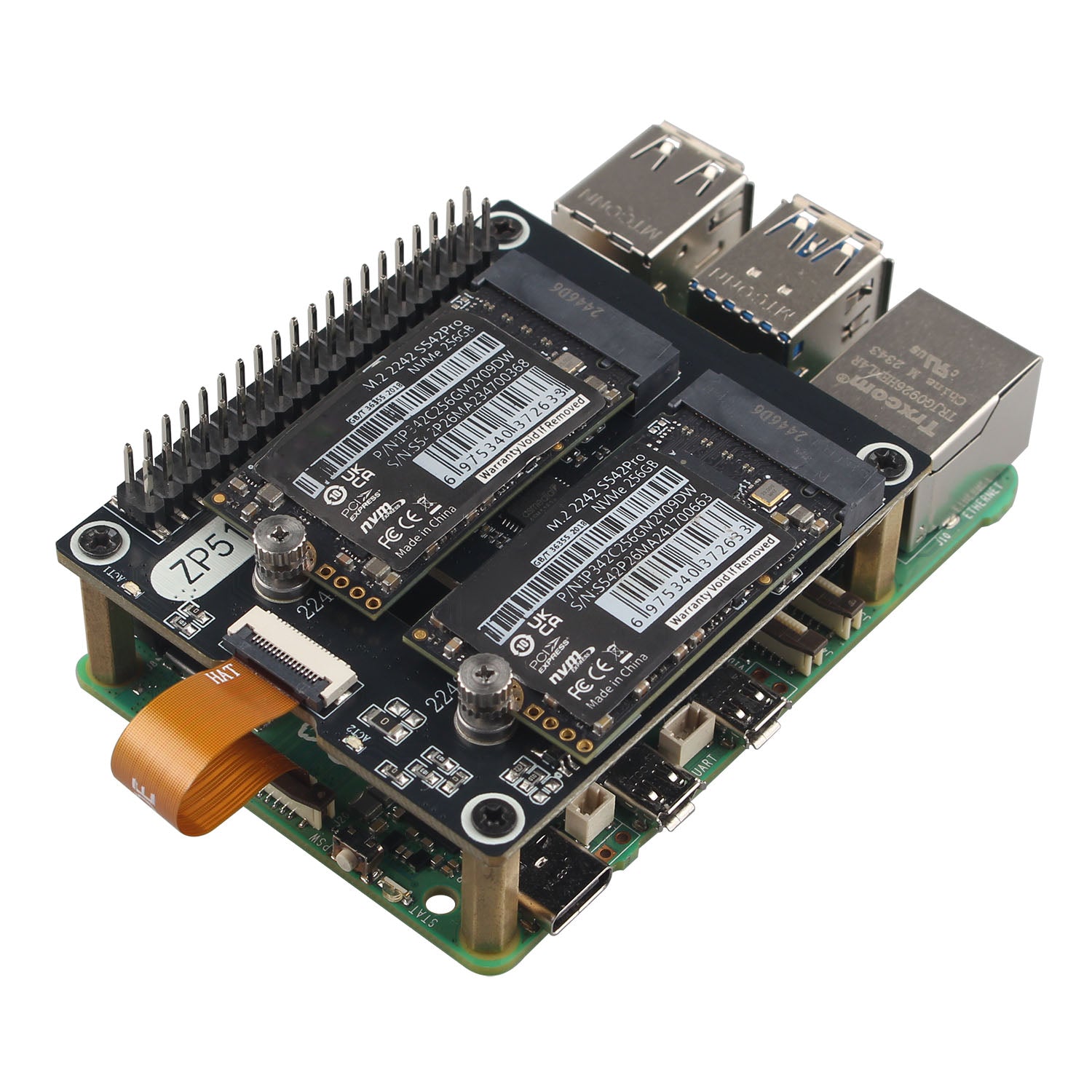

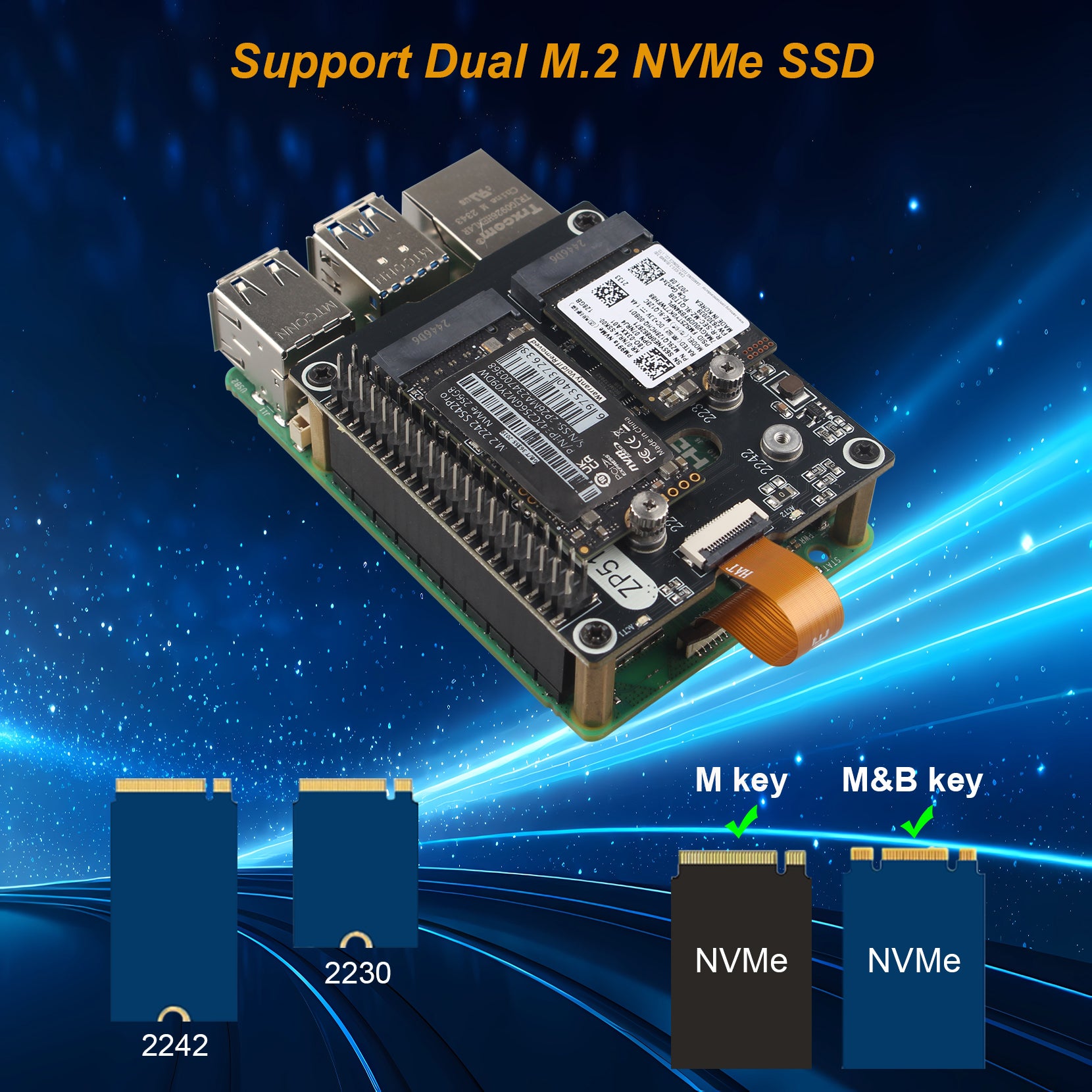

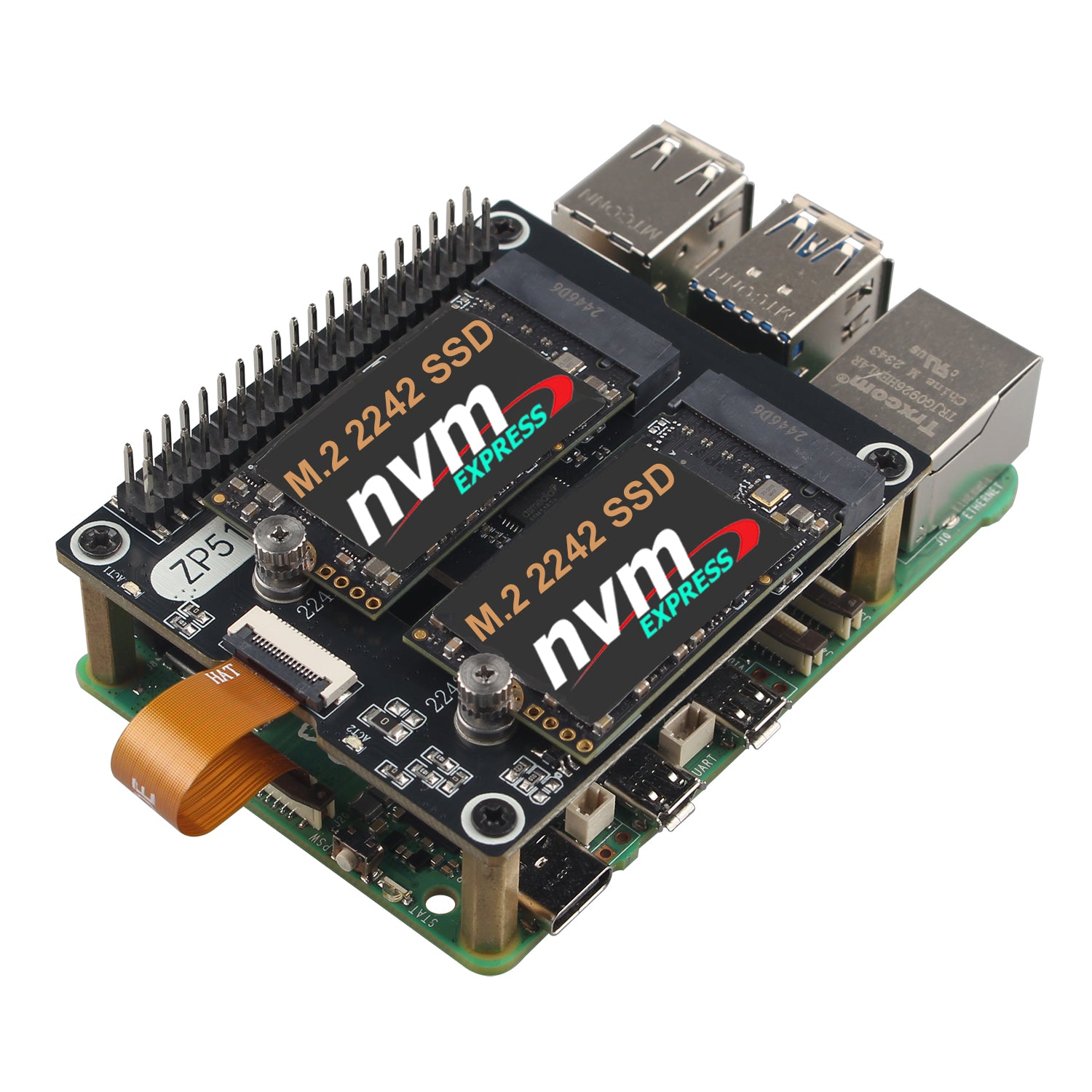

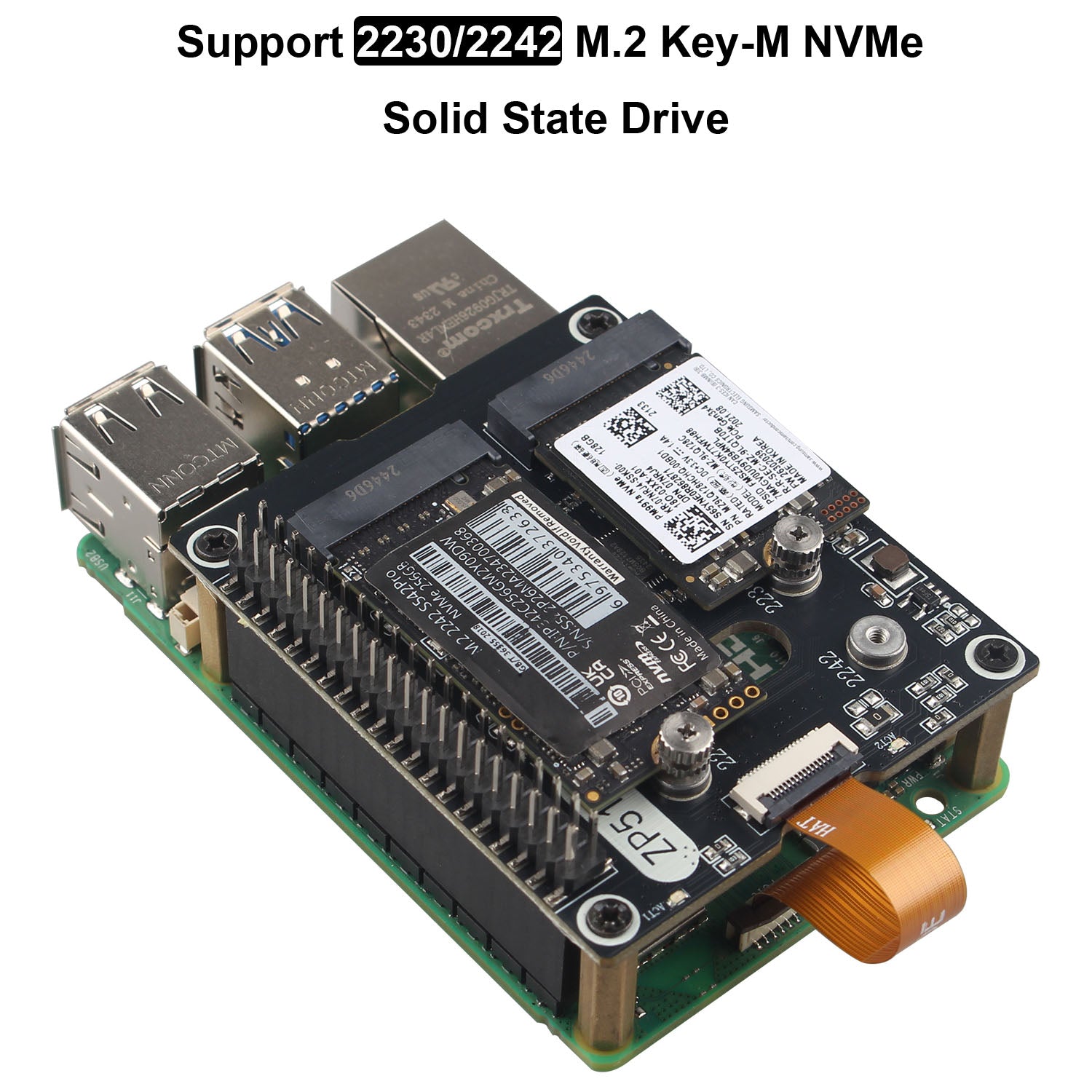

Dual M.2 NVMe SSDs Supported: ZP518 PCIe to Dual M.2 HAT Key-M NVMe SSD expansion board supports the installation of two M.2 Key-M NVMe SSDs in 2230/2242 length, high-speed reading/writing; supports boot from NVMe SSD.
Compatibility: This PCIe to Dual M.2 HAT NVMe kit is only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC.
How to Power: Power the PCIe to M.2 NVMe adapter directly from the PCIe FPC ribbon cable. Also, with 40pin GPIO header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.

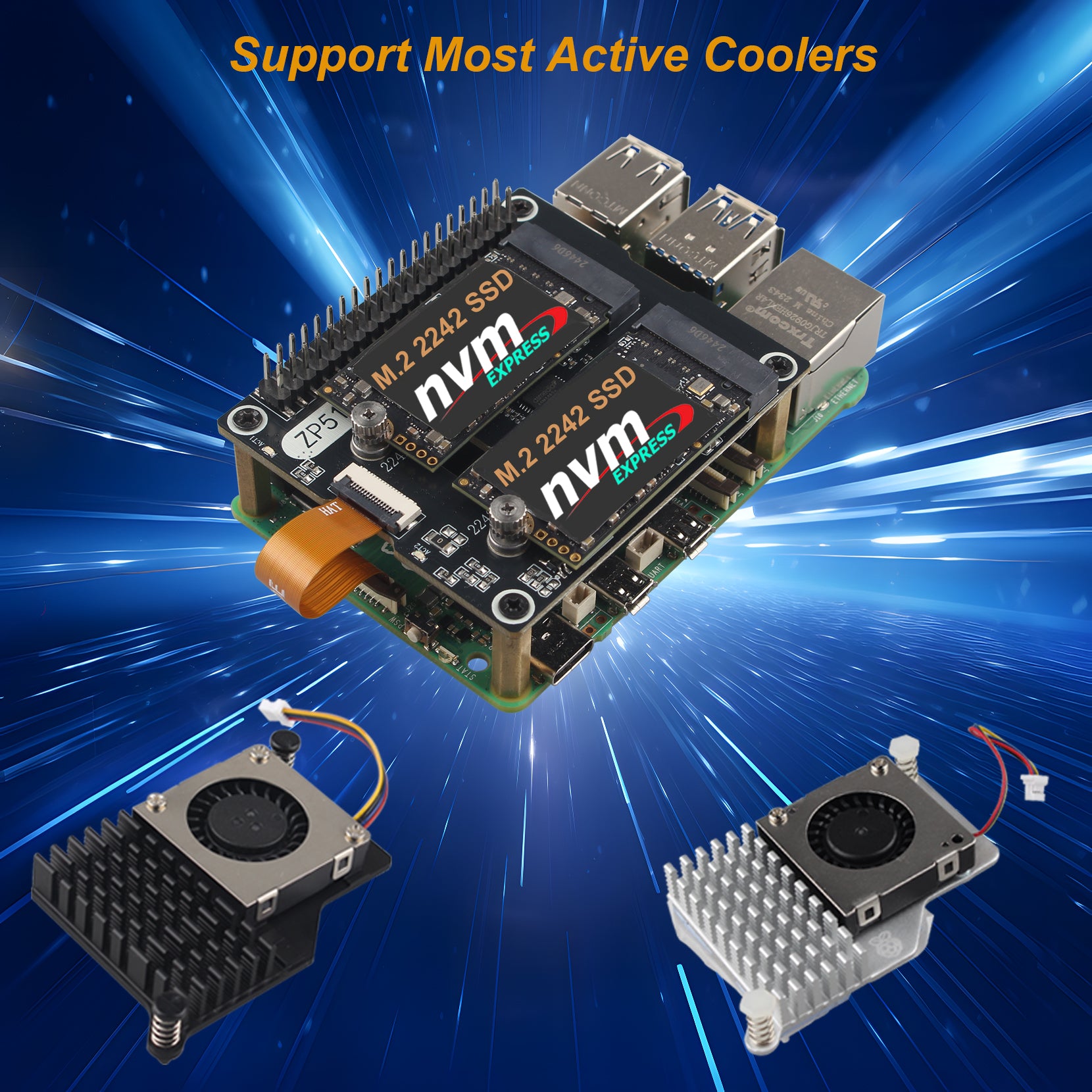

Cooling Solution: The ZP518 shield supports the installation of official Pi 5 Active Cooler (Not Included) and there is a reserved airflow vent for the cooling fan, providing excellent heatsink for Raspberry Pi 5 and SSD.

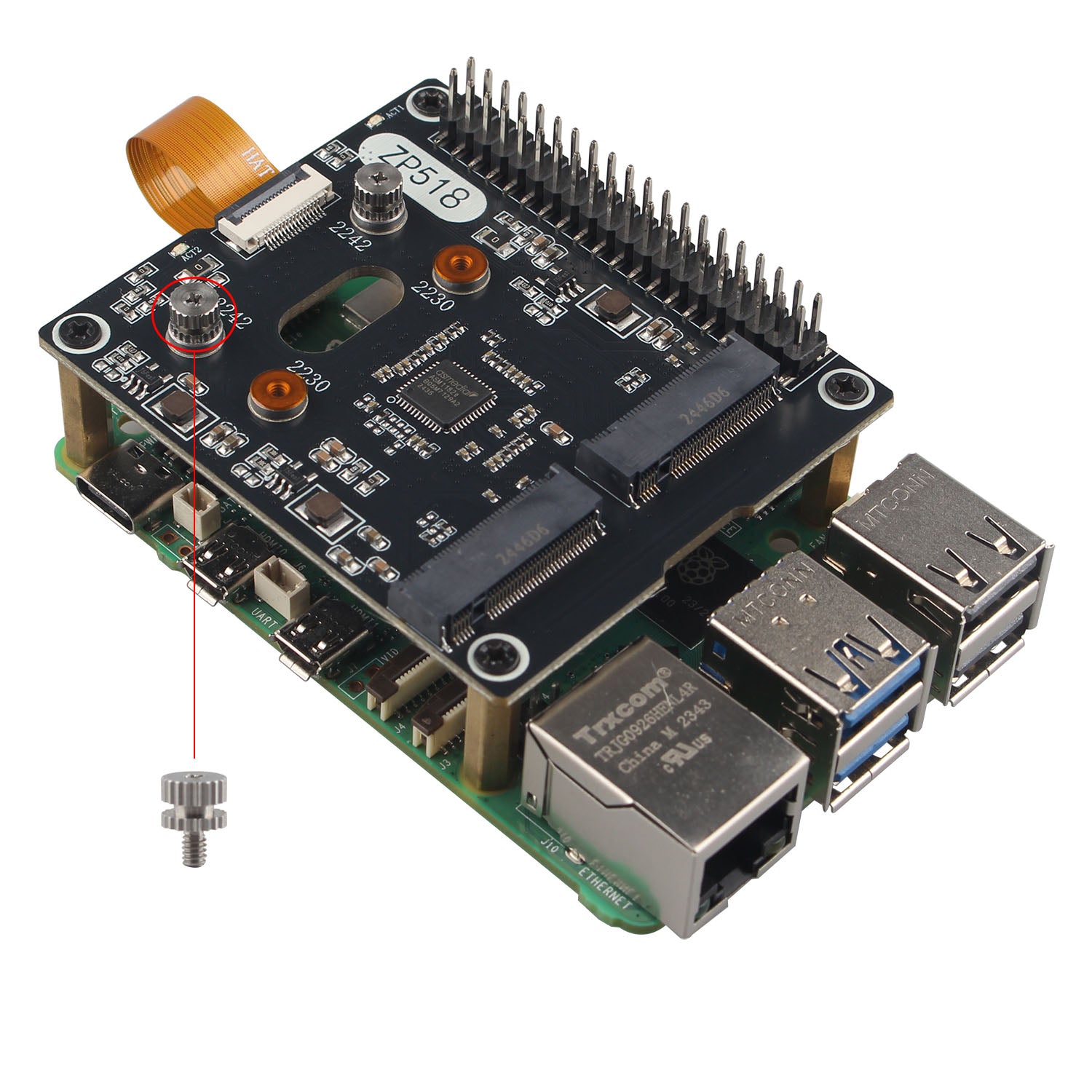

Practical Accessories: Comes with 2pcs M2 studs for 2230/2242 SSD installation, no soldering required.
This ZP518 top HAT is suitable for use with aluminum case. For aluminum enclosure, please refer to ZC501 (ASIN: B0DSZYLMSS); for Active Cooler, please refer to ZP536 (ASIN: B0DSZYHNF5); for Aluminum Case with Active Cooler, please refer to ZP537 (ASIN: B0DSZVN5YX).

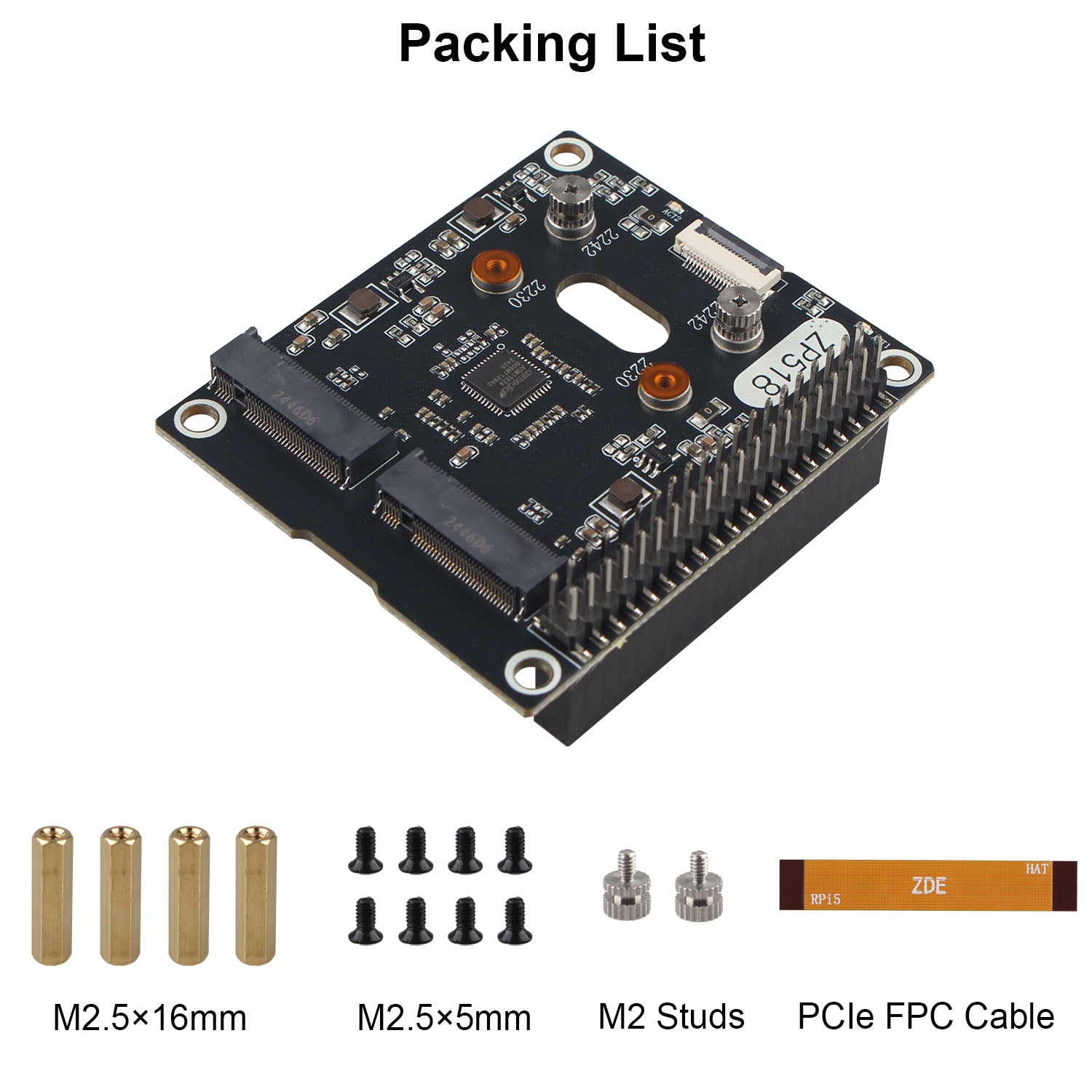

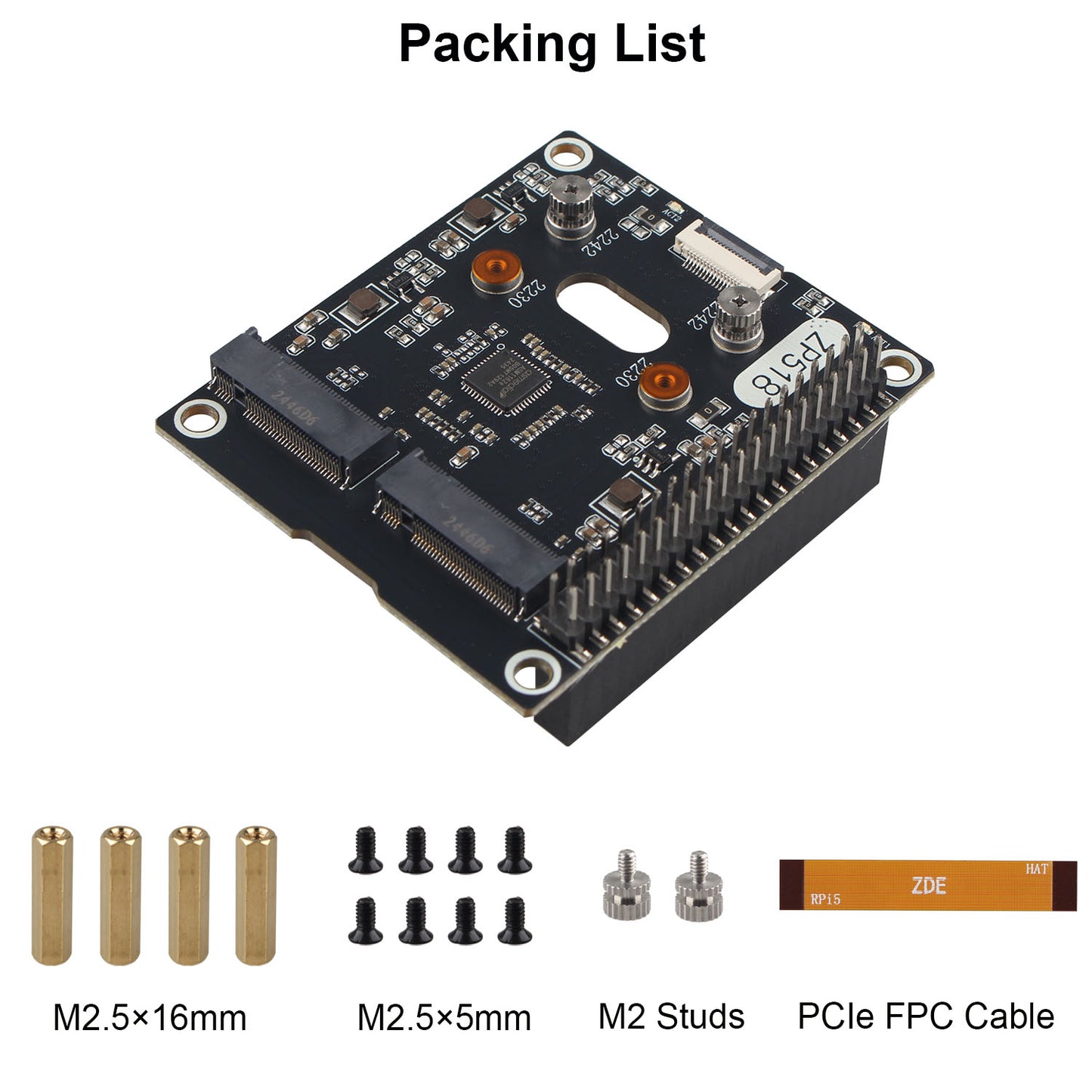

Packing List:

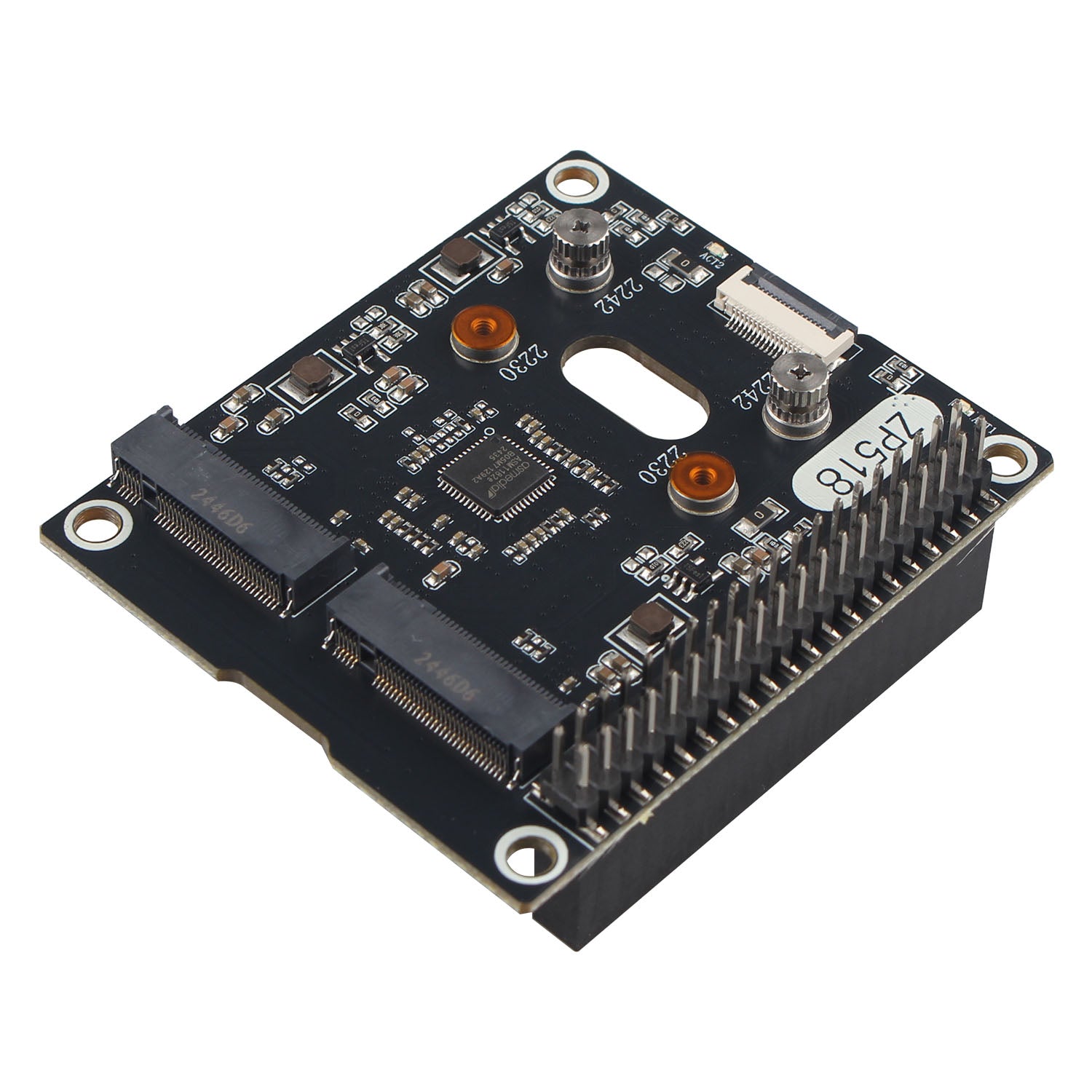

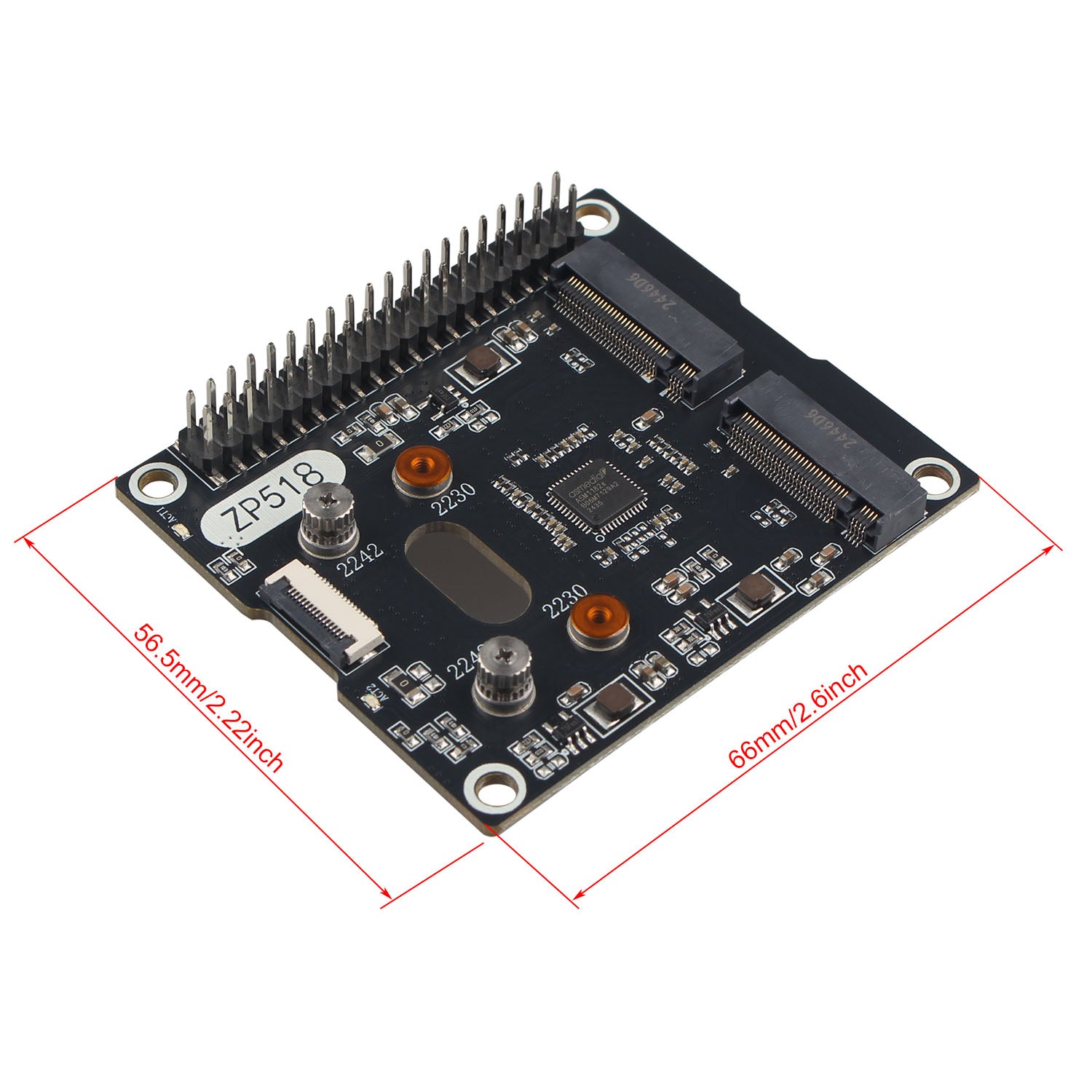

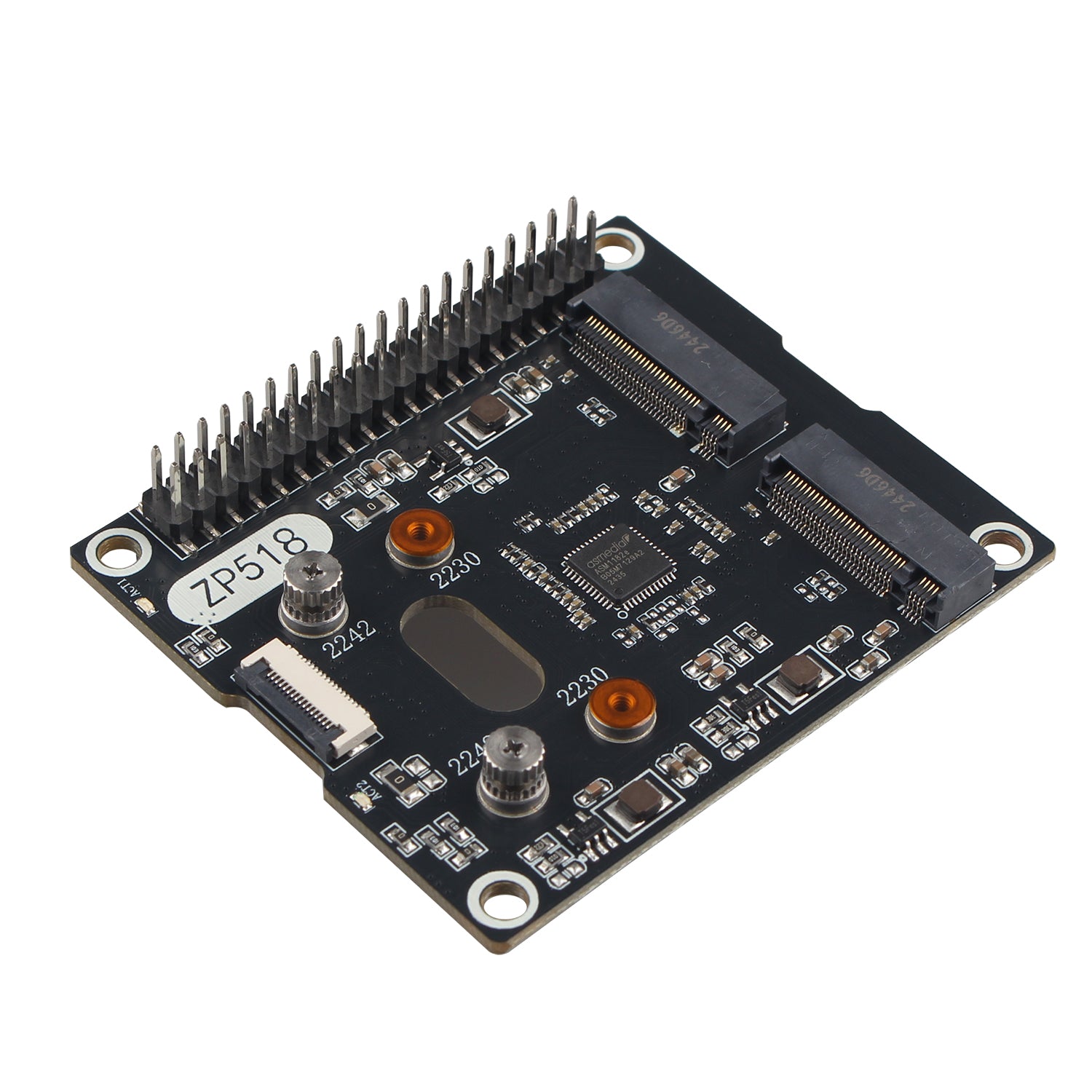

1 x ZP518 PCIe Peripheral Board
4 x M2.5x16mm Spacers
8 x M2.5x5mm Screws
2 x M2 Studs (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSDs are not included in the packing list.
