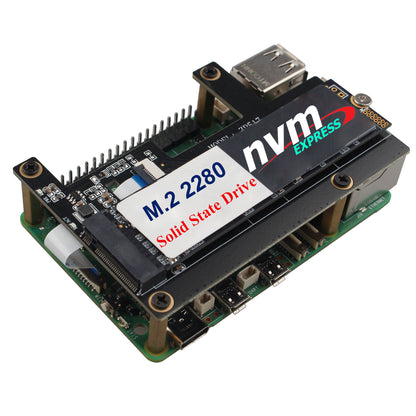

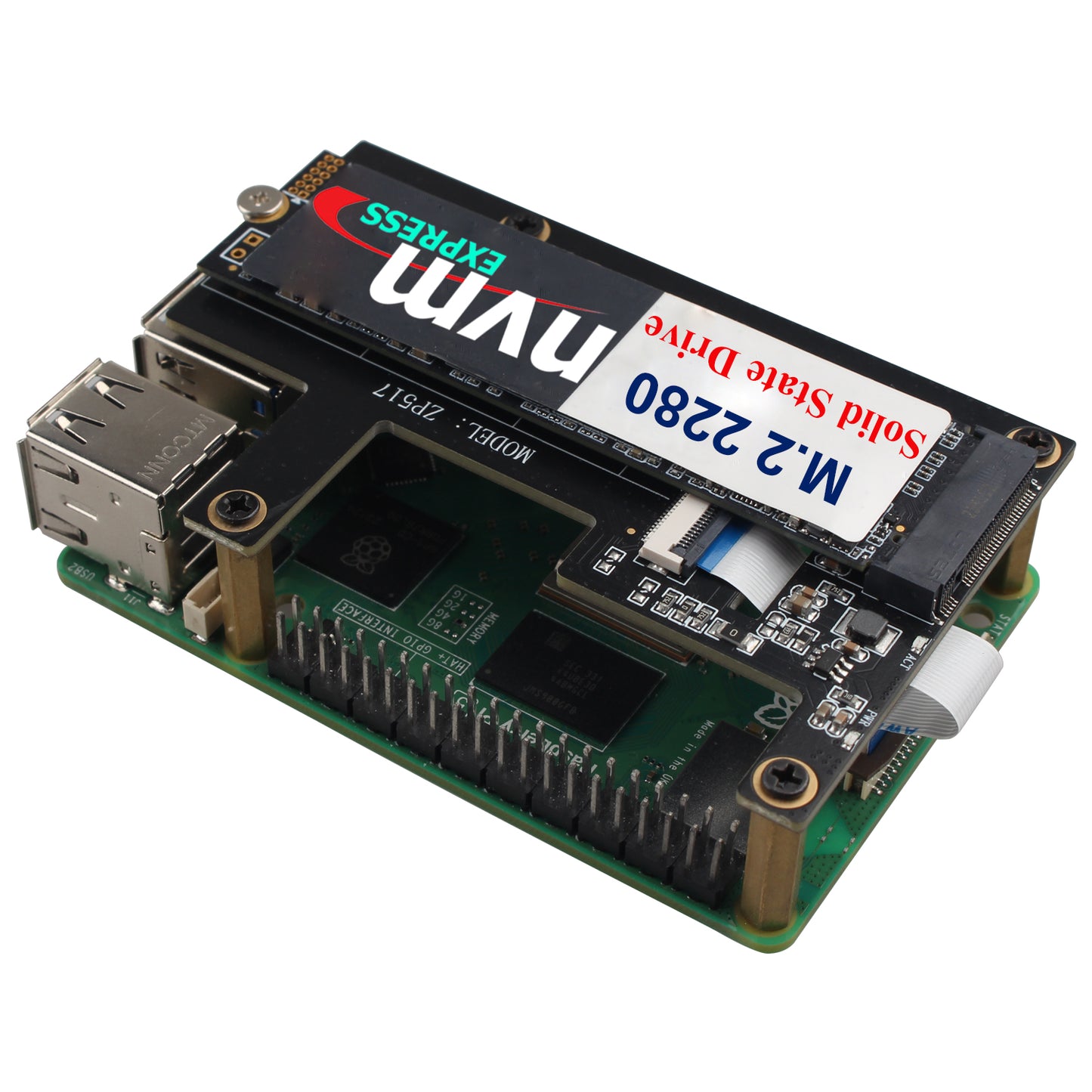

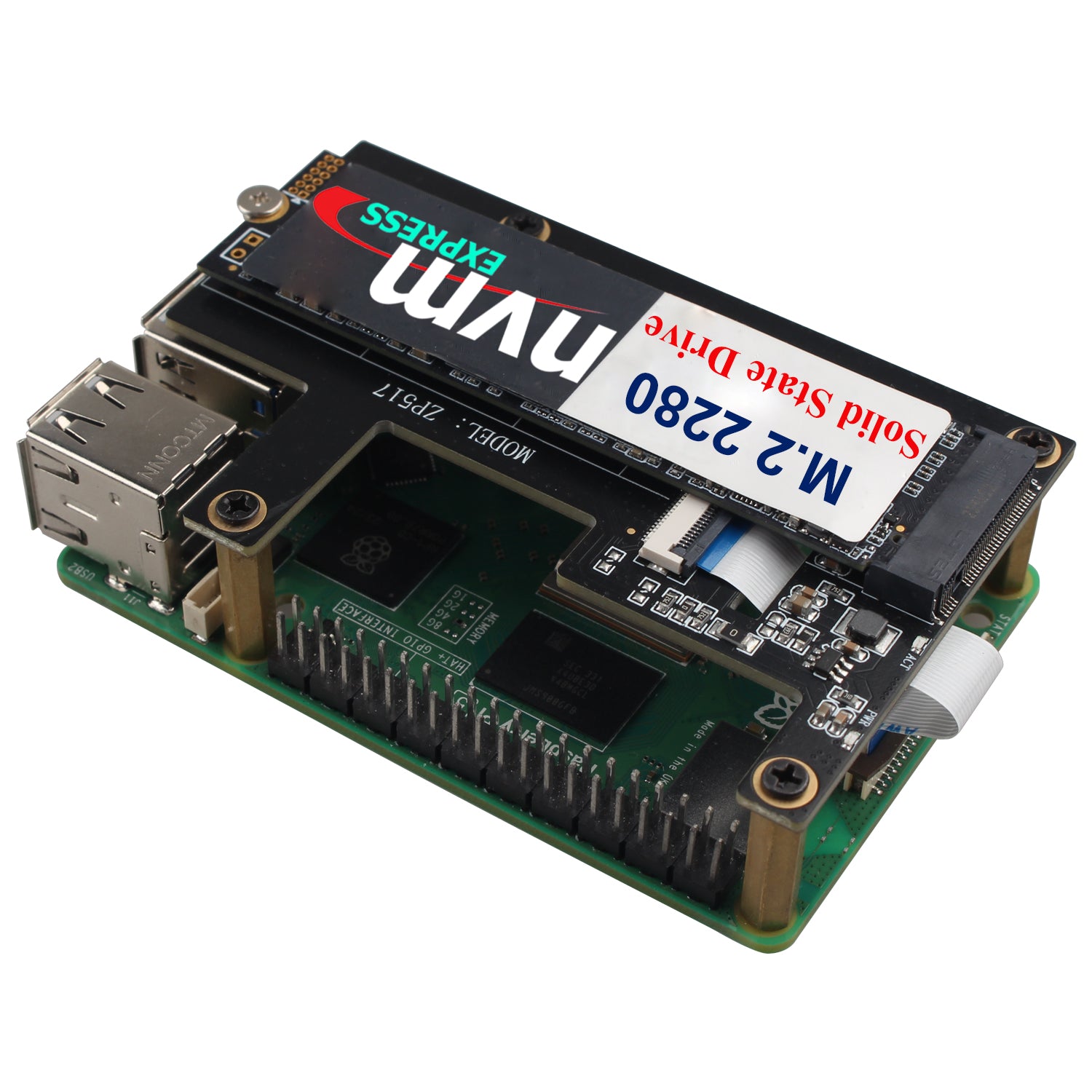

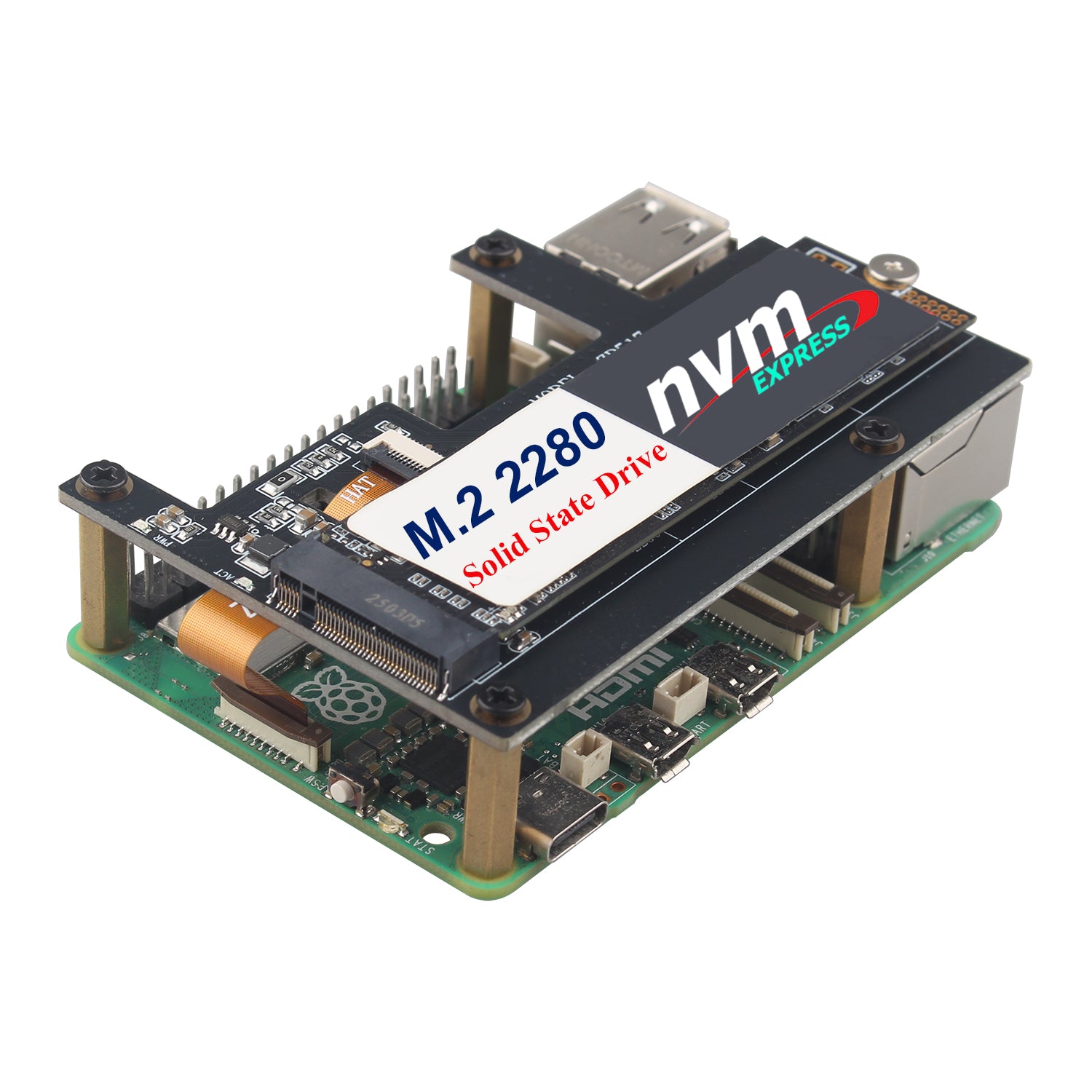

ZDE ZP517A PCIe to M.2 Key M NVMe SSD HAT for Raspberry Pi 5

Features:

The ZP517A HAT is an M.2 Key-M NVMe SSD Expansion Board for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilize the M.2 NVMe SSDs for ultra-fast booting and fast data transmission. Supports Gen2 and Gen3 modes.

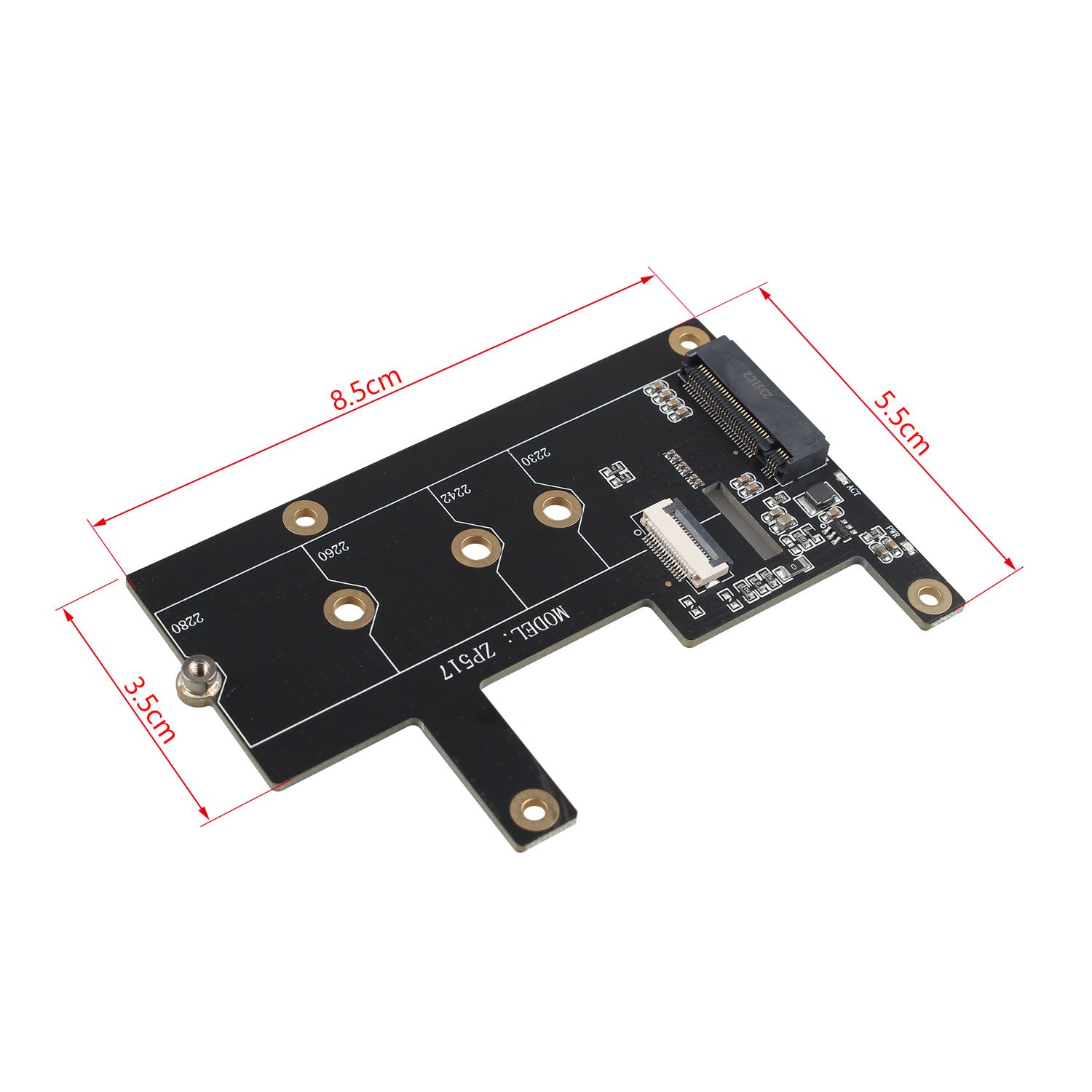

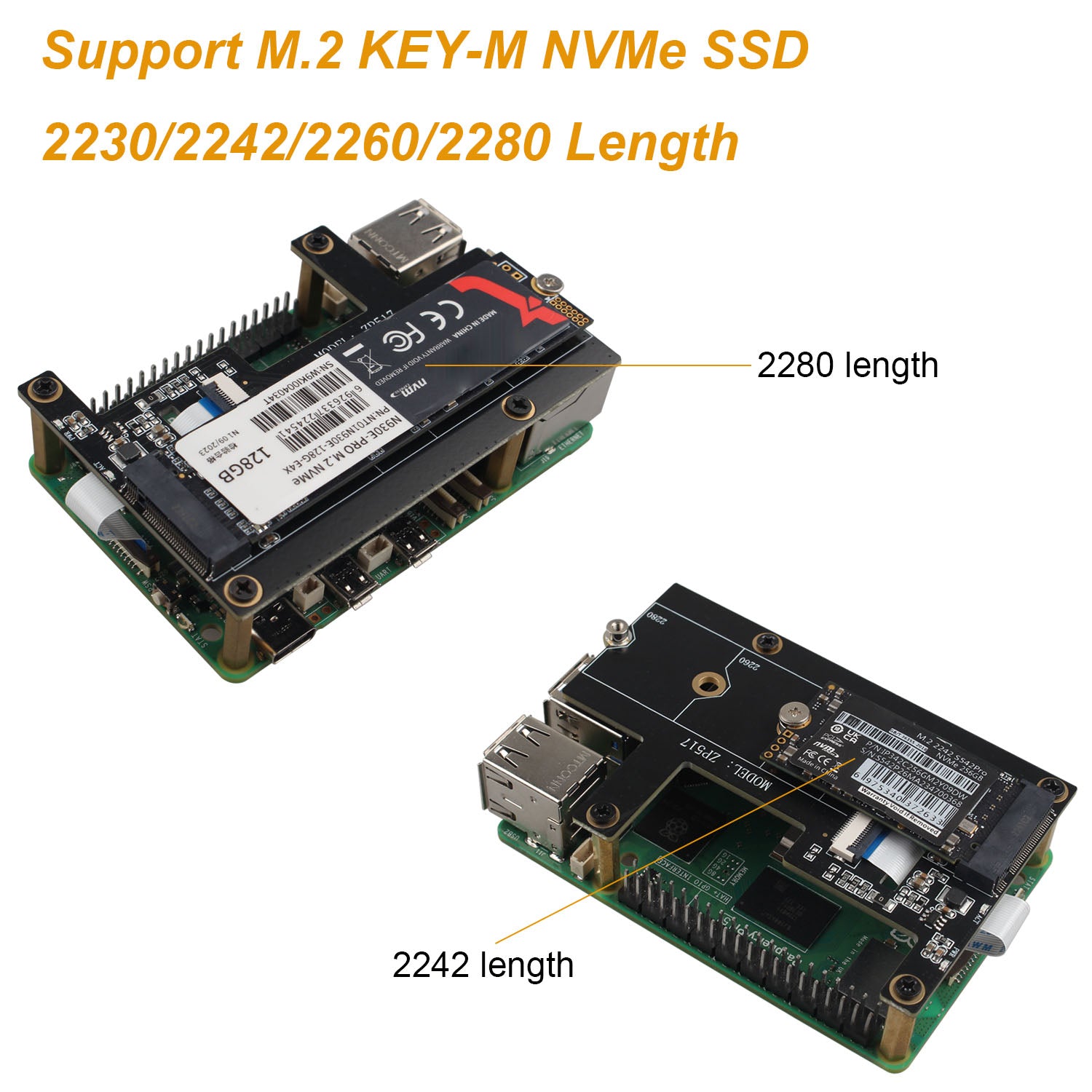

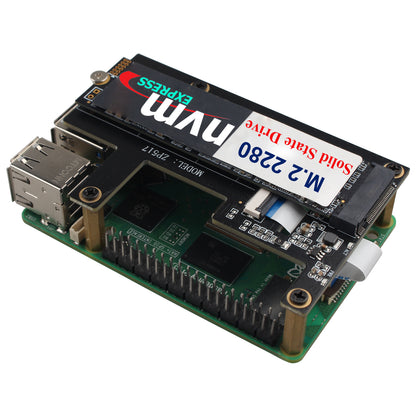

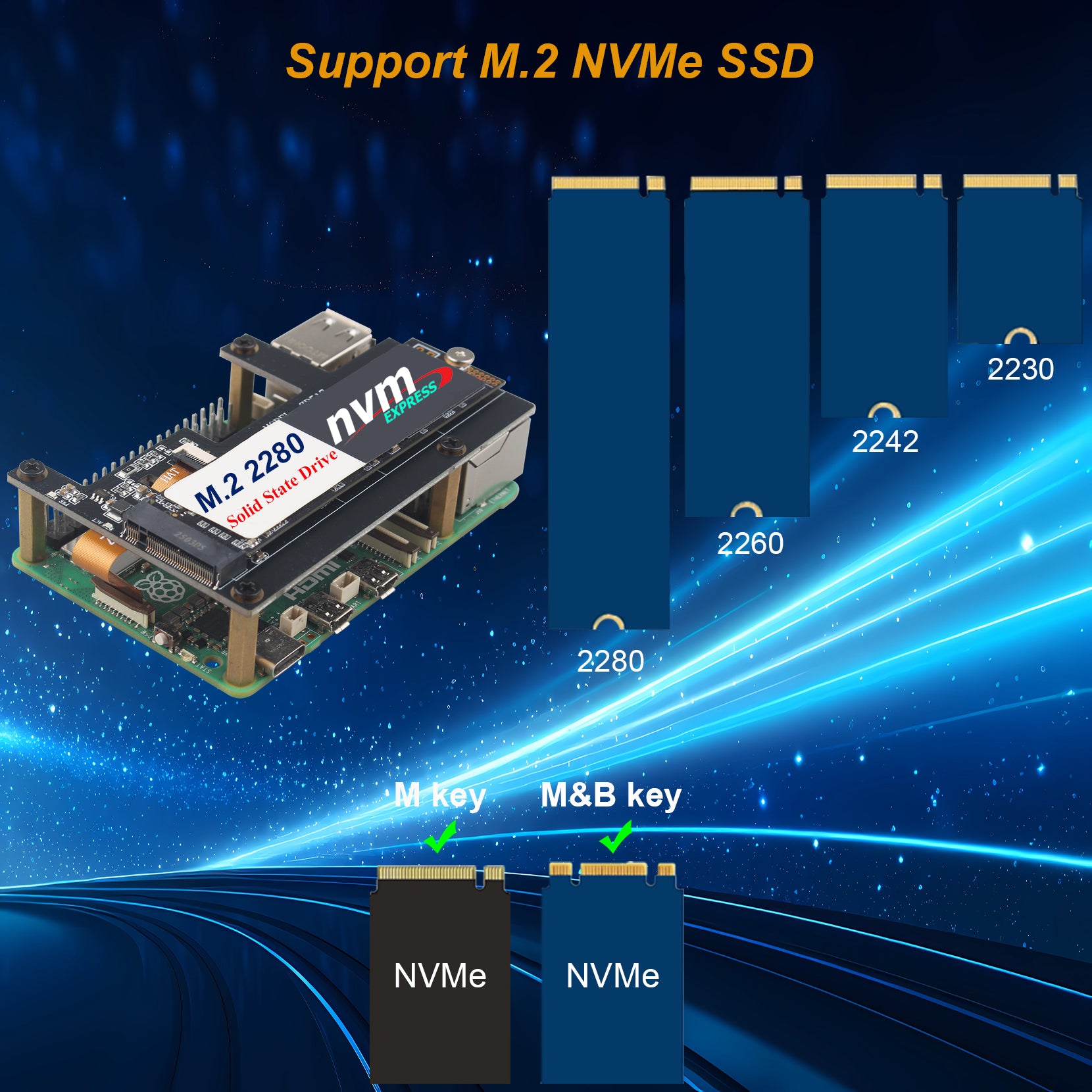

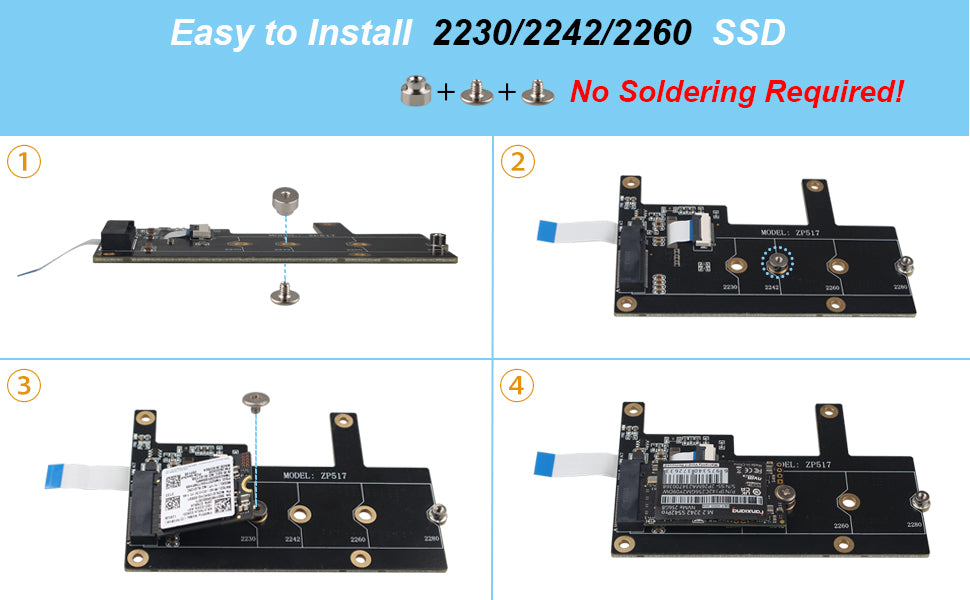

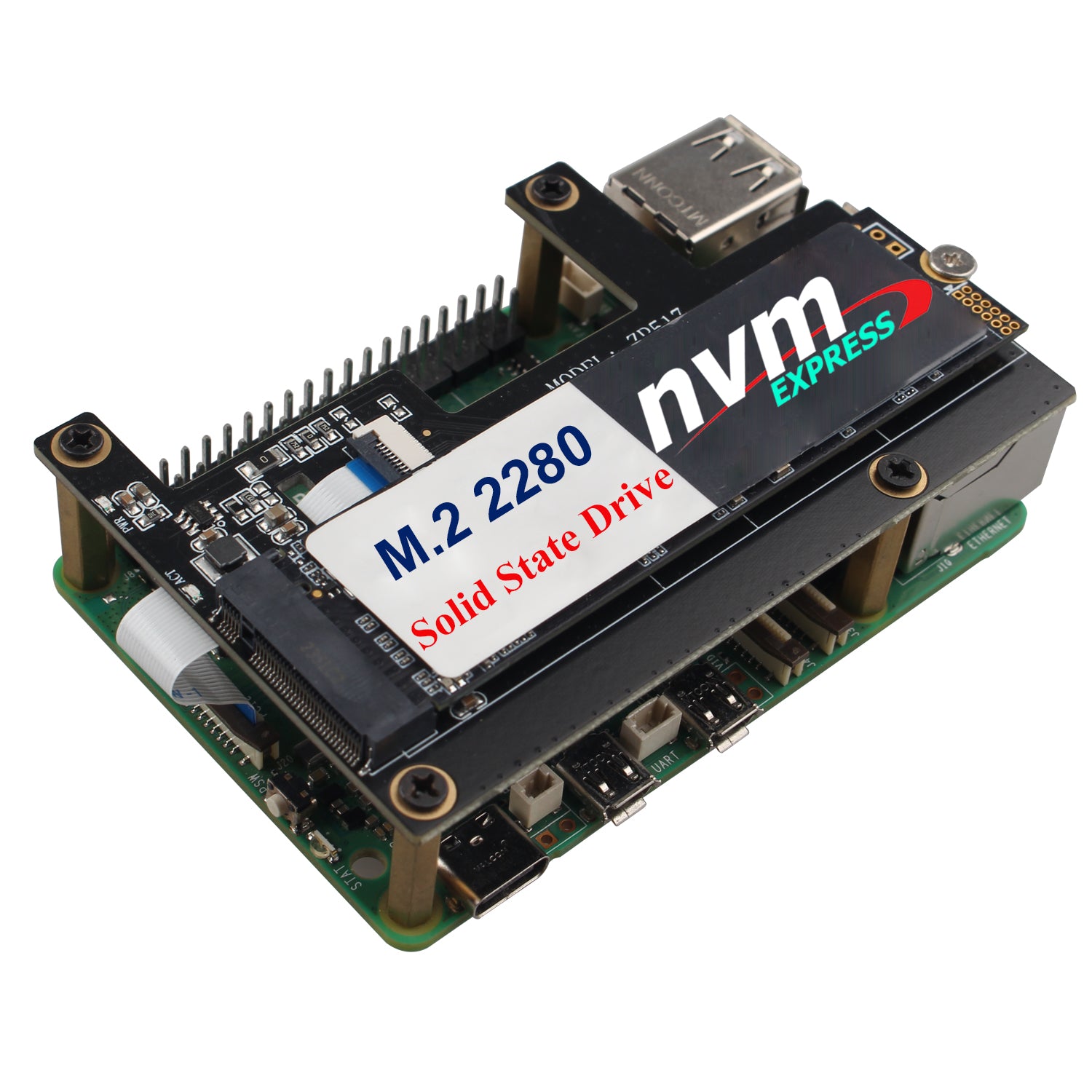

ZP517A M.2 NVMe to PCIe Adapter Board supports the installation of M.2 Key-M NVMe SSD in 2230/2242/2260/2280 length (Solid State Drive is not included). Comes with extra screws kit for 2230/2242/2260 SSD installation, no soldering required.

Great Accessories for Raspberry Pi 5: ZP517A PCIe Peripheral Board is compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5).

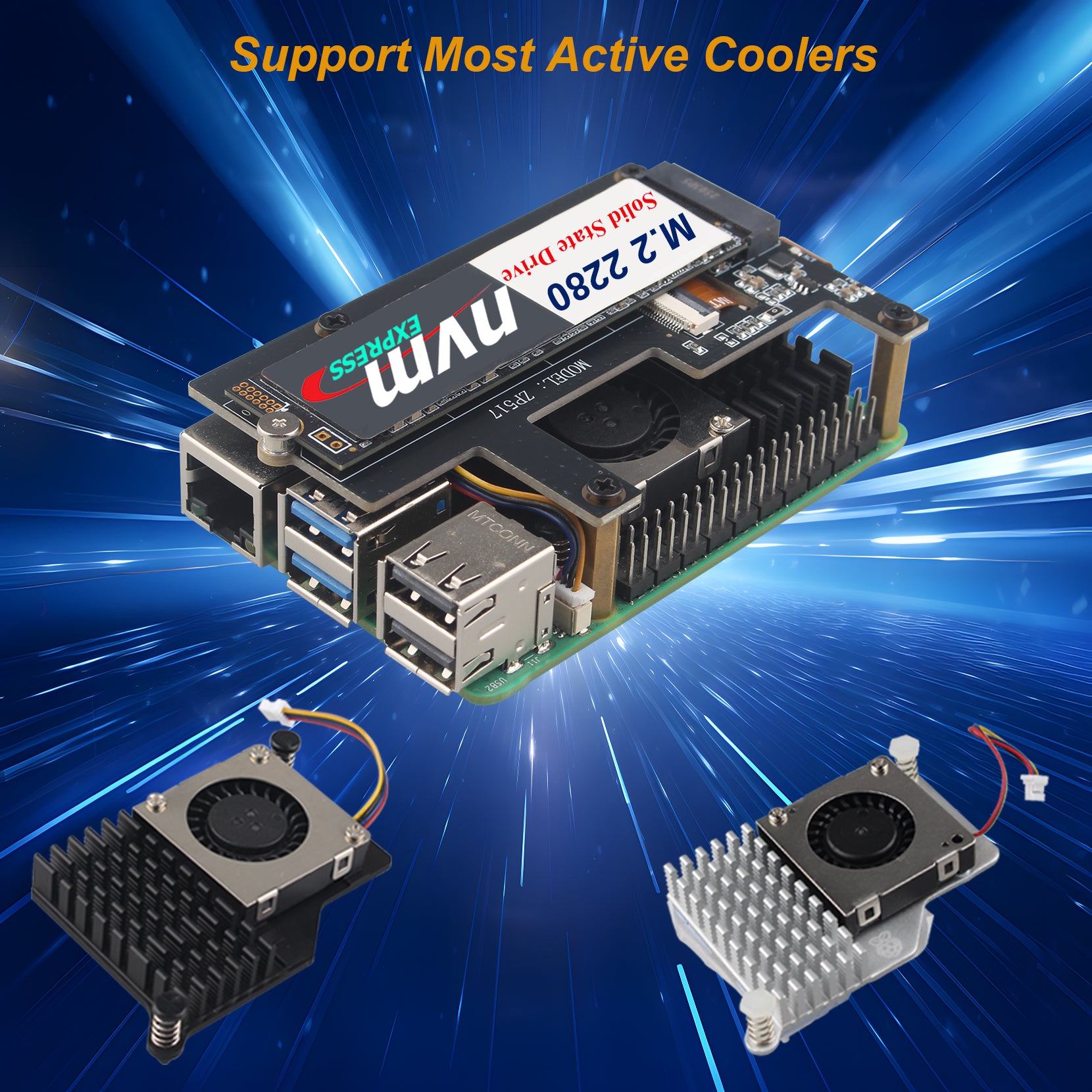

This PCIe to M.2 NVMe adapter supports the installation of official Pi 5 active cooler (Not Included). Cooling fan provides better heatsink for Raspberry Pi 5 and SSD.

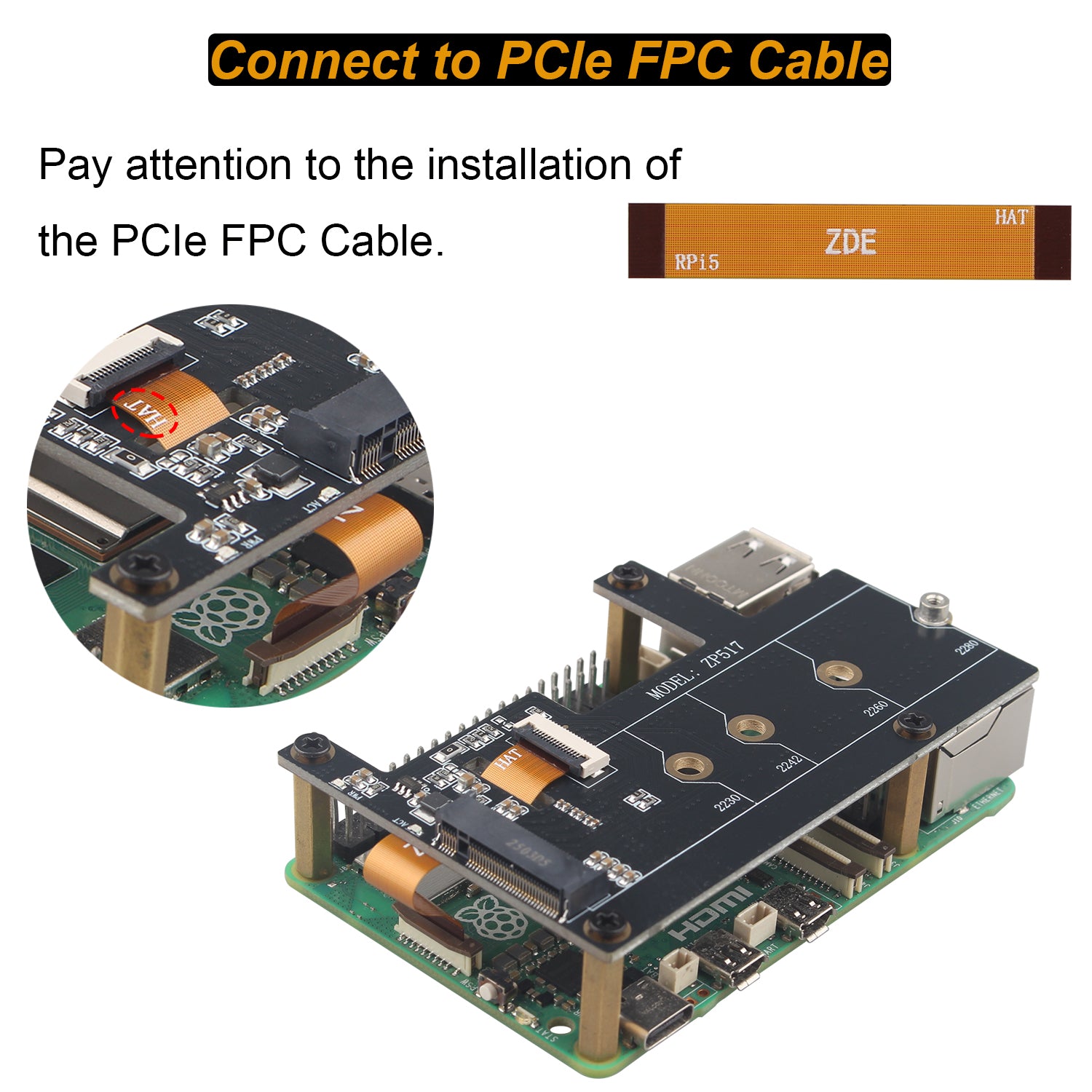

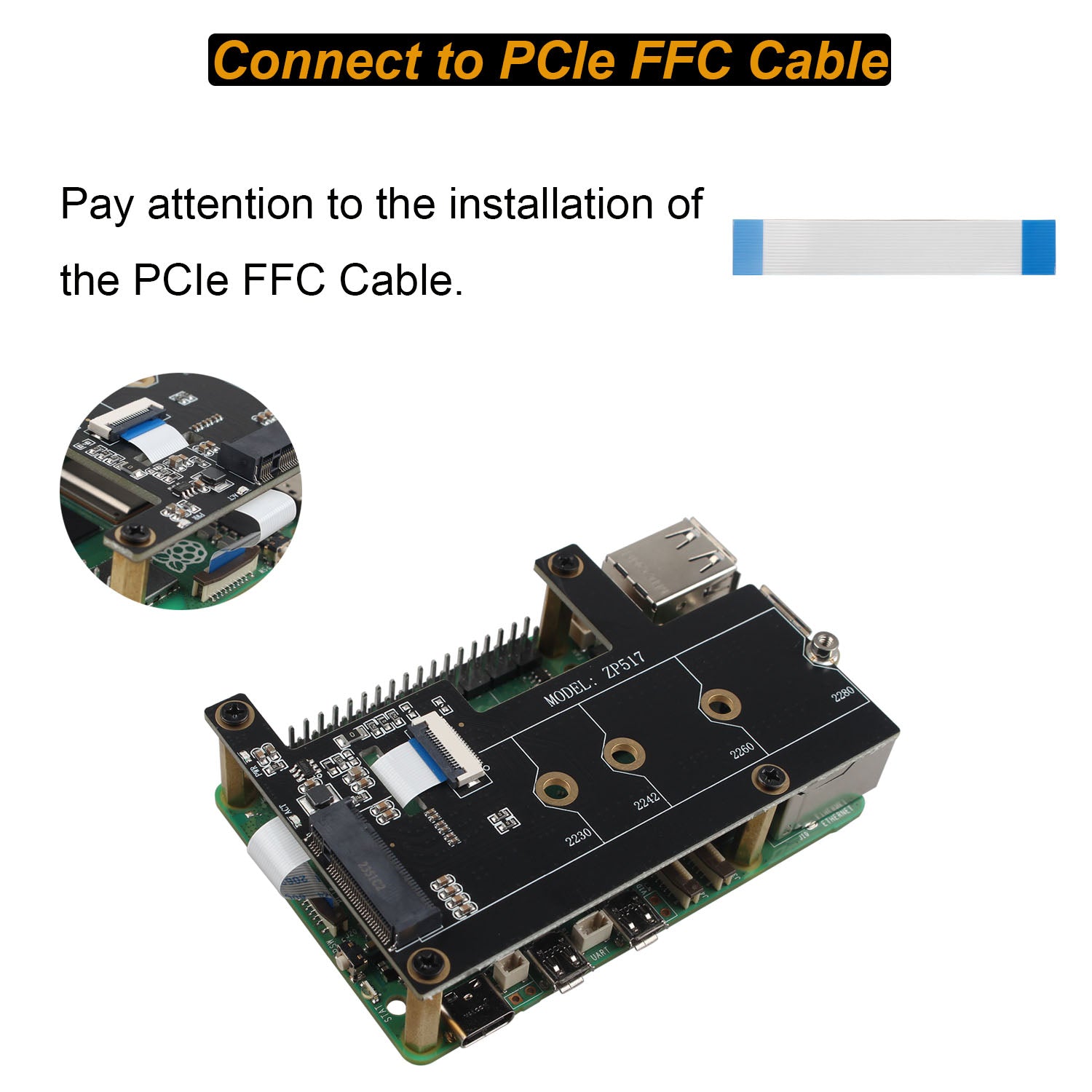

How to Power: Power the ZP517A shield directly from the PCIe FFC ribbon cable.

This ZP517A top HAT is suitable for use with aluminum case. For an aluminum enclosure, please refer to ZC501(ASIN: B0DSZYLMSS) and ZC502(ASIN: B0F2995JCY); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5); for Aluminum Case with Active Cooler, please refer to ZP537(ASIN: B0DSZVN5YX) and ZP540(ASIN: B0F299H1Y8).

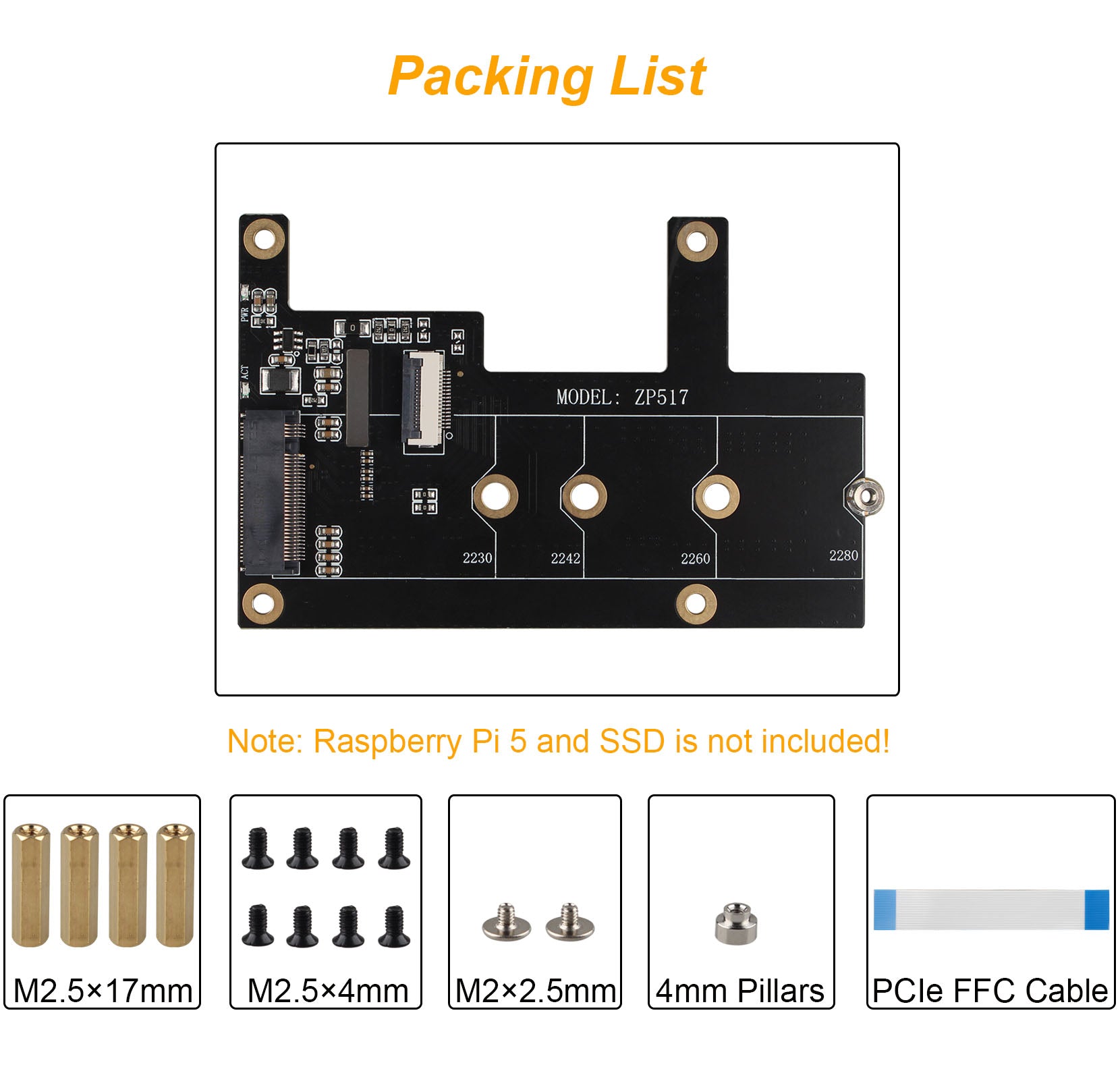

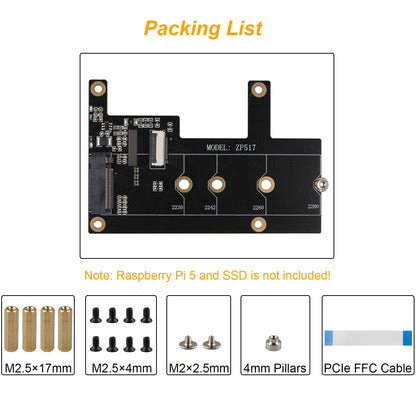

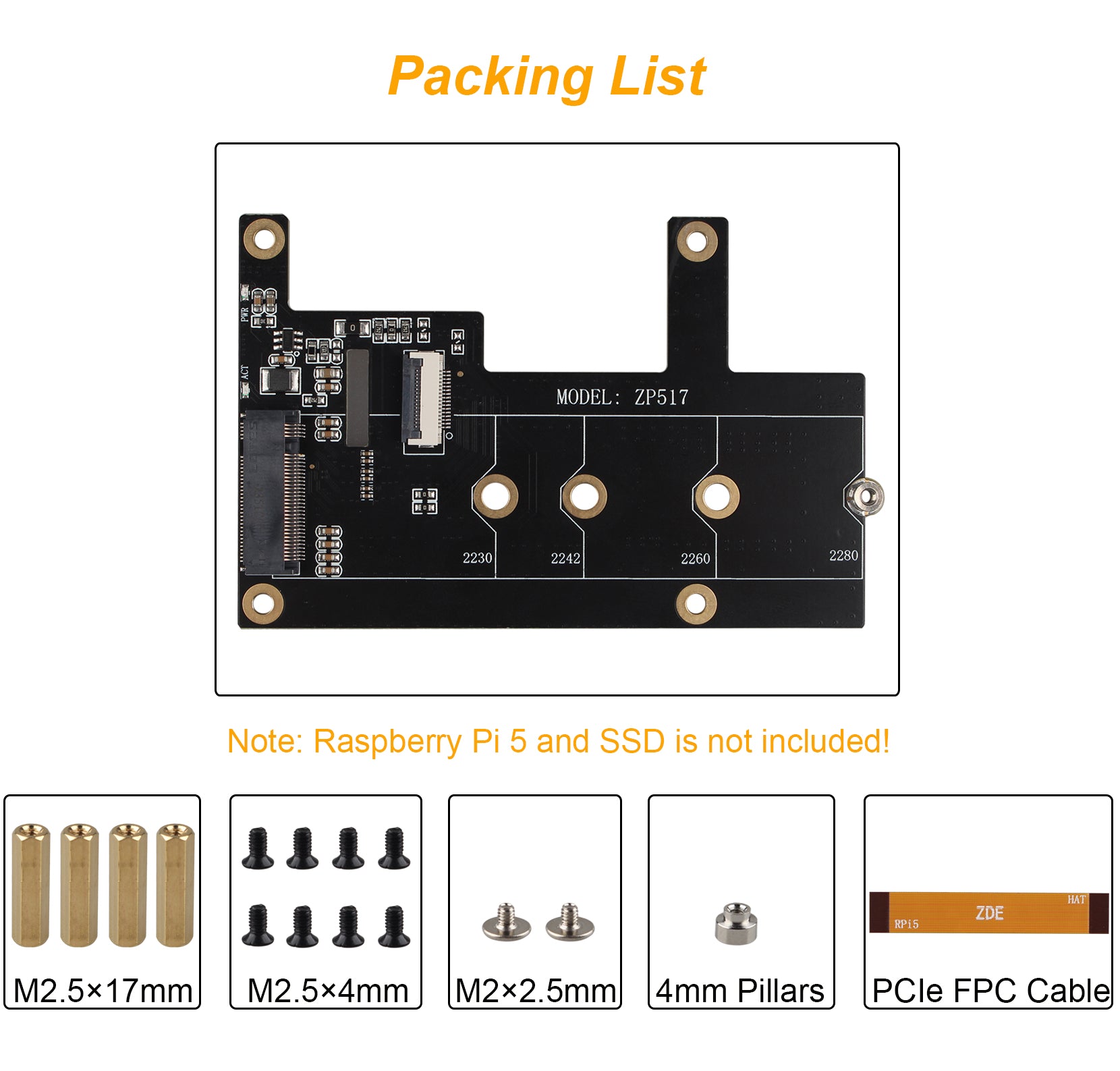

Packing List:

1 x ZP517A PCIe to M.2 NVMe SSD Adapter Board

4 x M2.5x17mm Spacers

8 x M2.5x4mm Screws

2 x M2x2.5mm Screws (to fix SSD)

1 x 4mm Pillar (to fix SSD)

1 x PCIe FFC cable

Note: The Raspberry Pi 5 and M.2 NVMe SSD is not included in the packing list.
