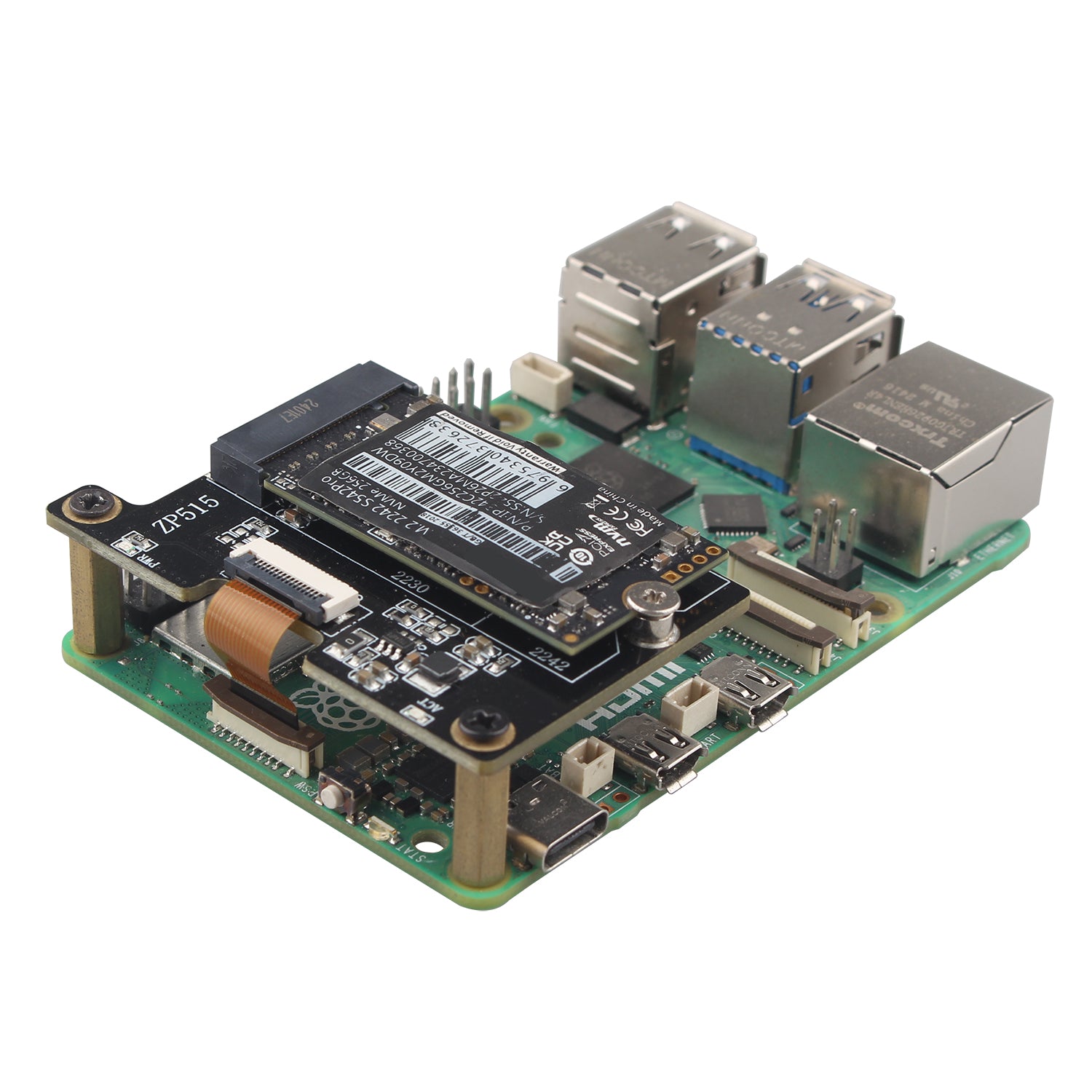

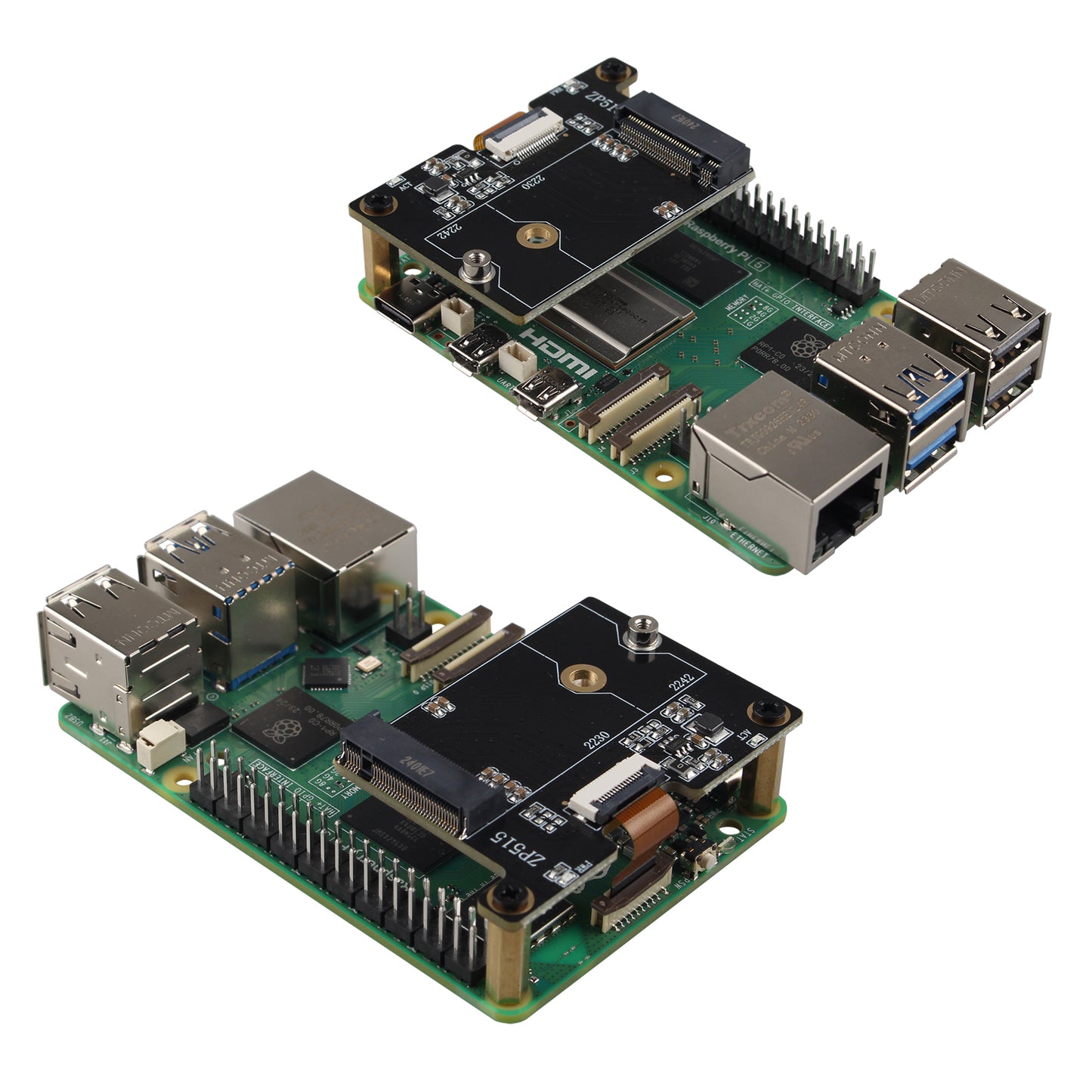

The ZP515 HAT is an M.2 Key-M NVMe SSD Expansion Board for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilize the M.2 NVMe SSDs for ultra-fast booting and fast data transmission. Supports Gen2 and Gen3 modes.

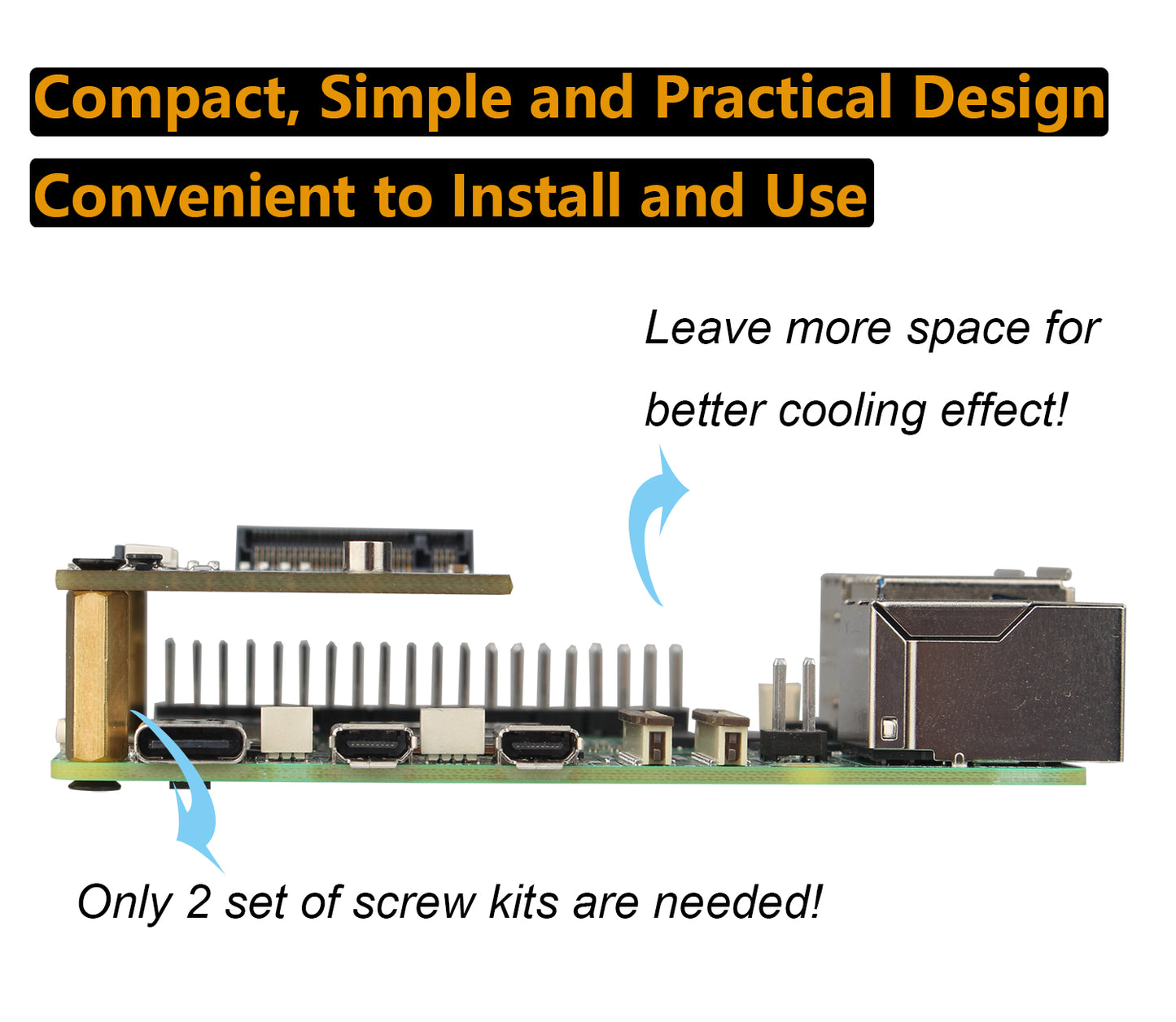

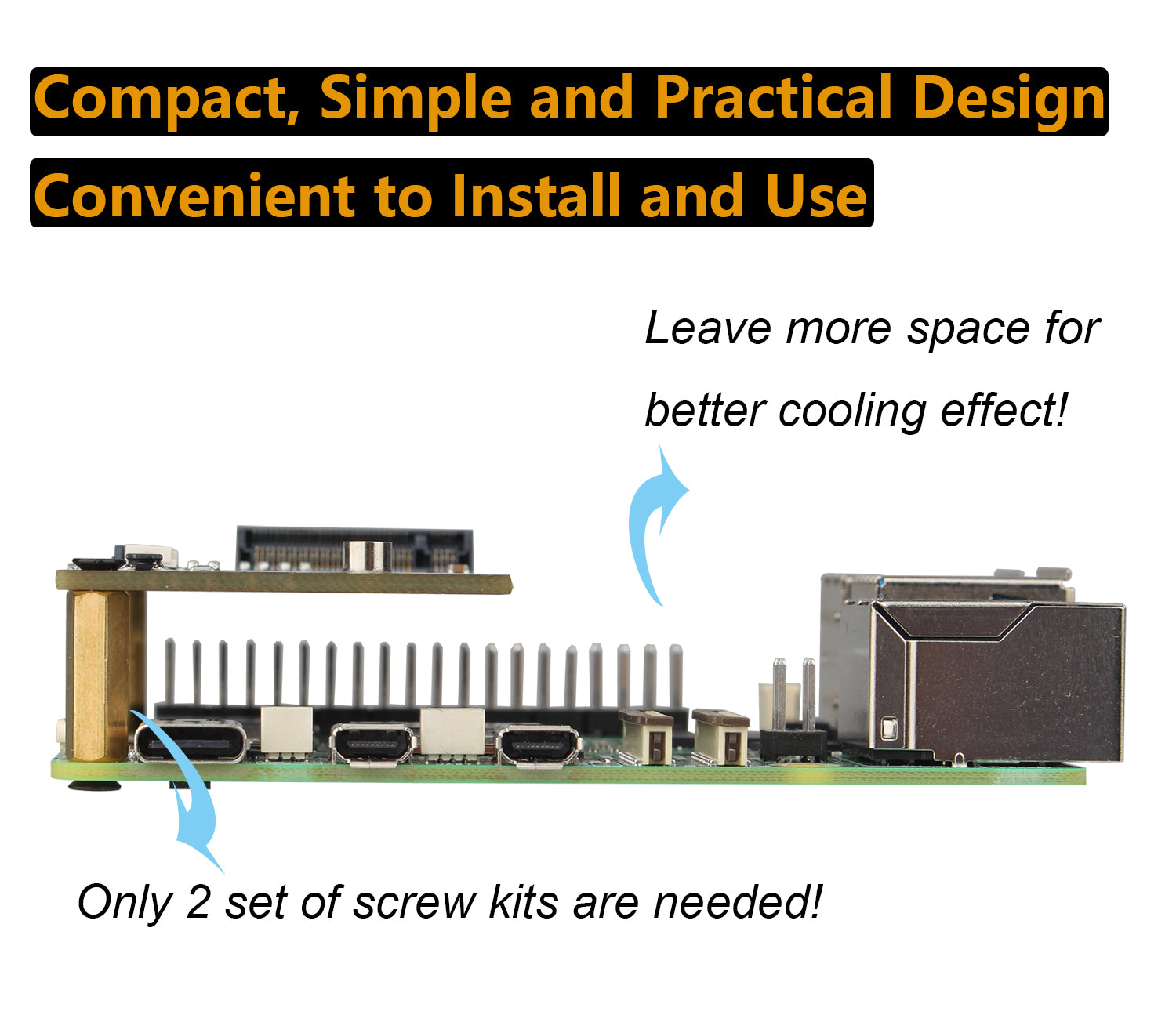

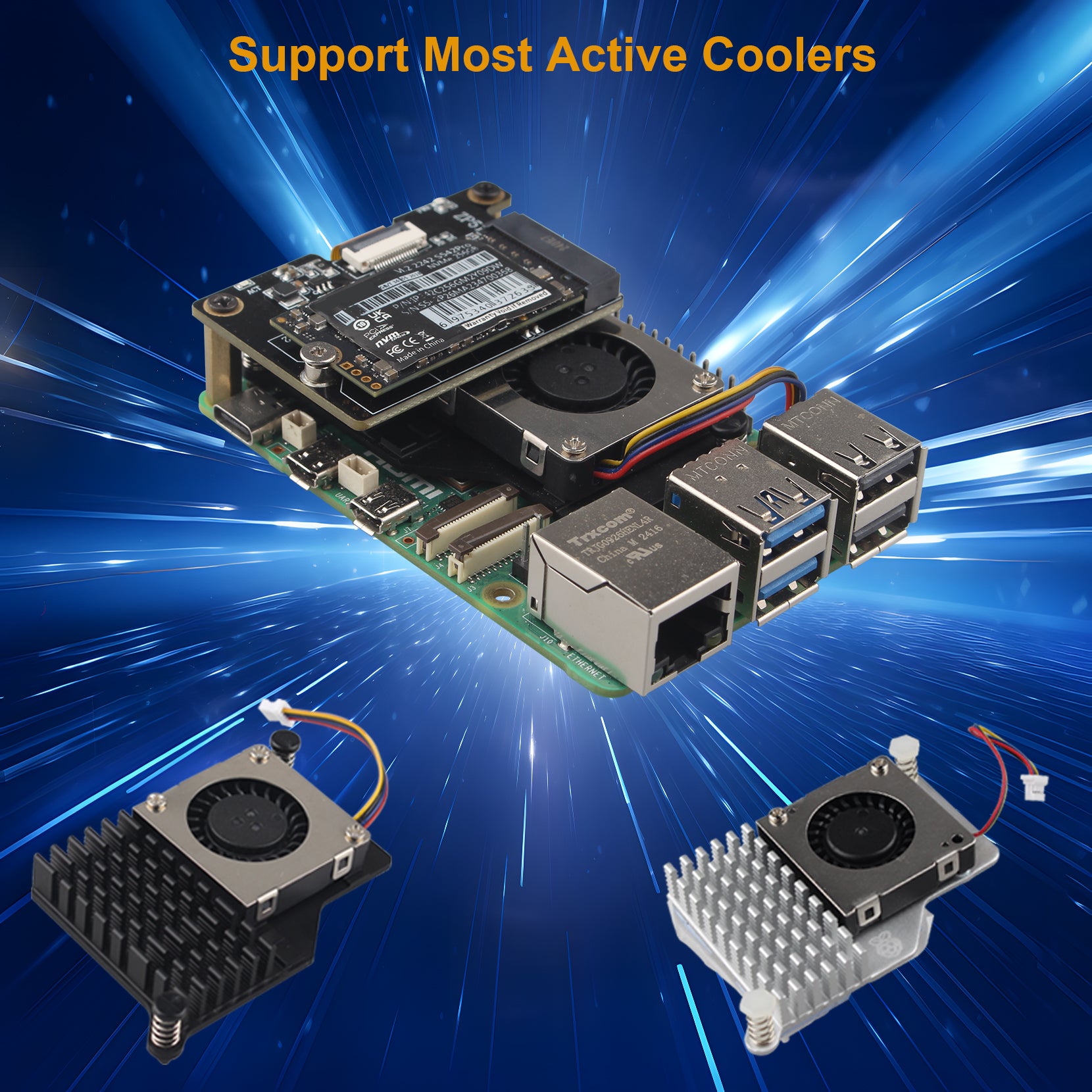

Compact, simple and practical design, which is convenient to install and use. Only 2 set of screw kits are needed to fix the board, and it leaves more space for better cooling effect for Raspberry Pi 5 and SSD. Also supports the installation of official Raspberry Pi 5 Active Cooler.

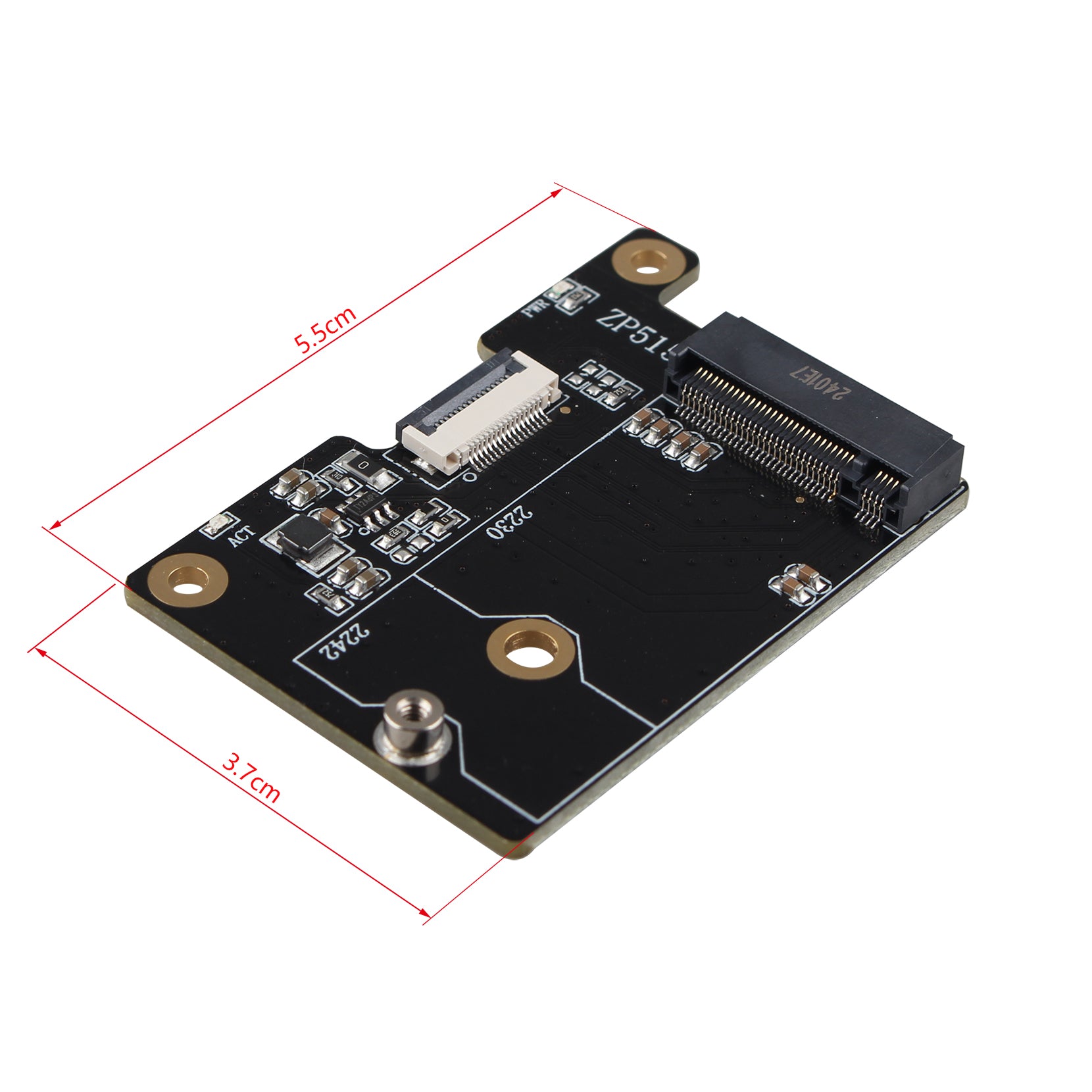

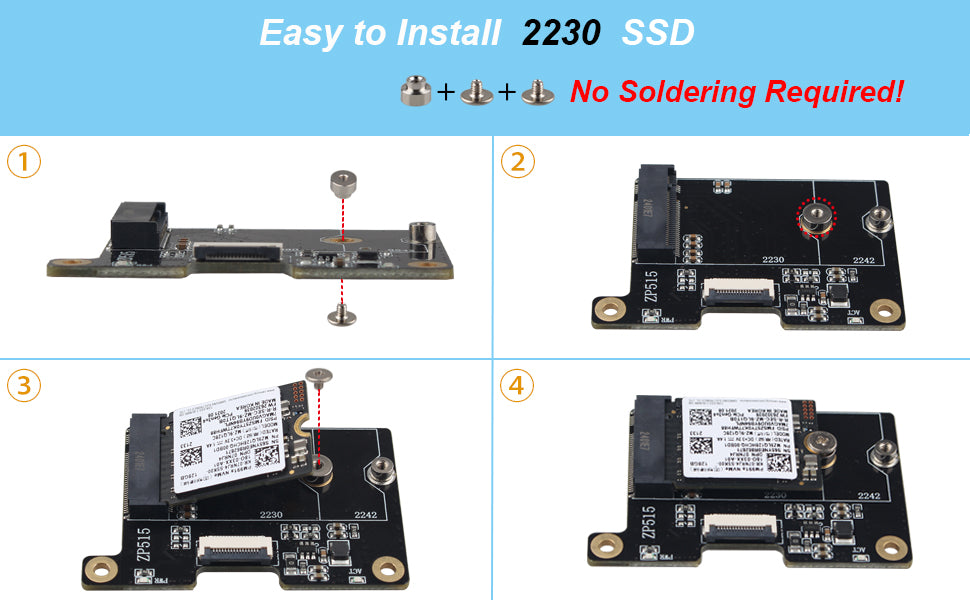

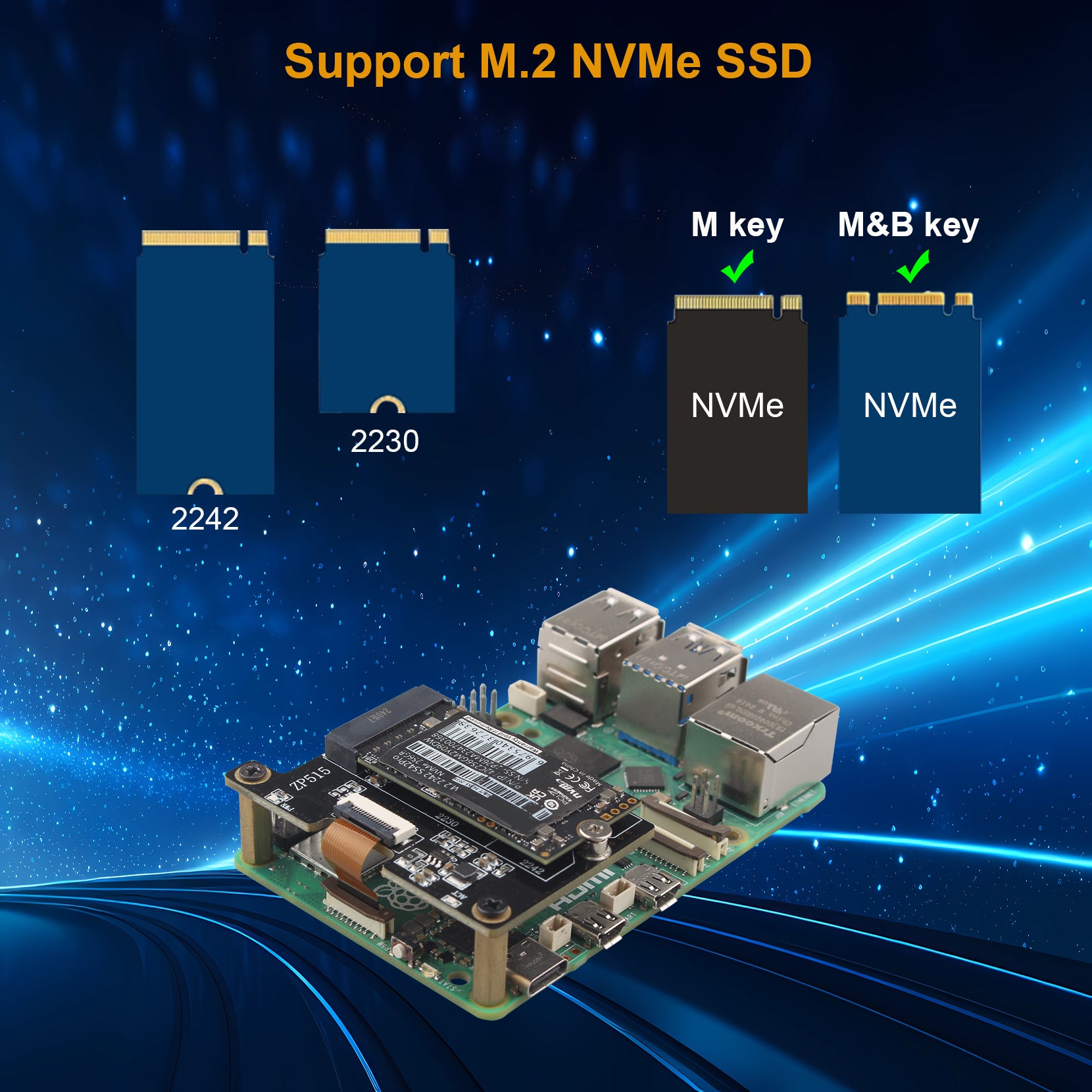

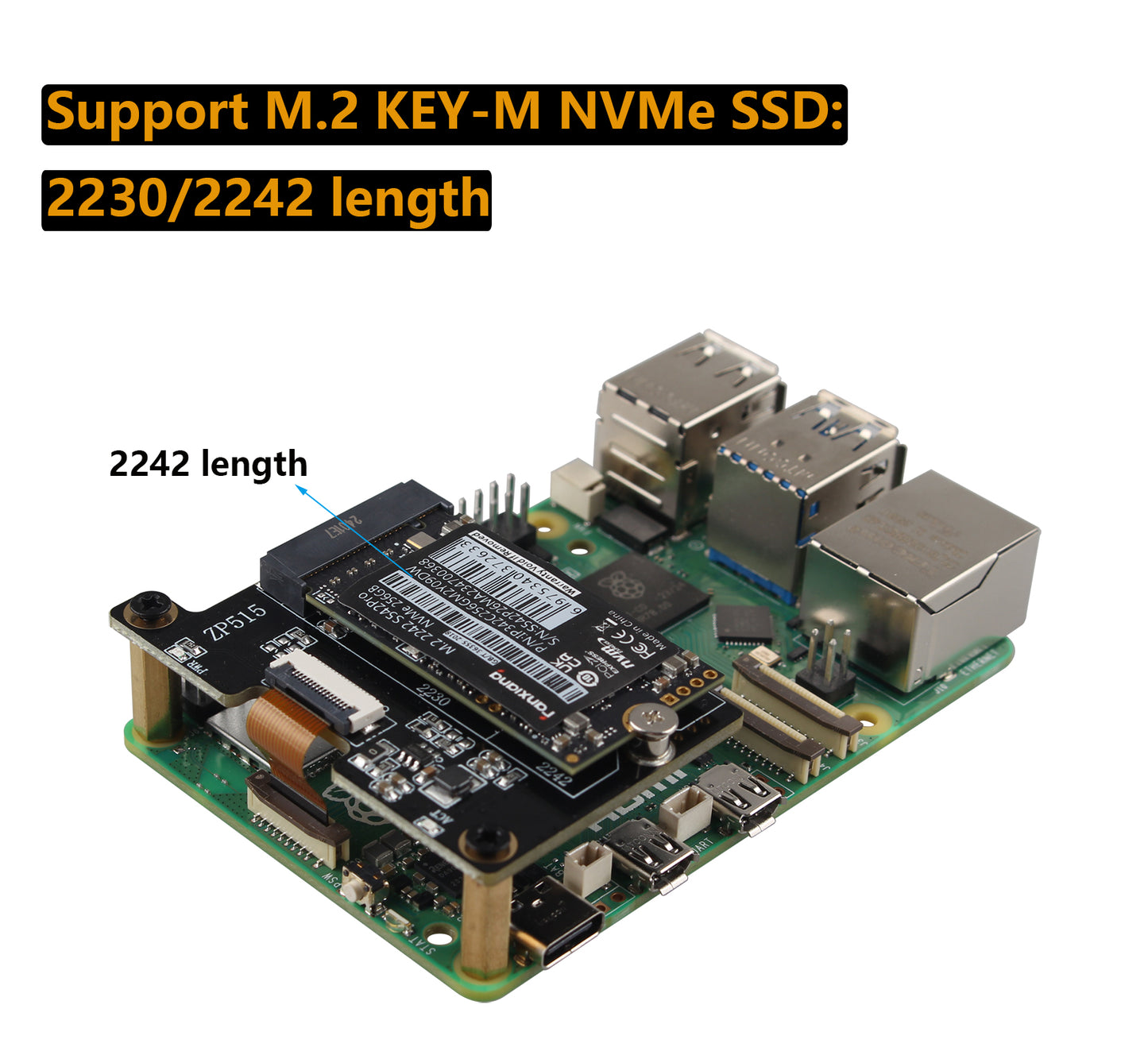

ZP515 M.2 NVMe to PCIe Adapter Board supports the installation of M.2 KEY-M NVMe SSD in 2230/2242 length (SSD is not included). Comes with extra screws kit for 2230 SSD installation, no soldering required.
Great Accessories for Raspberry Pi 5: ZP515 PCIe Peripheral Board is compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5).

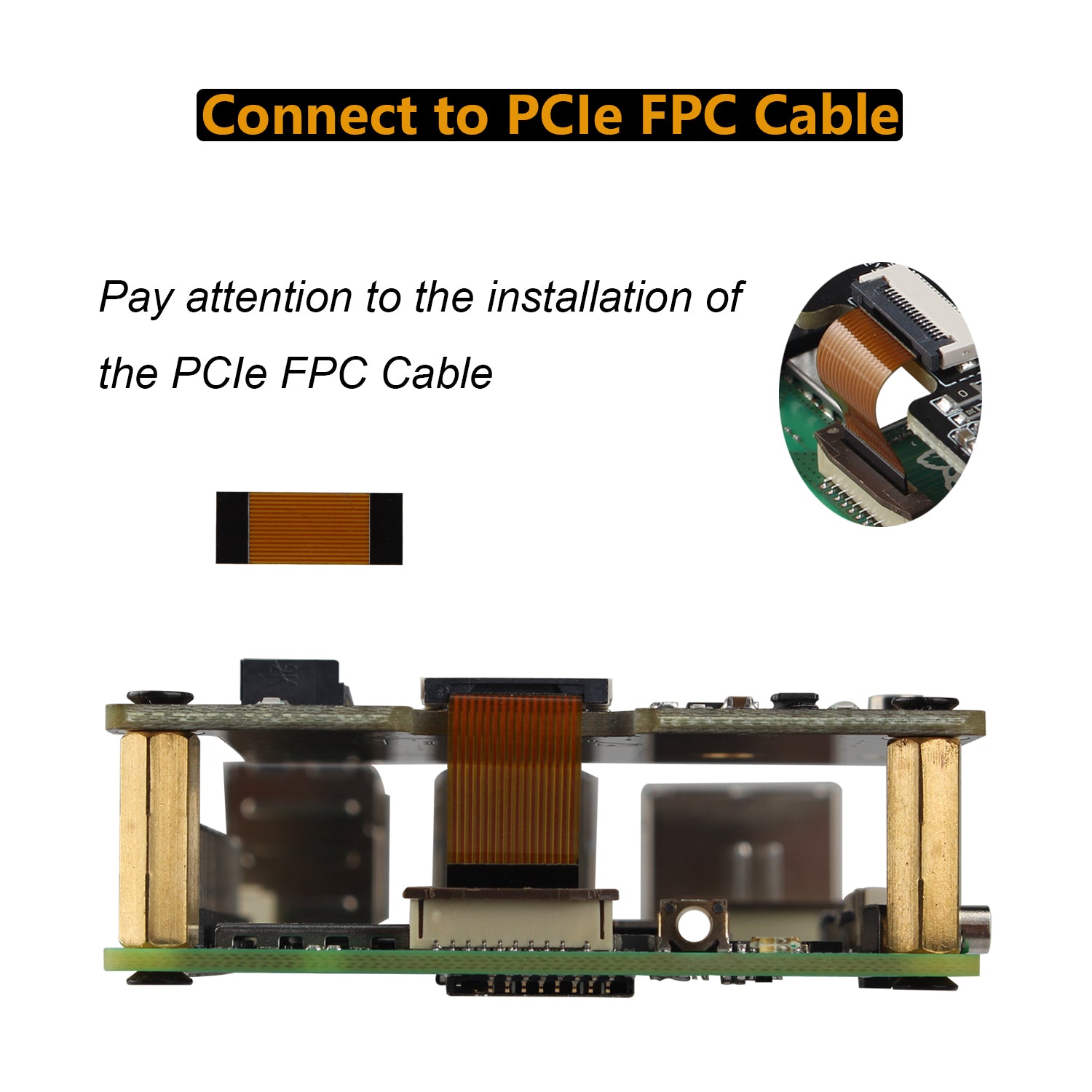

How to Power: Power the ZP515 shield directly from the PCIe FPC ribbon cable.
This ZP515 top HAT is suitable for use with aluminum alloy case. For an aluminum alloy enclosure, please refer to ZC501(ASIN: B0DSZYLMSS) and ZC502(ASIN: B0F2995JCY); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5); for case with Active Cooler, please refer to ZP537(ASIN: B0DSZVN5YX) and ZP540(ASIN: B0F299H1Y8).

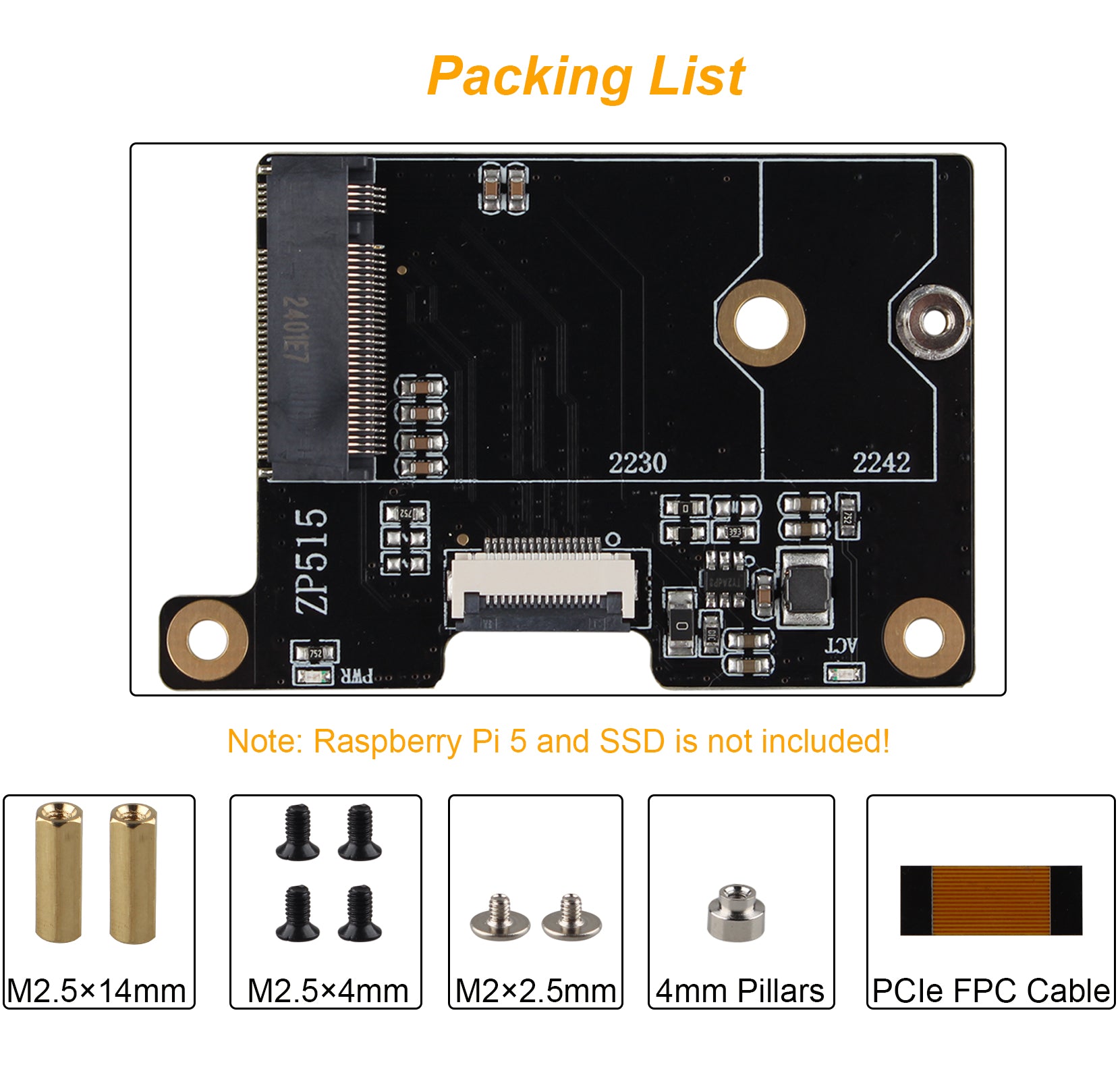

Packing List:
1 x ZP515 PCIe to M.2 NVMe SSD Adapter Board
2 x M2.5x14mm Spacers
4 x M2.5x4mm Screws
2 x M2x2.5mm Screws (to fix SSD)
1 x 4mm Pillar (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSD is not included in the packing list.
