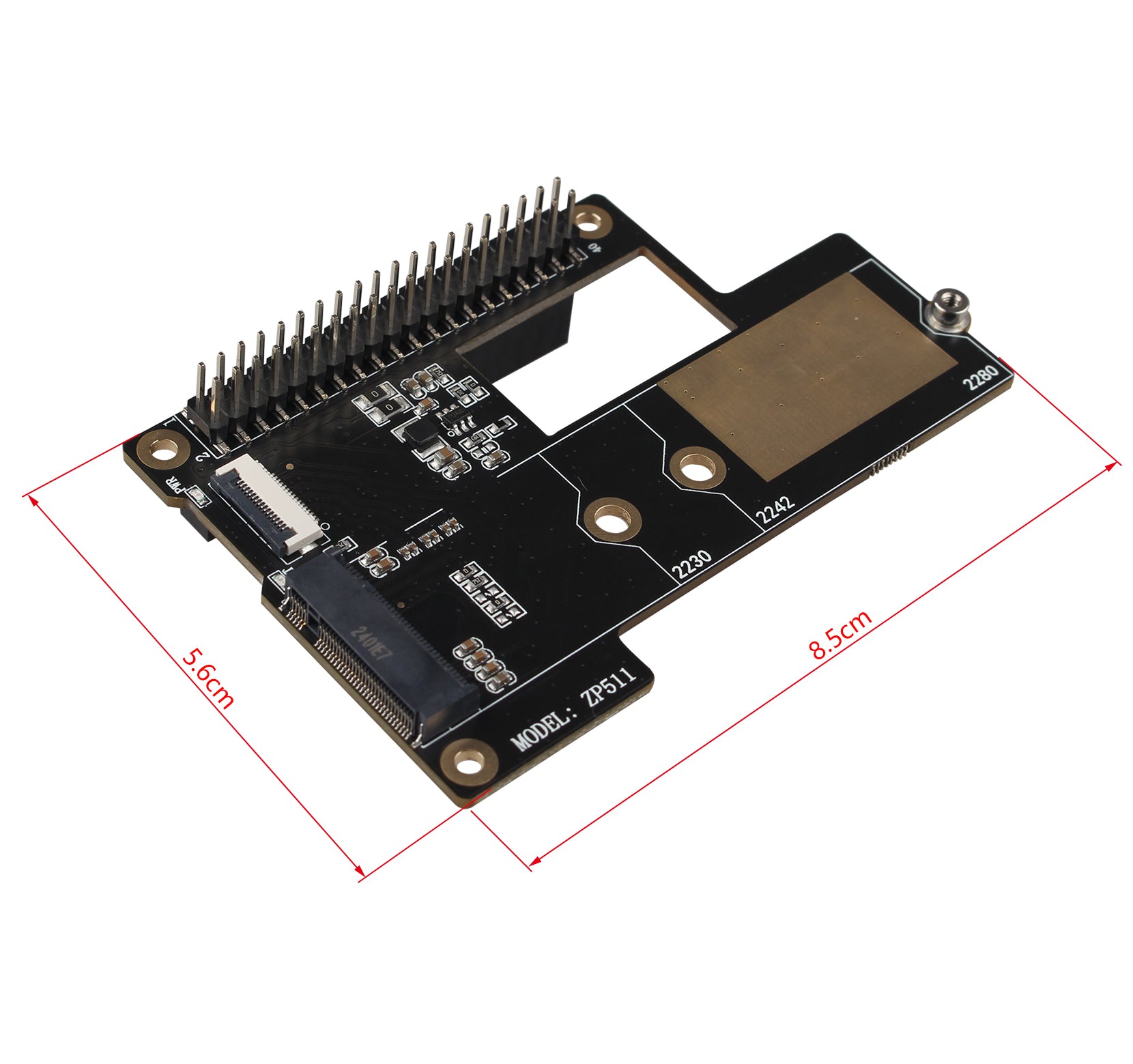

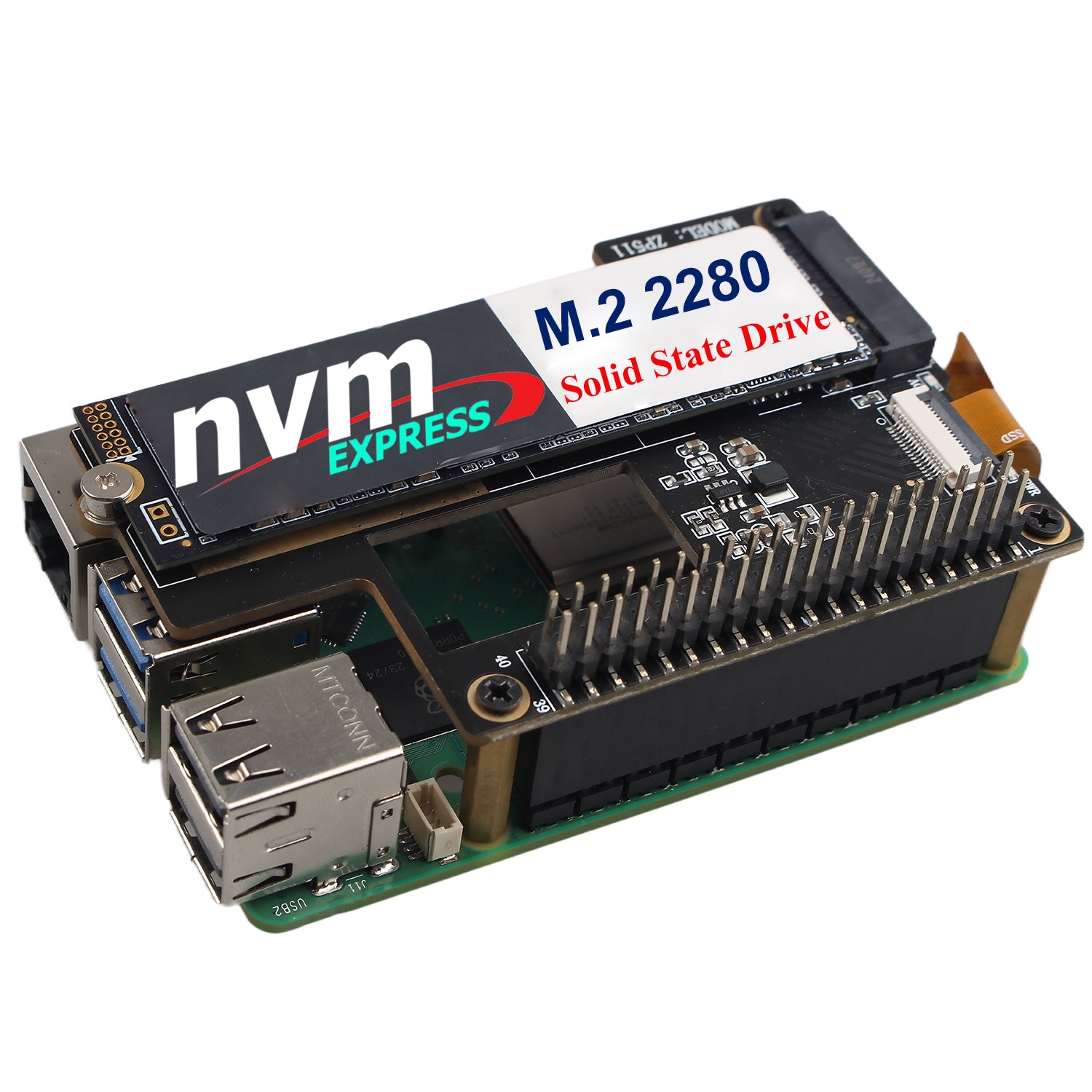

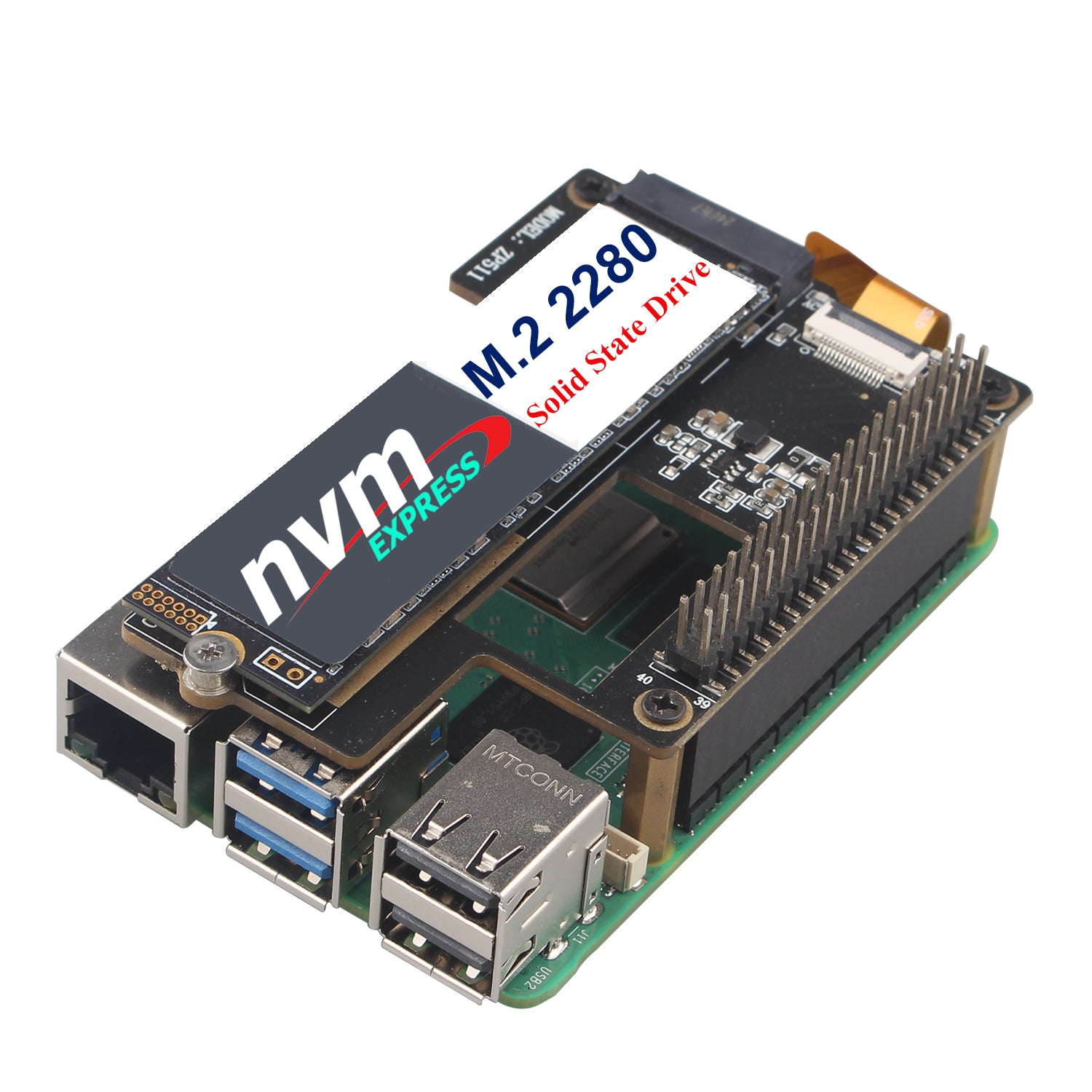

The ZP511 HAT is an M.2 Key-M NVMe SSD Expansion Board for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilize the M.2 NVMe SSDs for ultra-fast booting and fast data transmission. Supports Gen2 and Gen3 modes.

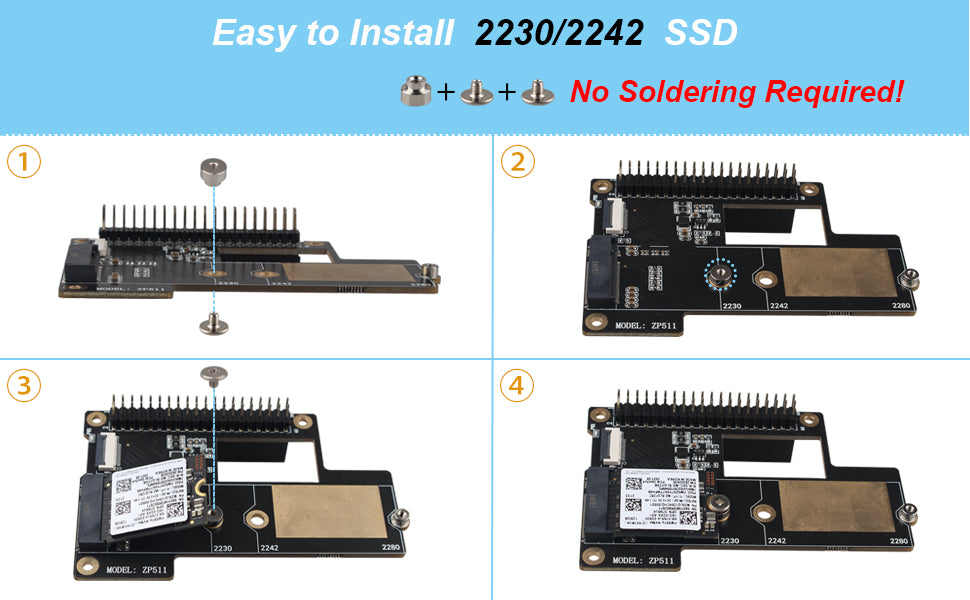

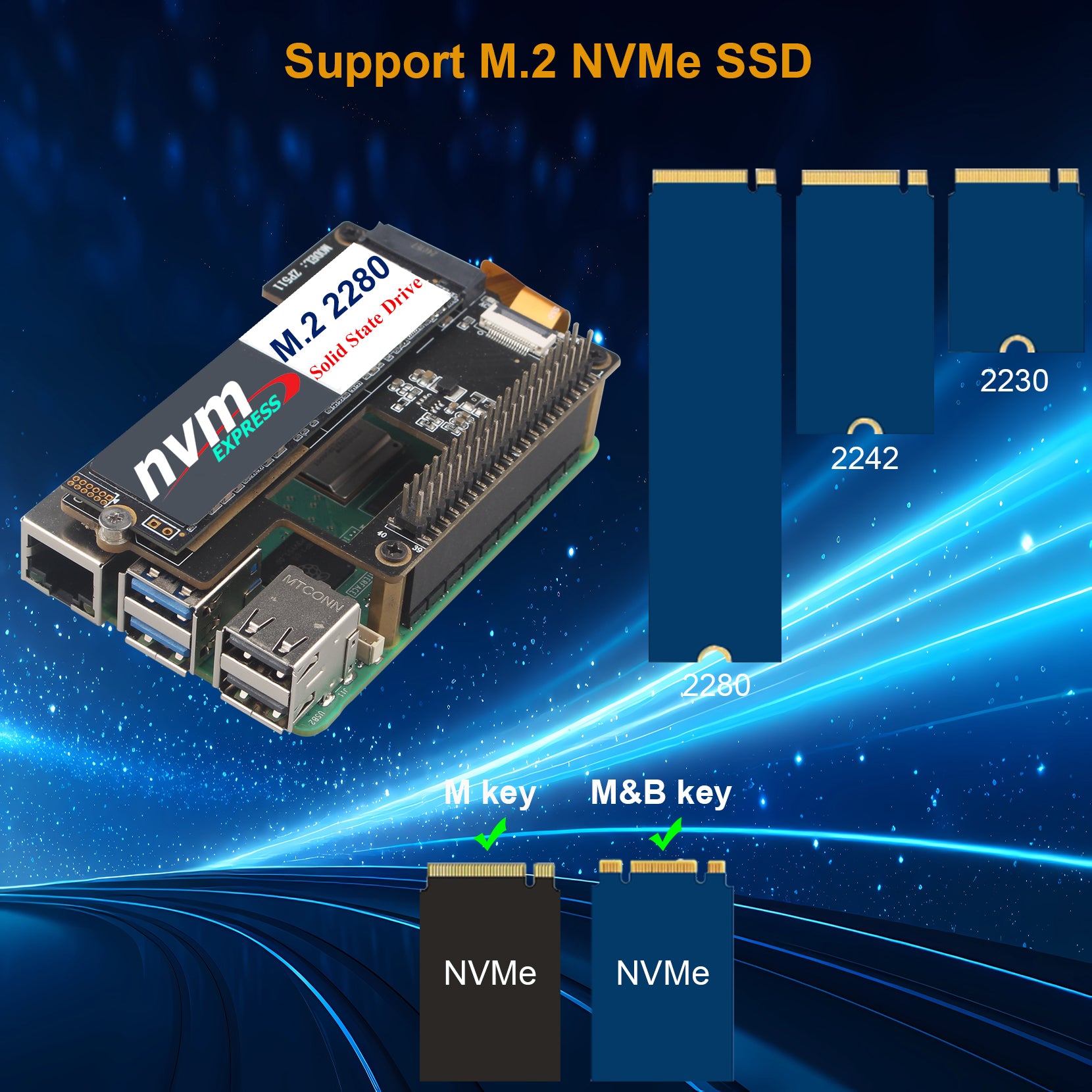

ZP511 M.2 NVMe to PCIe Adapter Board supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2280 length (SSD is not included). Comes with extra screws kit for 2230/2242 SSD installation, no soldering required.

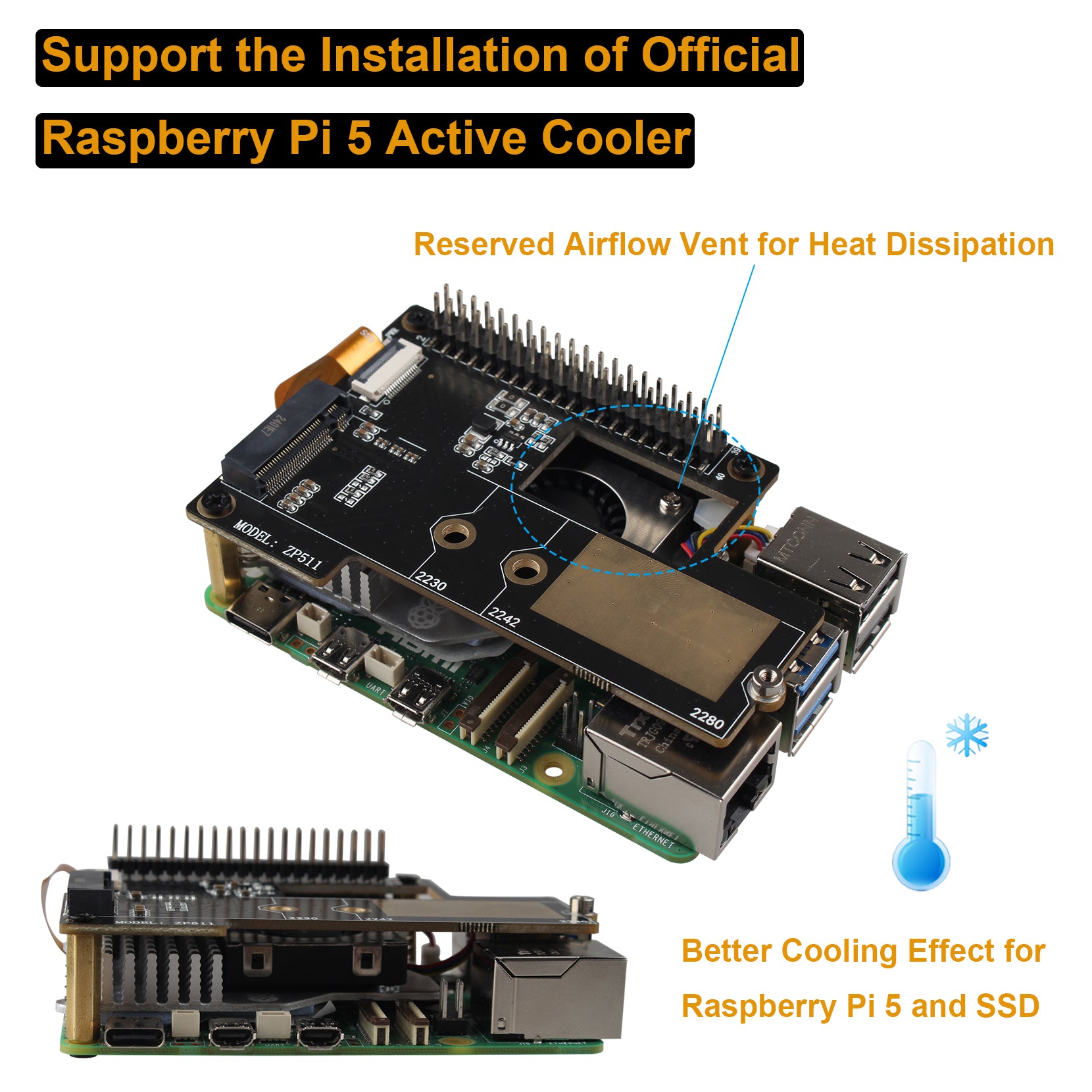

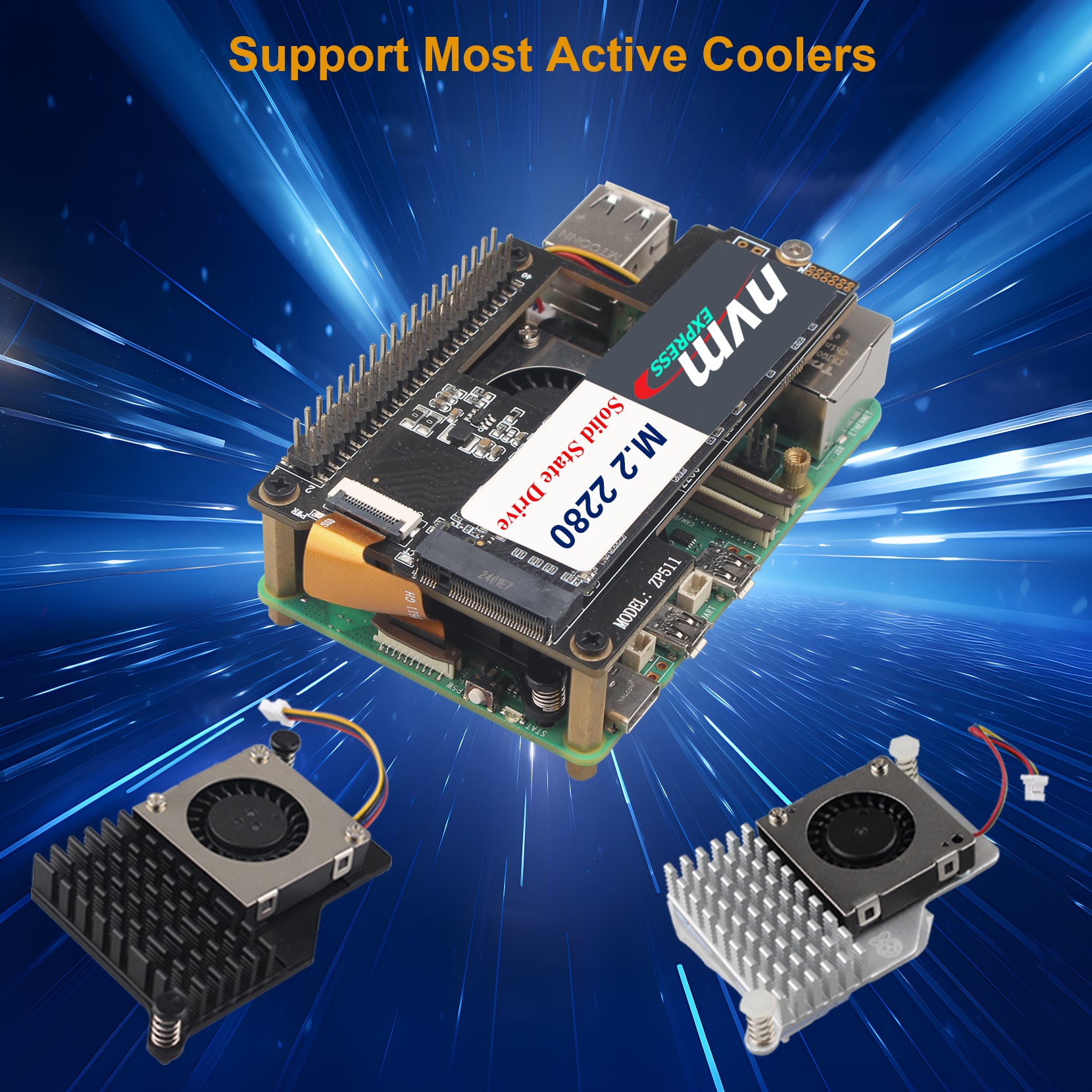

This PCIe to M.2 NVMe adapter supports the installation of official Raspberry Pi 5 Active Cooler (Not Included) and there is a reserved airflow vent for the cooling fan, providing excellent heatsink for Raspberry Pi 5 and SSD.
How to Power: Power the ZP511 shield directly from the PCIe FPC ribbon cable. Also, with 40pin header, the board can automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.
Great Accessories for Raspberry Pi 5: ZP511 PCIe Peripheral Board is compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5).
This ZP511 top HAT is suitable for use with aluminum case. Only for aluminum enclosure, please refer to ZC501 (ASIN: B0DSZYLMSS); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5); for Aluminum Case with Active Cooler, please refer to ZP537(ASIN: B0DSZVN5YX).

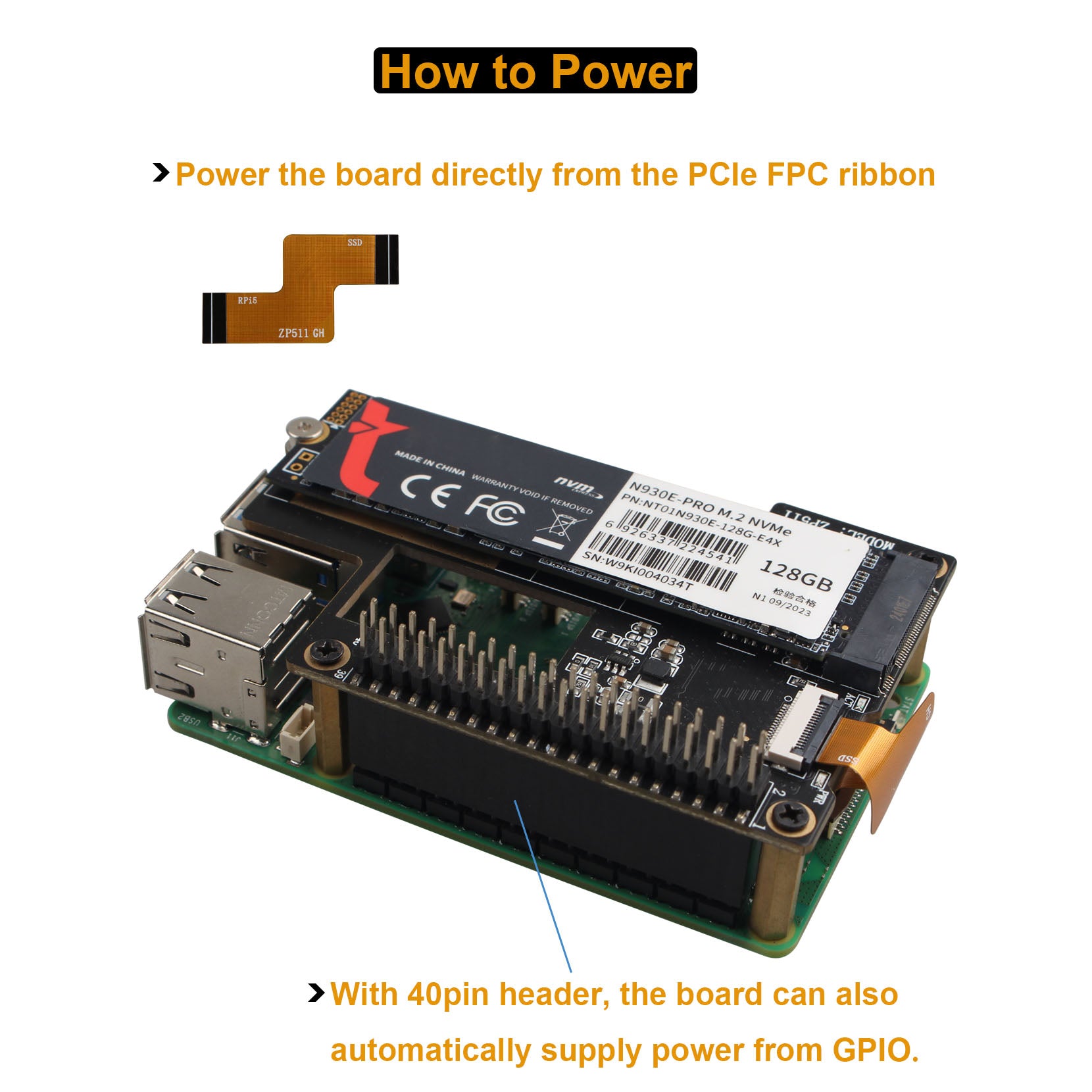

How to Power:

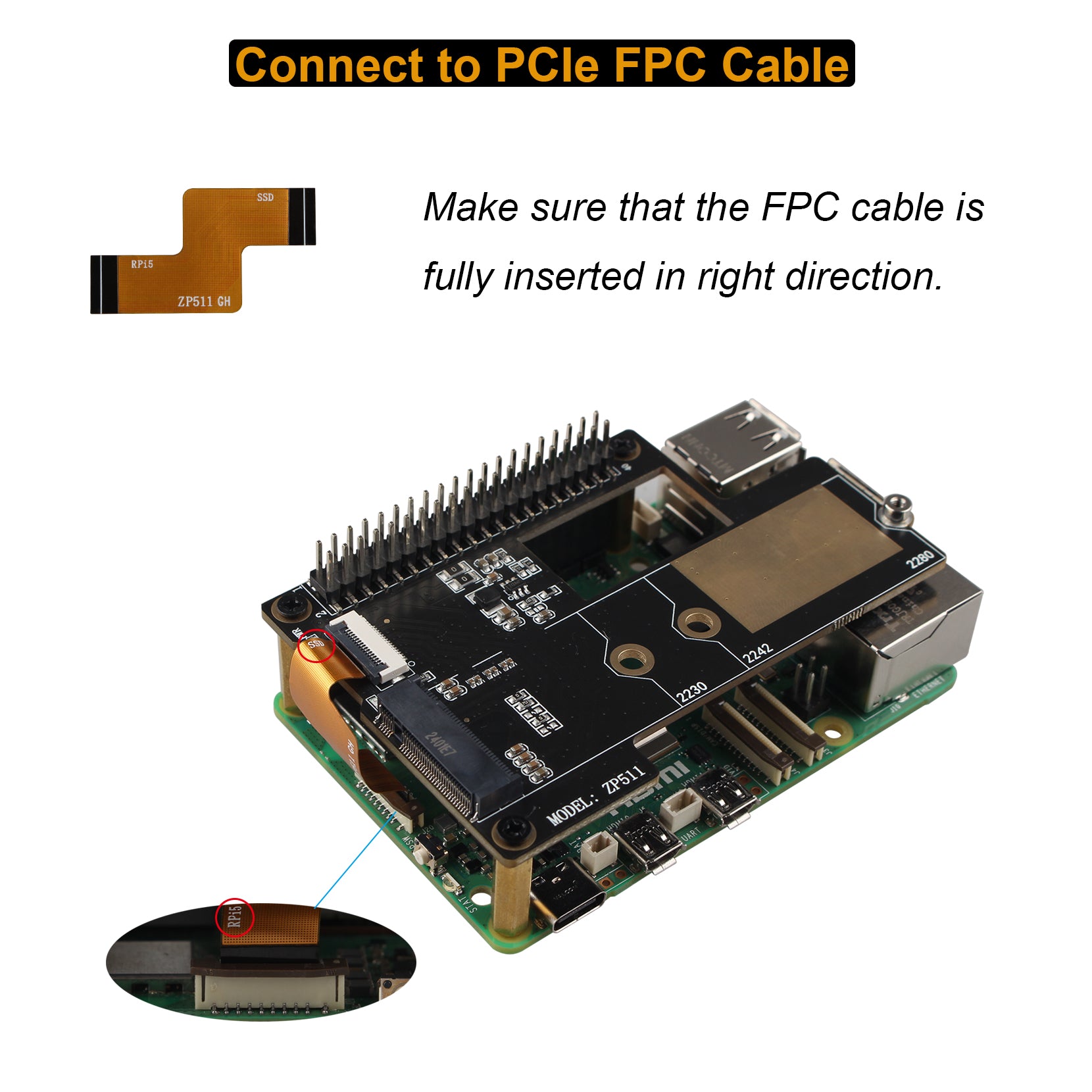

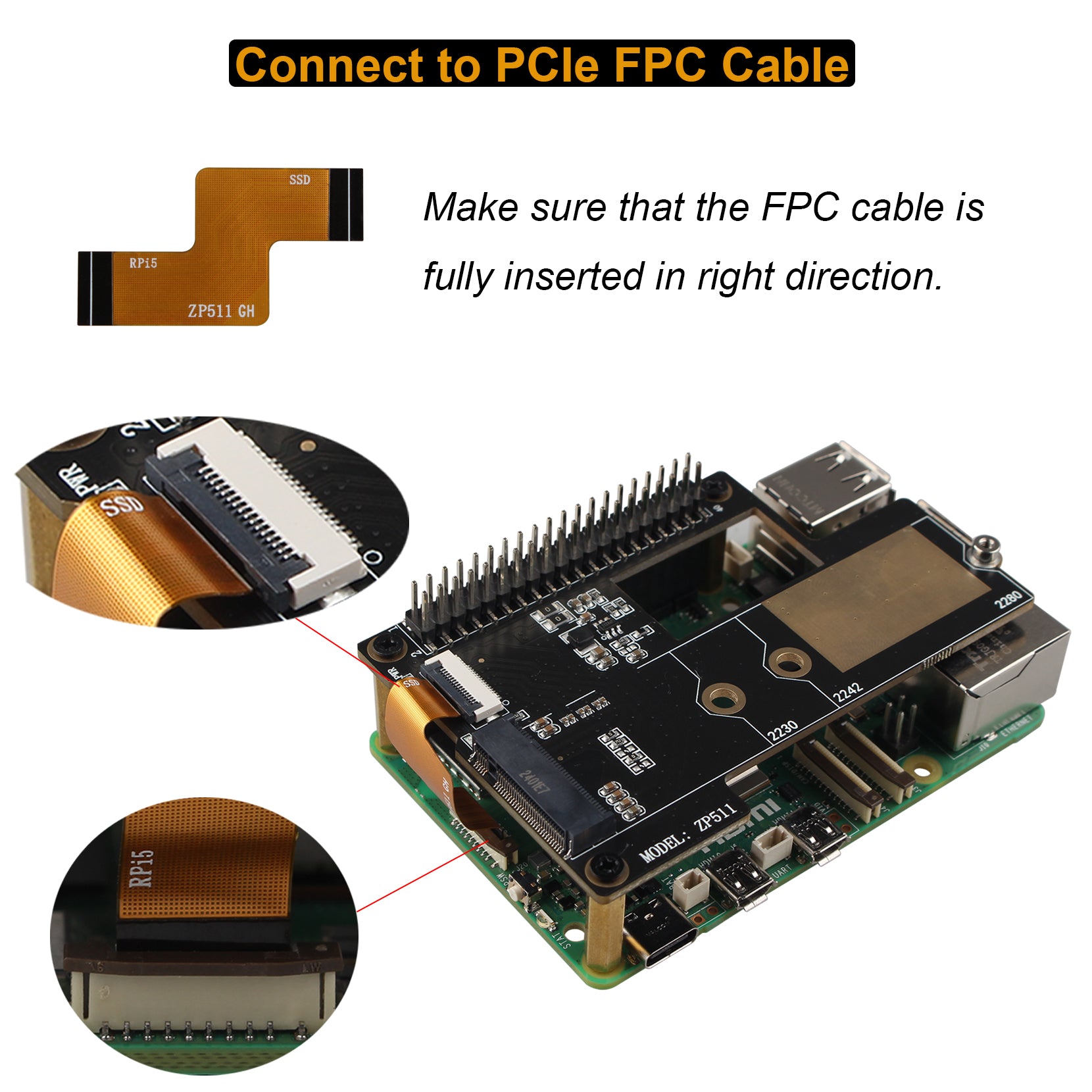

Power the ZP511 shield directly from the PCIe FPC ribbon.
With 40pin header, the board can also automatically supply power from GPIO, avoiding the problem of insufficient power supply for ultra-large capacity of SSDs.

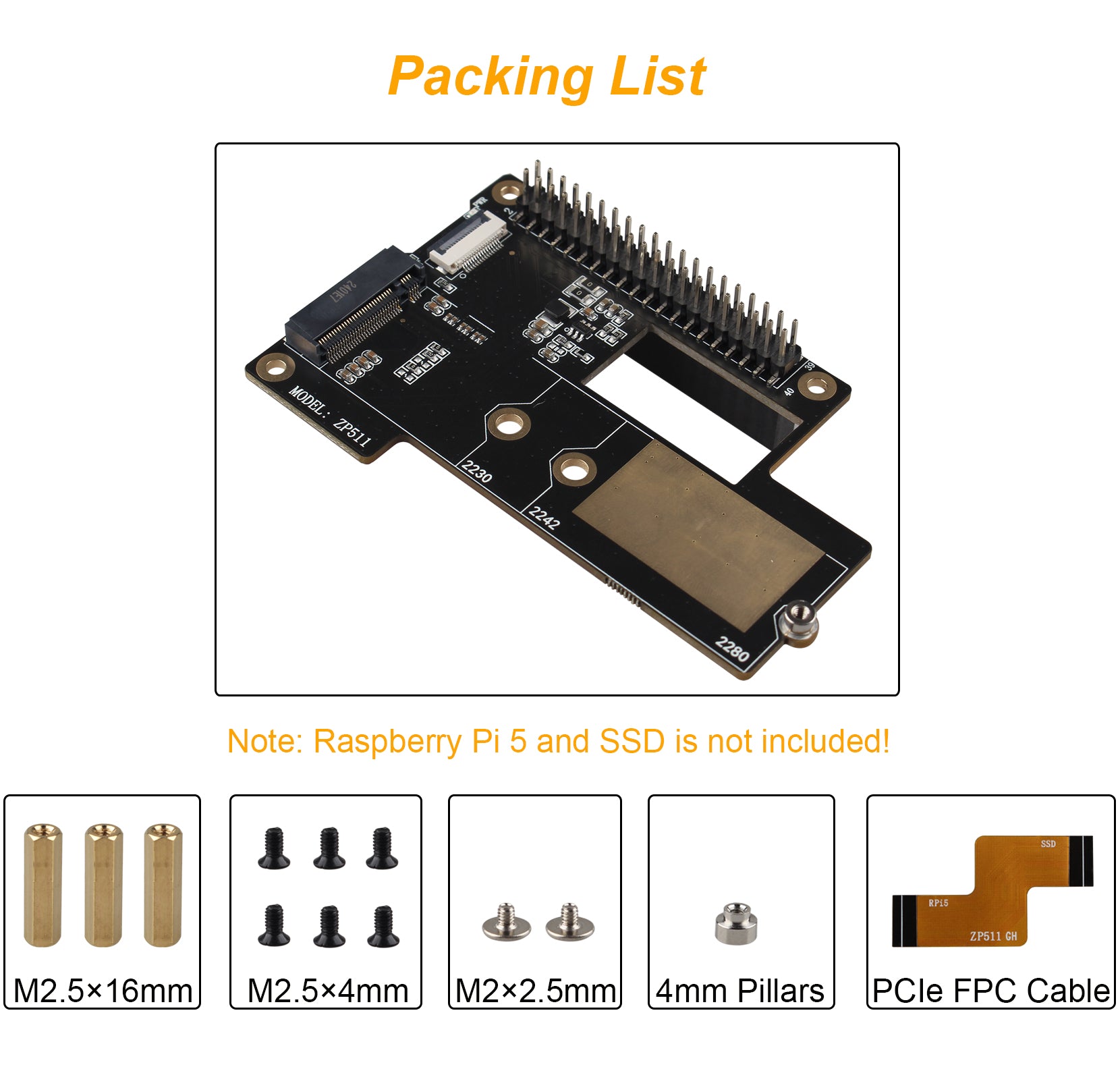

Packing List:
1 x ZP511 PCIe to M.2 NVMe SSD Adapter Board
3 x M2.5x16mm Spacers
6 x M2.5x4mm Screws
2 x M2x2.5mm Screws (to fix SSD)
1 x 4mm Pillar (to fix SSD)
1 x PCIe FPC cable
Note: The Raspberry Pi 5 and M.2 NVMe SSD are not included in the packing list.
