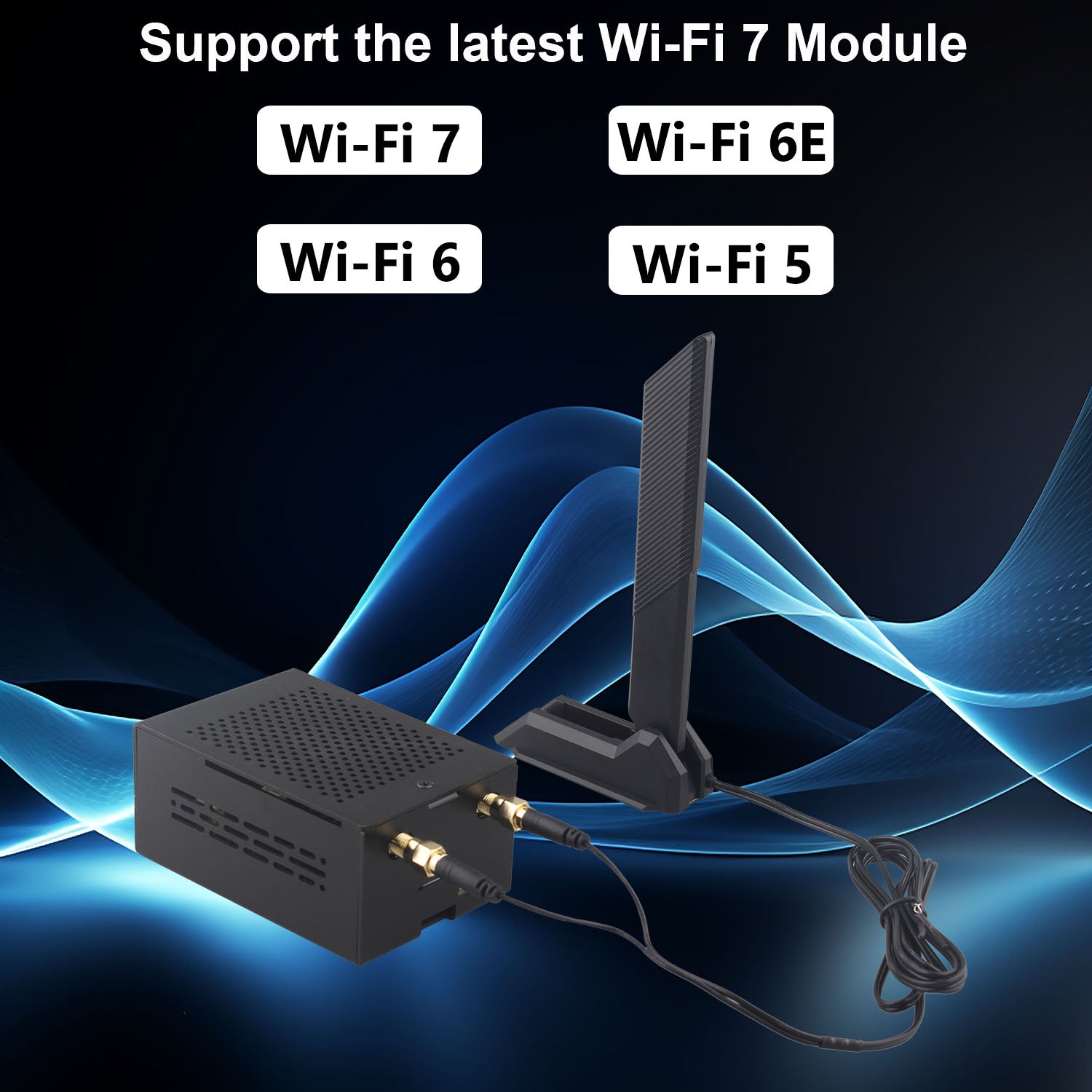

Compatibility: This kit includes a PCIe to WiFi7 expansion board and an aluminum alloy case. It is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board.

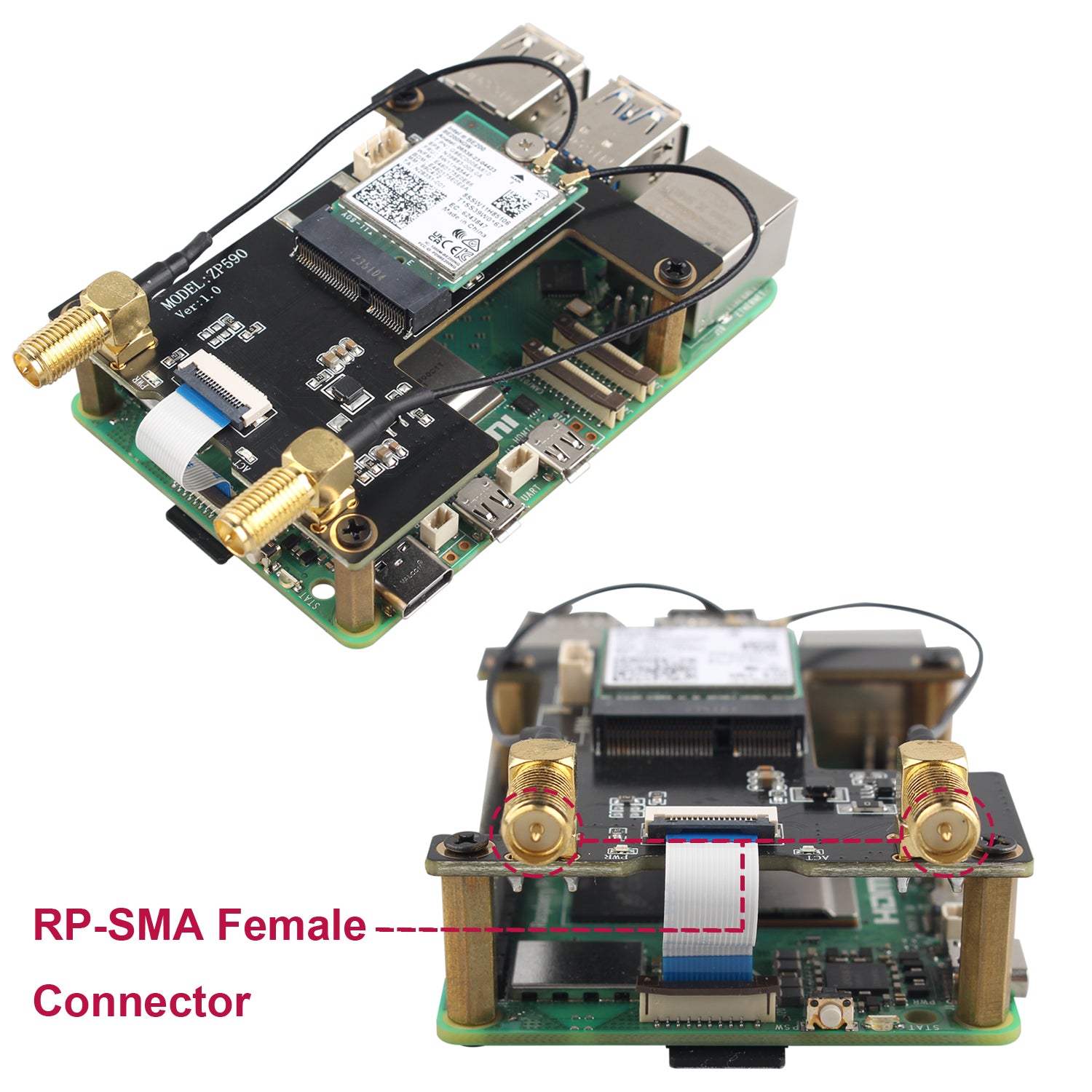

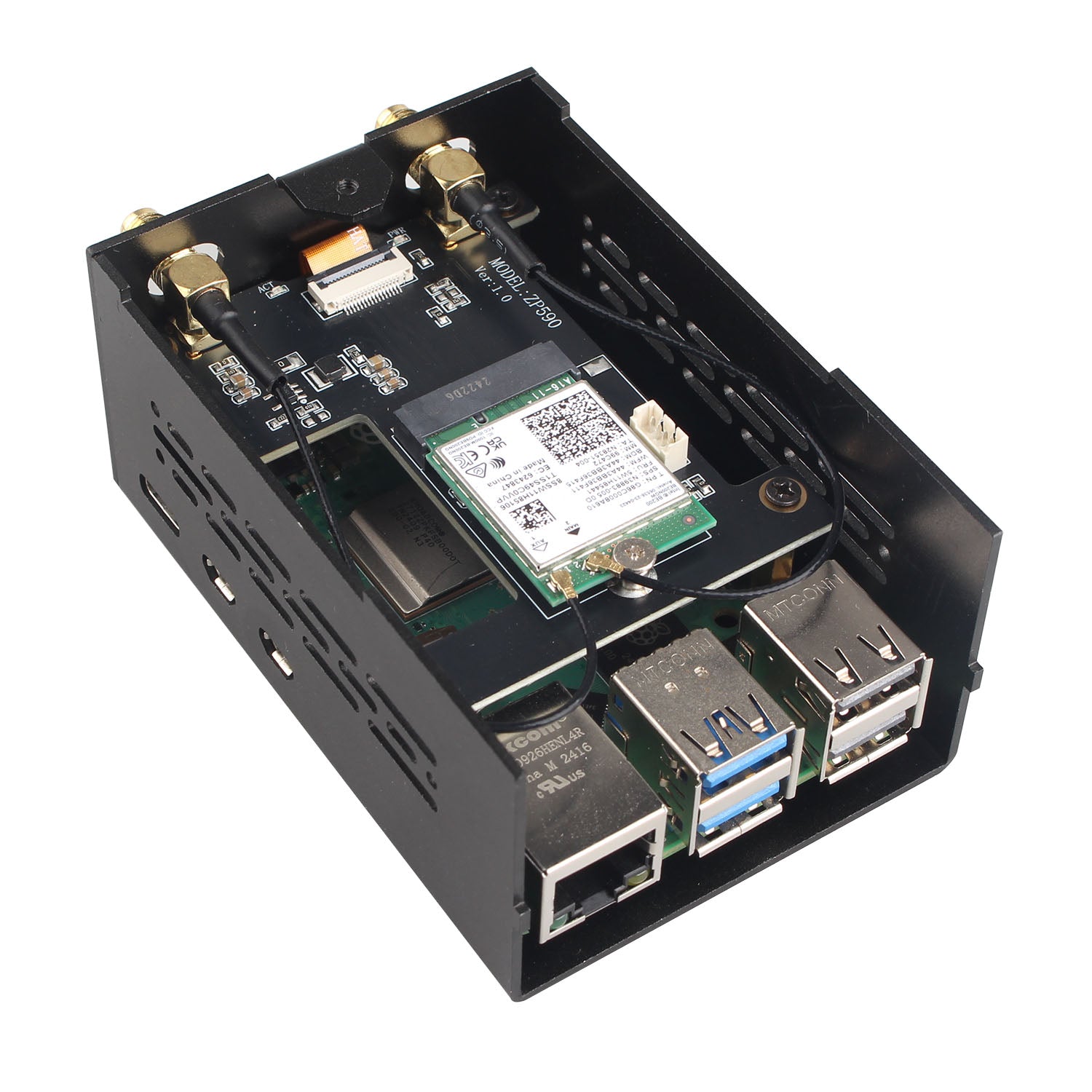

WIFI7 Module Supported: The ZP590C HAT is an adapter board with PCIe interface for WIFI7, allowing Raspberry Pi 5 motherboard to use the latest WIFI7 module. The WIFI7 module can be inserted into the ZP590C adapter board via the M.2 E-KEY interface, providing ultra-fast wireless network connectivity to meet various high-bandwidth needs. (Note: The Raspberry Pi 5 and WIFI module are not included.)

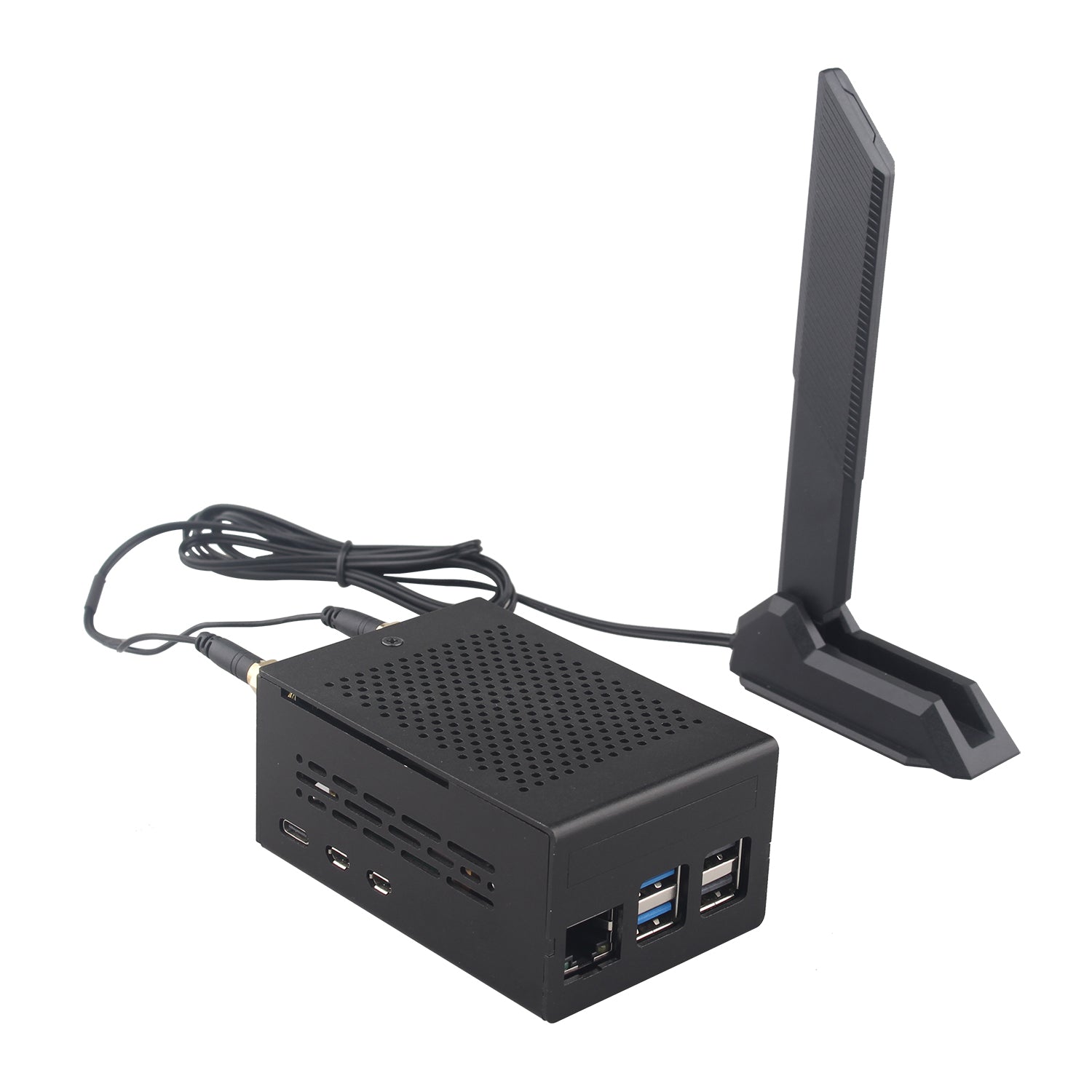

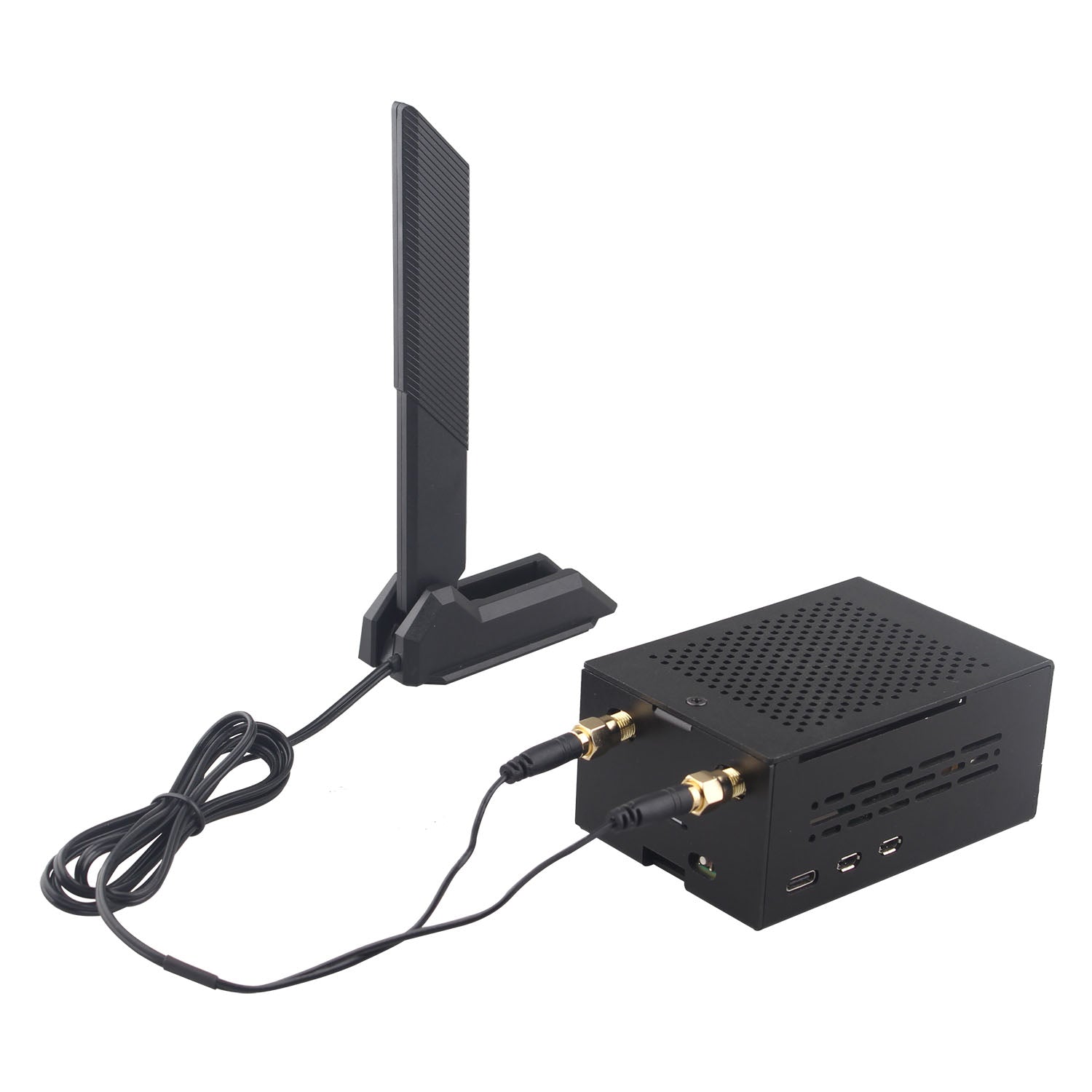

High-quality Material: The enclosure is made of lightweight and durable aluminum alloy material, it can offer excellent protection and heat dissipation for the Raspberry Pi 5 board and expansion board.

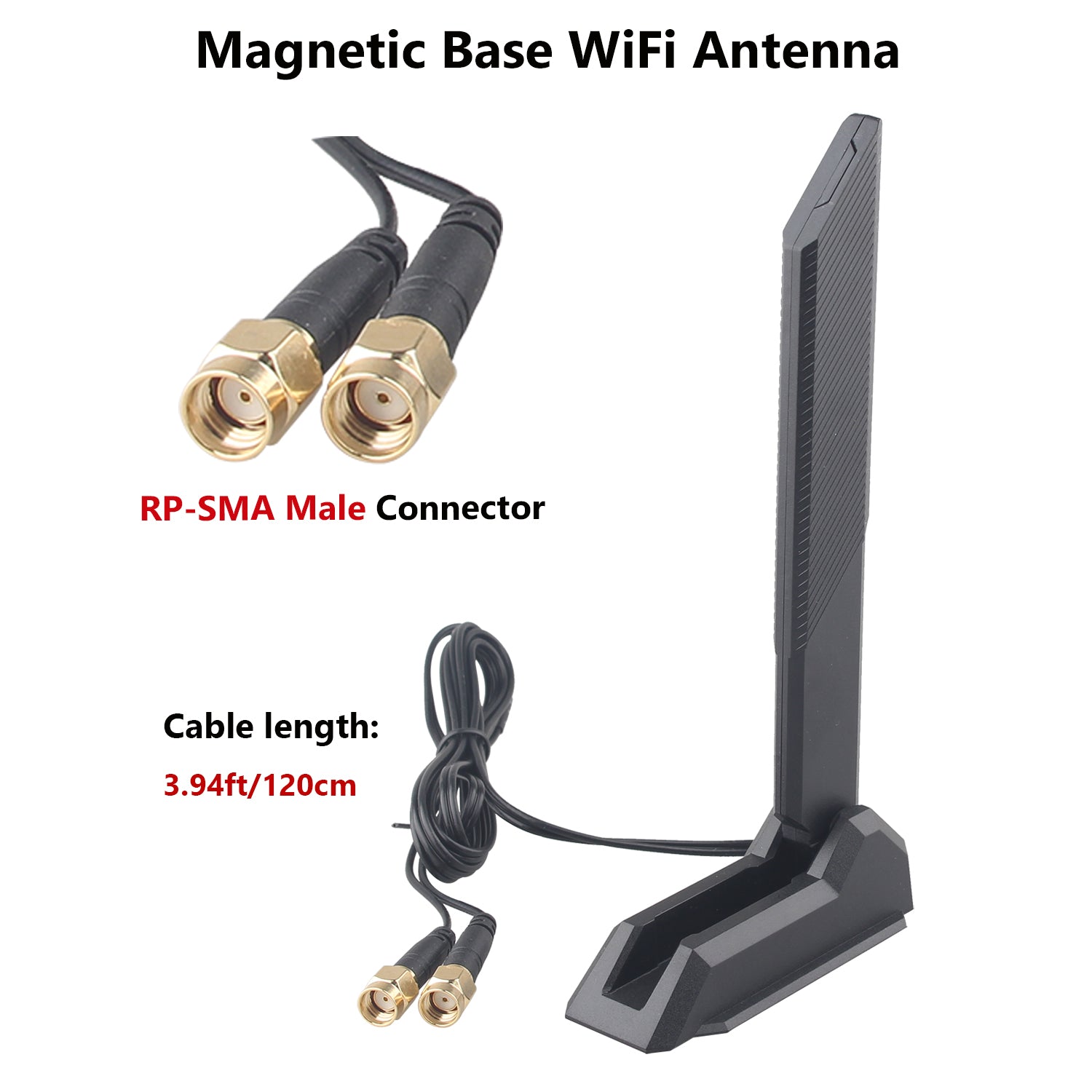

Wide Application: Equipped with Tri-Band RP-SMA WiFi Antenna, you can use the board with WIFI module to enhance the WIFI signal of Raspberry Pi 5. It can also be used with TPU module for Image Recognition, Natural Language Processing, Enhancing Learning, etc.
Easy Access to Pi 5: This aluminum alloy case can access all ports of Pi 5, including USB-C power jack, micro HDMI ports, USB ports, Ethernet jack, micro SD card slot, power button, 4-lane MIPI DSI/CSI connectors.
At present, Ubuntu supports wireless network cards of WIFI7 WIFI6(E) WIFI5, which can be used without installing drivers. The currently supported network cards include BE200, 8265C, AX200, AX210, MT7922.
To use the WiFi7/6/6E/5 wireless network cards, the Raspberry Pi OS needs to install a driver, it depends on how familiar you are with the wifi driver and Raspberry Pi OS.

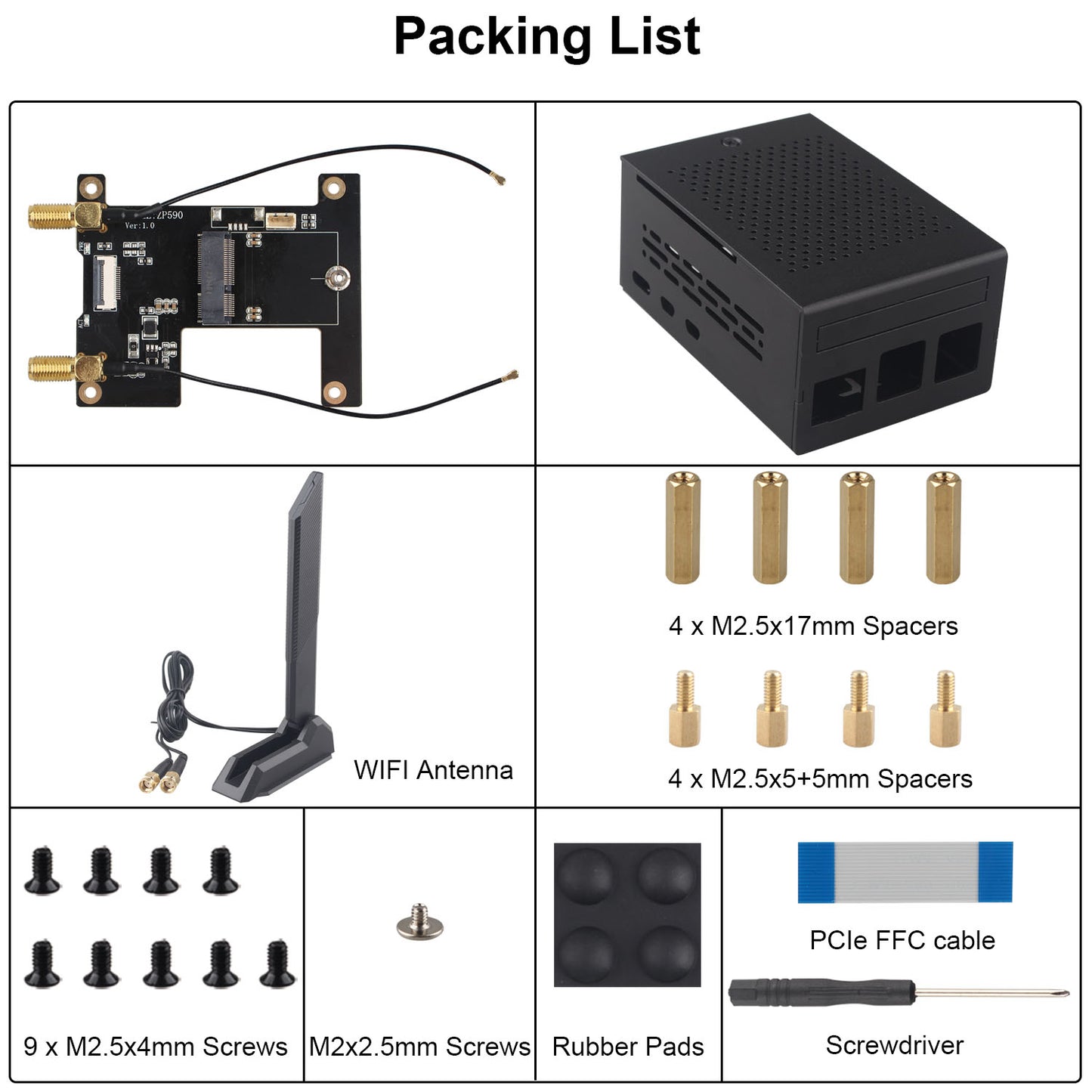

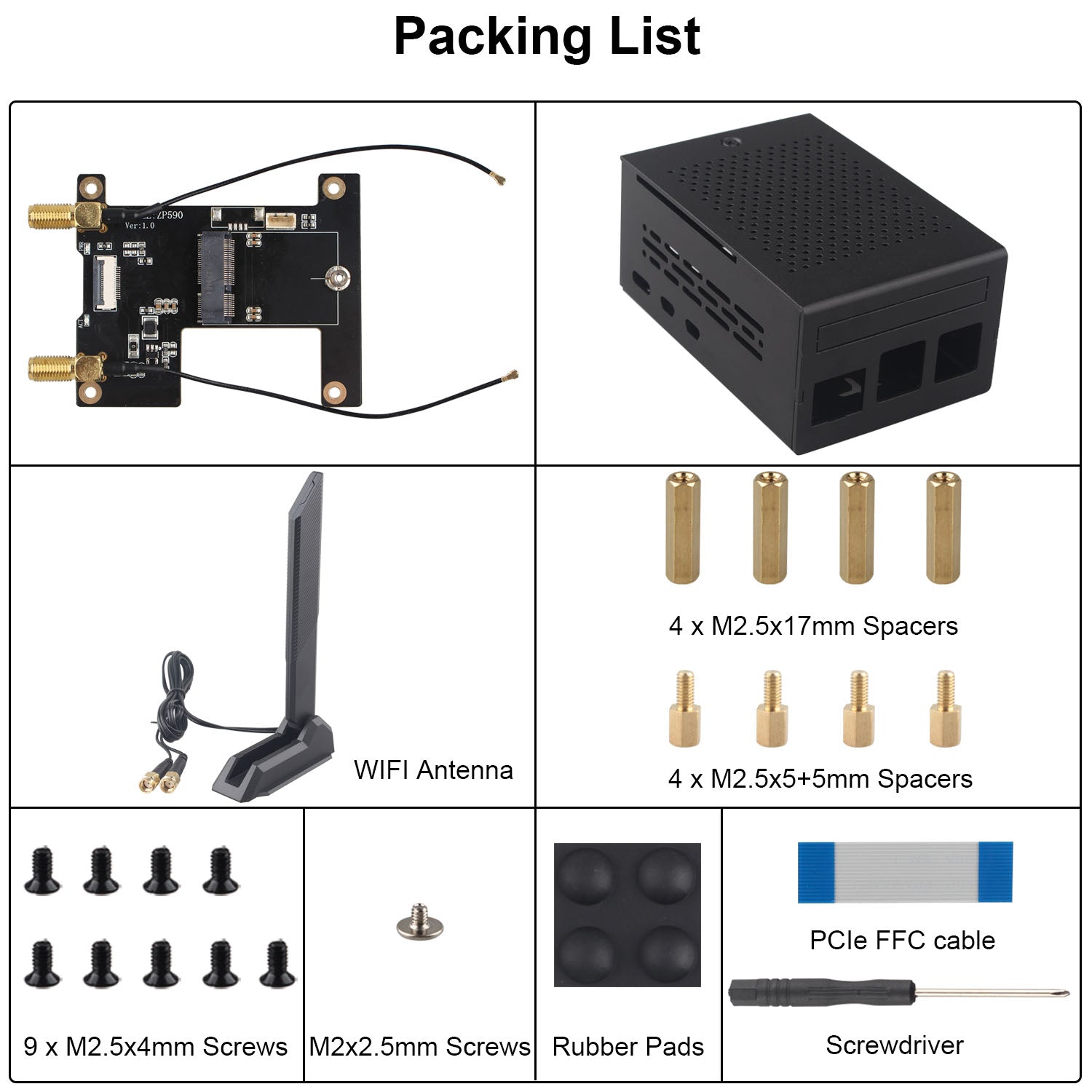

Packing List:
1 x PCIe to WiFi7 Expansion Board
1 x Aluminum Case
1 x WIFI Antenna
4 x M2.5x17mm Spacers
4 x M2.5x5+5mm Spacers
9 x M2.5x4mm Screws
1 x M2x2.5mm Screws
1 x 4pcs Rubber Pads
1 x PCIe FFC cable
1 x Screwdriver
Note: The Raspberry Pi 5 and WIFI module are not included.
