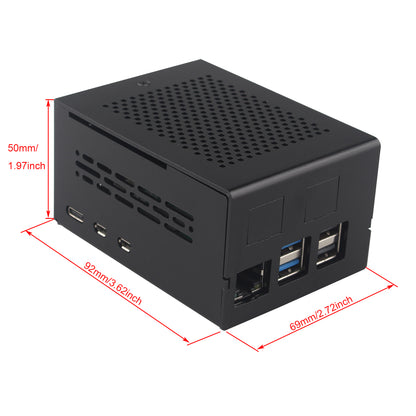

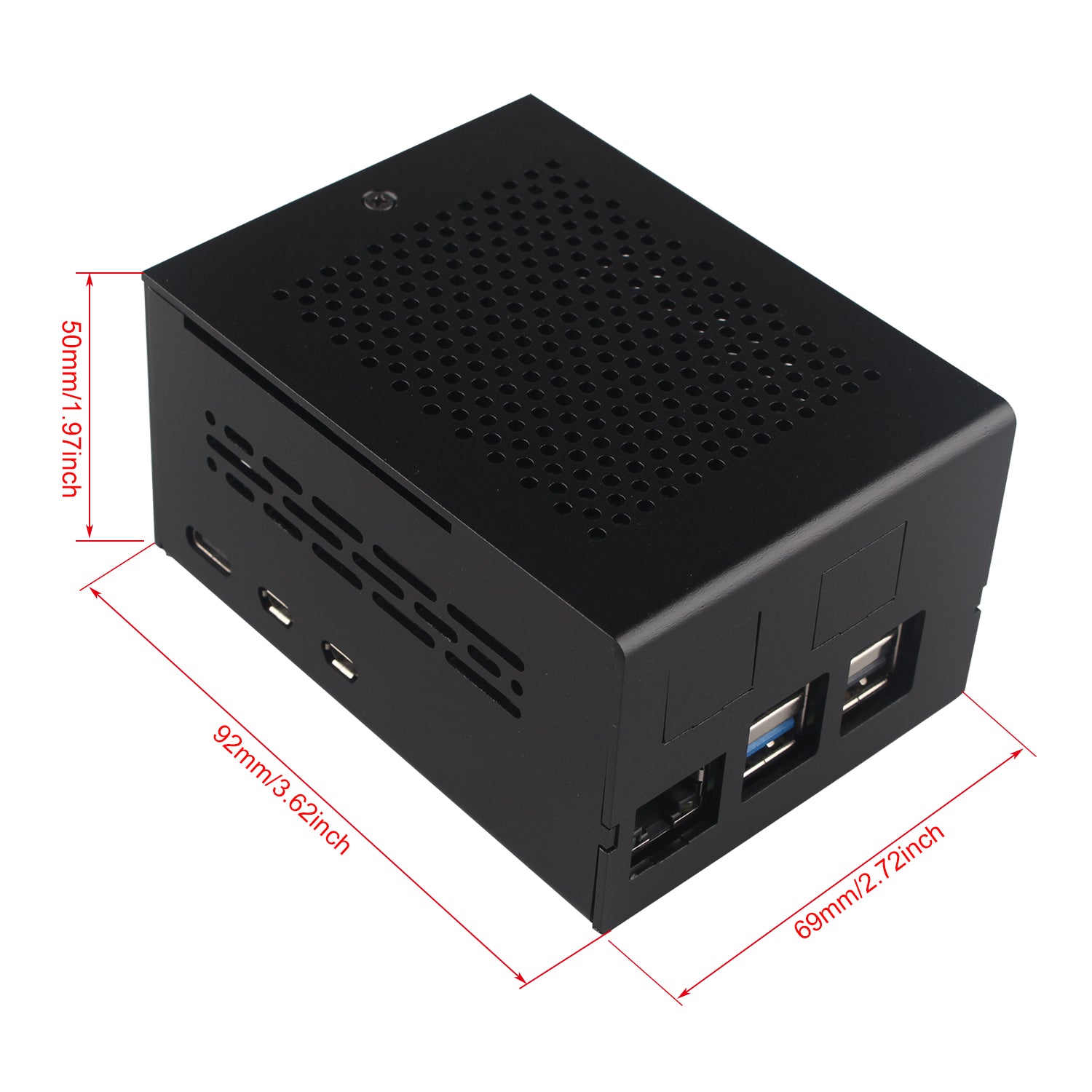

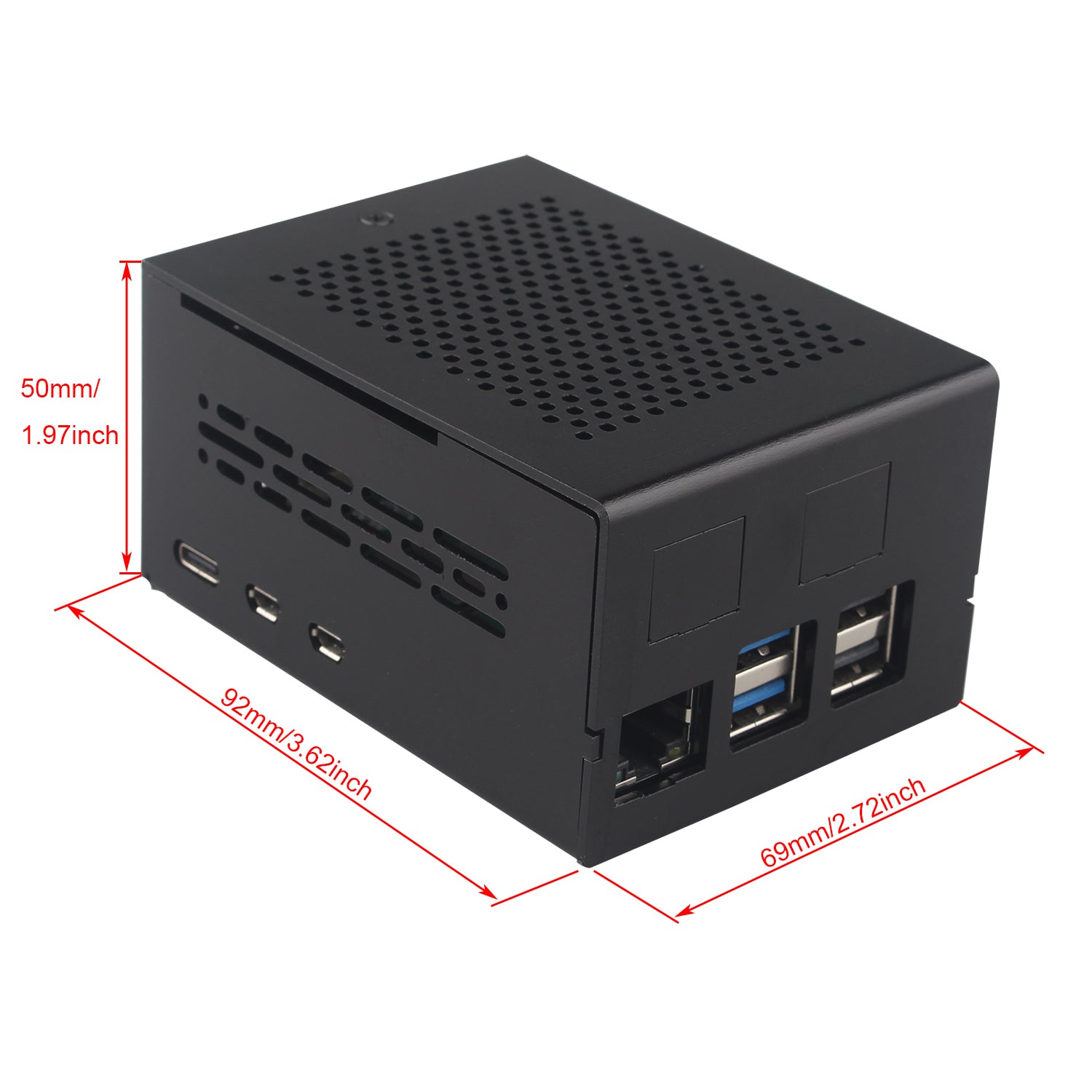

ZDE ZC506 Aluminum Case for Raspberry Pi 5 Support PCIe to 2.5G 5G Ethernet Port M.2 NVMe PoE+ HAT WiFi Shield PCIe Peripheral Board ZP591 ZP593 ZP595 ZP596 ZP598 and Pi 5 Active Cooler
ZDE ZC506 Aluminum Case for Raspberry Pi 5 Support PCIe to 2.5G 5G Ethernet Port M.2 NVMe PoE+ HAT WiFi Shield PCIe Peripheral Board ZP591 ZP593 ZP595 ZP596 ZP598 and Pi 5 Active Cooler
Couldn't load pickup availability
Features:

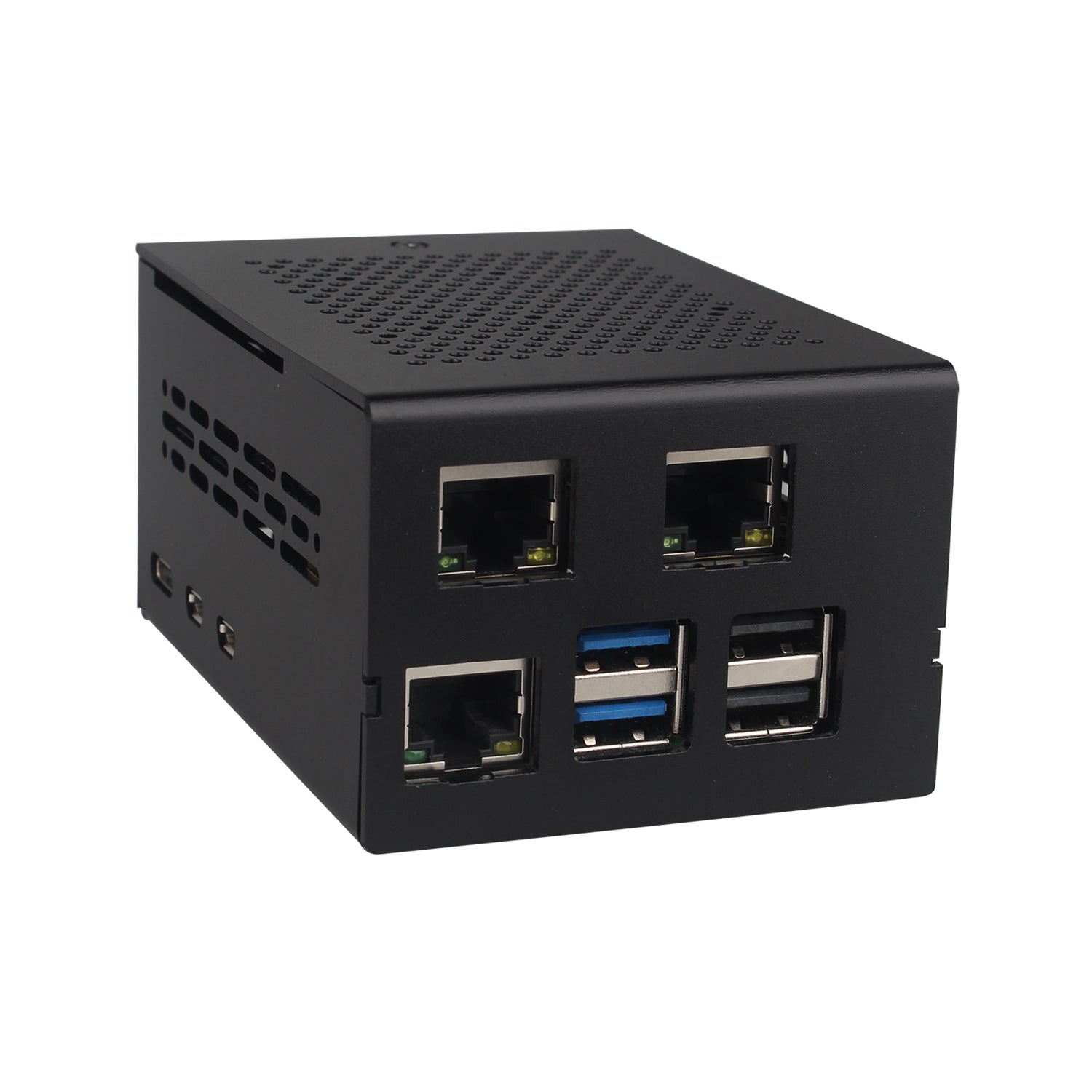

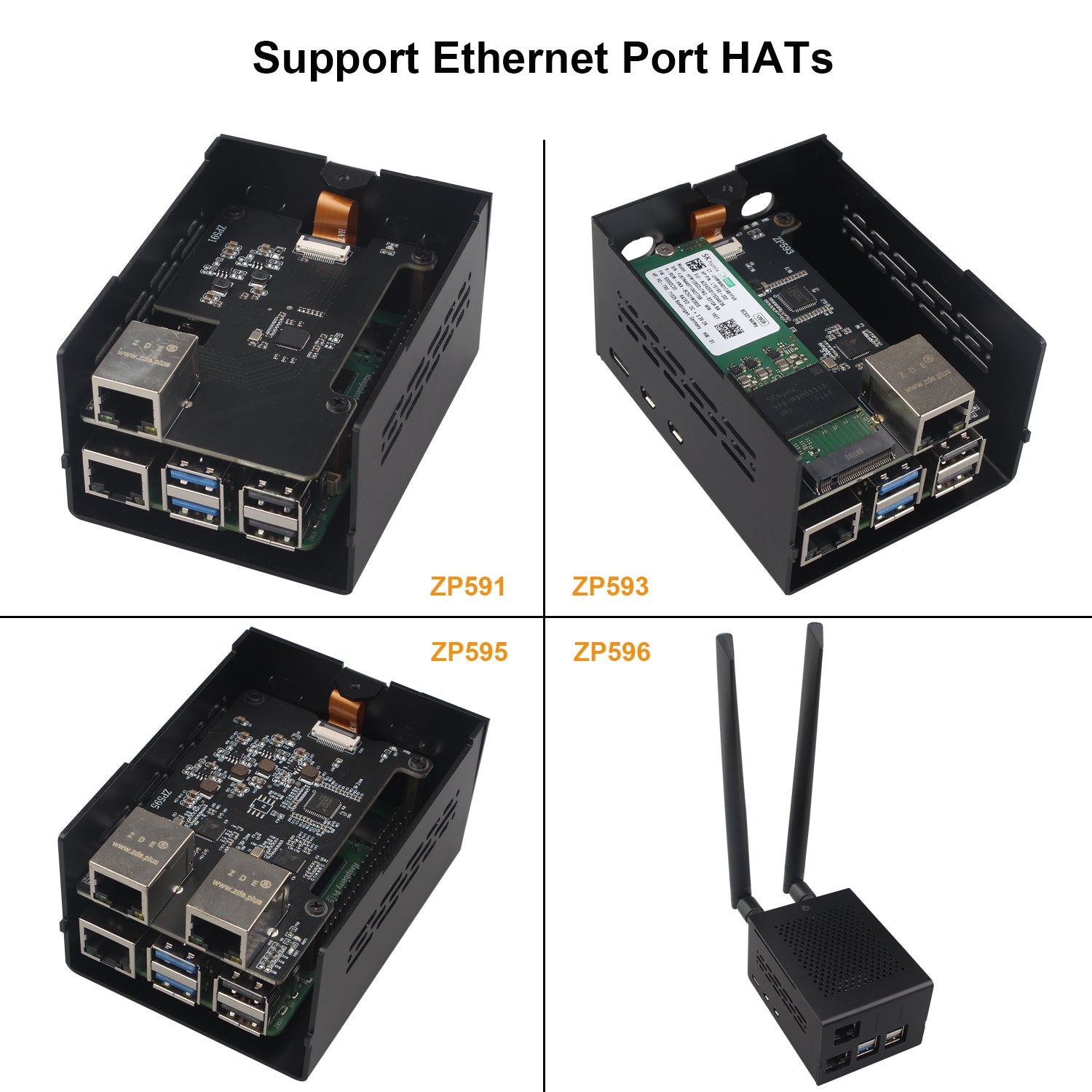

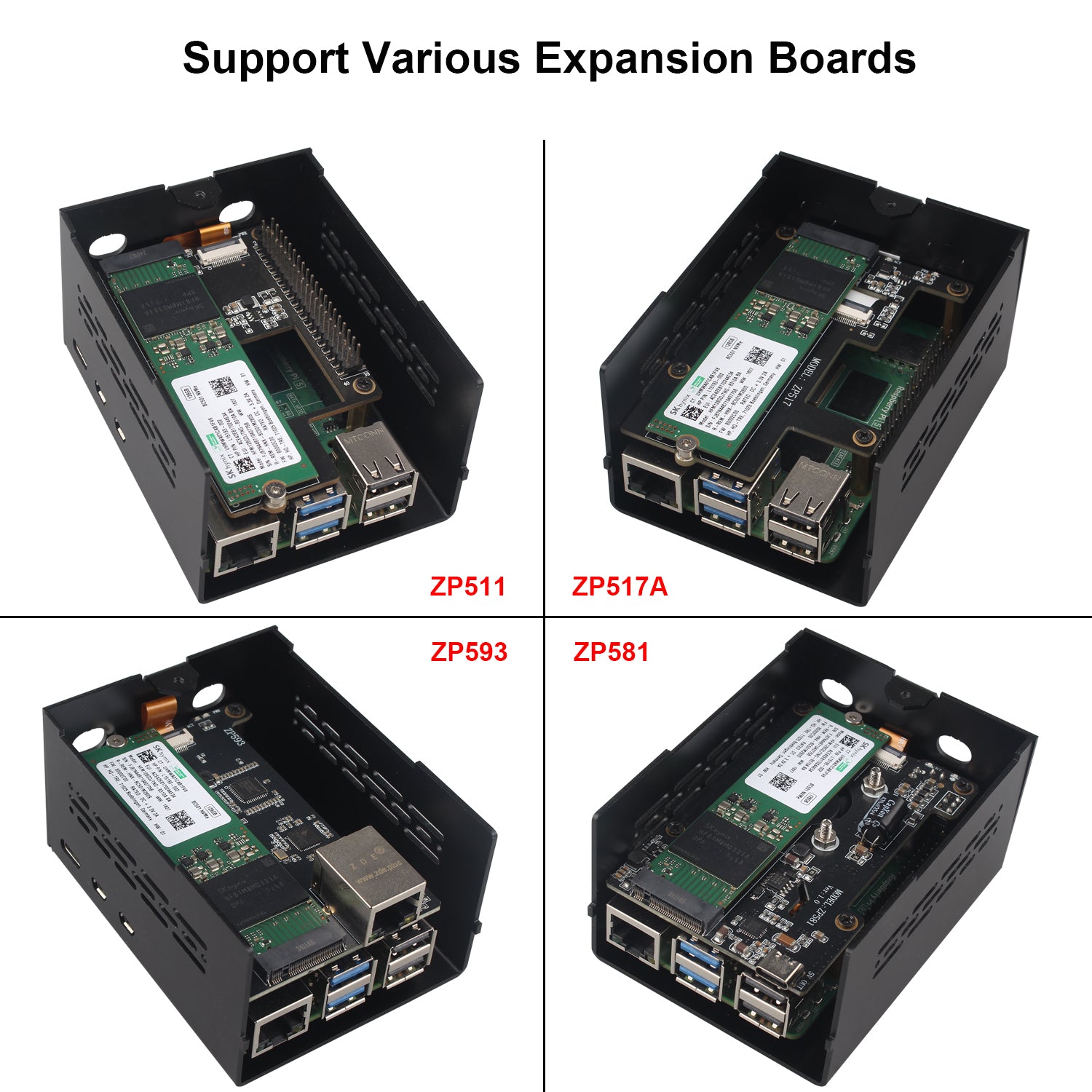

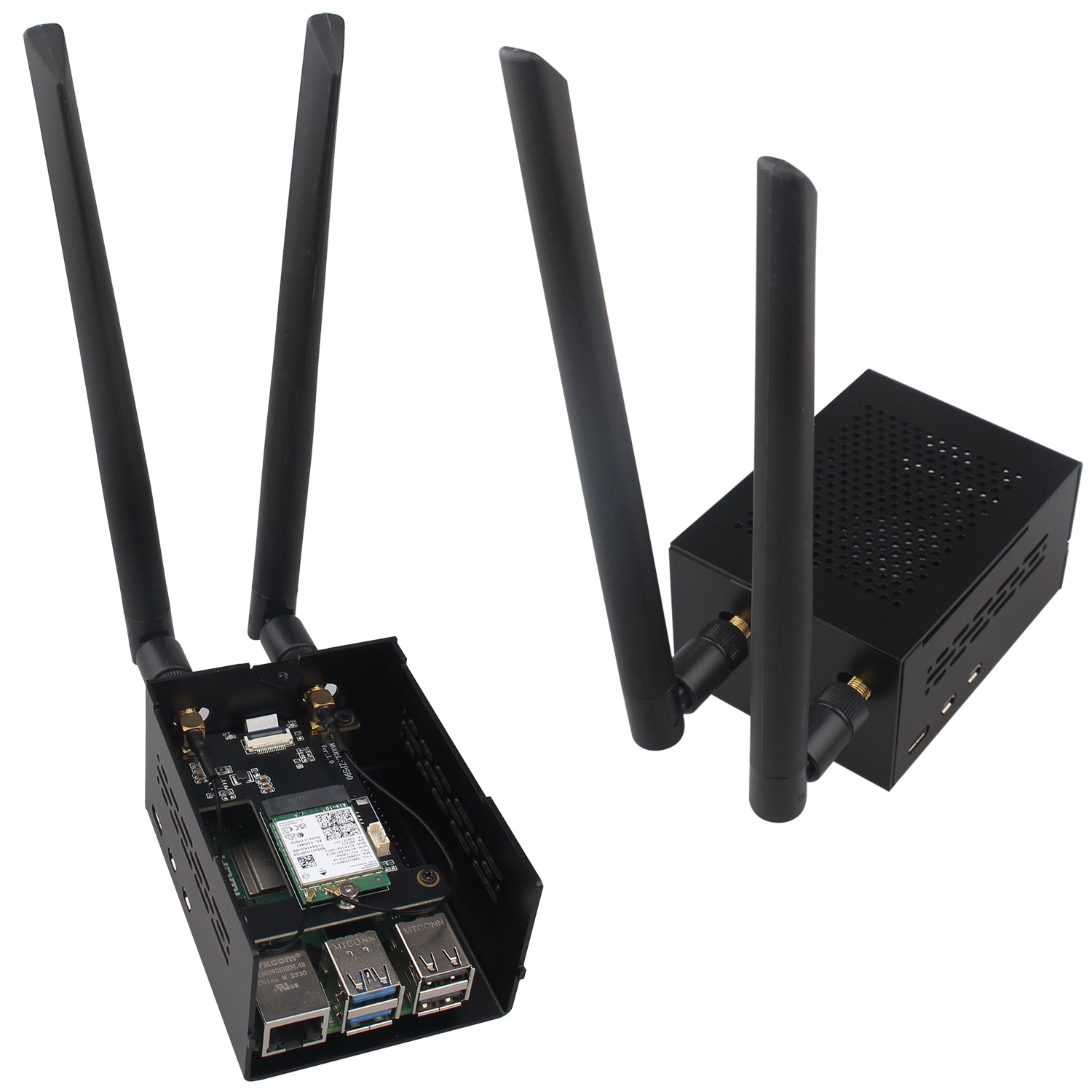

Compatibility: The enclosure is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board, specifically designed for HAT expansion boards with Ethernet Port. For 2.5GBE Ethernet Port HAT adapter, please refer to ZP591(ASIN: B0FDGMQS95); ZP593(ASIN: B0DQ8C1PBD); ZP595(ASIN: B0DQ8BLD6L); ZP596(ASIN: B0FHW9FXT2). For 5GBE Ethernet Port HAT, please refer to ZP598(ASIN: B0FQ1F1YSQ). It also supports installation of various top PCIe to M.2 NVMe SSD HAT, PoE+/PoE HAT, WiFi adapter boards.

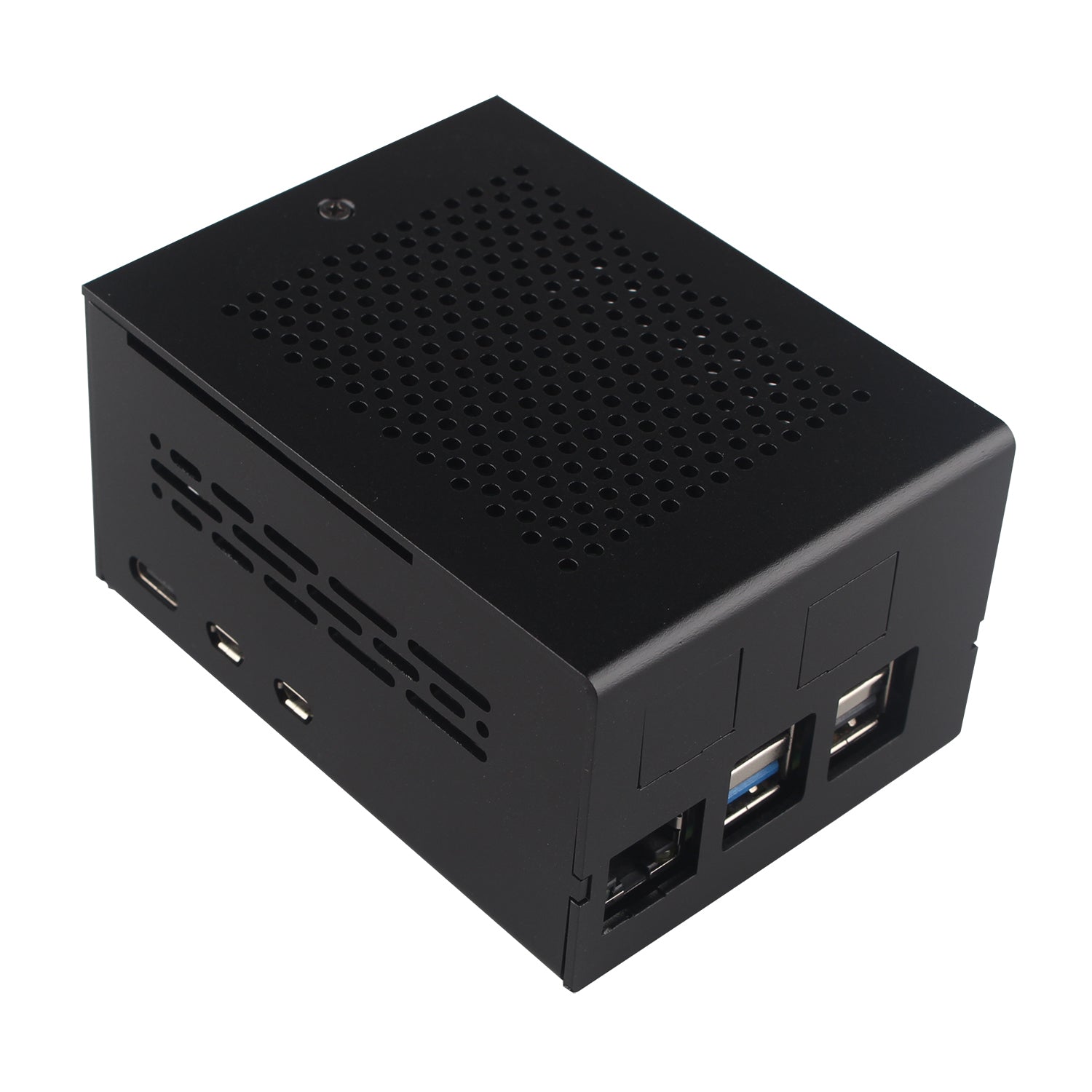

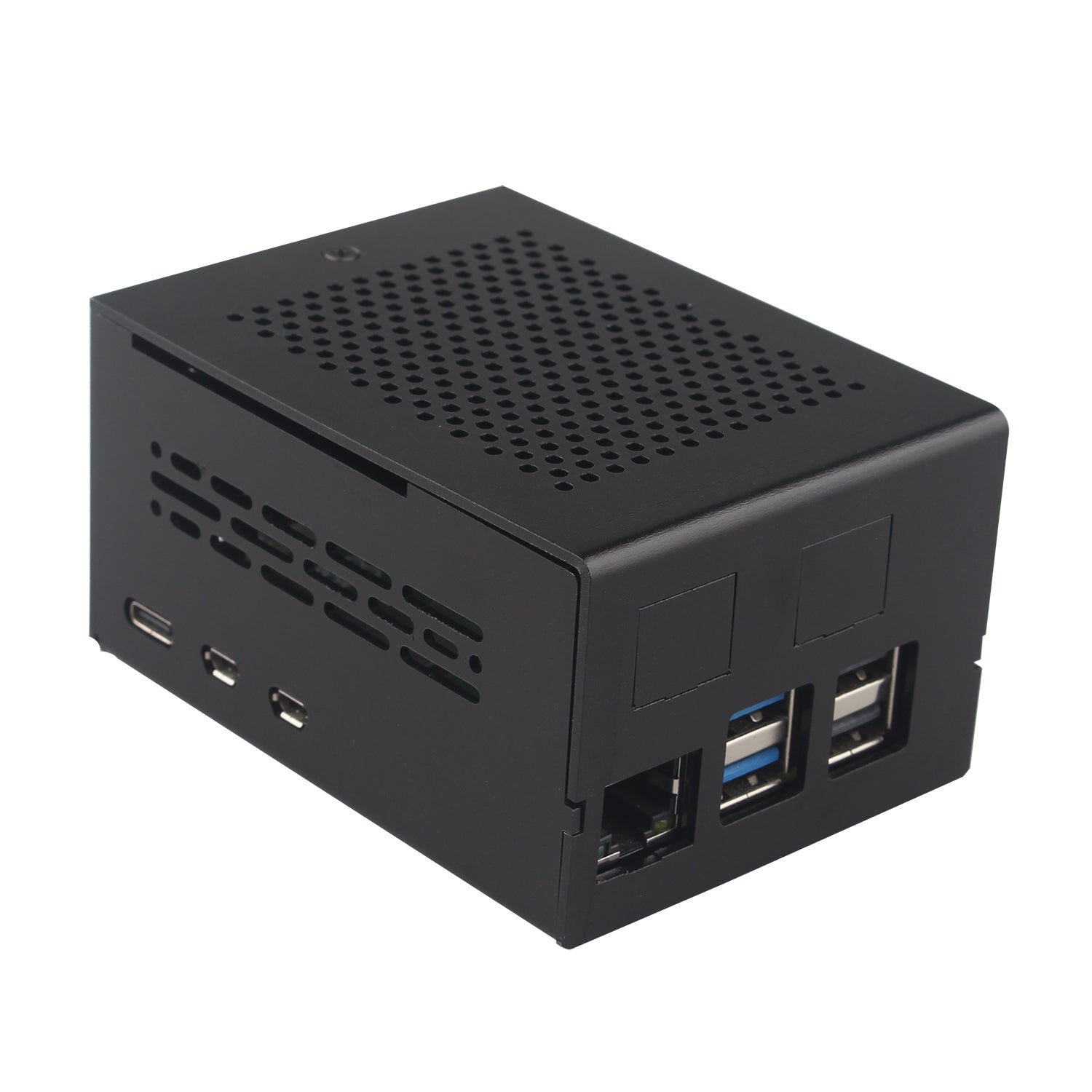

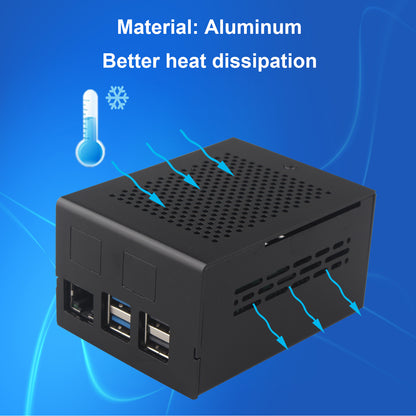

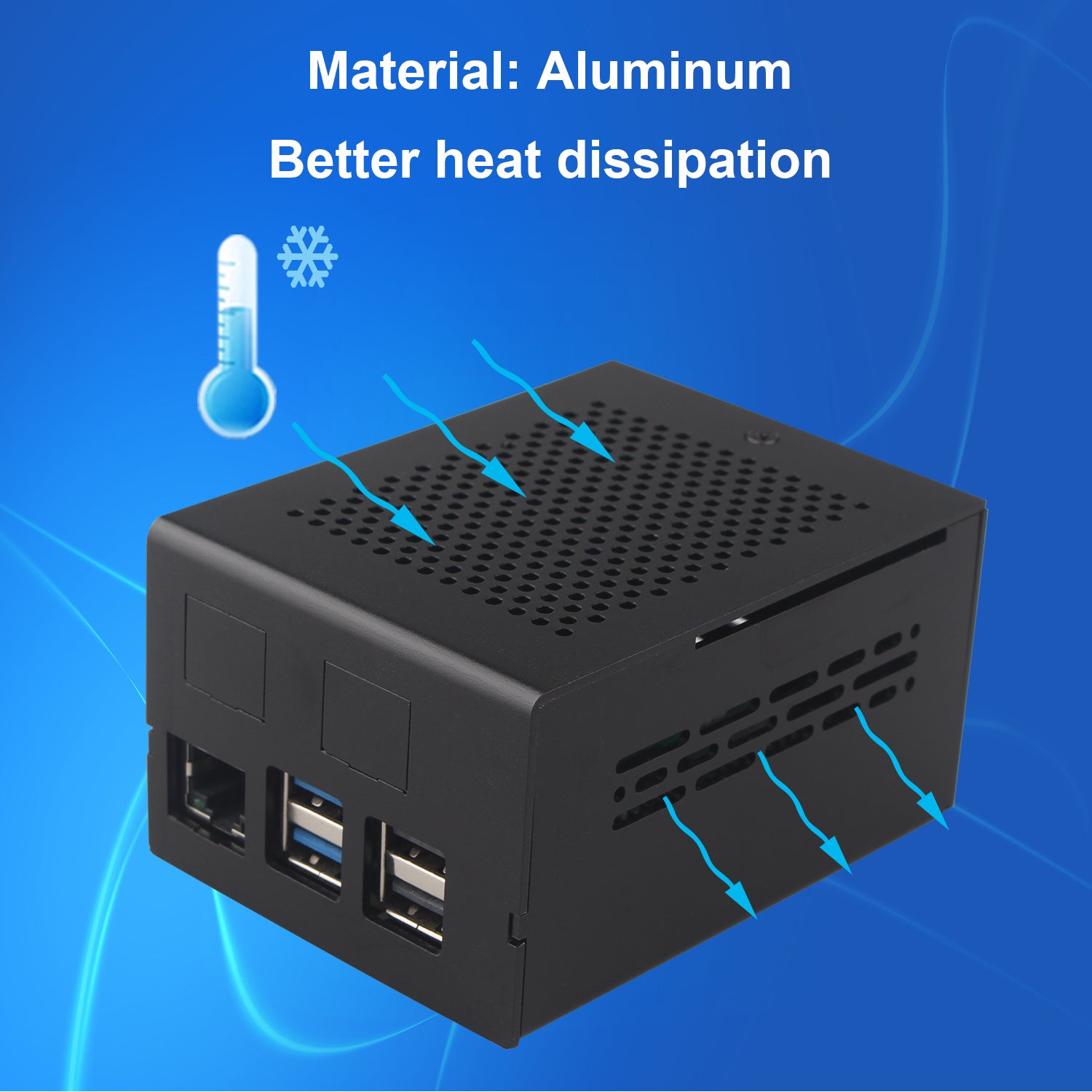

High-quality Material: Made of lightweight and durable aluminum material, it can offer excellent protection and heat dissipation, protect the Raspberry Pi 5 board from damage, dust and scratches.
Active Cooler Supported: Support installation of official Raspberry Pi 5 active cooler and other third-party cooling fans for heatsink. For active cooler, please refer to ZP536(ASIN: B0DSZYHNF5).
Easy Access to Pi 5: This aluminum case can access all ports of Pi 5, including USB-C power jack, micro HDMI ports, USB ports, Ethernet jack, micro SD card slot, power button, GPIO port, 4-lane MIPI DSI/CSI connectors.

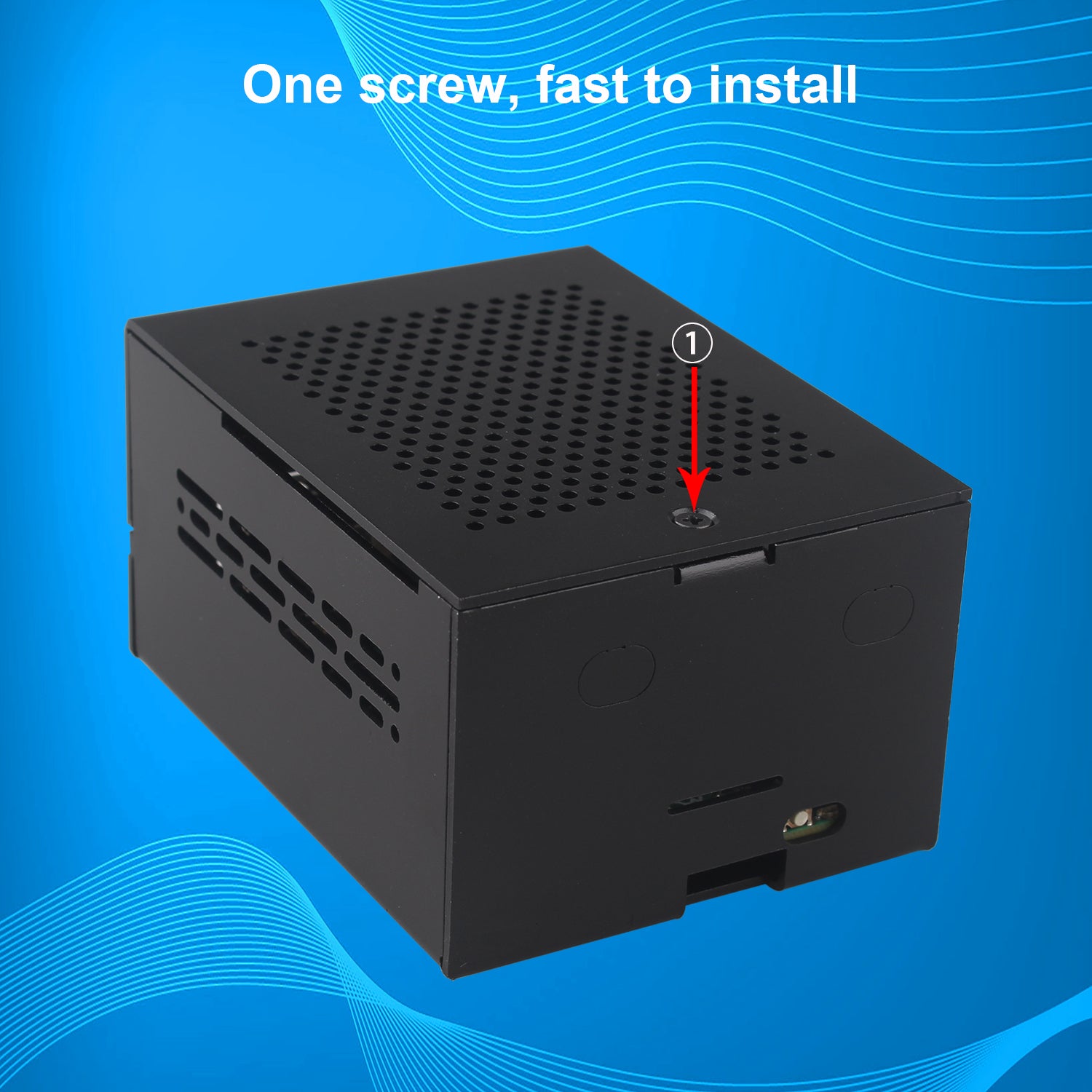

Practical Accessories: Only one screw is required to fix the top shell, easy and fast to install. Provide 4pcs M2.5x5+5mm spacers and 4pcs M2.5x6mm copper nuts for easy installation and fixation of the Pi 5 and expansion boards. A screwdriver is also provided.

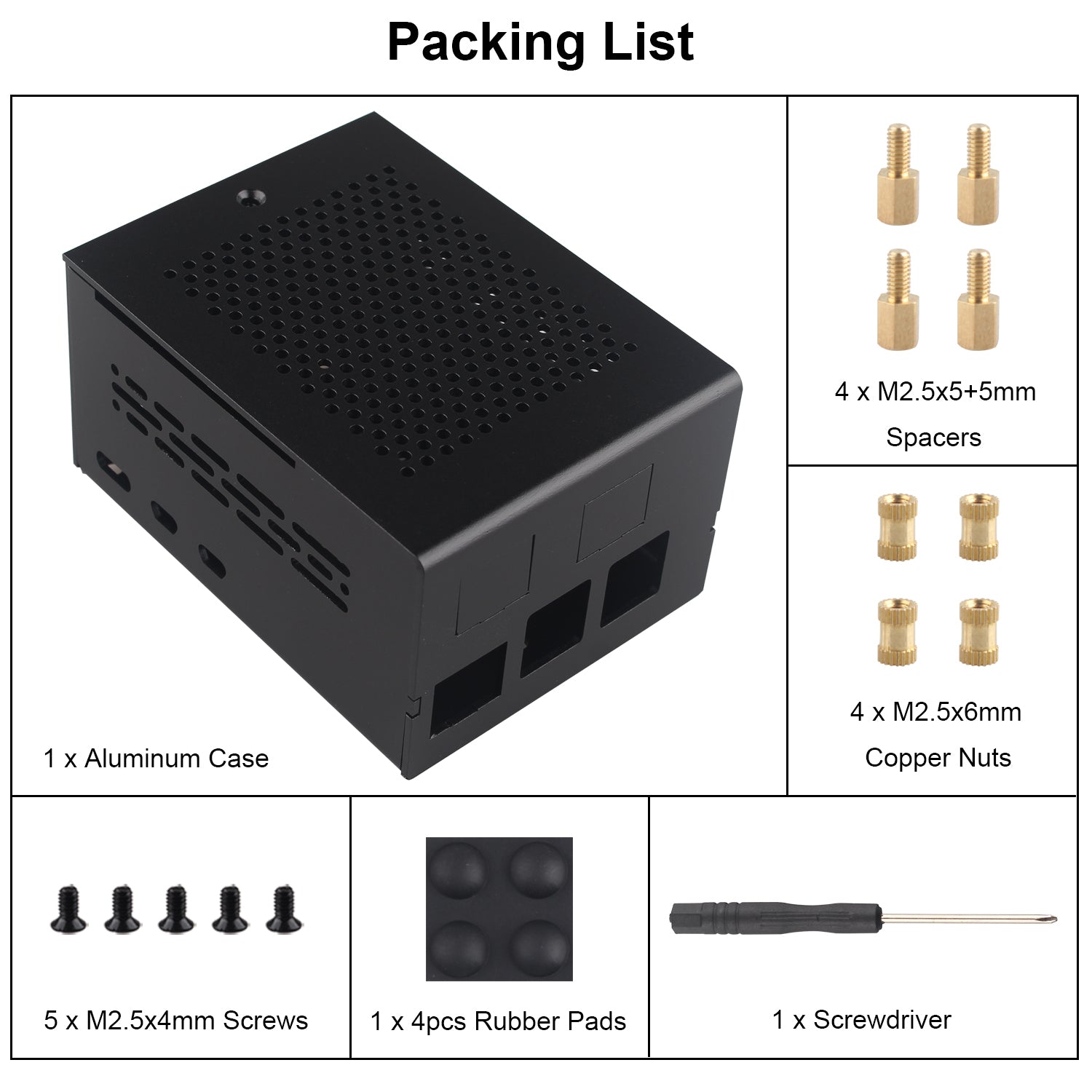

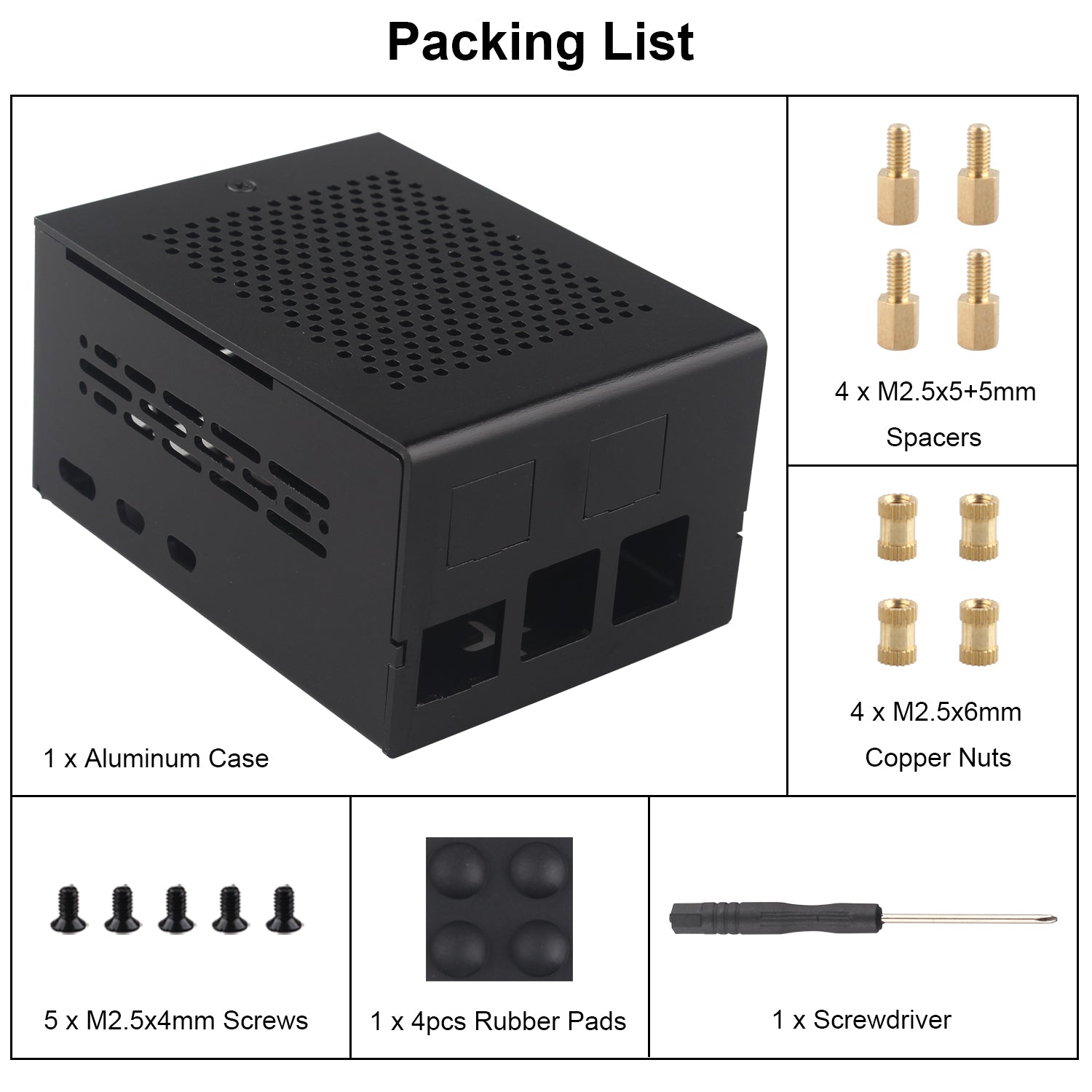

Packing List:
1 x Aluminum Case
4 x M2.5x5+5mm Spacers
4 x M2.5x6mm Copper Nuts
5 x M2.5x4mm Screws
1 x 4pcs Rubber Pads
1 x Screwdriver
Share
I like that this case has only one screw to hold the top on so it is easy to access the inside when you need to. I was able to install the Raspberry Pi R with the NVME hat and still had room for another hat as long as it is fairly flat in design. There are slots on the sides to allow wires from the header to be exposed outside of the case. The bottom has mounting slots but I was not able to find any screws in my collection that would fit. I had some difficulty with the screws on the bottom that hold the Pi in place. One got stripped out and another could not be inserted all the way but I did manage to get everything assembled.
This is a nicely built case with the parts you need. Unfortunately the NVMe hat that I had has a USB-C port on the back and prevent it from being installed in the case. So unfortunately I won't be using for the project I was hoping. That being said I have a lot of Pi's and should have another use for it!
I won't ding this on that because they do call out which ones fit, I was just hopeful!
Overall it's a nice little case! I would still recommend it for those that stick to the hats they say it works with!
I took one of my other Pi's with a suitable NVMe hat and that does fit, however I am using that in a CubeSat so it was just for the pictures to show they do fit!
